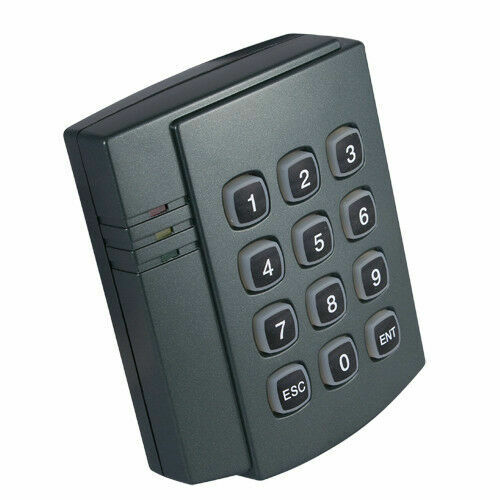

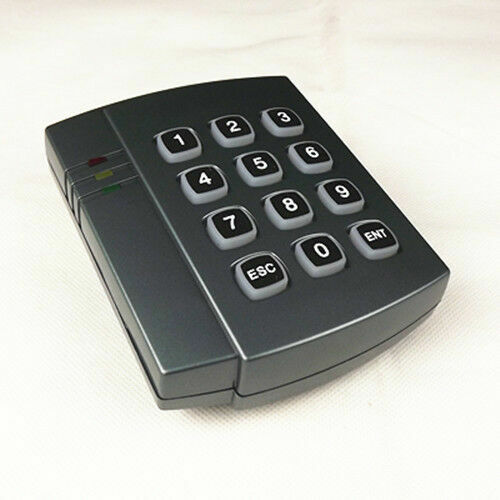

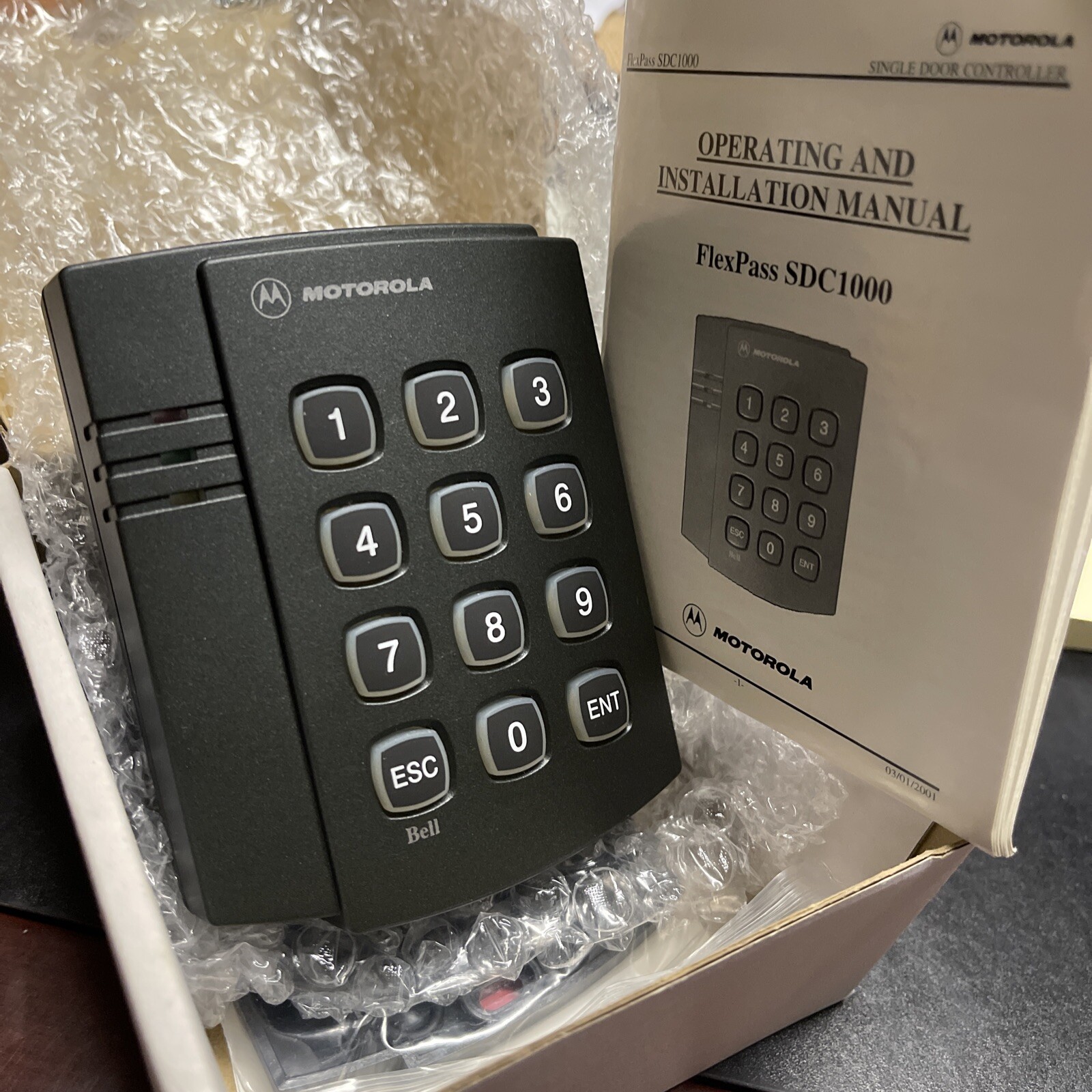

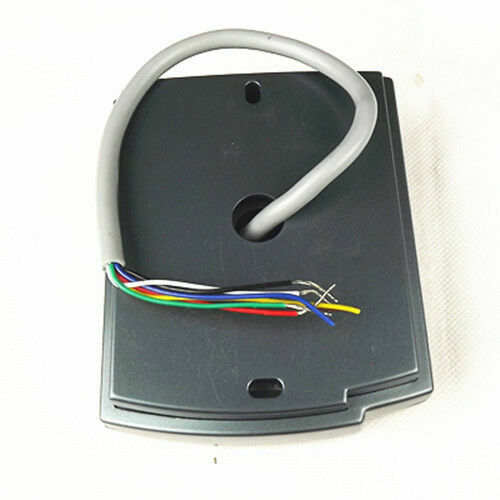

FlexPass SDC1000 Weatherproof PROX Keypad 125KHz Stand-Alone Door Controller
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Reading Range | 5-10cm |
| Cable Length | 10cm |
| MPN | does not apply |
| Data Transfering Range | 0-80M |
| Output | WG26/34 OPTIONAL |
| Brand | Fcard |
| Material | plastic casing&epoxy |
| Voltage | DC 9-12V |
| Model | FlexPass SDC1000 |
| Waterproof | Yes |
| Featured Refinements | Keypad |
| Country/Region Of Manufacture | China |
| Current | 100mA |

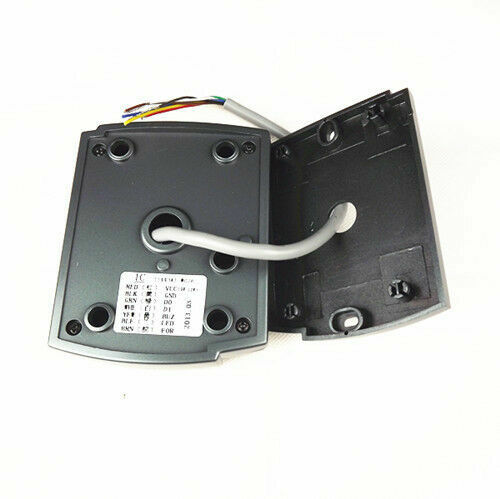

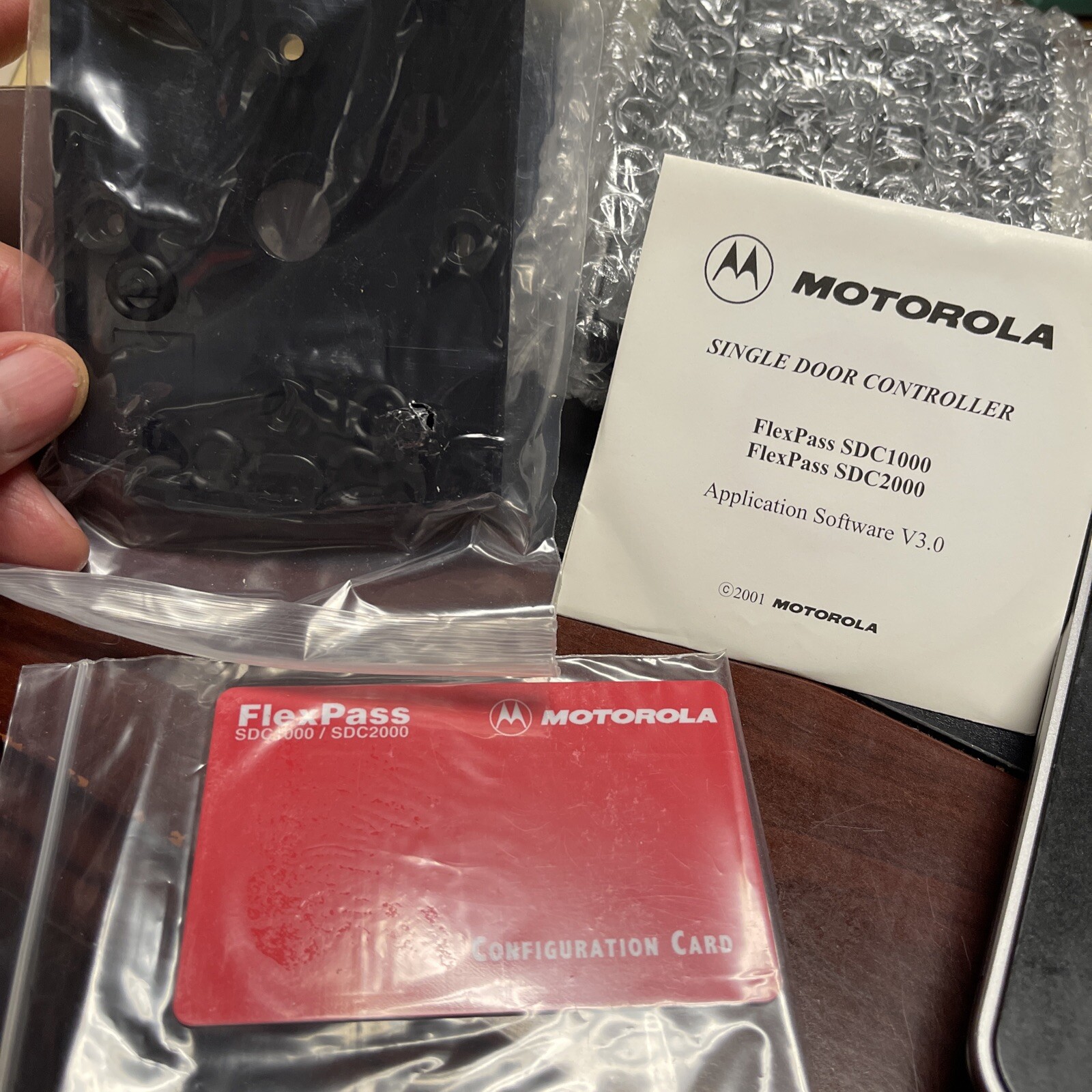

FlexPass SDC1000 Weatherproof Proximity Keypad 125KHz Stand-Alone Access Control single door controller.Stand-Alone single door Controller/Keypad MODE : PIN only, Card/Tag Only or PIN + Card/Tag)Configration Card included to set the MODE of operation (No other software or controller required)Card OnlyPIN OnlyCard/Tag + PIN Require 12 VDC (NOT INCLUDED) to power this Controller/KeyPad. Detailed Description:Specificationdecode time<0.2sCommunicationWeigand 26Card typeMotorola 26 bit card format if requiredInduction Distance10~18cmPower supplyDC12V (NOTE: Not Included)DATA transfer range Max 80m Currency<100MA Working Temperature 0~70°CWorking Humidity Less than 80% PhysicalDimension (LxWxH mm)108×88×32 Package plastic casing &epoxy saturatedWeight (kg)0.3Colordark green PIN descriptionPin Color Description 1 RED DC12V 2 BLACKGND3 GREEN WG data0(RS485+) 4 WHITE WG data1(RS485-) 5 YELLOW BUZZER 6 BLUE LED 7 BROWN Select, No Contact means W26,Connect to GND means About Wiegand Wiegand 26bits Format Interface Wiegand 26bits Format Interface comprises of 26bits data including 24 user bits and 2 parity check bits. The 24 user bits correspond to the latter 40 user bits in tags. Bit 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 PE D D D D D D D D D D D D D D D D D D D D D D D D PO E E E E E E E E E E E E O O O O O O O O O O O O D40 D41 D42 D43 D50 D51 D52 D53 D60 D61 D62 D63 D70 D71 D72 D73 D80 D81 D82 D83 D90 D91 D92 D93 1. PE as even parity check bit and PO as odd parity check bit; 2. The bits marked with E go for even parity check and the bits marked with O go for odd parity check; Wiegand 26bits Format Timing SYMBOL DESCRIPTION VALUE( Typ. ) THD Sending Start Delay 0.06ms TSD Sending Stop Delay 2ms TDW Data pulse width 0.4ms TIW Data pulse interval width 2ms
