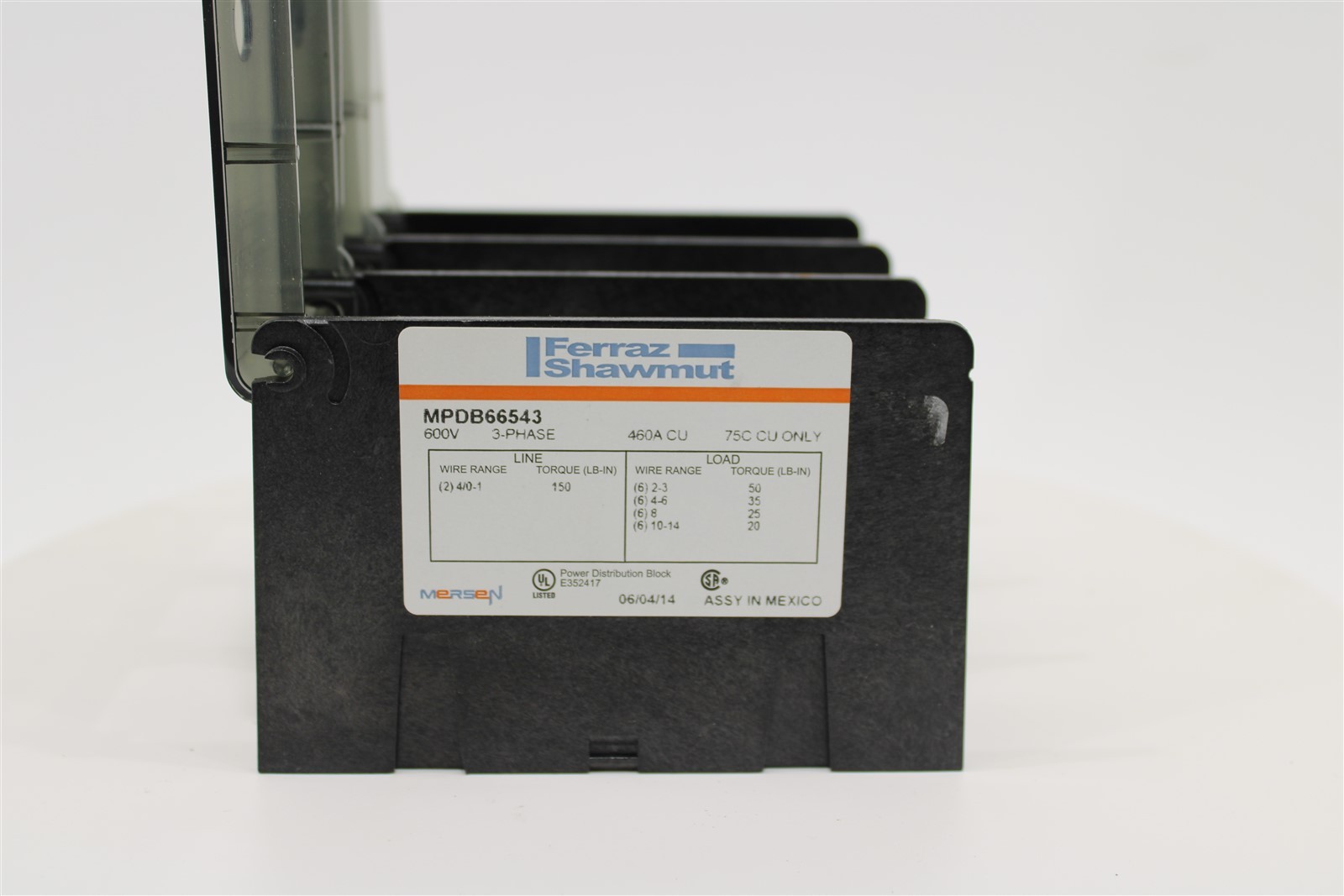

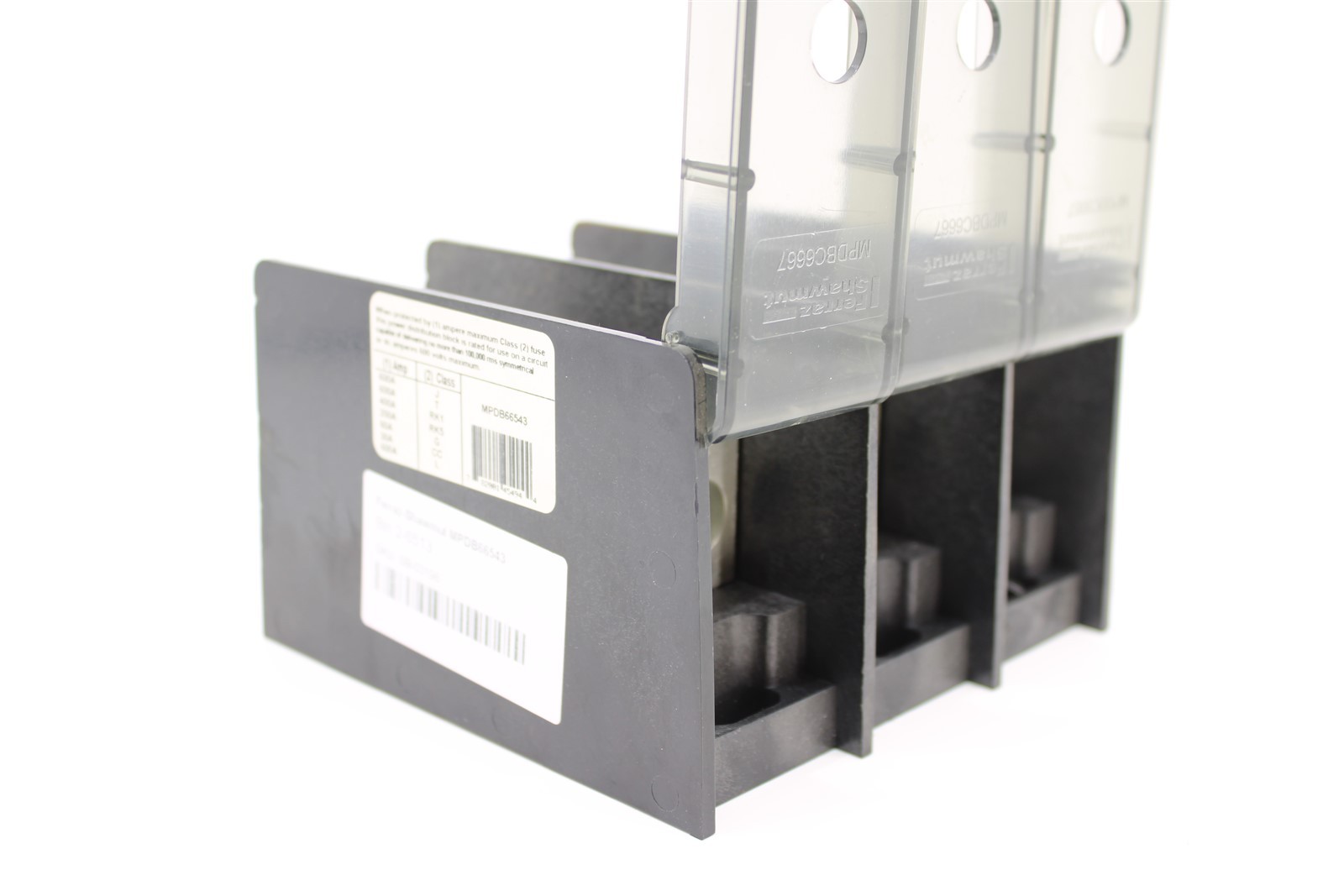

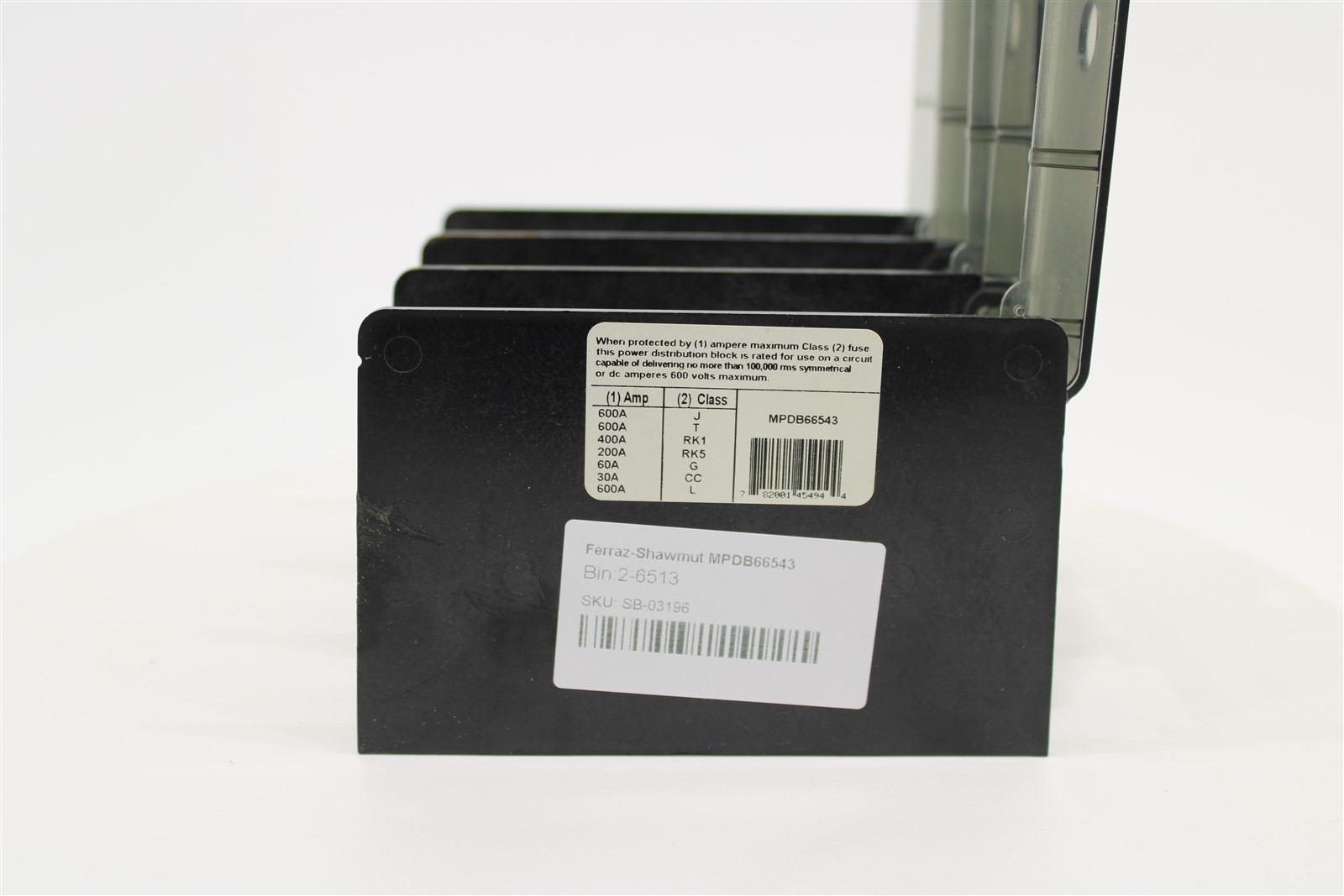

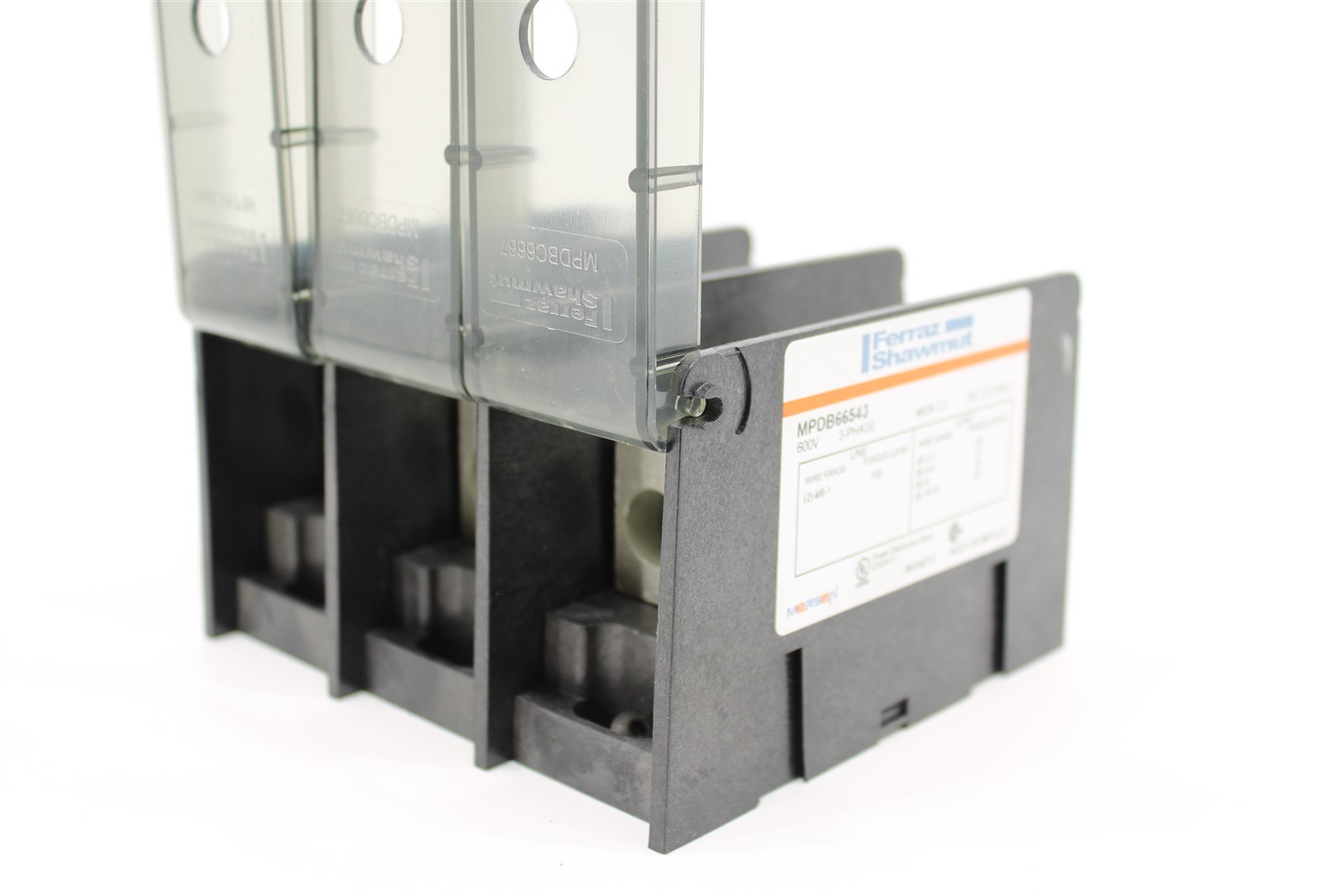

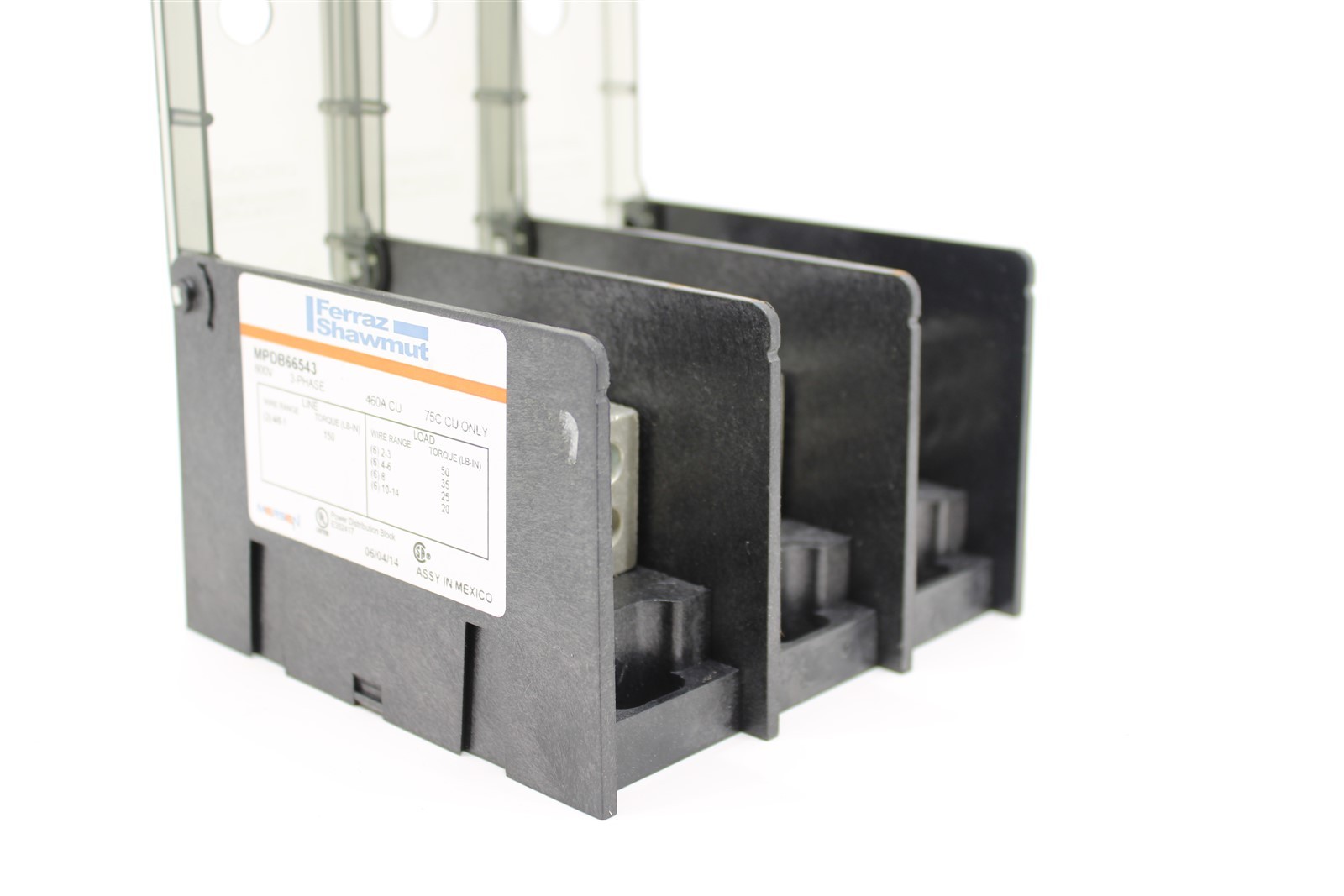

Ferraz-Shawmut MPDB66543 MPDB Series Power Distribution Block | 460A | 3-Pole
USD 149.99 USD
Specifications
| Brand | Ferraz-Shawmut |
| MPN | MPDB66543 |
| Contact Material | Copper |
| Compatible Mounting Type | Panel |
| Compatible Wire Gauge (AWG) | 1-5 |
| Country Of Origin | United States |
| Country/Region Of Manufacture | United States |

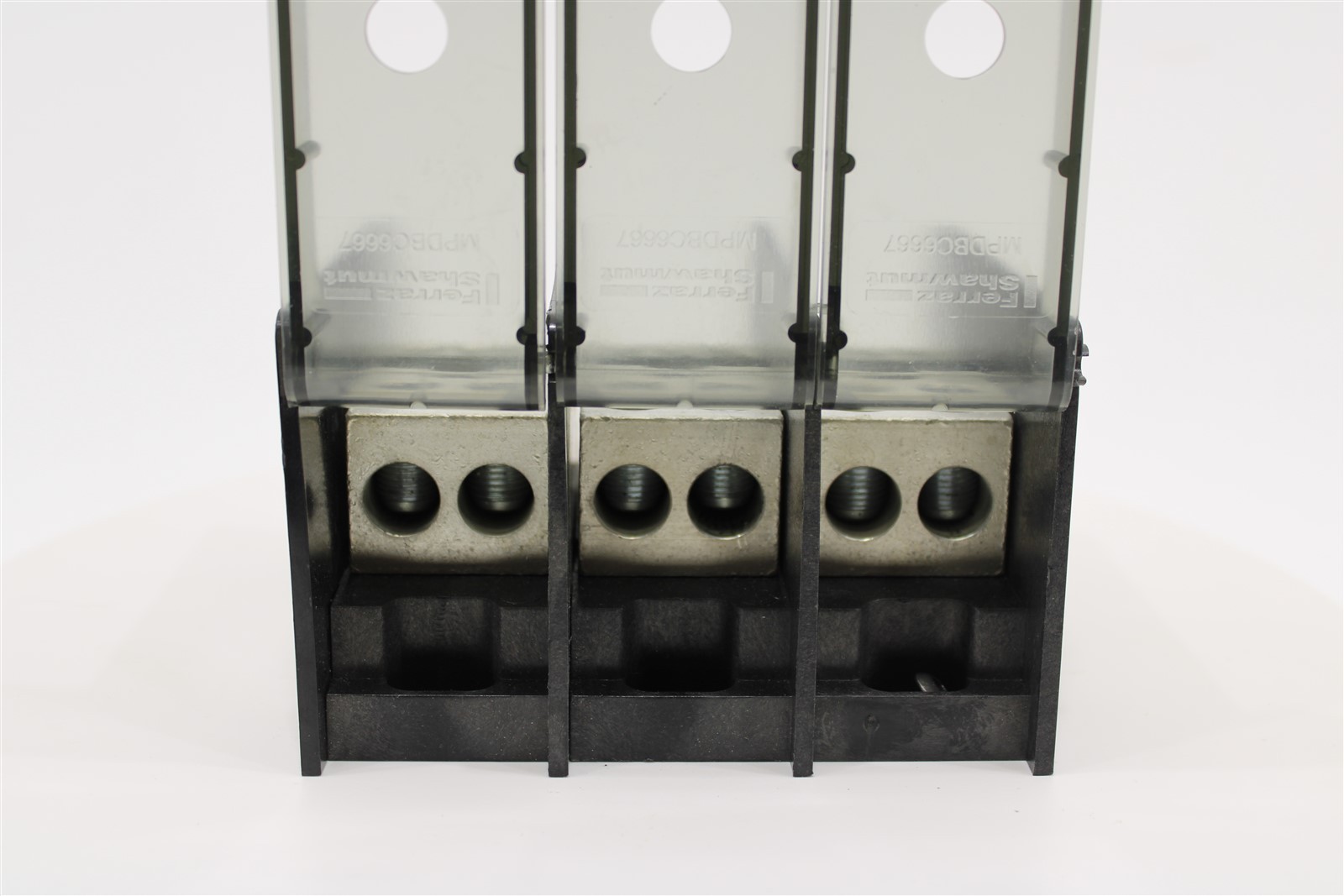

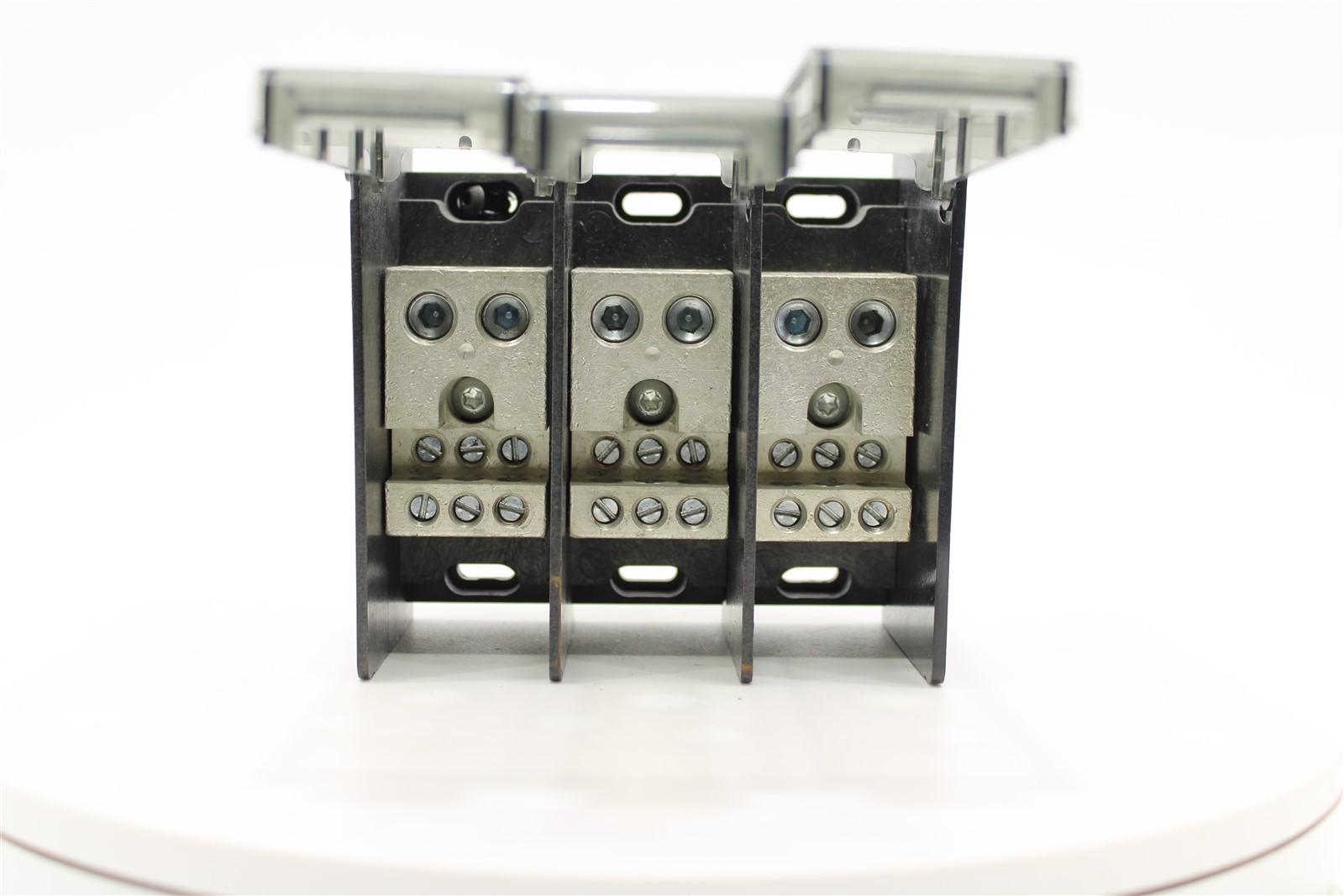

The aluminum-conductor equivalent of this block is the MPDB67543. MPN: MPDB66543. This block is rated at 460A per pole (copper) and 1000V AC/DC, certified to UL 1953 and CSA standards. The line side (primary) accepts 4/0–#6 AWG copper wire with 2 openings per pole; the load side (secondary) accepts #2–#14 AWG copper wire with 6 openings per pole, allowing a single primary feed to be split into up to 6 secondary branch circuits per pole.
