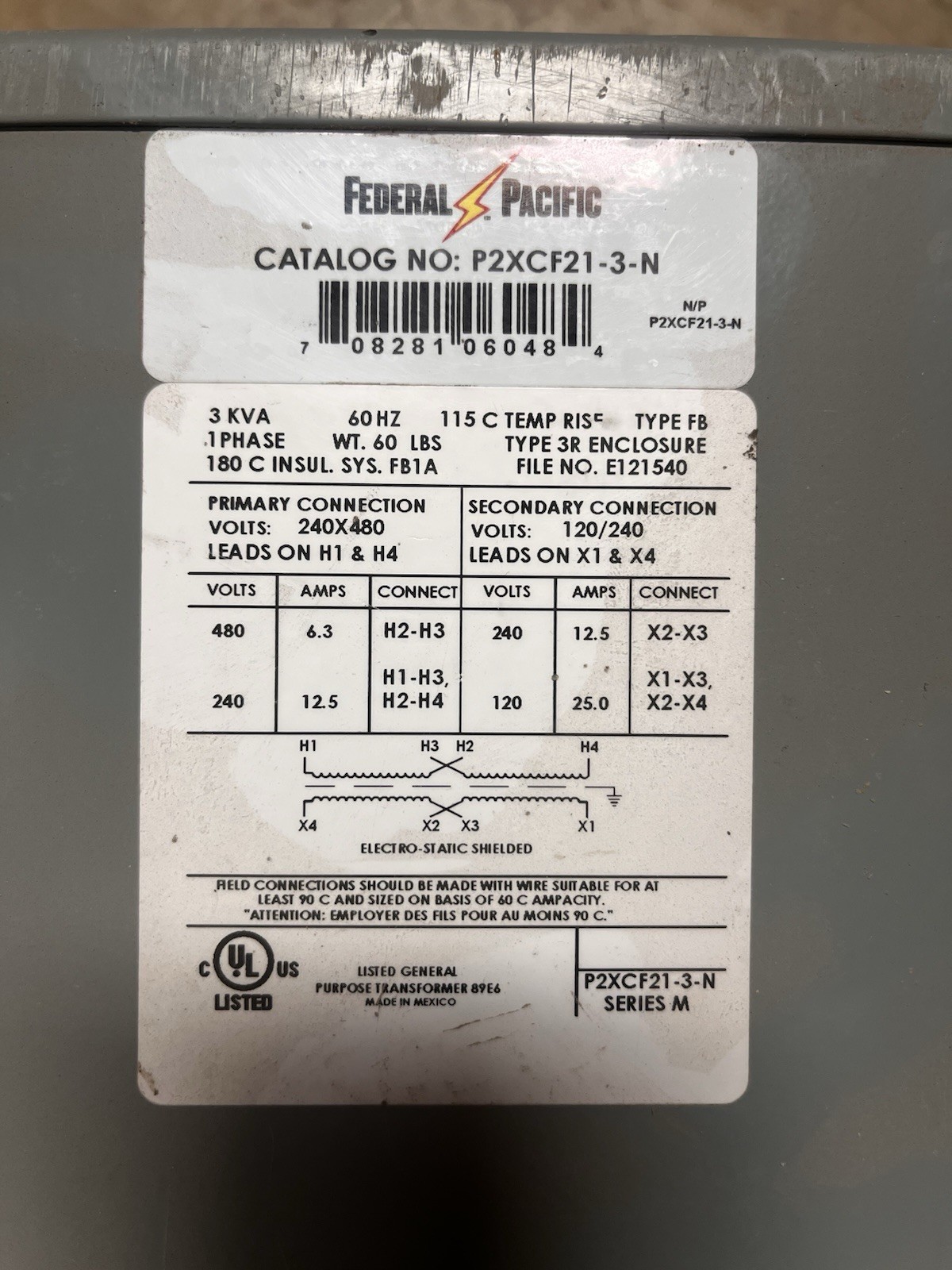

Federal Pacific General Purpose Transformer P2XCF21-3-N 3kVA 1PH 60Hz

USD 300.00 USD

SKU: 45gozaRC

Brand: Federal Pacific

MPN: P2XCF21-3-N

Condition: Used

Tags: 0 in 0 V 0 Ω 12.5 A 120 Volts 120/240 V 2:1 240x480 V 25.0 A 3 kVA 60 Hz AC to AC Federal Pacific Gray Hardwired IP00 P2XCF21-3-N Series M Step-down Wall Mount Wire Leads

Categories: Business & Industrial

Specifications

Power Rating	3 kVA
Plug Type	Hardwired
Minimum Operating Frequency	60 Hz
Primary Current Rating	12.5 A
MPN	P2XCF21-3-N
Item Length	0 in
Turns Ratio	2:1
Item Height	0 in
Secondary Voltage Rating (DC)	0 V
Secondary Impedance	0 Ω
Secondary Voltage Rating (AC)	120/240 V
Item Width	0 in
Mounting Style	Wall Mount
Current Conversion	AC to AC
Termination Style	Wire Leads
Color	Gray
Conversion Function	Step-down
Brand	Federal Pacific
Series	Series M
Primary Voltage Rating (AC)	240x480 V
IP Rating	IP00
Primary Voltage Rating (DC)	0 V
Primary Impedance	0 Ω
Outlet Type	Hardwired
Maximum Operating Frequency	60 Hz
Secondary Current Rating	25.0 A

Details:• Capacity: 3 KVA• Phase: 1 Phase, 60 Hz• Primary Voltage: 240 x 480V• Secondary Voltage: 120 / 240V• Enclosure: Type 3R (Indoor/Outdoor rated)
