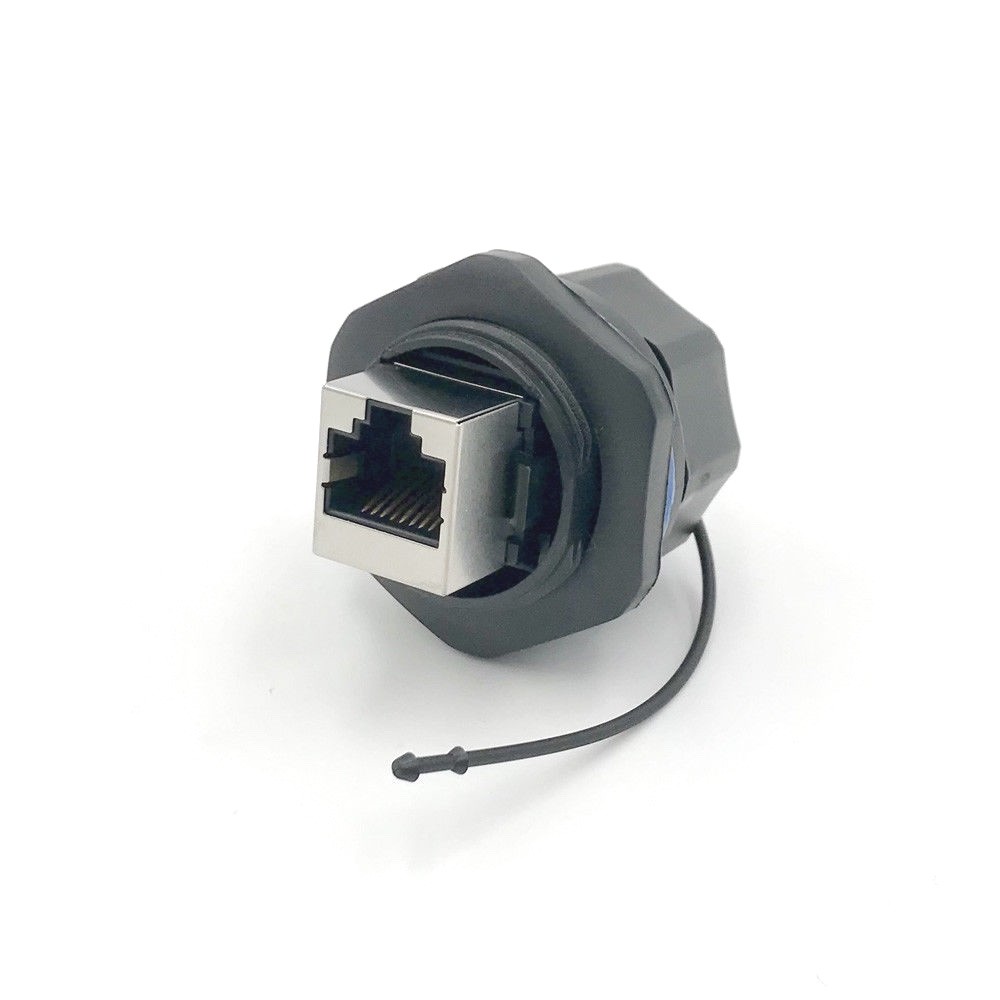

Ethernet Connector RJ45 Socket Port Panel Mount Receptacles Outdoor Waterproof
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Gender | Female |
| Compatible Mounting Type | Panel |
| Country/Region Of Manufacture | China |
| Model | YT-RJ45-JSX-04-002 |
| Minimum Operating Temperature (Actual) | -40°C |
| Minimum Operating Temperature (Nominal) | -40°C |
| Maximum Operating Temperature (Nominal) | 80°C |
| Connecting Mode | Bayonet Connect |
| Certificate | UL, CE, RoHS |
| Pairing Plug | YT-RJ45-CPE-01-001 |
| Maximum Operating Temperature (Actual) | 80°C |
| IP Rating | IP67 |
| Contact Material | ABS & Zinc |
| MPN | YT-RJ45-JSX-04-002 |
| Body Material | ABS |
| Brand | CNLINKO |
We are the only authorized eBay retailer for "CNLINKO" brand connector products, with complete warranty. Selling Item Model Number: YT-RJ45-JSX-04-002 Pairing Plug Model Number: YT-RJ45-CPE-01-001 or any standard RJ-45 connector. Features: ● Compliance with D level or CAT 3e standard of EIA568B and ISO/IEC11801,RJ45 connectors compatible CAT5e, data transfer rate reach 10GBIT/S● Multi-style connecting modes: 1/4 bayonet connect (YT01), quickly plug/unplug(YT09/04)● Applicable for harsh environments● Cable jacket with solid diecasted shell and unique dual-clip-clip wire saddle● Sheath of cable applicable for common RJ45 plugs● Waterproof and non-waterproof design, protection level IP67 if waterproof and dustproof● Electroplated shell against wind and rain● Shielding system with high frequency noise immunity and electromagnetic interference protection Specification: Cable specification0.15m㎡～0.2m㎡/26-24 AWGDiameter range Φ5.5mm～Φ7mmContact diameter × number8Rated Current (A)1.5AOperating voltage (AC.V.rms)1000V Contact resistance<30mΩInsulation resistance＞500MΩProtection levelIP65/IP67Durability＞500 timesWorking temperature-40℃～80℃Assembly Wire1/4 bayonet connectHousing, the insulating parts High-performance engineering plastics Hardware Zinc Alloy (pearl hard chrome) Copper needlesCopper alloy (gold-plated 4U) Waterproof circleSilica gelFlammability ratingUL94-V0 YT-RJ45 Series Specification Sheet
