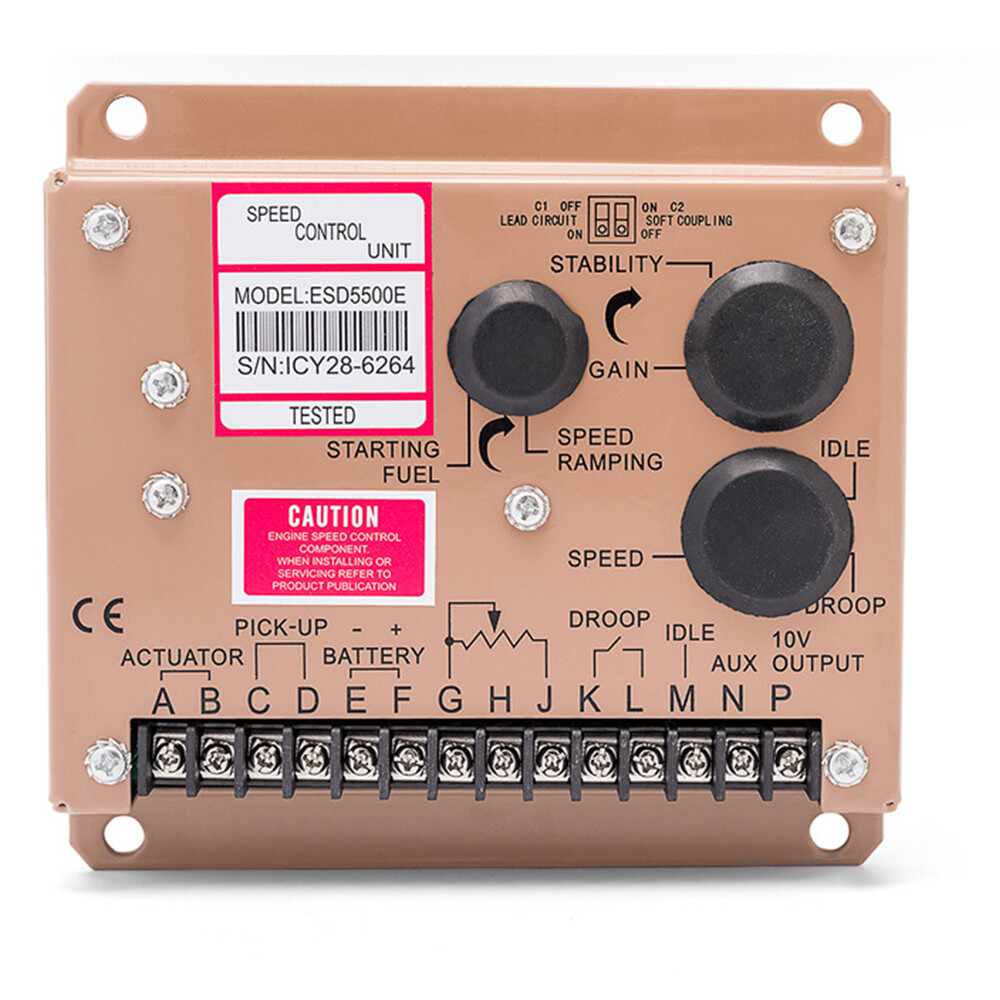

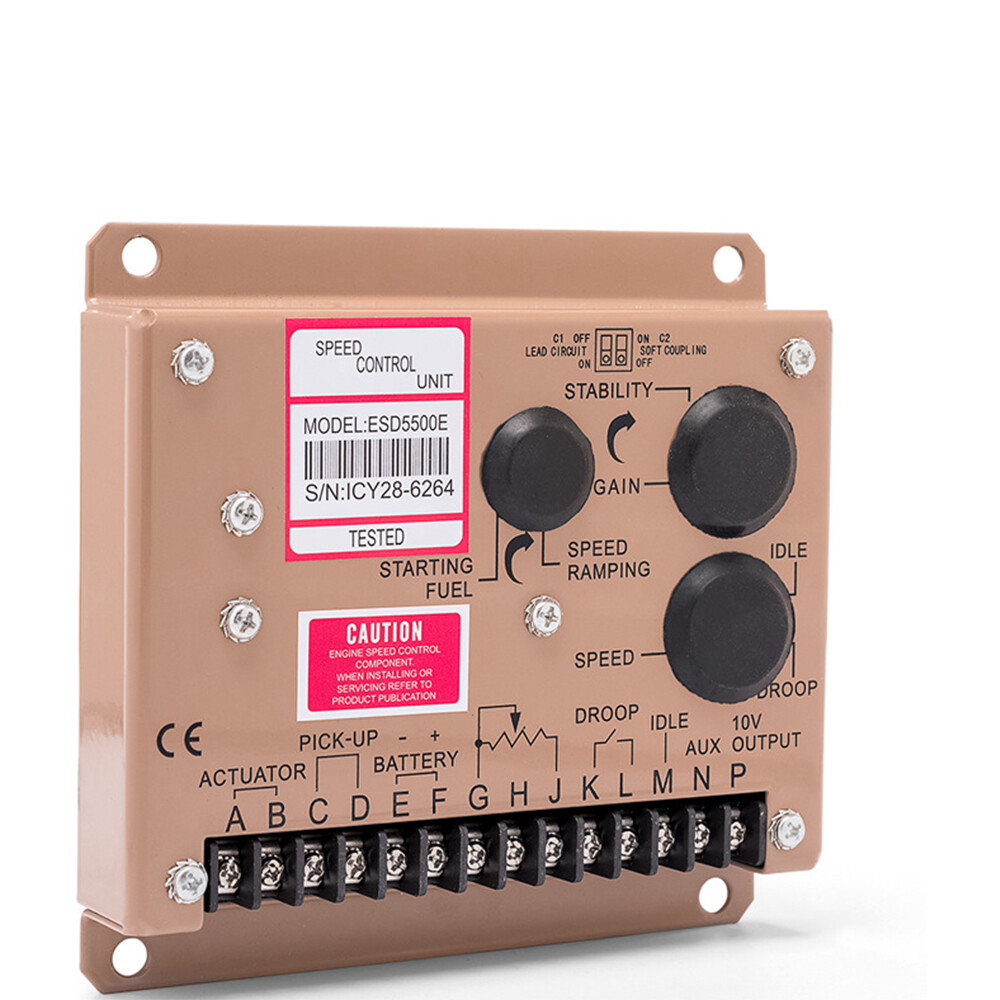

ESD5500E 12/24V Speed Governor Controller & Sensor MSP6729 & ADC120 Actuator
USD 127.61 USD
Specifications
| Brand | Unbranded |

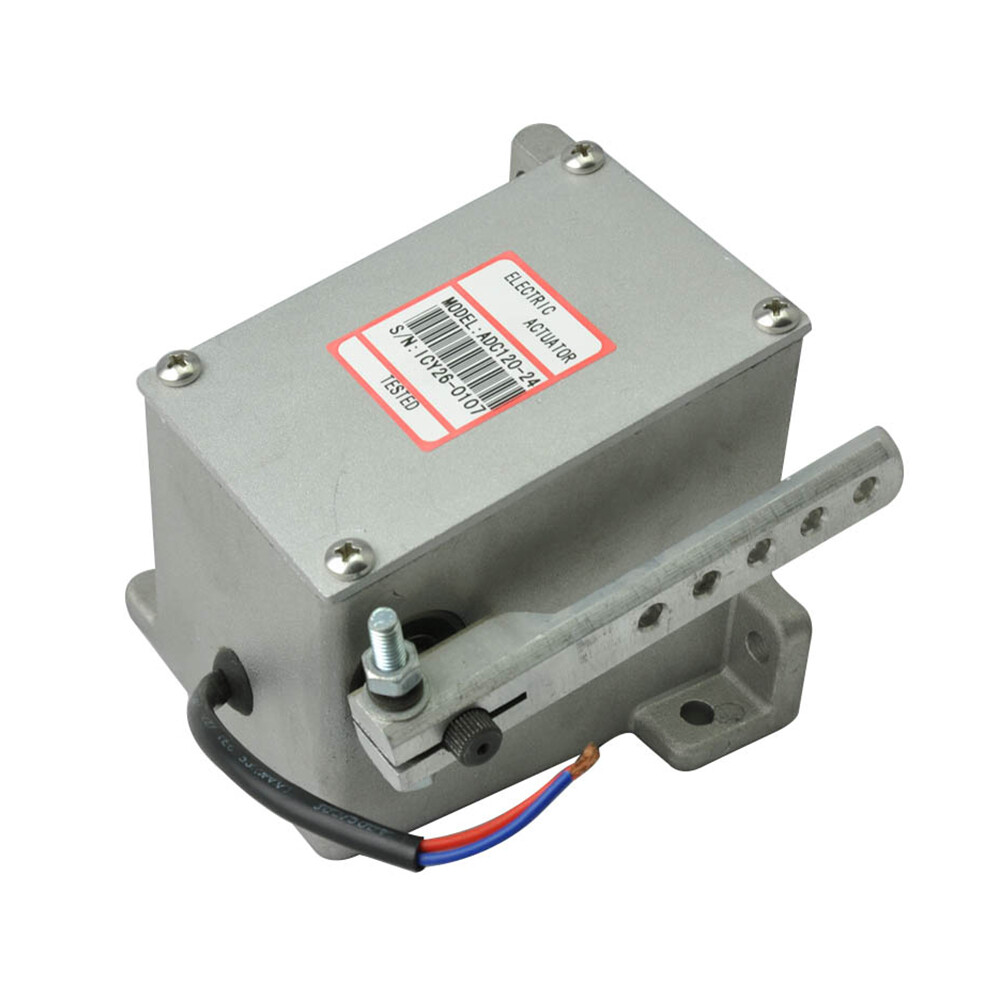

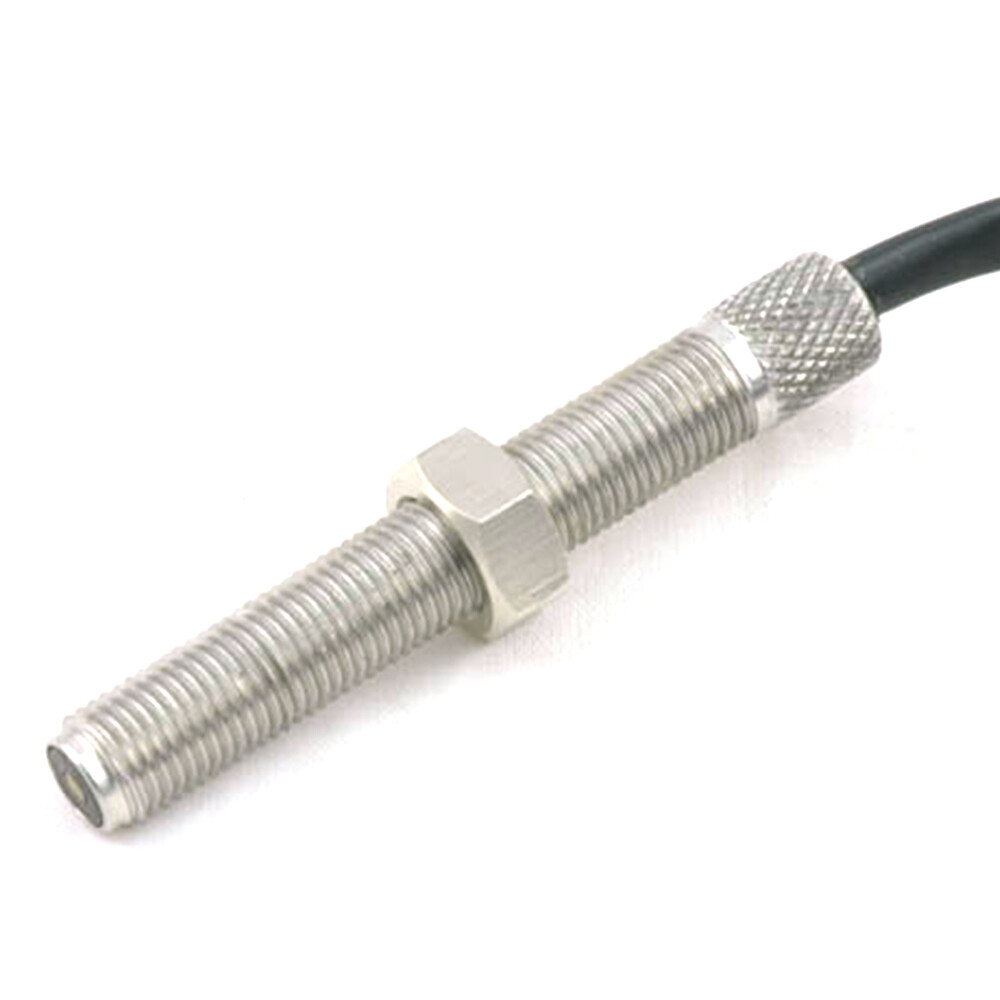

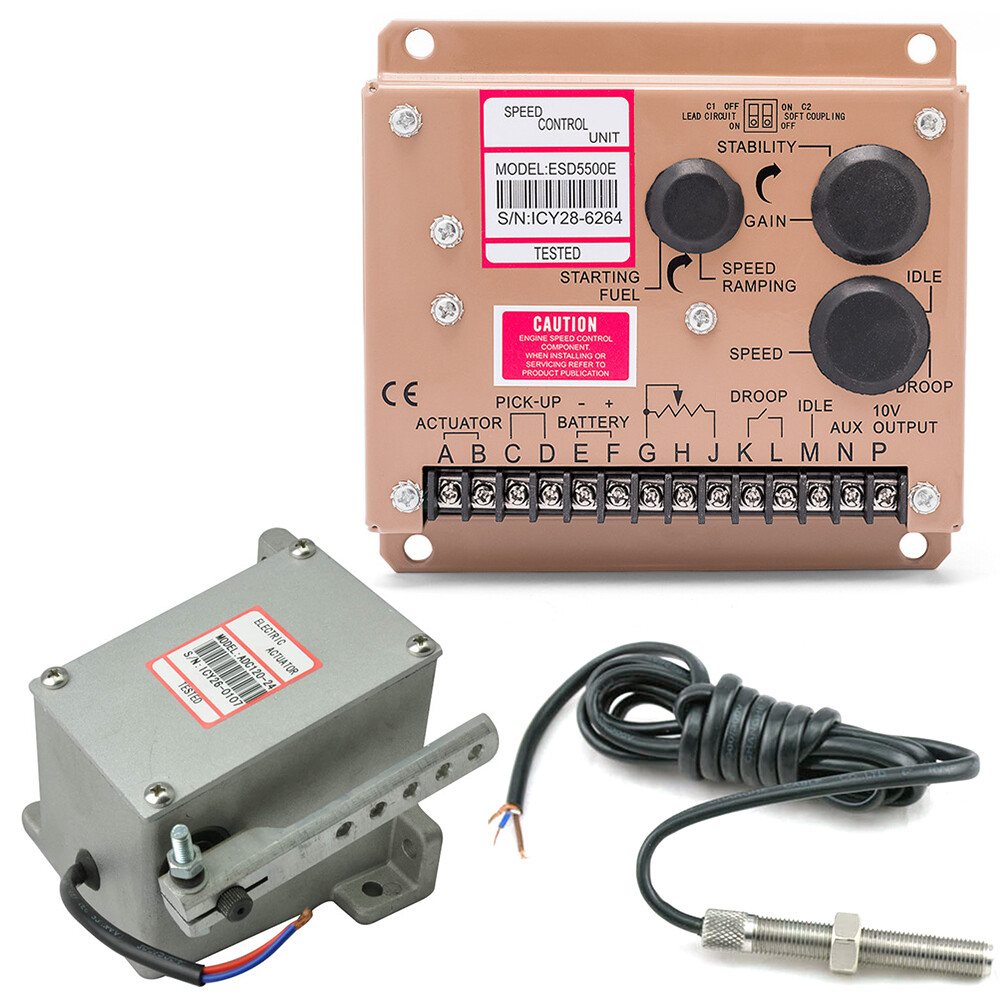

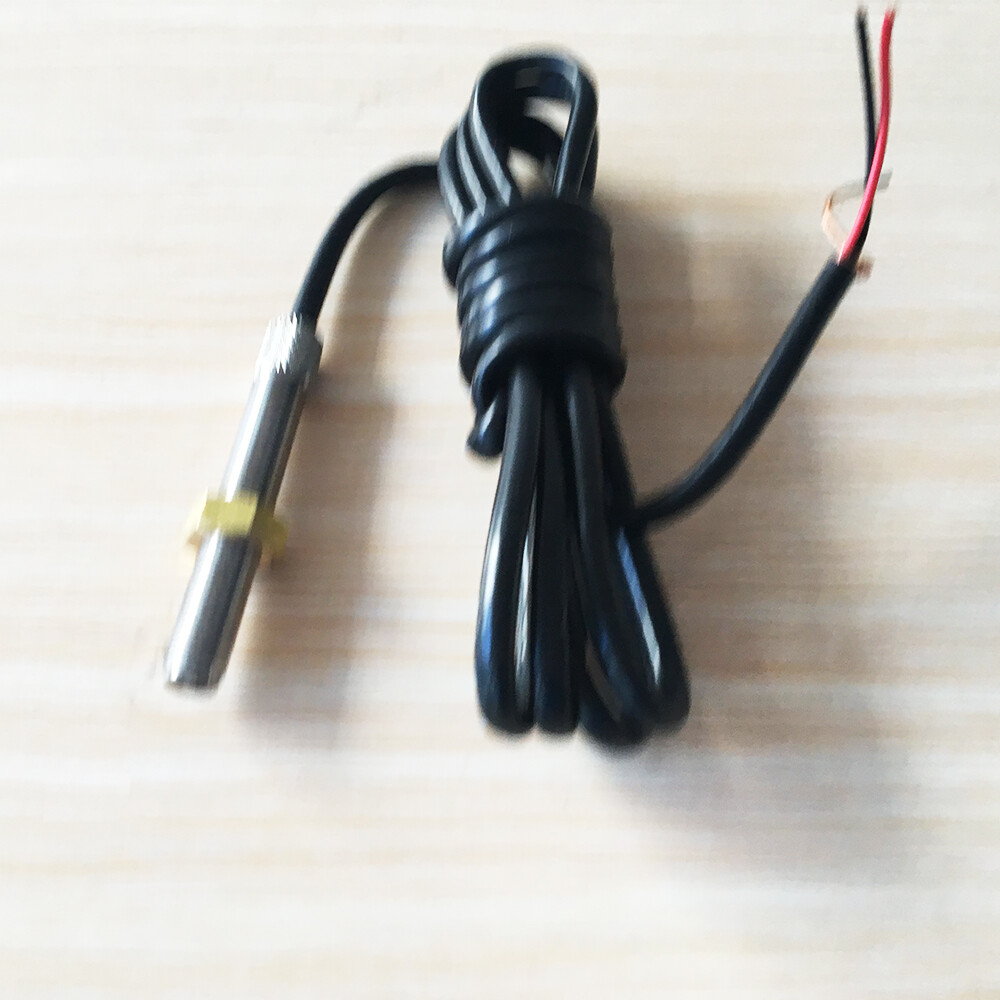

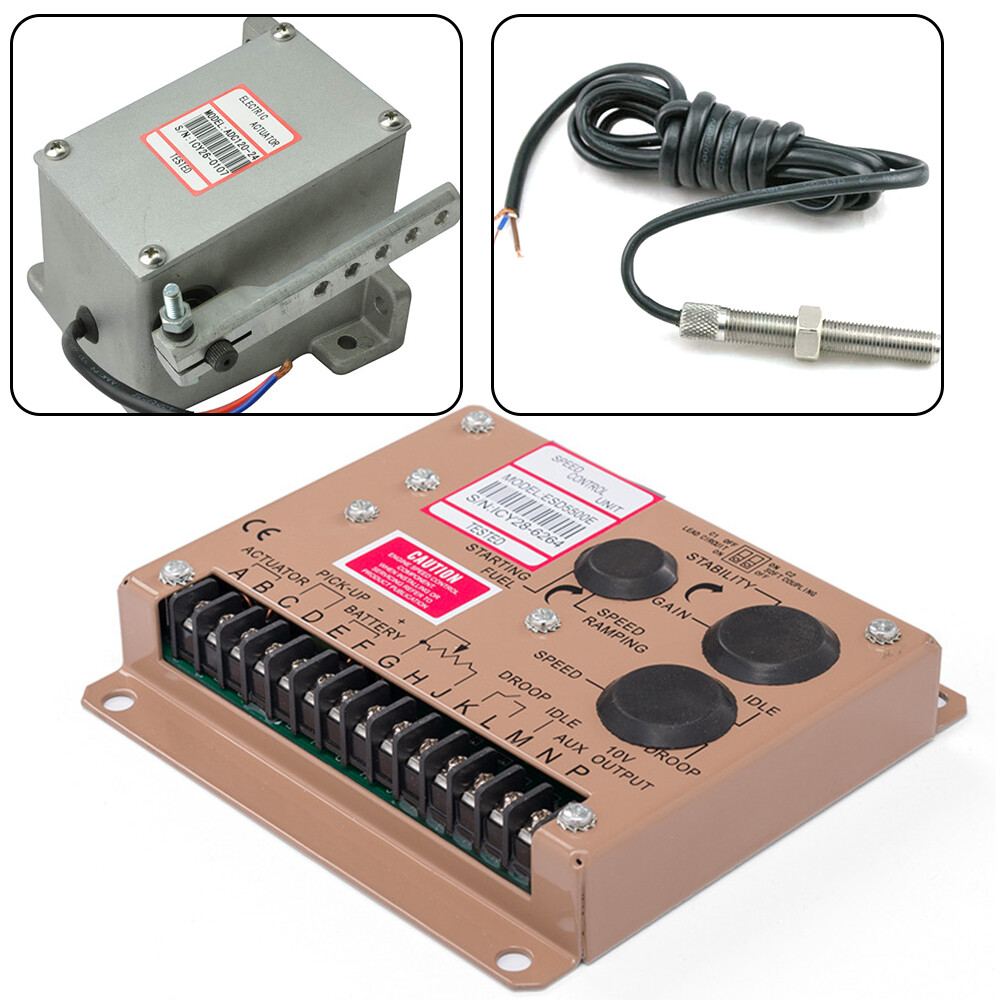

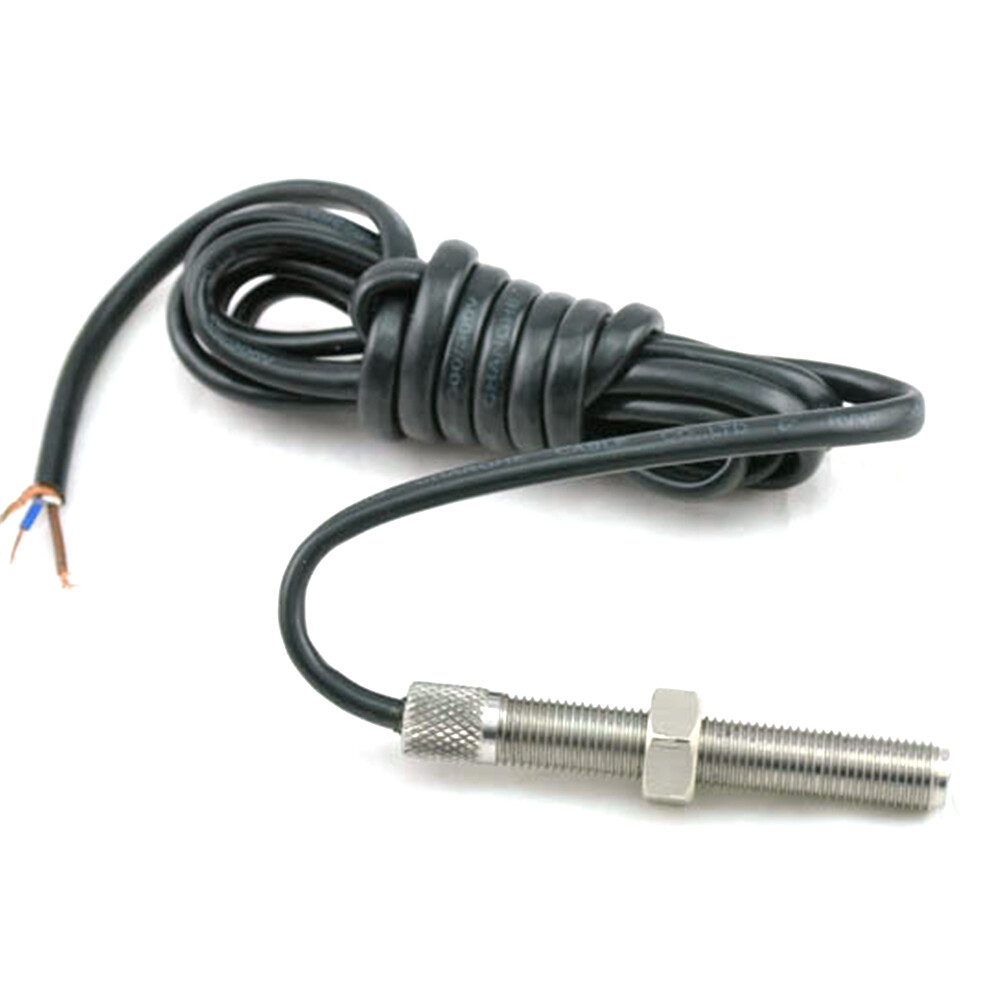

Package Included: 1x ESD5500E speed controller 1x MSP6729 Magnetic Speed Sensor 1x ADC120 actuator Speed Sensor MSP6729 Specifications: Inductance：142MH+25% Resistance：300 Ohms Maximum Thread Size: 3/8-24UNF-2A Proximity to Gear Teeth：0.025-0.035in.(0.64-0.89mm.) Temperature Range：-55℃ to 105℃ IDLE Ouput：1.5 volts AC minimum Max Output：30 volts AC ADC120-1224 Actuator SPECIFICATIONS PERFORMANCE: Available Torque :Max1.0Lb-ft(1.4Nm) Maximum Operating Shaft Angular Travel:25+1degree CW/CCW POWER INPUT: Operating voltage 12V/24V DCNormal Operating Current 2A at 12V/24V DC 1A at 24VDC Maximum CurrentContinuously Rated 6 A at 12V/24V DC,3 A at 24VDC.
