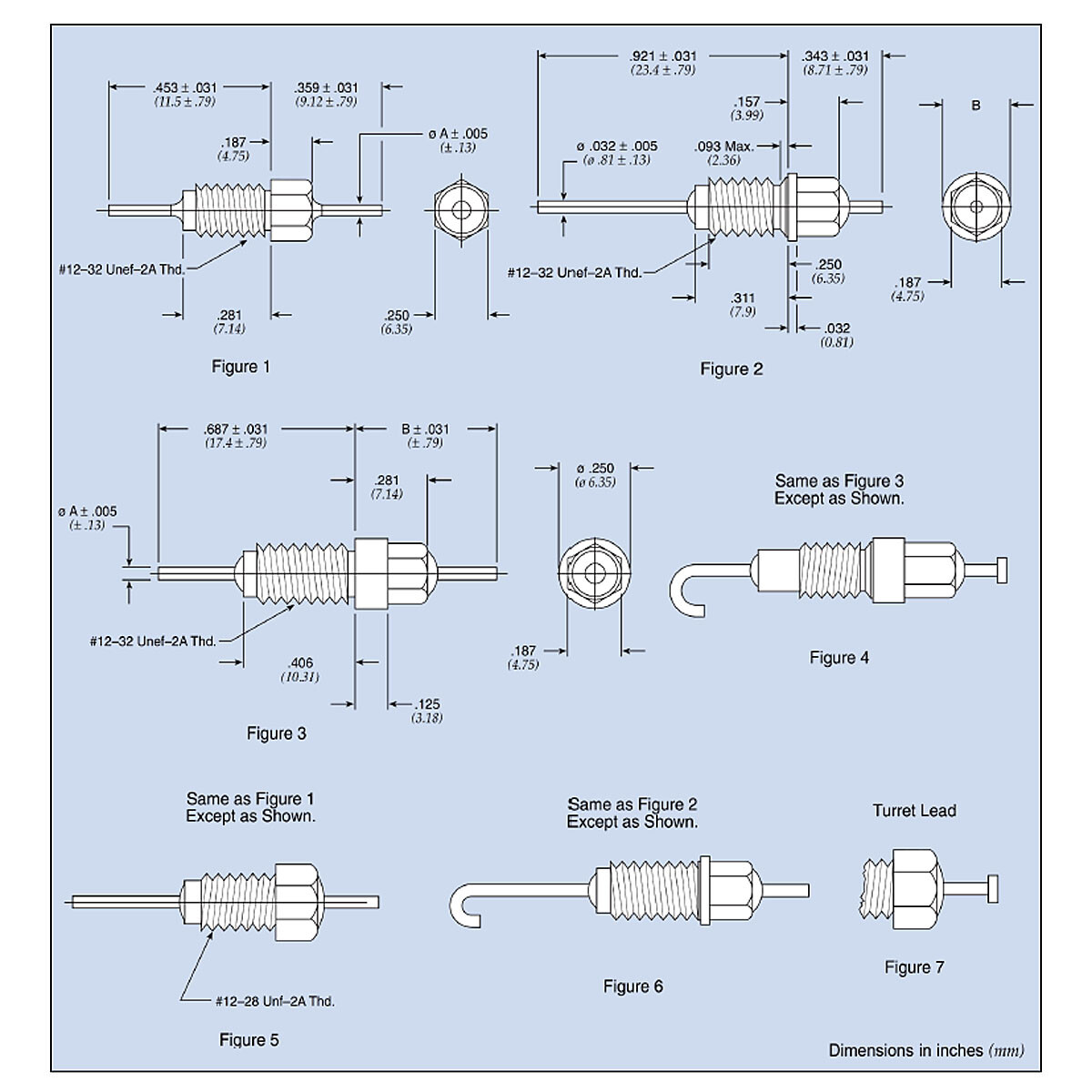

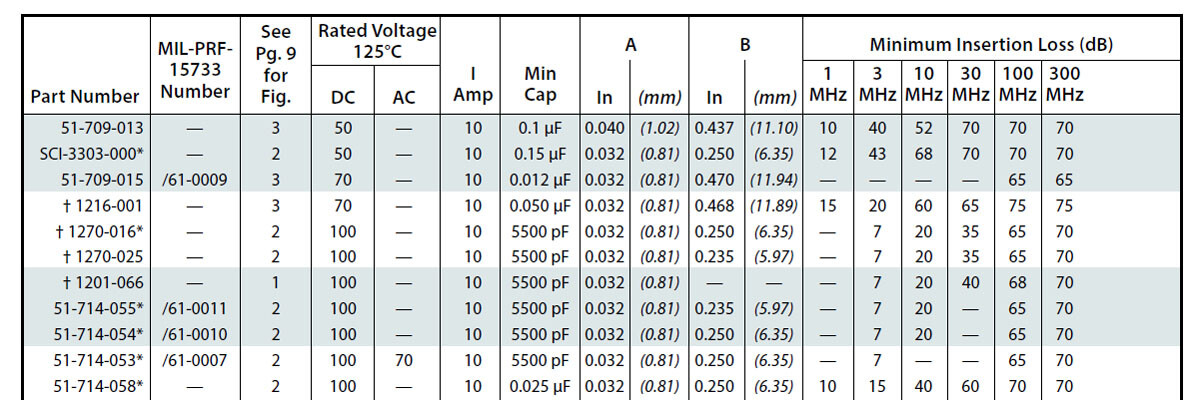

ERIE / API 1216-001 10Amp Feedthrough pi-type EMI Filter .05uF 60dB @ 10MHz
USD 14.95 USD
Specifications
| MPN | 1216-001 |
| Termination Style | Axial |
| Resistance Rating | 0.01 Ω |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Maximum Operating Temperature | 125 °C (257 °F) |
| Packaging | Bag |
| Maximum Operating Voltage | 70 V |
| Brand | Murata Erie / API |
| Mounting Style | Bolt-in 12-32 thread |
| Type | Passive Filter |
These EMI flters are easily mounted in a tapped hole or through-hole with supplied nut and lock-washer. Primarily used in flltering signal/data lines, and DC power lines.
