Endicott Research Group ERG – E505-.4050U – DC/DC Converter. 5V to 40VDC 50mA
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Country/Region Of Manufacture | United States |
| Mounting Style | PCB |
| Output Voltage Rating (DC) | 40 V |
| Installation Area | Indoor |
| Type | DC to DC Converter |
| MPN | E505-.4050U |
| Nominal Voltage Rating (DC) | 12 V |
| Nominal Current Rating | 50 mA |
| Model | E-series |
| Actual Input Voltage Rating (AC) | 12Vdc |
| Actual Output Voltage Rating (DC) | 40 VDC |

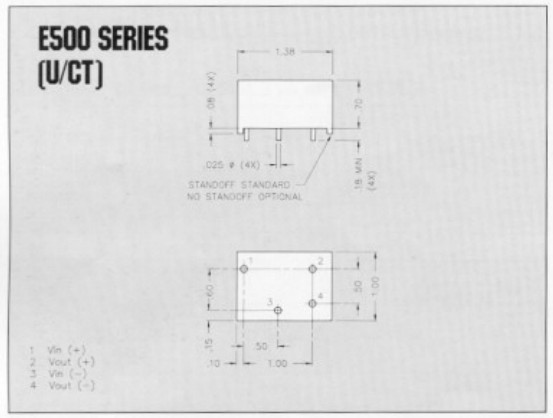

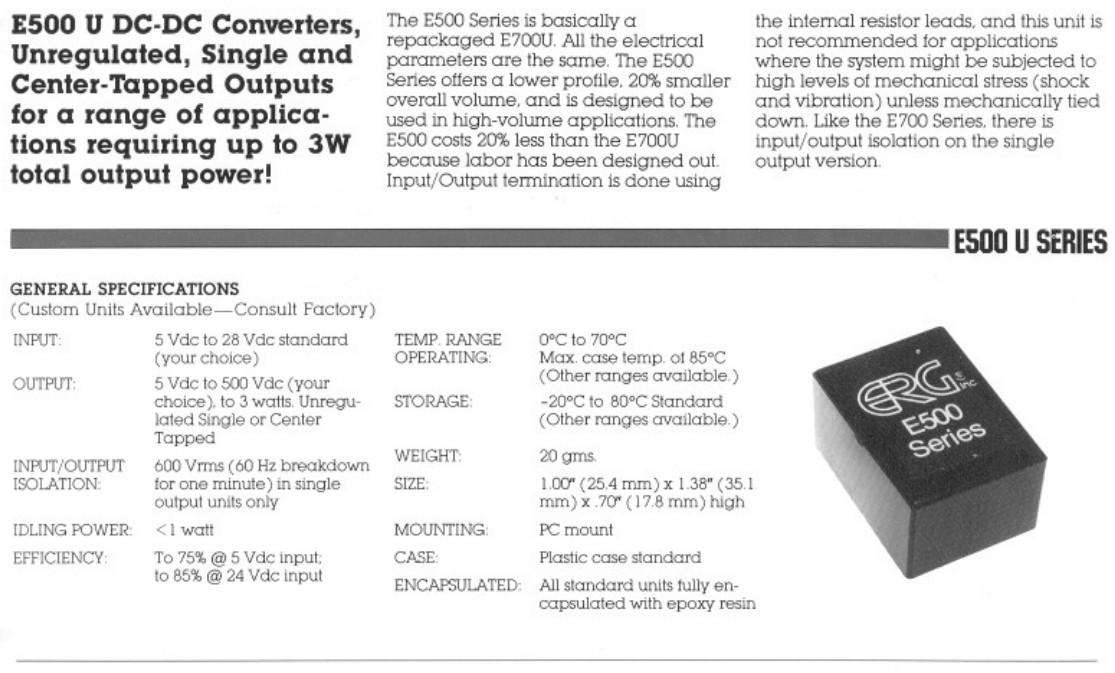

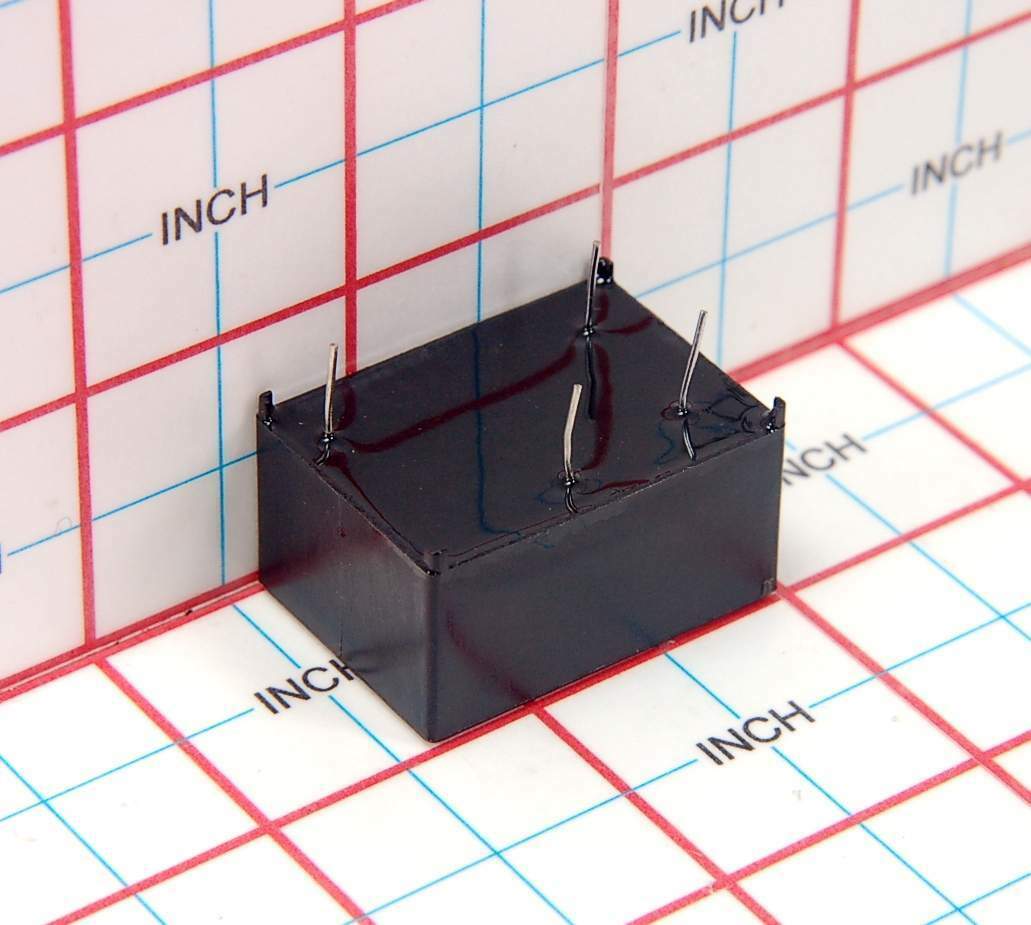

Endicott Research Group ERG - E505-.4050U DC/DC Converter. ERG’s E505-.4050U is a 500 Series DC-DC converter that converts a 5 VDC input voltage to 40 VDC@ 50mA, unregulated. There are many custom variations within each Series. 5VDC to 40VDC 50mAmps DC -DC CONVERTER - DC Transformer E 500 Series Unregulated Encapsulated New 5-Pin module PCB Mount Overall Dimensions: 1.4" (35.7mm) wide x 1" (25.4mm) deep x 0.777" (19.7mm) tall. Additional Information: http://ergpower.com/pdf30/DC_DC_Converters.pdf Applications: The voltage needed could be for any number of applications, such as an ink jet printer used for CAD drawings or medical data where each jet needs 40 VDC to operate and that voltage is not in the system; so a DC-DC converter can be installed to convert 12 VDC to 40 VDC for each jet. Other applications that ERG’s DC-DC converters are used for include fuel pumps, test equipment and many others. Proudly Made in USA
