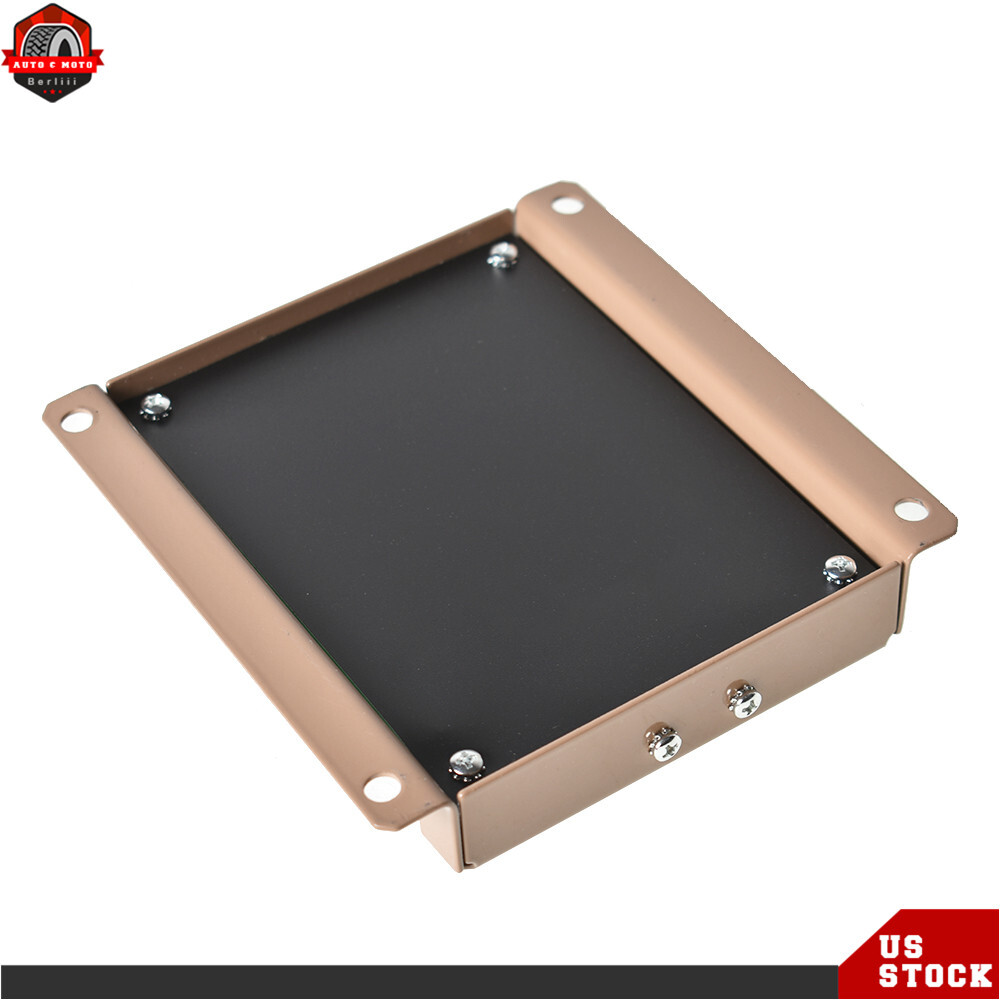

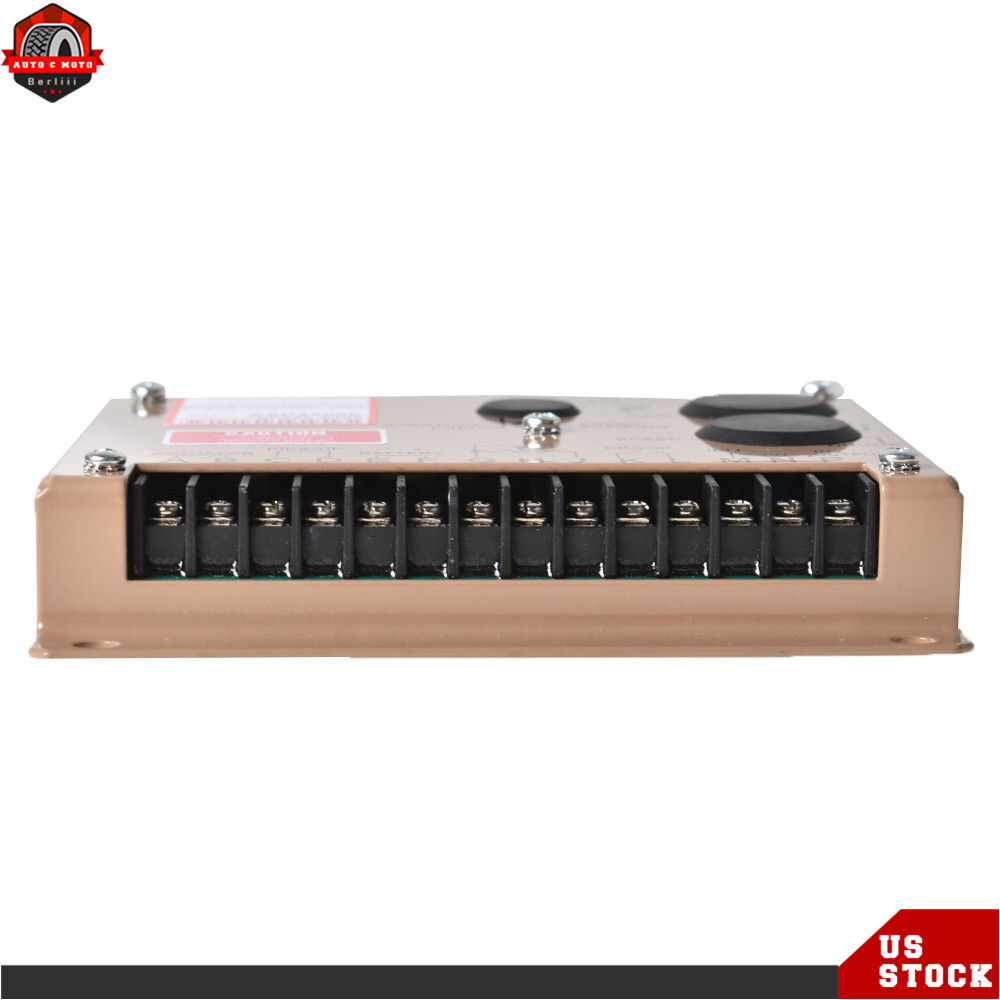

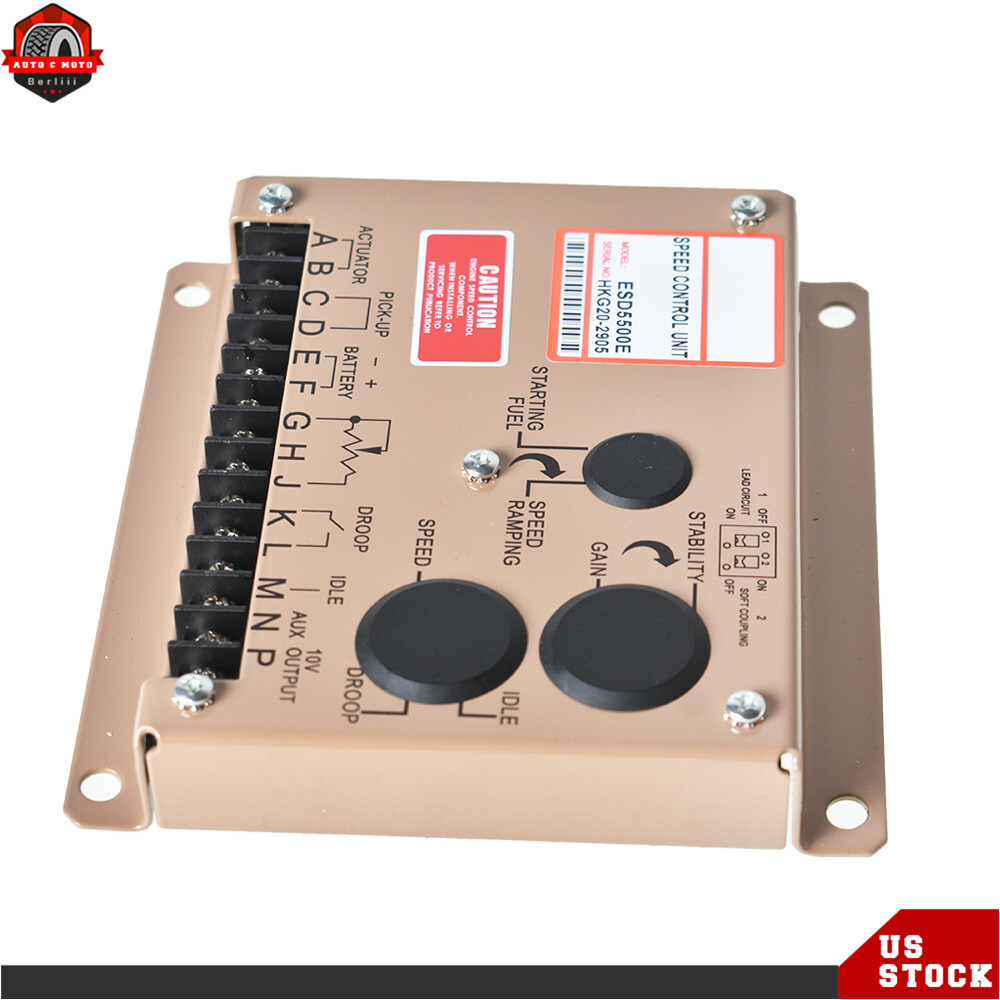

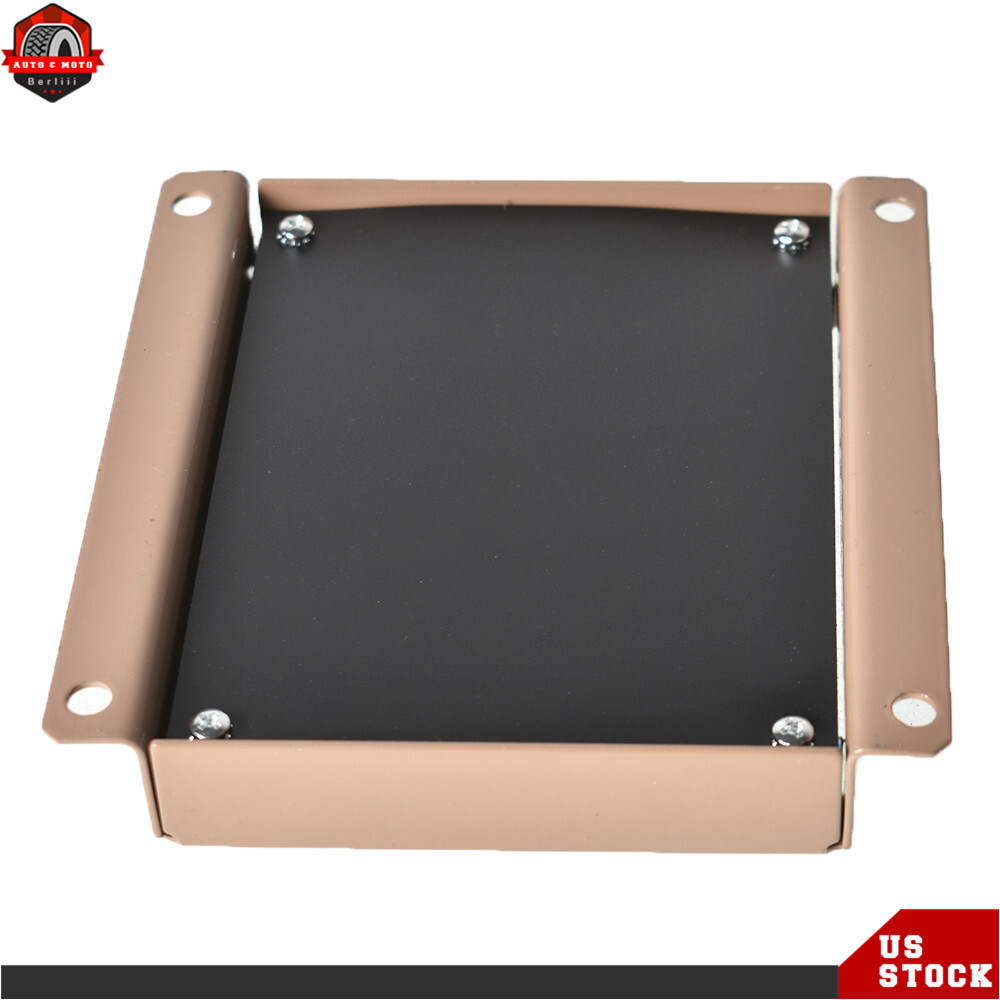

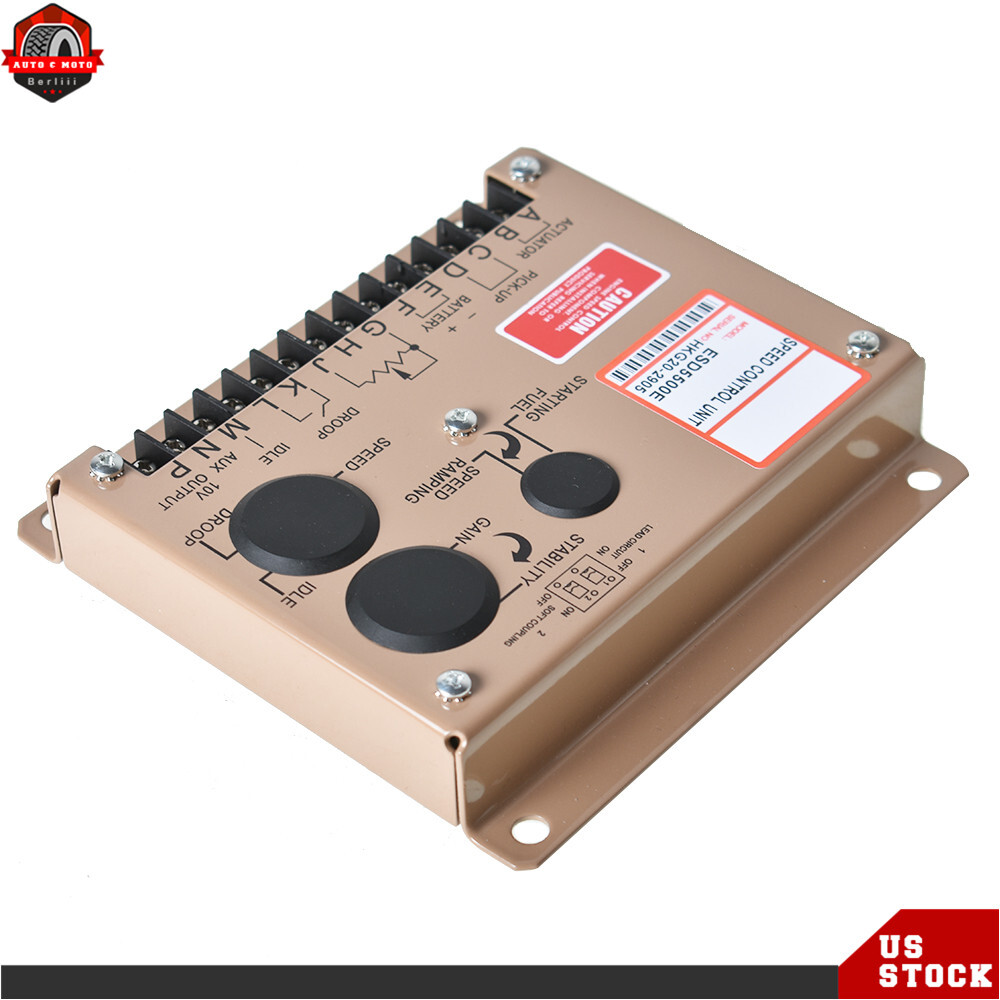

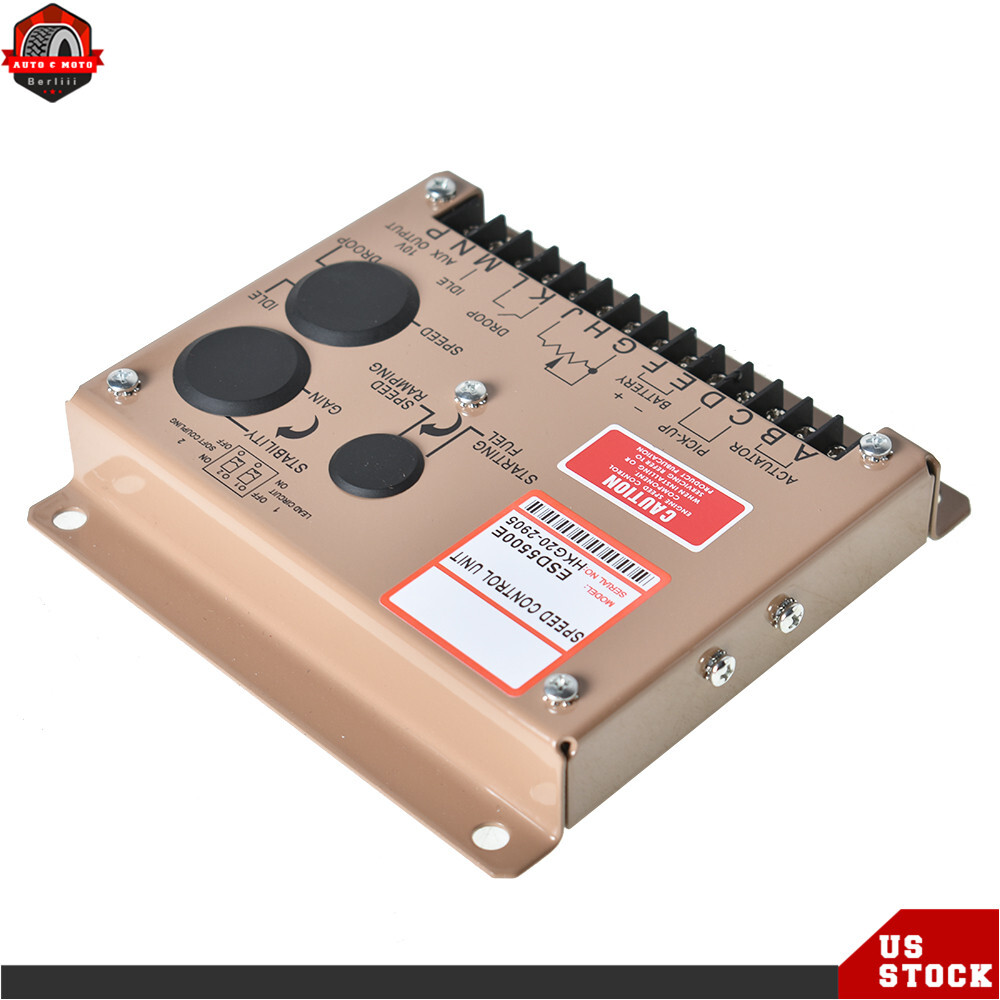

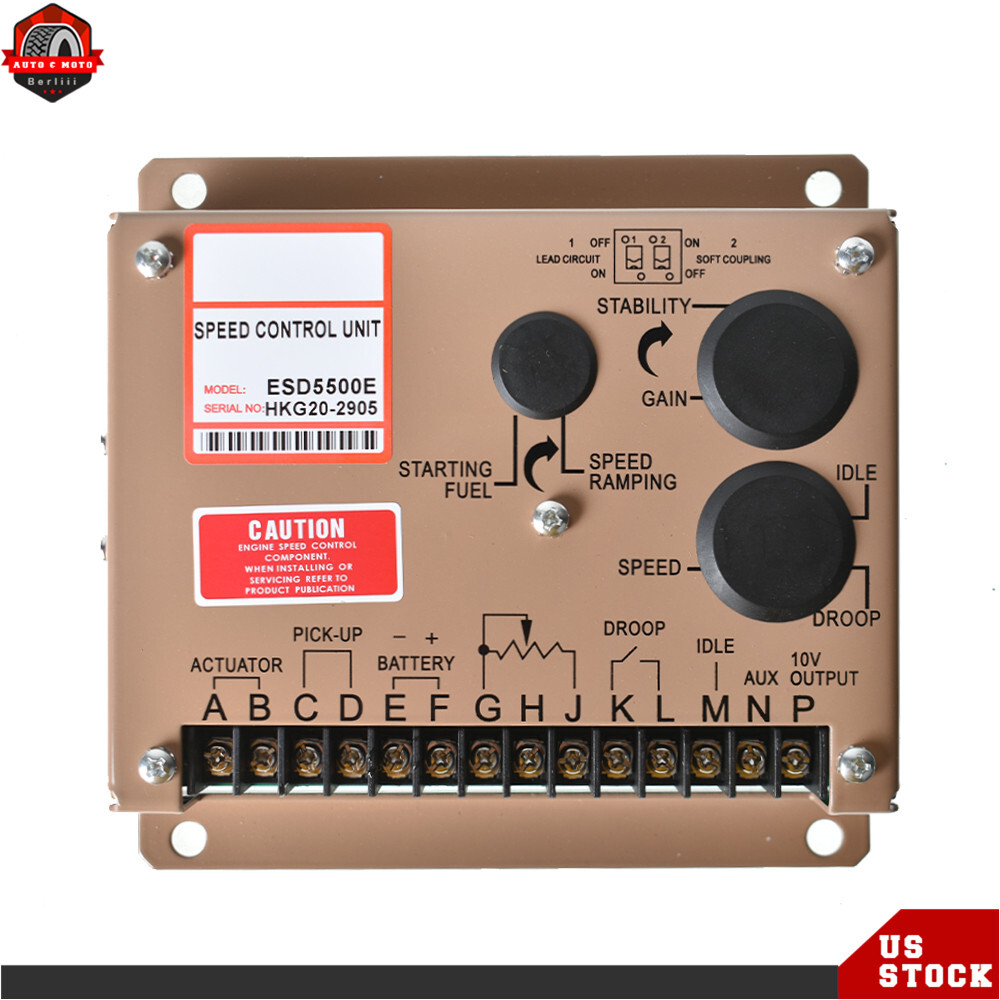

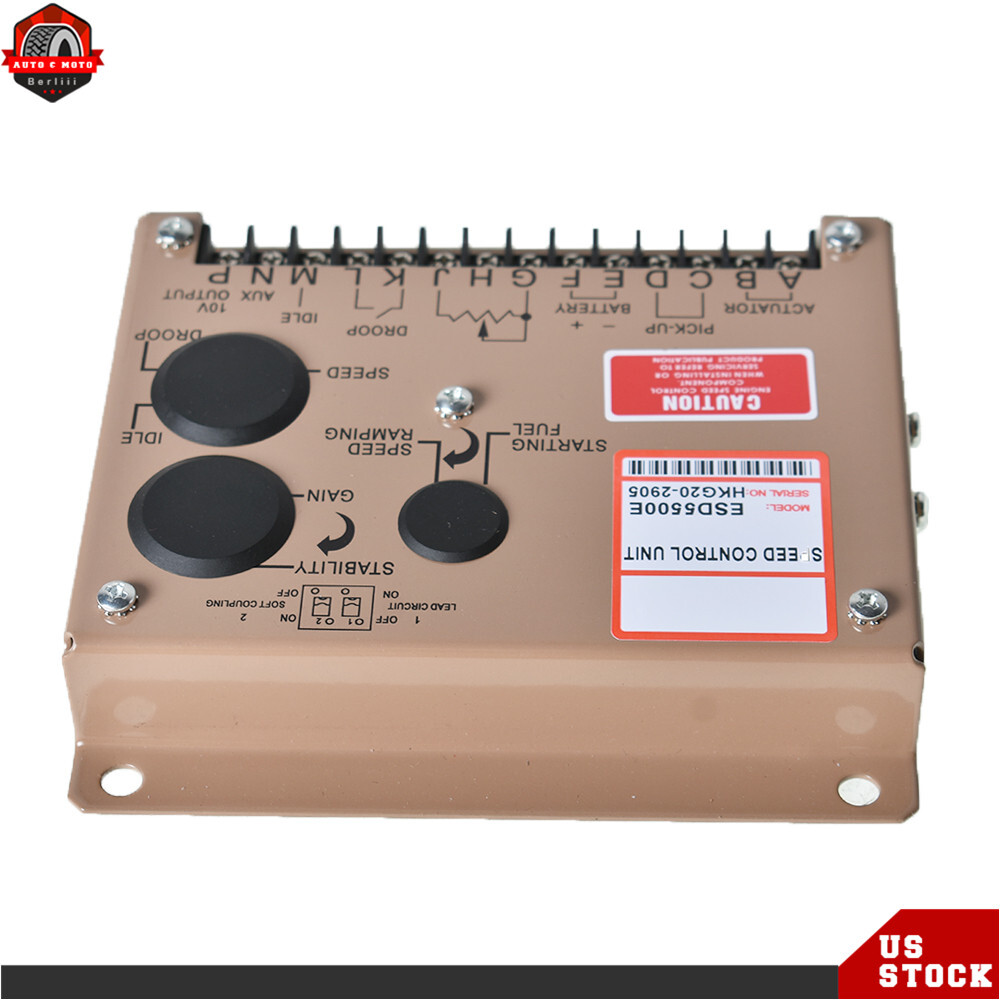

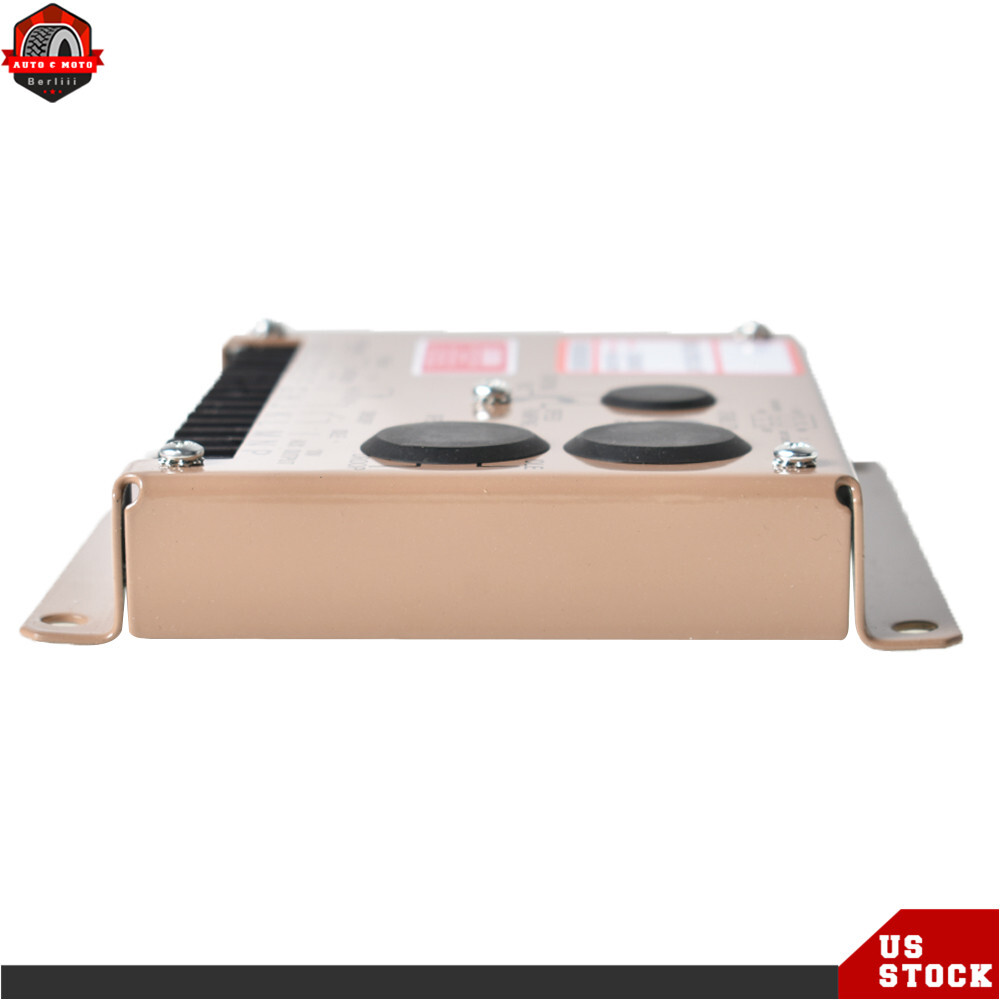

Electronic Engine Speed Controller Governor ESD5500E For Generator Genset
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | berliii |
| MPN | BER77010 |
| Compatible Model | Speed Controller |
| Type | Engine Speed Controller |
| Warranty | 1Year |
| UPC | Does not apply |
| Equipment Type | Voltage Regulator |
| Model | Voltage Regulator |
Specification:- Isochronous Operation/Steady State Stability- ± 0.25% or better - Speed Range/Governor- 1K-7.5K Hz continuous- Speed Drift with Temperature- ± 1% Maximun- IDLE Adjustment- 160 ± 20Hz ~ 60% of set speed- Droop adjustment Min.(K-L Jumpered)- 15Hz. ± 6Hz. per 1.0 A change - Droop adjustment Max.(K-L Jumpered)- 400Hz. ± 75Hz. per 1.0 A change- Droop Adj. Max. (K-L Jumpered)- 875Hz., ± 75Hz. per 1.0 A change- Droop Adj. Min. (K-L Jumpered)- 15Hz., ± 6Hz. per 1.0 A change- Speed Trim Range- ± 200Hz.- Remote Variable Speed Range- 500 -7.5Hz. or any part thereof- Terminal Sensitivity- J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance- L: 735Hz., ± 60Hz/Volt @ 65 K Impedance- N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance- P: 10V DC Supply @ 20ma Max.- Speed Switch Adjustment Range- 1000-10000Hz.- Environmental- Ambient Operating Temperature Range- -40°c to +85°c - Relative Humidity- up to 95%- Storage Temperature- -55°c ~ 90°c- Shock- 20-100HZ 500mm/Sec.- Input Power- Supply- 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected) - Polarity- Negative Ground(Case Isolated)- Power Consumption- 50mA continuous plus actuator current- Actuator Current Range @ 25°c-(Inductive Load) - Min. 2.5 Amps, Max. 10 Amps continuous- Speed Sensor Signal- 0.5-120 V RMS- Speed Switch Relay Contacts(N.O.and N.C.)- 10Amp - On best condition and tested in full function,if you have any question about products,pls feel free to contact with us - via Ebays messages,thank you,have a nice day! Package Including: - 1 × Engine Speed Governor Controller ESD5500E- 1× product Instructions Payment We accept payment via Paypal,Google Pay,VISA,Master Card,American Express,Discover,eBay Mastercard payment . Shipping We process your order within 3 business day upon payment(note: NOT counting holidays or weekends). International shipping also available. Return & Refund Please read the item description and check the pictures carefully before bidding. Return or refund is available if theres error in item description causing the item not fitting your need or the product you received is damaged or not working. In such cases, seller pays for all related shipping cost if any. Returns are also acceptable if buyer purchased this by mistake and item still in good condition for reselling. Contact Us If you have any question or concern about your eBay order, please feel free to contact us through eBay. We will try our best to reply all messages, as quickly as possible. Feedback We maintain high standards of excellenceand strive for 100% customer satisfaction! Feedback is very important to us. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. All rights reserved.
