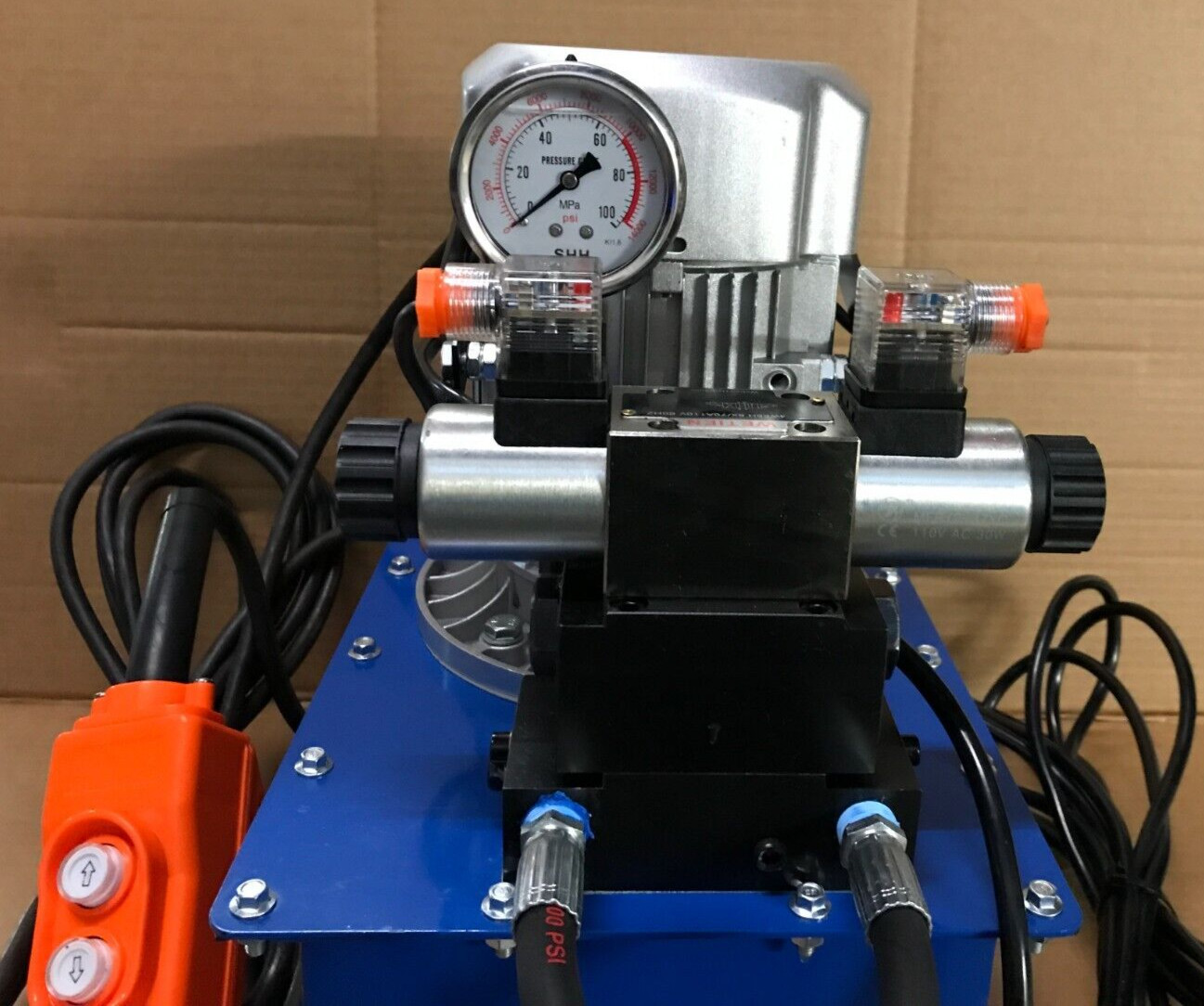

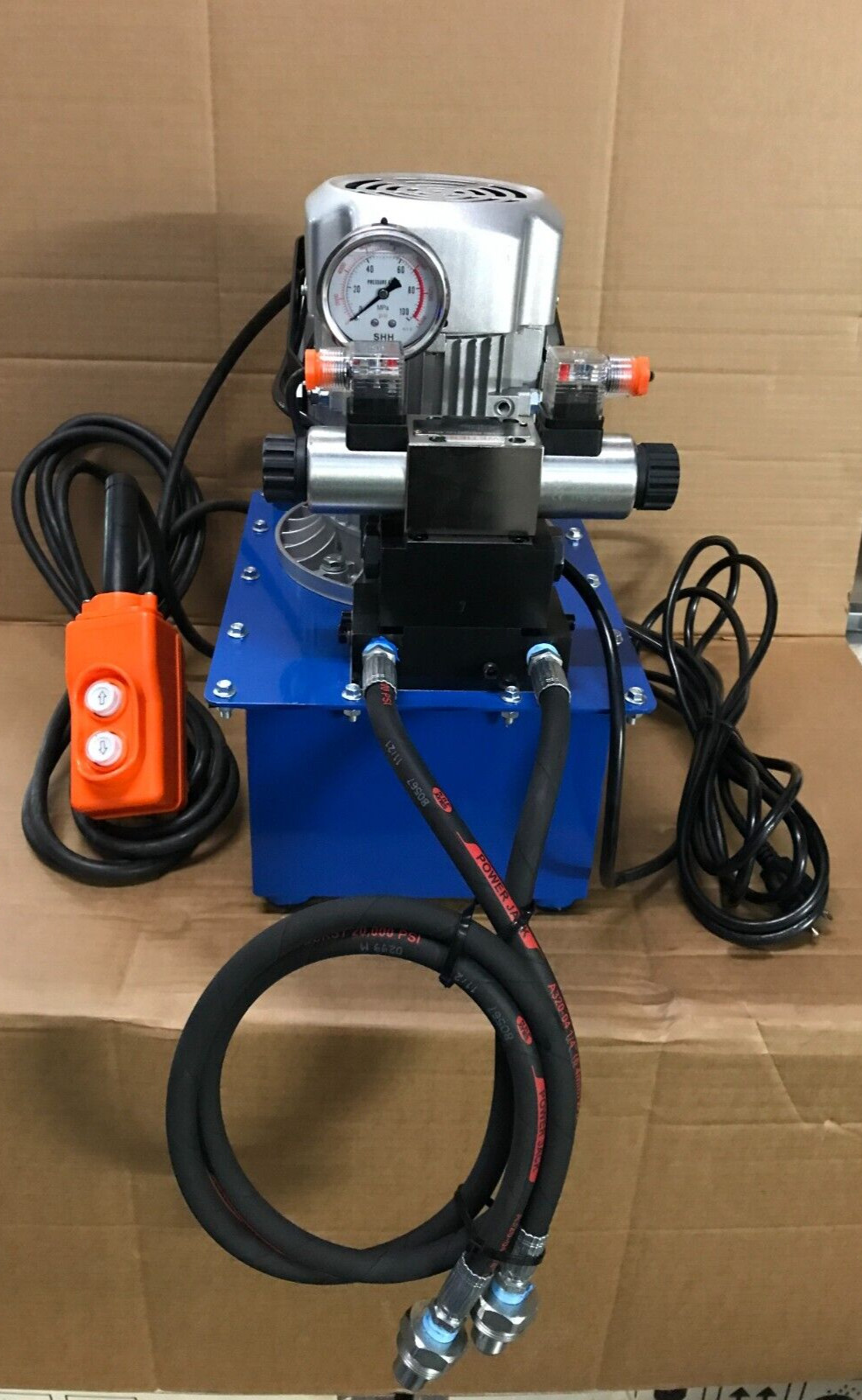

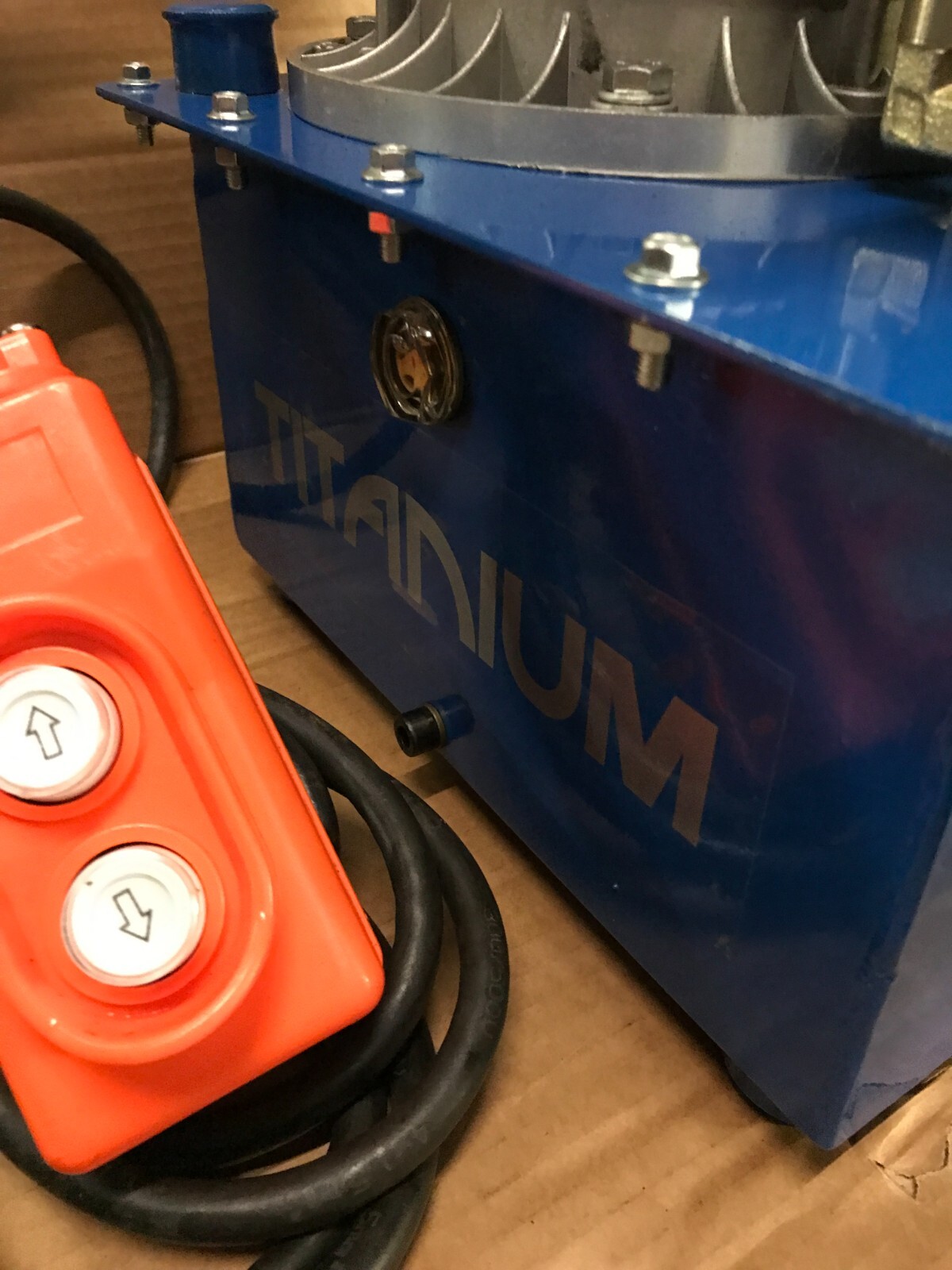

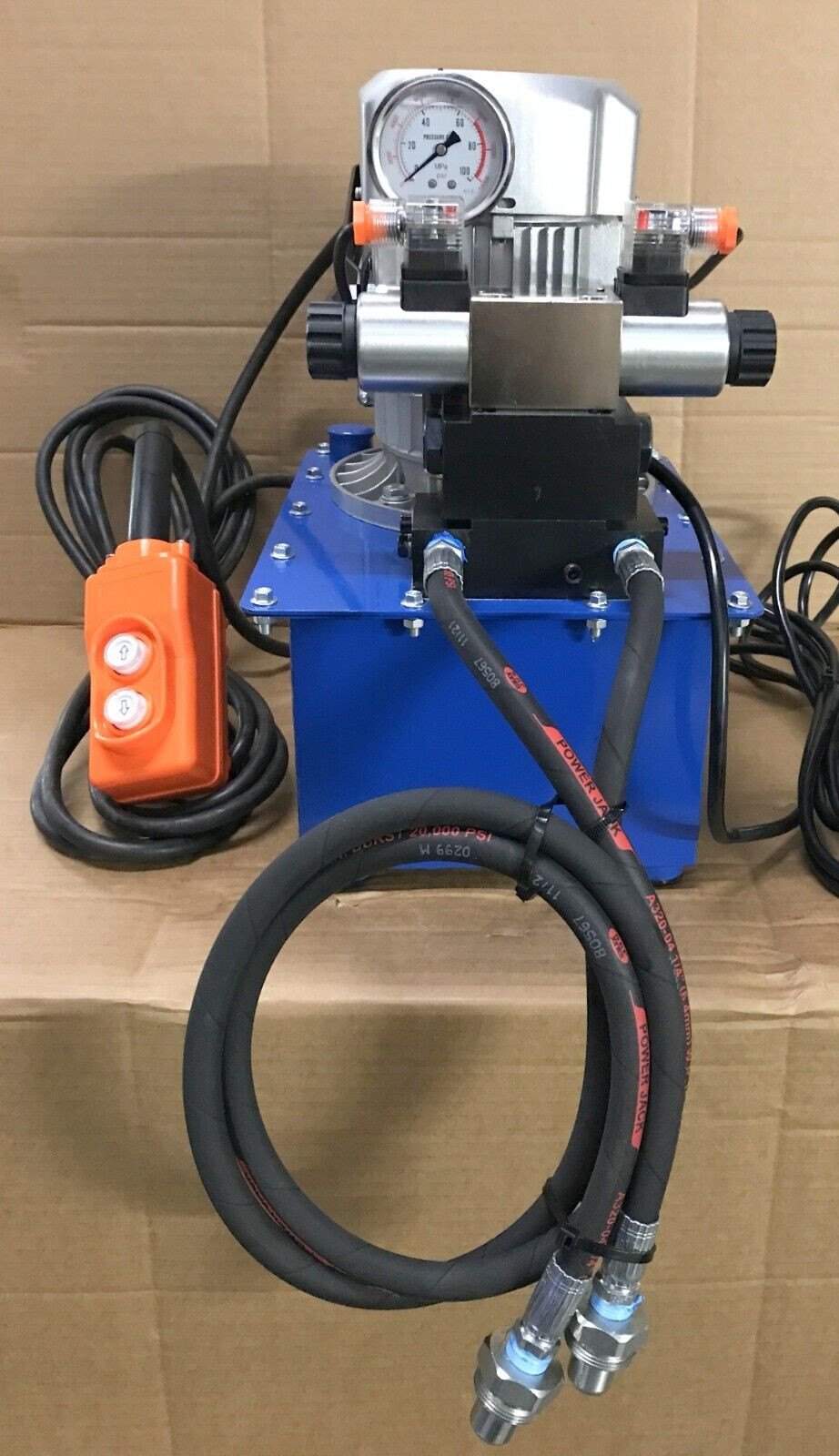

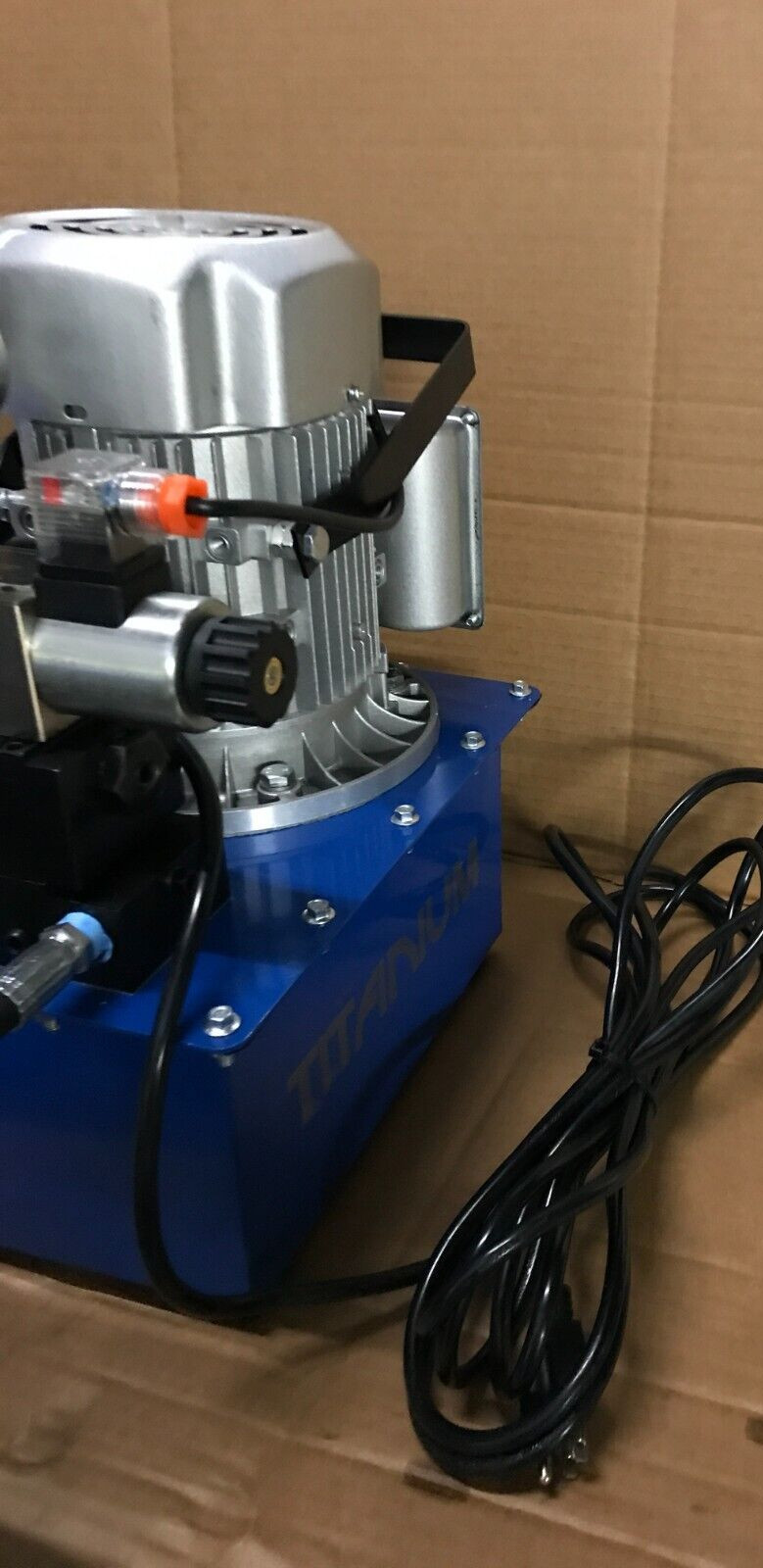

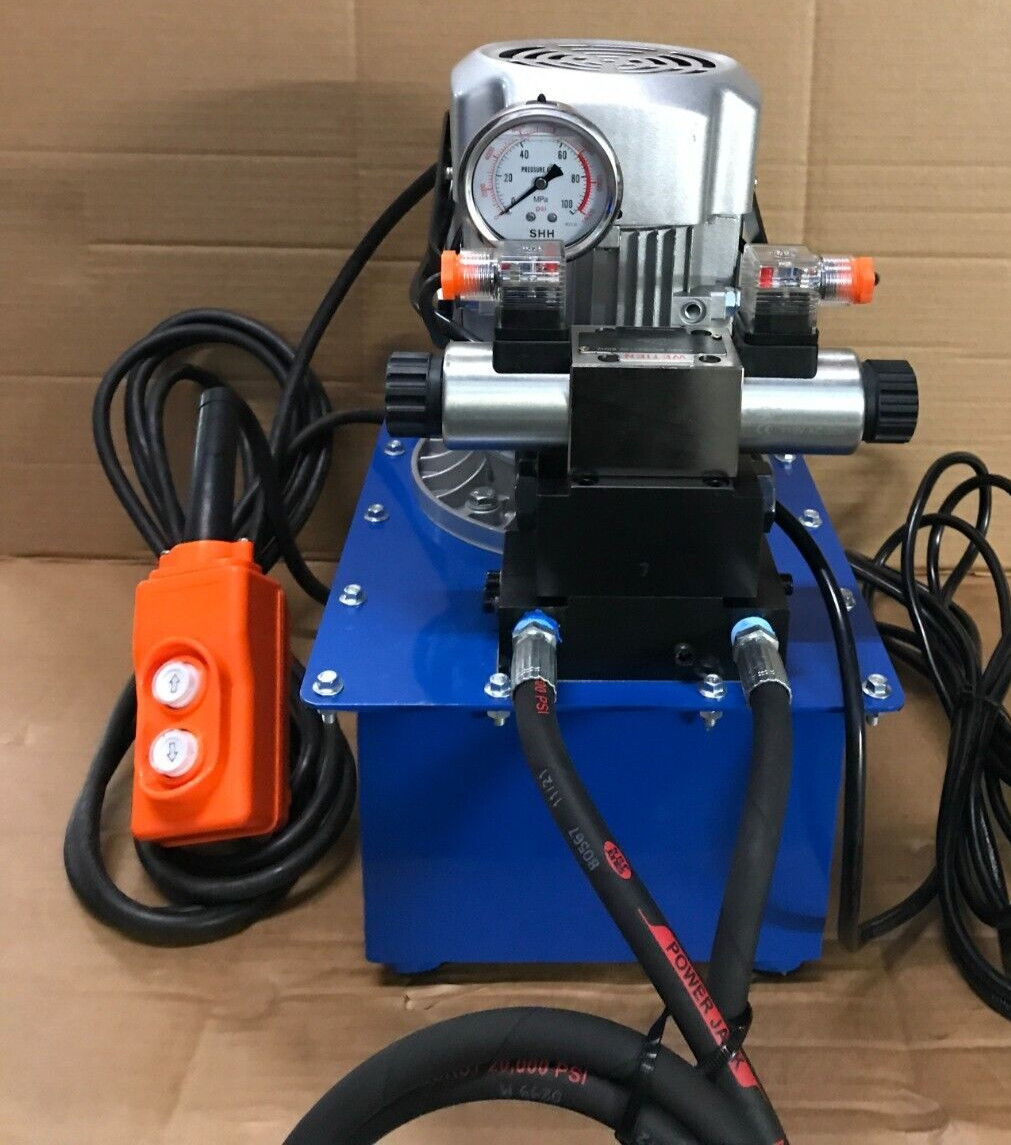

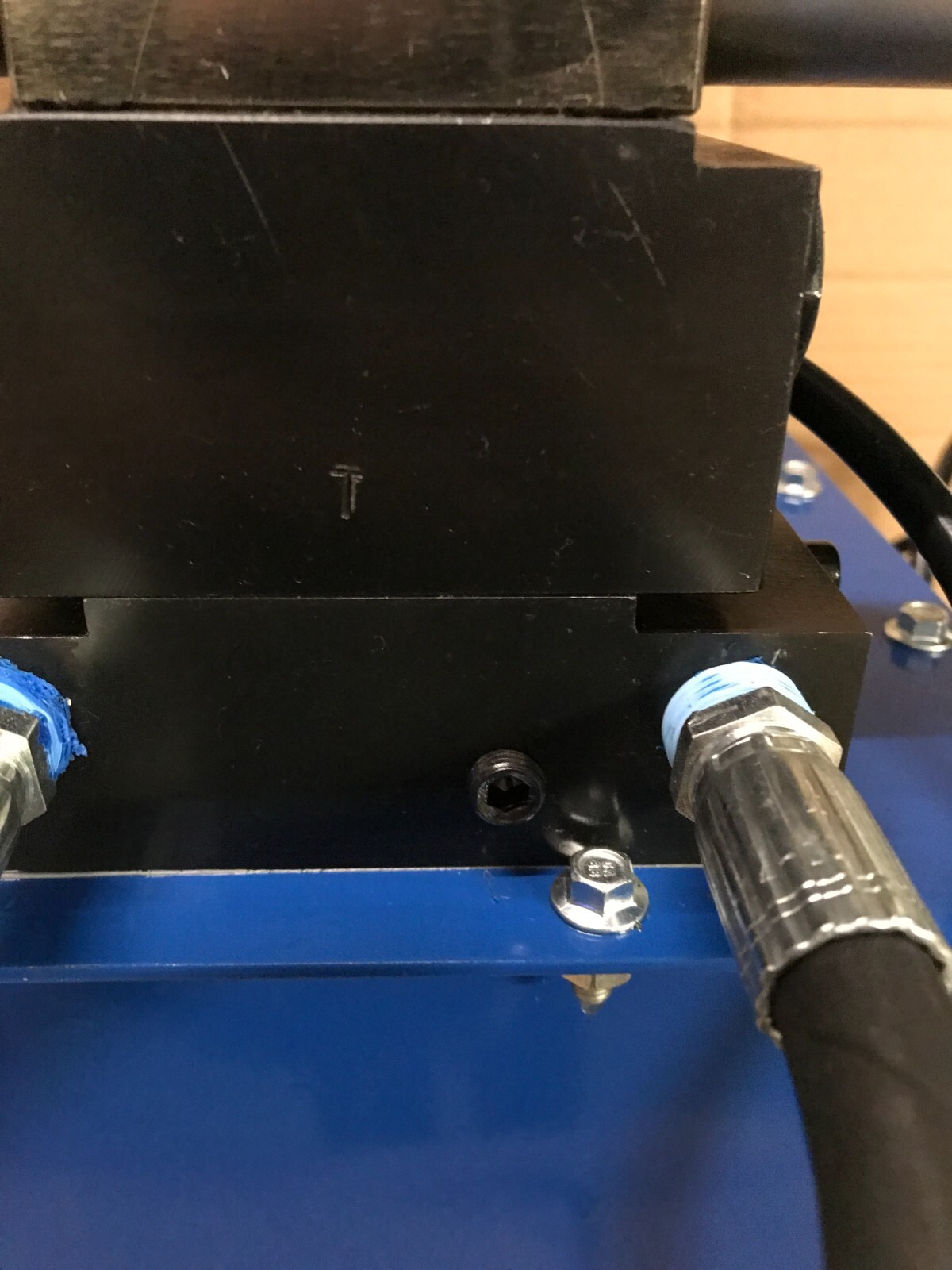

Electric Hydraulic Pump Double Acting Pump 5000 to 10000 PSI 8L Solenoid Valve
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Refund Will Be Given As | Money Back |
| Power Source | Electric |
| Pump Action | Double Acting |
| Outlet Port Diameter | NPT 3/8" |
| Hydraulic Pump Type | Electric Hydraulic Pump |
| MPN | TUCHASLECKER |
| Low-pressure Flow | 8 L/min |
| High-pressure Flow | 0.7 L/min |
| Reservoir Capacity | 488 in³/8L |
| Brand | PUTZ |
| Rated Pressure | 70 Mpa/10150 PSI |
| Type | Hydraulic |
| Voltage | 110V/60Hz |
| Model | DAEHP |
| Product Weight | 64 lbs/29 kg |
| Rated Power | 750W |
| Maximum Output Pressure | 10,000 PSI |

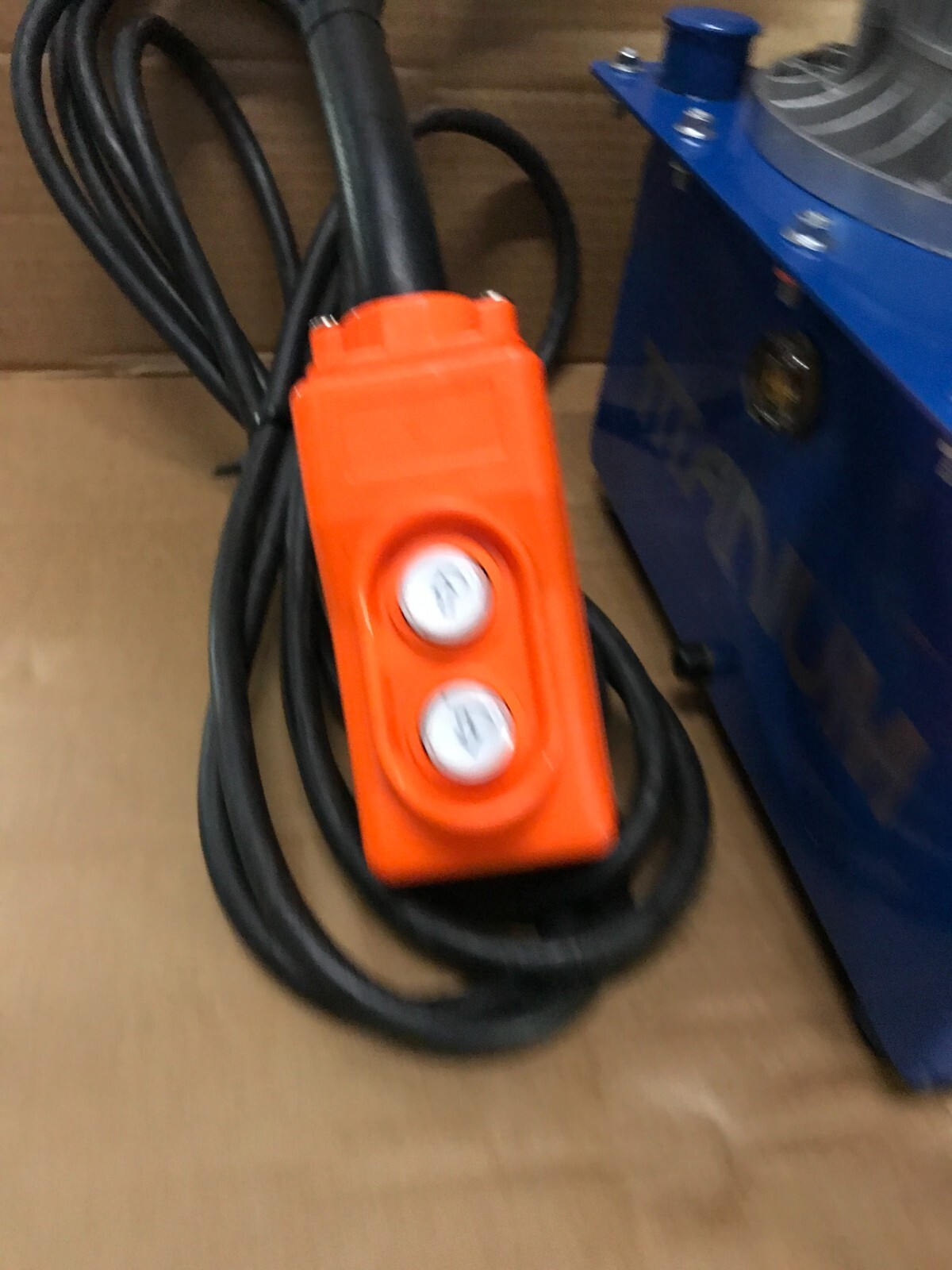

Not the typical pump for sale on E Bay, sure there are cheaper pumps however this is a higher grade at an affordable priceHas true hand pendant for operating the solenoids for advance and retract (Not the hokey black pedal)PSI max output is adjustable from 5000 PSI up to 9000+ PSI (Max out between 9 and 10)Out put threads are standard (Other have weird metric thread non compatible w/anything) NPT 3/8 which is standard for use in AmericaExtra long power cord and extra long hand pendant cordHigher cost Higher quality solenoids used.Better quality Valve which operates flow / direction not the bargain basement off the shelve valvePump includes 2 hoses at 36 inches 10K PSI jack hose with 2 universal quick disconnect couplers.Has glass sight for oil level Has drain plug which makes oil changes a breezeHas liquid filled PSI gauge for quick sight of pumps output. Gauge monitors output prior to valve, assist with output adjustment) Pump ships with out oilYou must purchase and add AW-32 hydraulic oil ONLY no substitutesIt is recommended to change oil annually. Type: Electric Hydraulic Pump Action: Double acting Control: Remote HAND PENDANT Button forward: Pump into hose A, Returns to reservoir on hose B No action Button Return: Pump into hose B, Returns to reservoir on hose A Includes Hydraulic Hose: 2x 5ft - Quick hydraulic coupler with dust cap Oil Capacity: 488 in³ (8 liters / 8000 cc), 2.11 gallons: Hydraulic Oil Type: AW-15 Low Pressure Stage PSI: 290 High Pressure Stage PSI: 10,000 Low Pressure Stage Flow Rate: 1.3 Gallons per minute High Pressure Stage Flow Rate: 0.18 Gallons per minute Max Output Hydraulic Pressure: 10,000 PSI (adjustable range is 725-10,000 PSI) Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler with dust cap Voltage: 120 Horsepower: 1 Dimensions (LxWxH): 12.99 x 10.24 x 17.72 in. Applications Include: Double acting shop presses Heavy machinery rigging and moving Auto repair Oil rigging Machine maintenance
