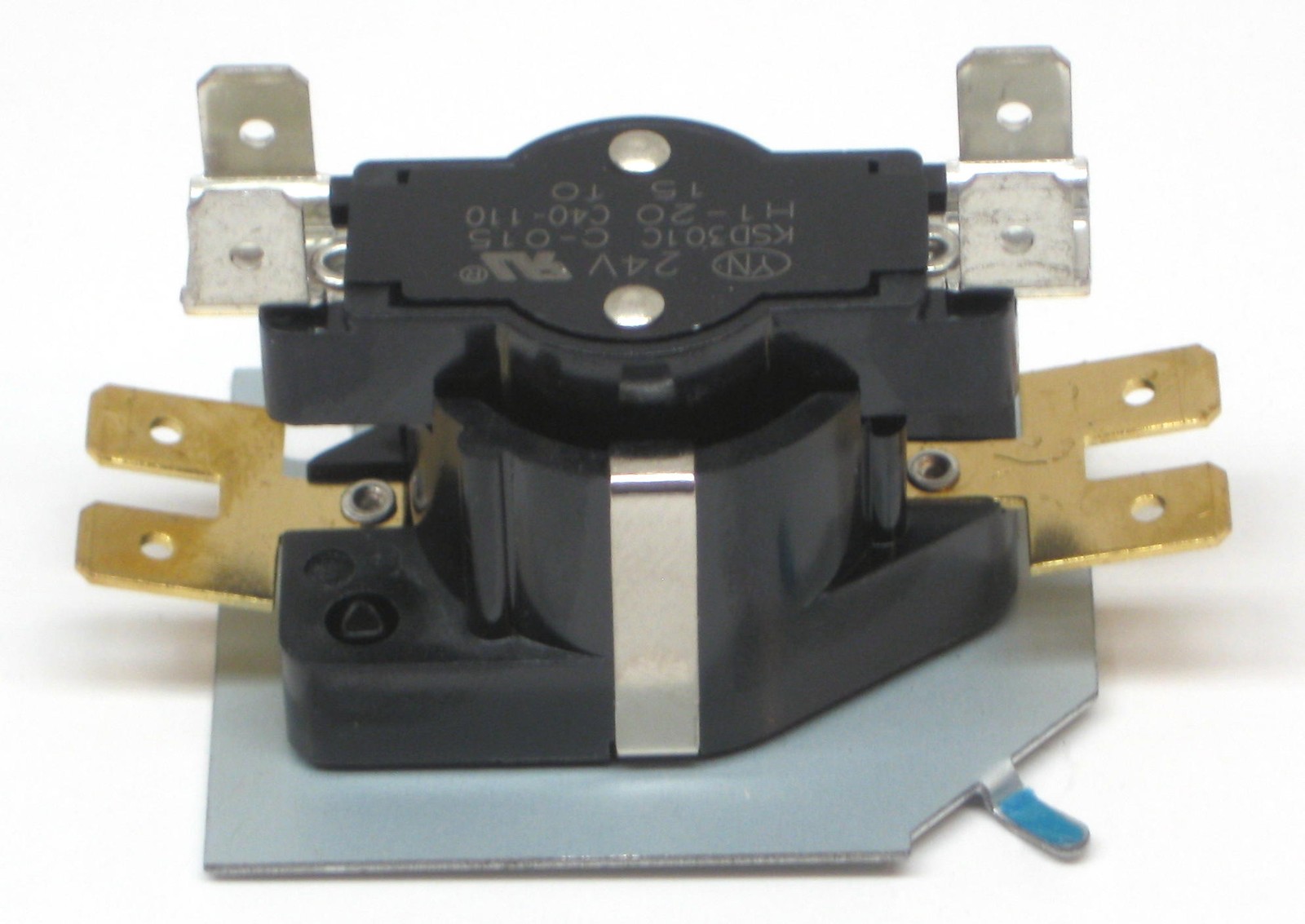

Electric Heat Sequencer Control SPST 24 Volt for Q101 / 24A34-1 / B1290906
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Type | Sequence Control |
| UPC | 696524000963 |
| Model Number | PCQ101 |
| Brand | PartsConnect |
| MPN | PCQ101 |
| Manufacturer | PartsConnect |
| Product Type | Sequence Control |
Electric Heat Sequencer Control SPST 24 Volt for Q101 / 24A34-1 / B1290906 Parts Connect Sequencer part number PCQ101.24 VoltsSPST1 Timing / 1 SwitchOff 40-110 SecondsOn 1-20 Seconds PSQ Models are Direct Replacement for Most Fan / Heat Sequencing Functions. Terminal Markings are Equivalent to Competitive Types. Replacement for Brands and Numbers: Goodman B1290906, Diversitech DGS101, Klixon 60000AO-64, 60000A0-64, 60000AOM, Lennox 12F20, 58C7901, Mars 33241, Napco NS101, Supco Q101, White Rodgers 24A34-1. TDR10. COMBINED LOAD RATING TABLE (ALL MODELS)30A @ 240 VAC TOTAL23A Non-Inductive + 7 FLA42 LRAInductiveON Time: Elapsed time to make contacts after heater is energized (min. to max.)OFF Time: Elapsed time to break contacts after heater is de-energized (min. to max.) M1-M2 and M3-M4 are always first switches to turn ON and last to turn OFF. All other switches are random ON and random OFF. NOTE Underwriters Laboratories requires a fan interlock circuit to insure the blower remains operating whenever more than one sequencer is used. The fan interlock should be the M1/ M2 contacts of the second or third sequencer. All M1/ M2 contacts are wired to the blower motor so that any sequencer that is energized will keep the blower ON. Product Details BrandPartsConnectManufacturerPartsConnectProduct TypeSequence ControlMpnPCQ101 24 VoltsSPSTOff 40-110 Seconds.On 1-20 Seconds. Check out my other items. -Powered by
