EATON 400 / 320 Amp Meter Base Socket Single Phase 324N Brand New UL Listed
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Eaton |
| Type | Enclosure |
| Voltage | 600 V |
| Current Rating | 400A / 320A Continuous |
| Material | Metal |
| Features | Waterproof |
| Box Shape | Rectangular |
| Application | Branch Circuit |
| Suitable For | Exterior |

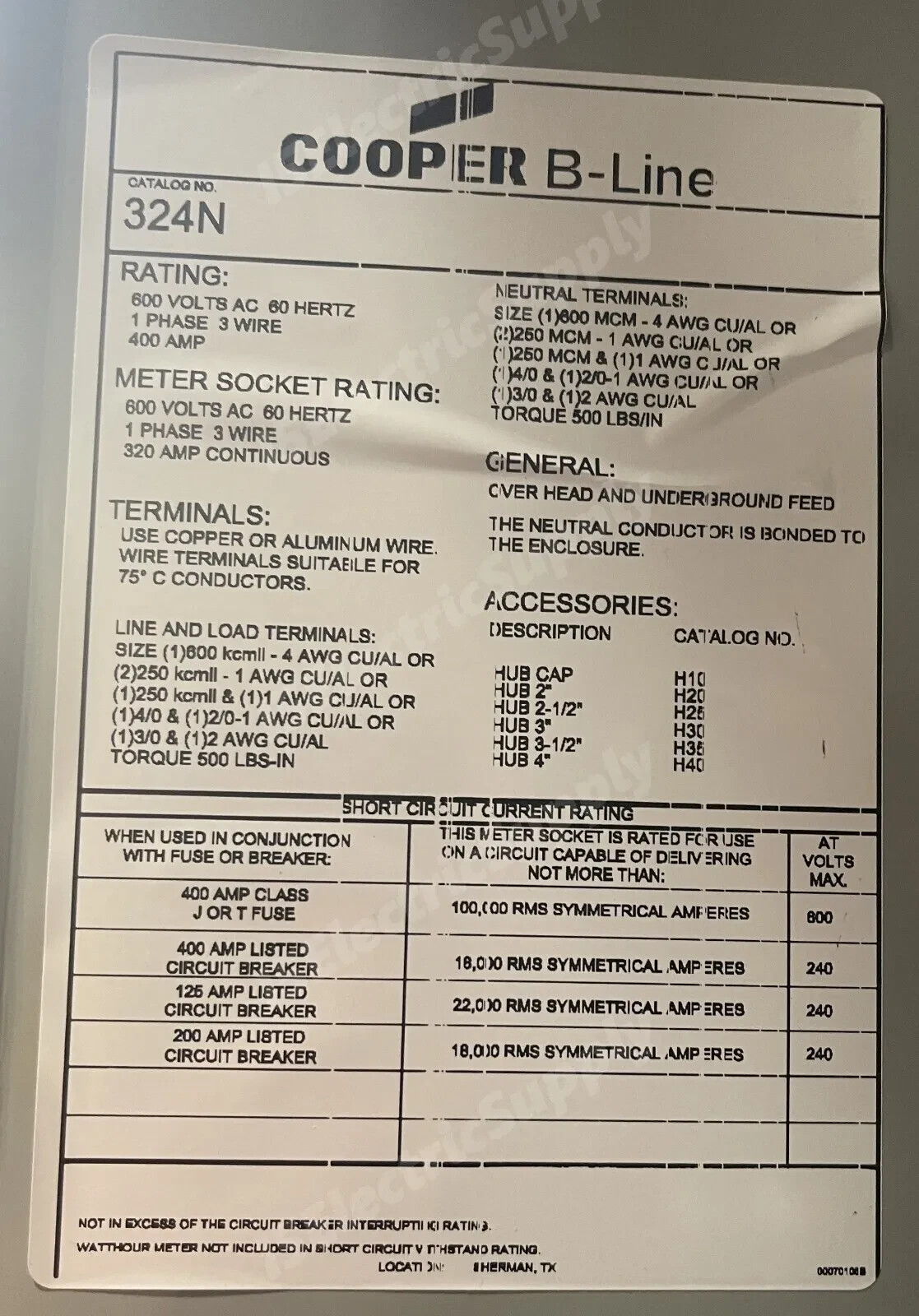

Brand New 320/400 AMP EATON 324N meter base/meter socket. Overhead/ underground. UL listed and made in USA. In stock and ready to ship. This is a ring type meter base We ship fast. The item will be shipped same day if order is placed and paid before 1:00PM. PRODUCT SPECIFICATIONS BRAND: EATON Cooper B-Line CATALOG NUMBER:324N PRODUCT LENGTH/DEPTH: 32 in PRODUCT HEIGHT: 6 in PRODUCT WIDTH:24 in PRODUCT WEIGHT:34 lb COMPLIANCES:EUSERC Approved CERTIFICATIONS:UL Listed PHASE:Single-phase NUMBER OF JAWS:Four-jaw SECURITY:Ring AMPERAGE RATING: 400A / 320A Continuos HUB TYPE:H-base hub provision LINE:#4-600 kcmil LOAD:#1/0-250 kcmil FEED TYPE:Top/bottom BYPASS:Provision NUMBER OF WIRES:Three-wire Please refer to Eaton web site for more details. While this is a brand-new item, the original manufactory packing may have some wear and tear from shipping. We will add additional carton outside of its original packing for additional protection. If you are not sure, please confirm with your local power/utilities company and inspector for the requirements/approval of installation before place order. By ordering this item, you acknowledge that you already done your due diligence and know the installation requirements or the risks if you don't.
