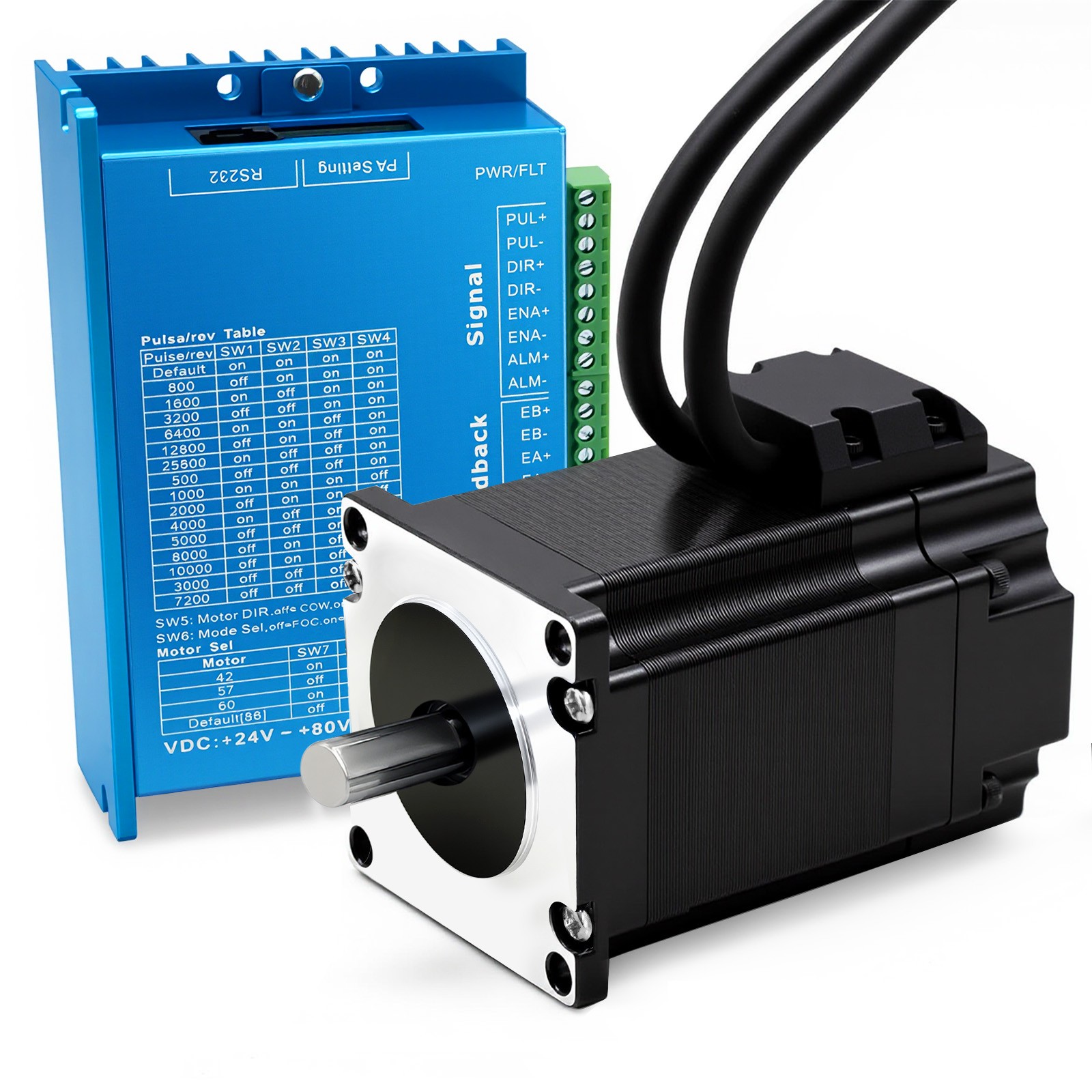

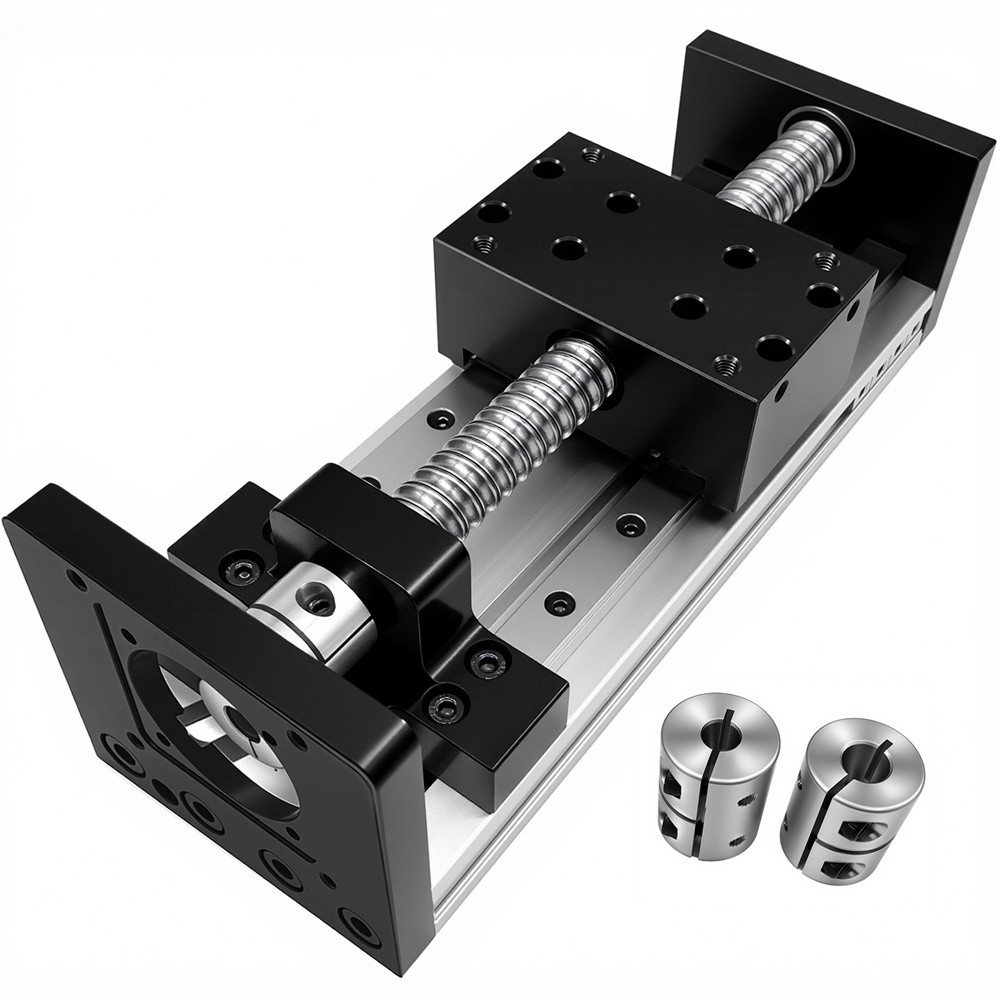

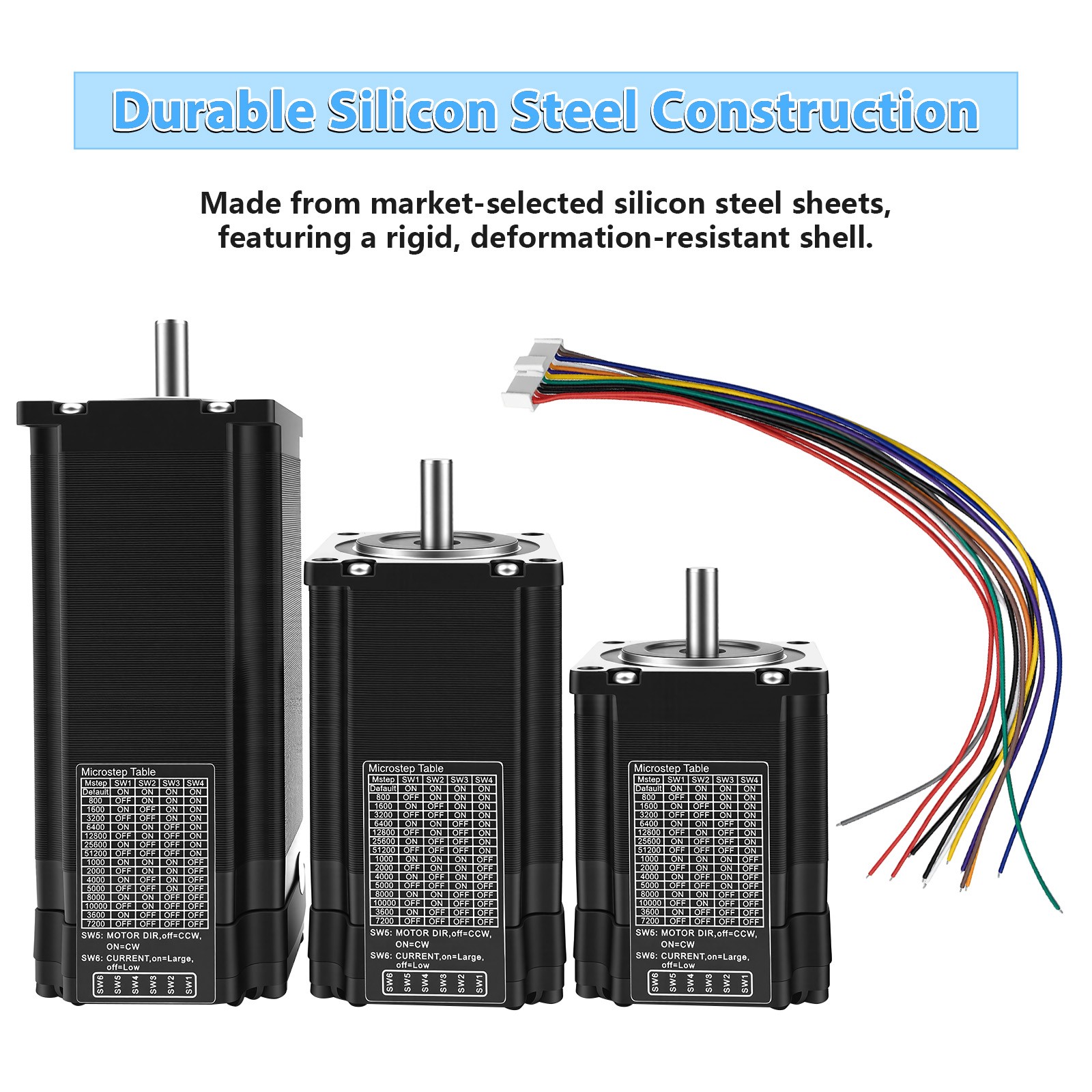

Double Guides Ballscrew Slide Table Linear Stage Module Nema23Motor Drive Kits
USD 67.15 USD
Specifications
| Stroke Length | 100mm (4 in) |
| Packing List | Single Axis Slide |
| Brand | toseastars |
| Accuracy | ±0.03mm |
| Voltage | 24V |
| Horizontal Load | 60kg/ 132.28lb |
| Vertical Load | 30kg/ 66.14lb |
| Speed | ≤500MM/s |
| Materials | aluminum alloy |

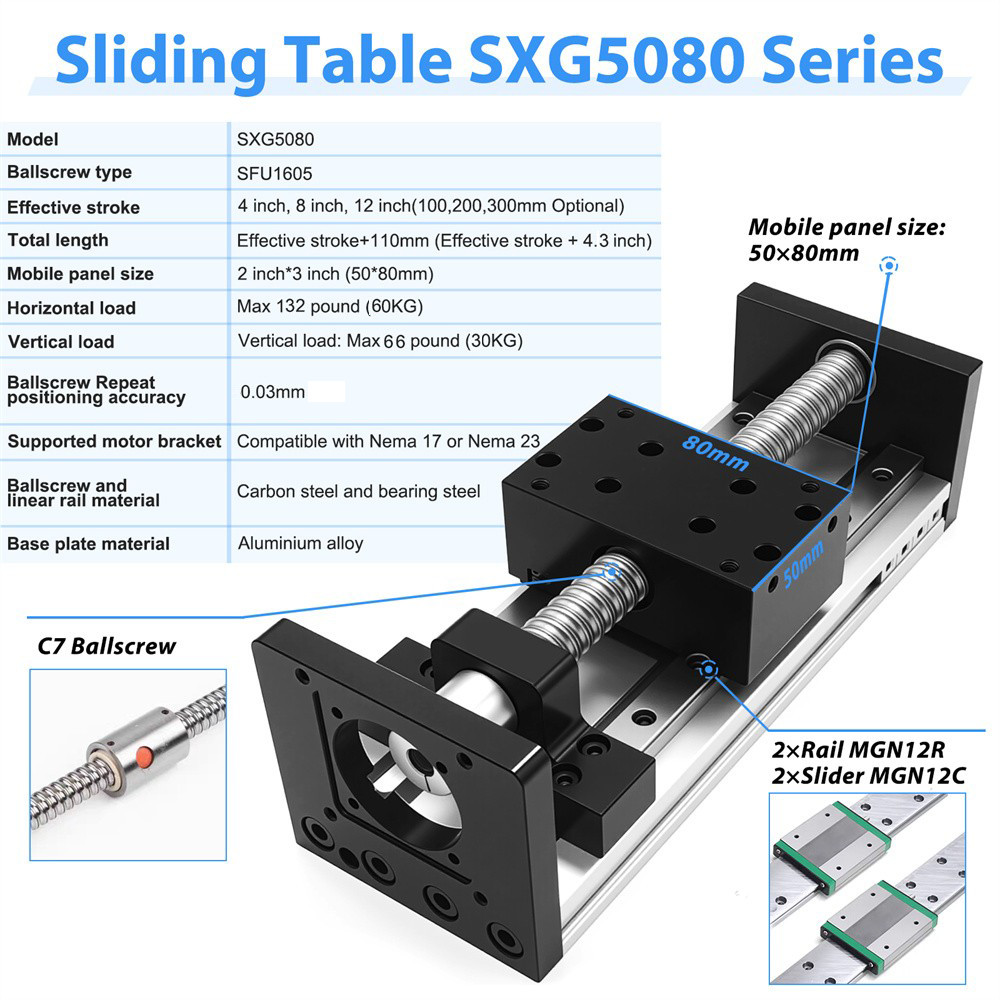

Model: SXG5080 ●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm) ●Ballscrew accuracy: C7 level ●Effective stroke: 100-300mm Optional ●Compatible motor types：Nema 17/23 stepper motor ●Total length: Effective stroke+110mm (50*80 Table) ●Mobile panel size: 50*80mm ●Guide diameter: 12mm ●Guide Type: 2*MGN12R ●Slider Type:2*MGN12C; ●Horizontal load: Max 60kg/ 132.28lb; ●Vertical load: Max 30kg/ 66.14lb; ●Maximum speed: 500mm/s ●Ballscrew Repeat positioning accuracy: ±0.
