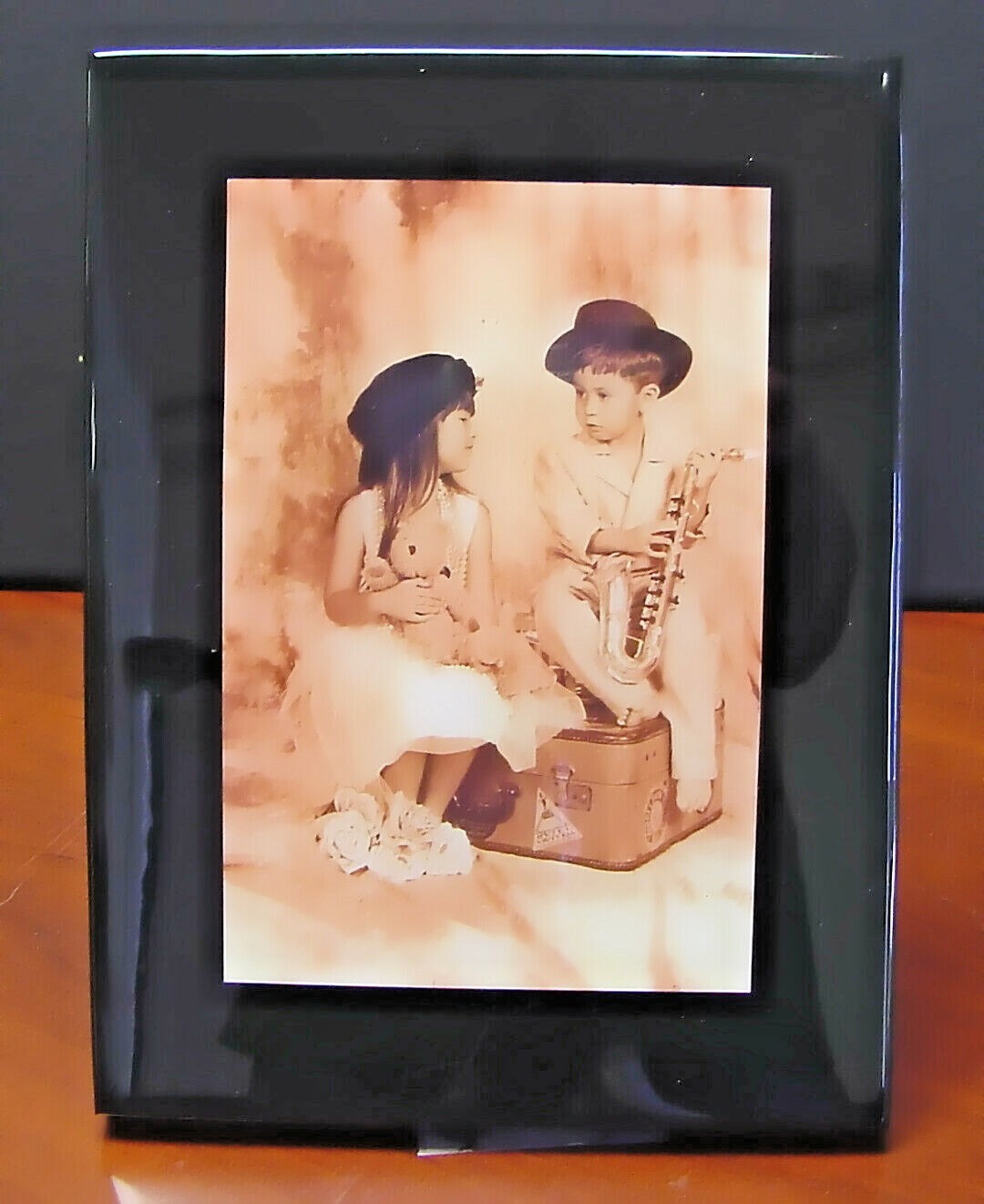

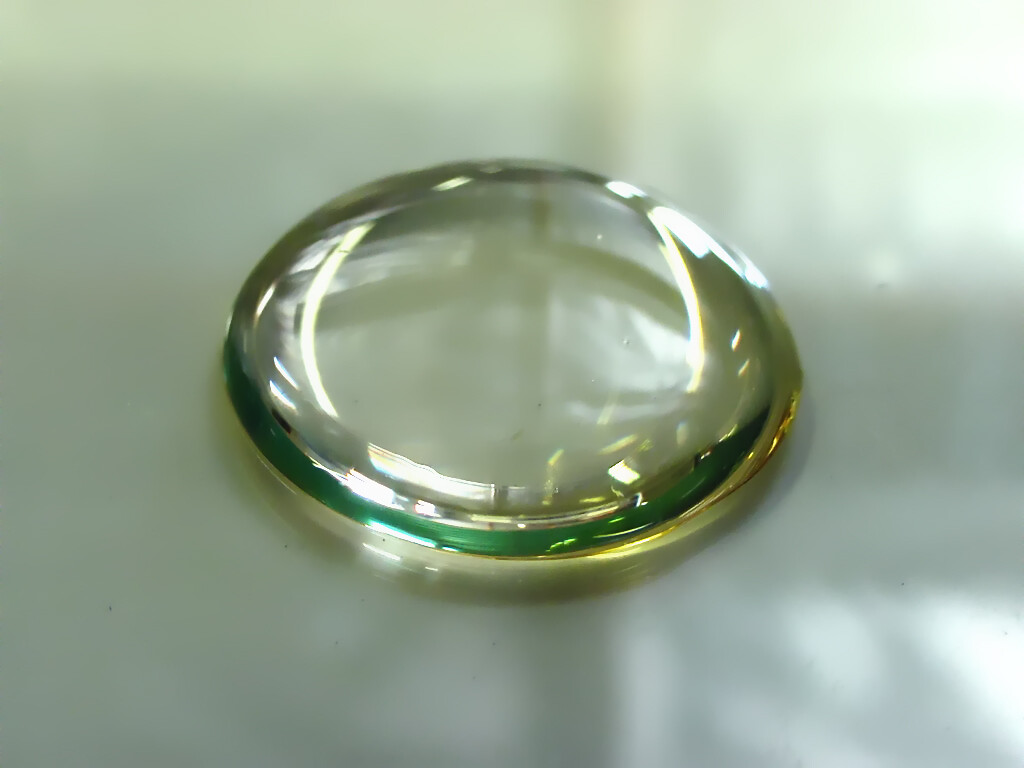

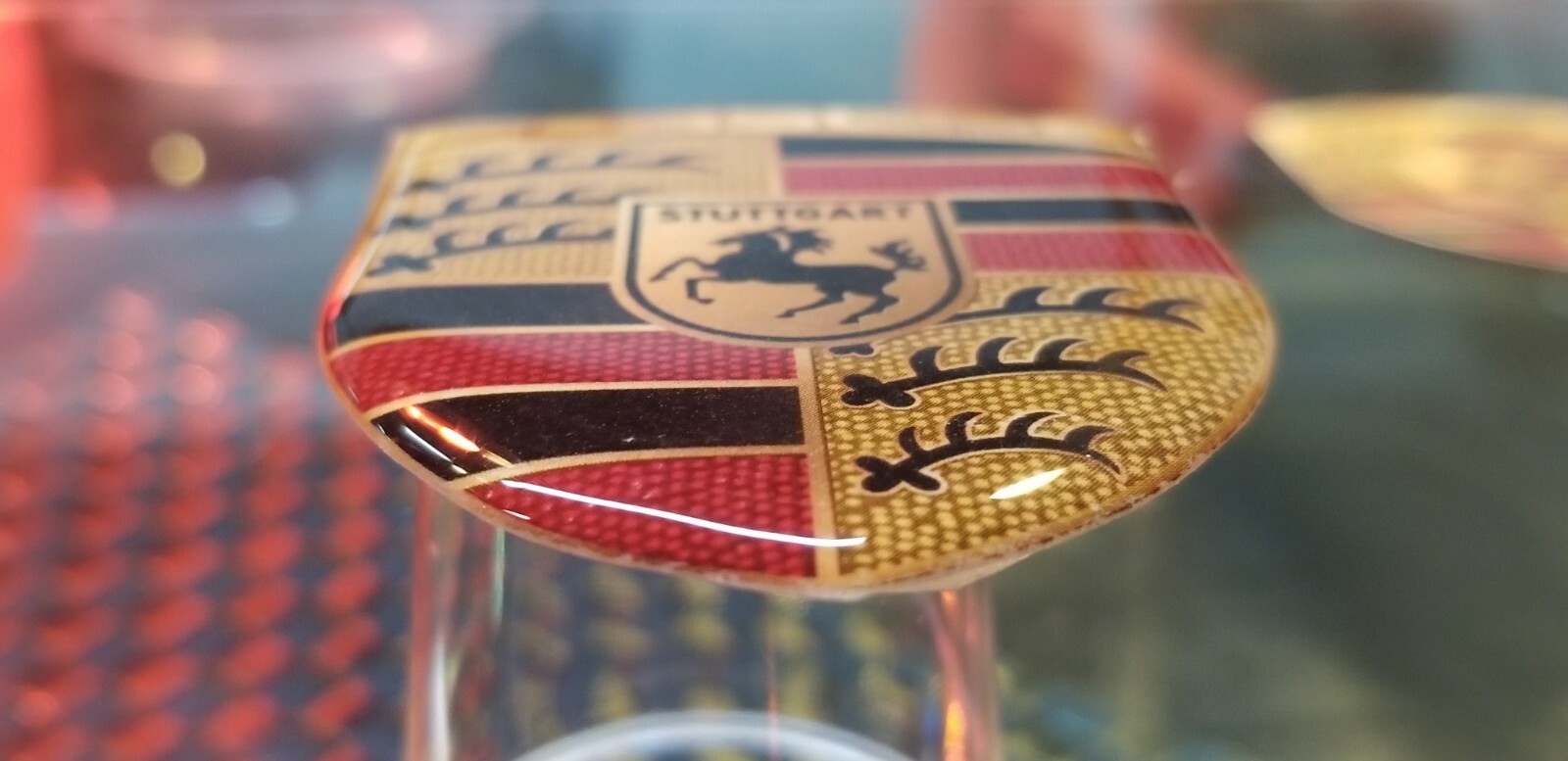

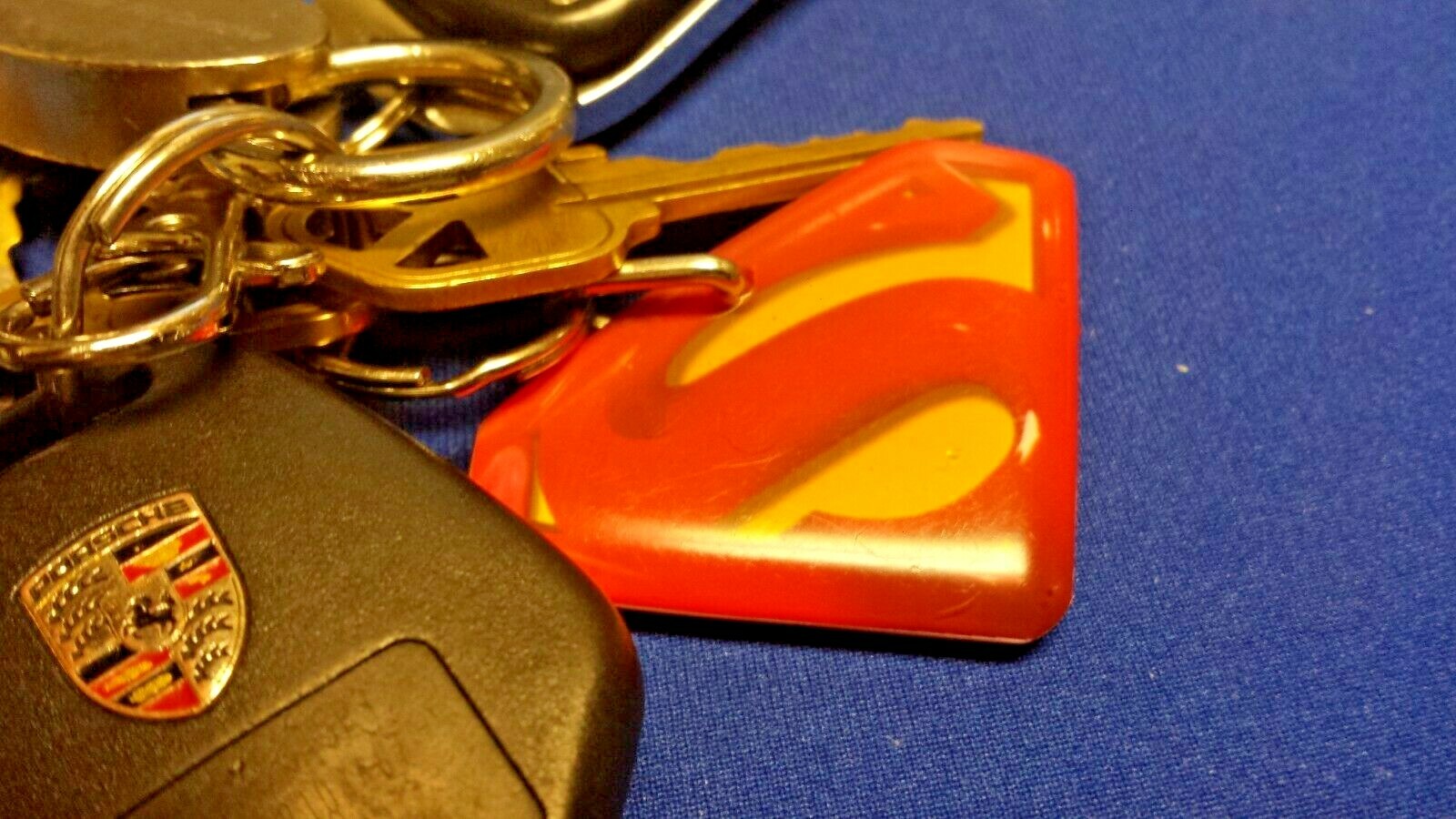

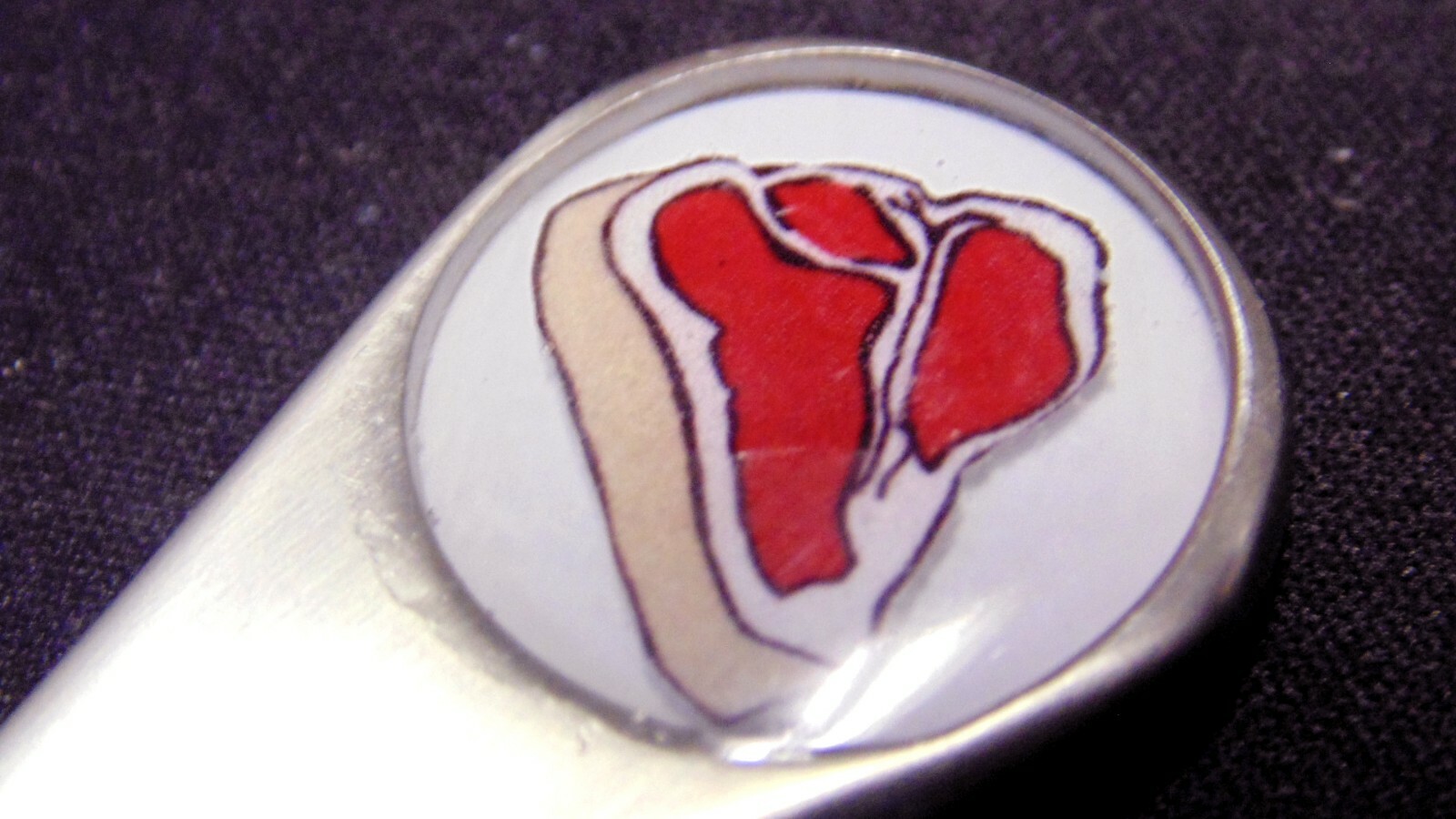

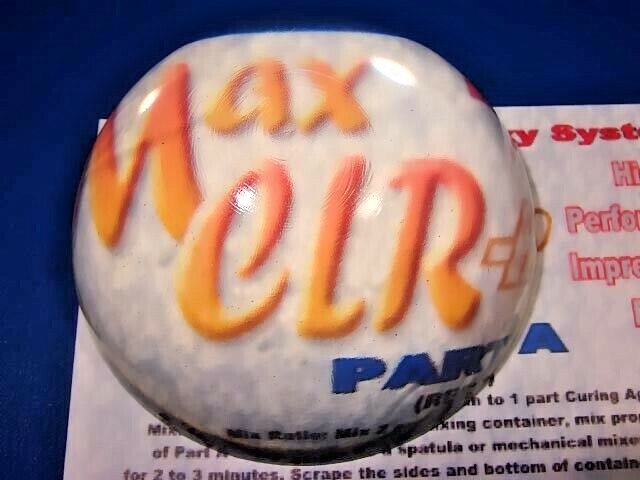

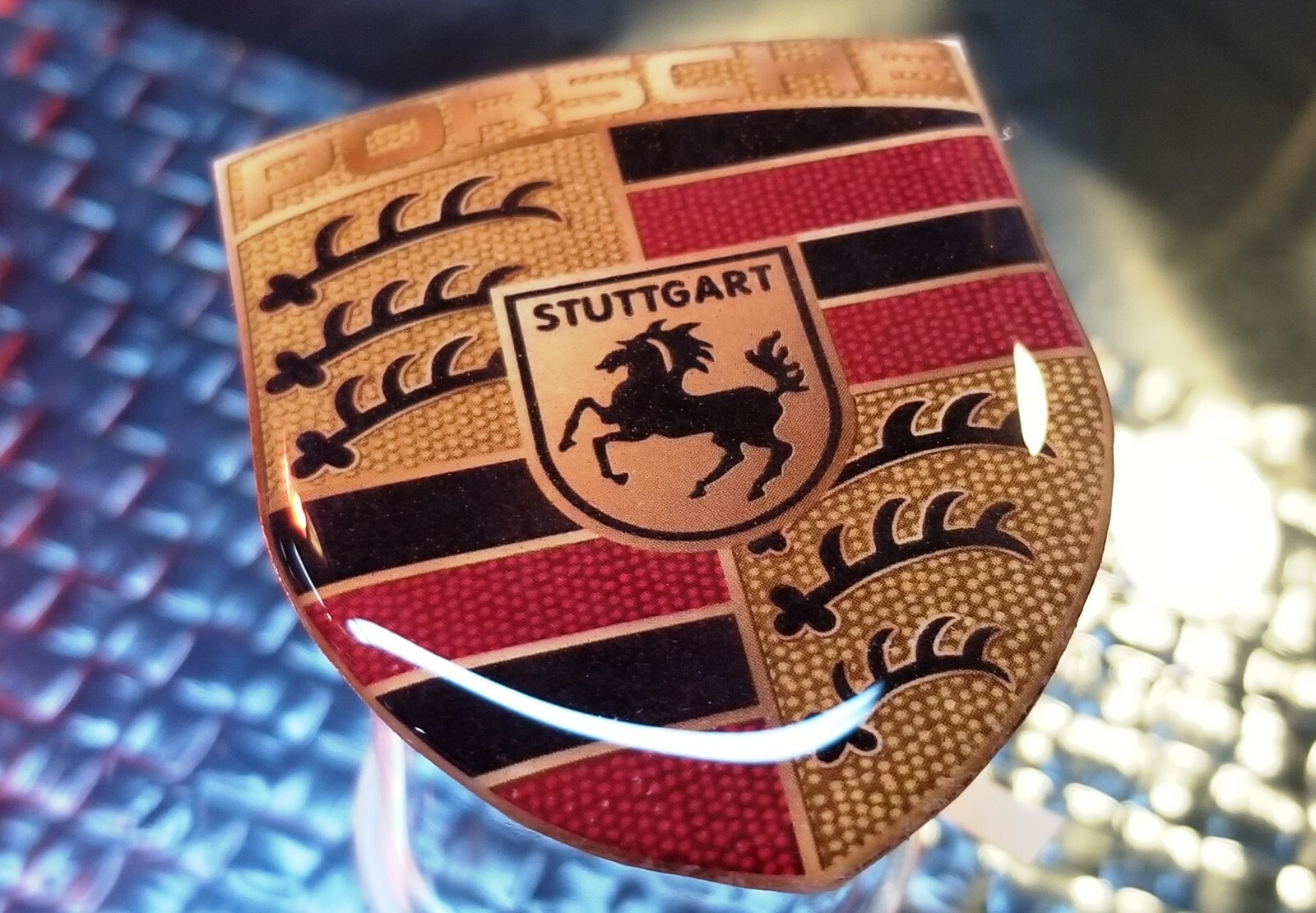

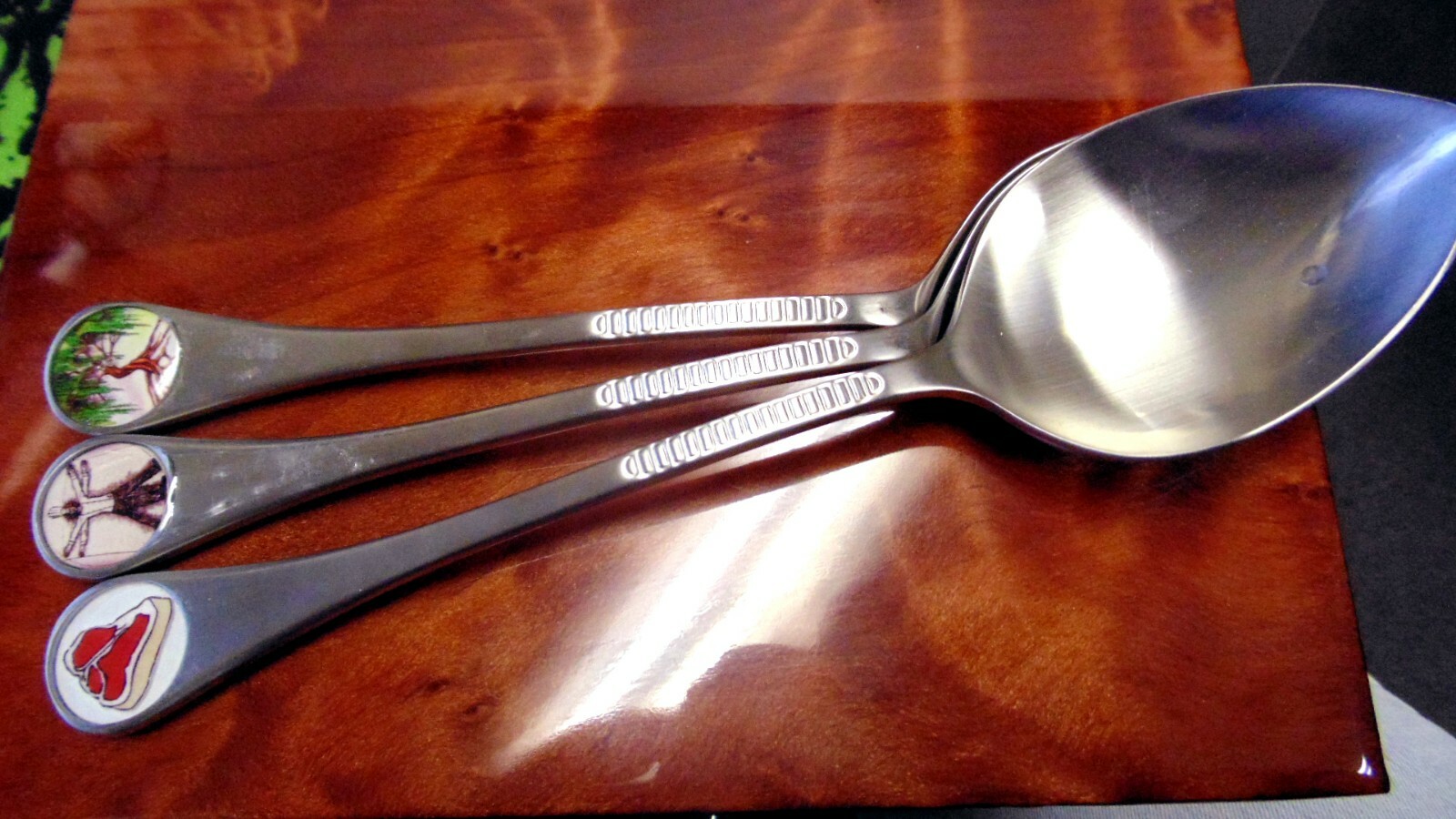

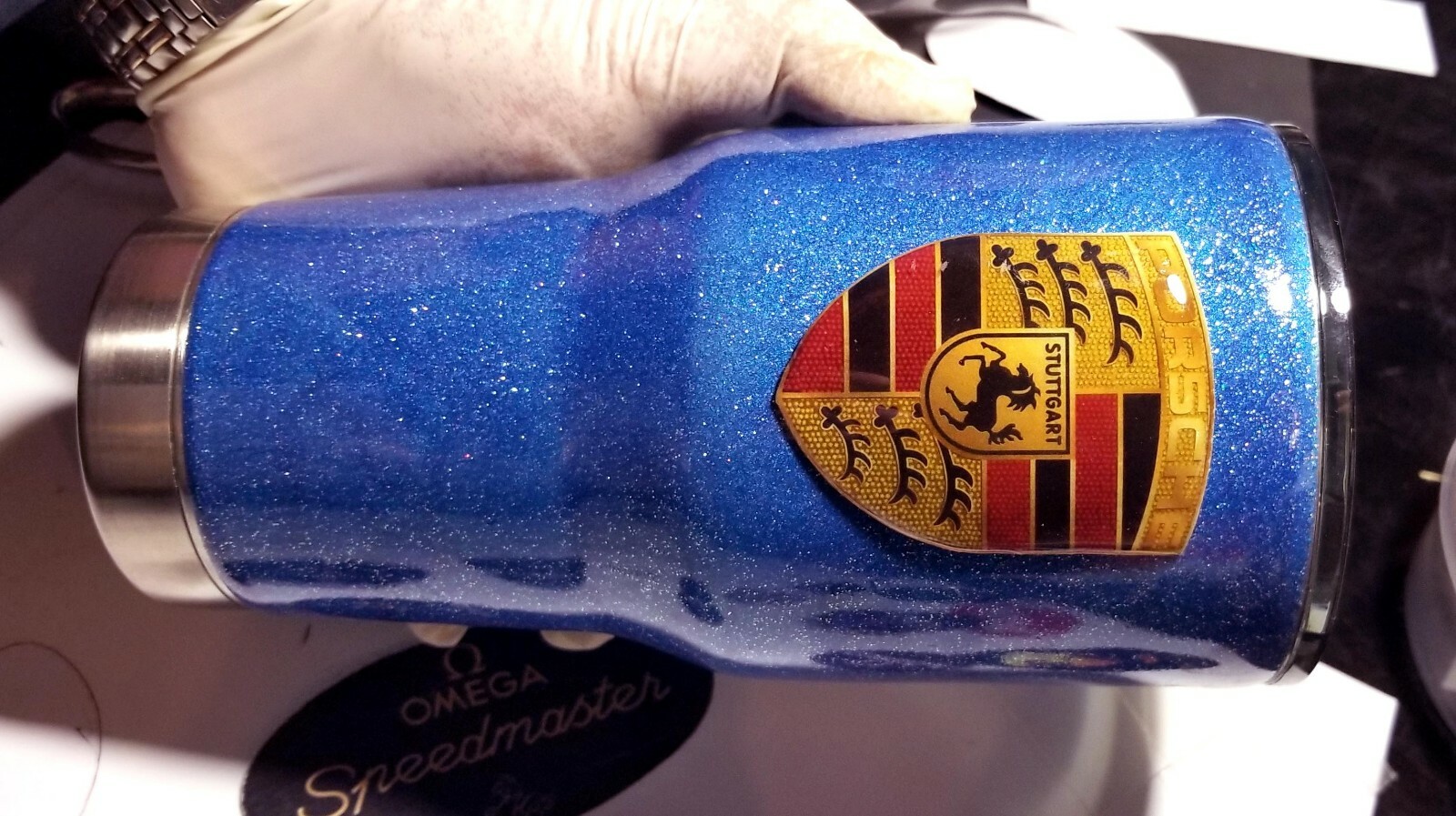

Dome Coating Epoxy Crystal Clear Resin 4 Logos Emblems Wearable Jewelry Casting
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Country/Region Of Manufacture | United States |
| Type | Dome Coating Epoxy |
| MPN | MAXCLR24DomeCoatingKit |
| Brand | MAX EPOXY RESIN SYSTEMS |
PHYSICAL AND MECHANICAL PROPERTIESViscosityDensityForm and Color800 – 1,200 cPs @ 25°C Mixed1.10 g/ccClear Transparent LiquidMix Ratio100 Parts to 50 Parts A By Weight or by Volume 2:1 (Part A to Part B)Working Time45 Minutes @25°C (77°F 100-gram mass)Peak Exotherm70°C (158°F, 100-gram mass)Handle TimeFull Cure Time5.5 Hours36 Hours minimum @ 25°C (75°F)Hardness72± 5 ShoreTee-Peel Strength5.7 Lbs per inch WidthTensile Shear Strength1,300 psi @ 25°C (77°F) 800 psi @ -80°C (-112°F) 550 psi @ 100°C (212°F)Elongation9.0% @ 25°C (77°F)Compressive Strength2,200 psiHeat Distortion Temp80°C (176°F)Available Kit SizesMAX CLR LOW VISCOSITY 24 OUNCE KIT https://www.ebay.com/itm/311955541111MAX CLR LOW VISCOSITY 48 OUNCE KIT https://www.ebay.com/itm/311947320101MAX CLR LOW VISCOSITY 96 OUNCE KIT https://www.ebay.com/itm/222625329068 MAX CLR LOW VISCOSITY 1.5 GALLON KIT https://www.ebay.com/itm/312432570345MECHANICAL PERFORMANCE TESTImpact testing is one of the most revealing test methods that demonstrate a material's ability to resist and withstand a high-rate of pressure loading, its behavior during and after the impact can define its maximum mechanical property and conditional limits upon its destruction.Why is Impact Testing Important?The impact resistance of an object provides the ultimate measure of its resistance to its definitive destruction. Governed by the many laws and dynamics of physics, a skilled chemist or materials engineer can determine the design equilibrium and ultimate performance by careful analysis of the material’s disassociation and the manner of its destruction.With this knowledge, other aspects of mechanical performance can be accurately derived and through skillful engineering, one can determine:The impact energies the part can be expected to see in its lifetimeThe type of impact that will deliver that energy, and thenA material that will resist such assaults over the projected lifespan.PLEASE CHECK OUT OTHER AVAILABLERESIN SYSTEMS AT OUR eBay STOREFor our complete listing, please Visit our eBay store! DON'T FORGET OUR EPOXY MIXING KITClick The Link To Add To Order https://www.ebay.com/itm/222623932456EVERYTHING YOU NEED TO MEASURE, MIX, DISPENSE OR APPLY Proportioning the correct amount is equally as important to attain the intended cured properties of the resin system. The container in which the epoxy and curing agent is mixed is an important consideration when mixing an epoxy resin system. The container must withstand the tenacity of the chemical and must be free of contamination. Most epoxy curing agent has a degree of corrosivity, as a general practice, protective gloves should be worn when handling chemicals of the same nature. MIXING KIT CONTENTS 1 Each Digital Scale -Durable, Accurate Up To 2000.0 Grams 4 Each 32-ounce (1 Quart) Clear HDPE Plastic Mix Cups4 Each 16-ounce (1 Pint) Clear HDPE Plastic Mix CupsOne Size Fits All Powder-Free Latex Gloves 2 Each Graduated SyringesWooden Stir SticksAssorted Size Foam Brush IMPORTANT NOTICEYour purchase constitutes the acceptance of this disclaimer. Please review before purchasing this product.The user should thoroughly test any proposed use of this product and independently conclude the satisfactory performance in the application. Likewise, if the manner in which this product is used requires government approval or clearance, the user must obtain said approval.The information contained herein is based on data believed to be accurate at the time of publication. Data and parameters cited have been obtained through published information, PolymerProducts and Polymer Composites Inc. laboratories using materials under controlled conditions. Data of this type should not be used for a specification for fabrication and design. It is the user's responsibility to determine this Composites fitness for use.There is no warranty of merchantability for fitness of use, nor any other express implied warranty. The user's exclusive remedy and the manufacturer's liability are limited to refund of the purchase price or replacement of the product within the agreed warranty period. PolymerProducts and its direct representative will not be liable for incidental or consequential damages of any kind. Determination of the suitability of any kind of information or product for the use contemplated by the user, the manner of that use and whether there is any infringement of patents is the sole liability of the user.
