DIN Rail Terminal Block Kit Dinkle 20 DK4N 10 AWG Gauge 30A 600V Ground Jumper
USD 32.99 USD
Specifications
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Return Shipping Will Be Paid By | Buyer |
| MPN | DIN Rail Block Kit #2 |
| Brand | Dinkle |
| Model | DIN Rail Block Kit #2 |

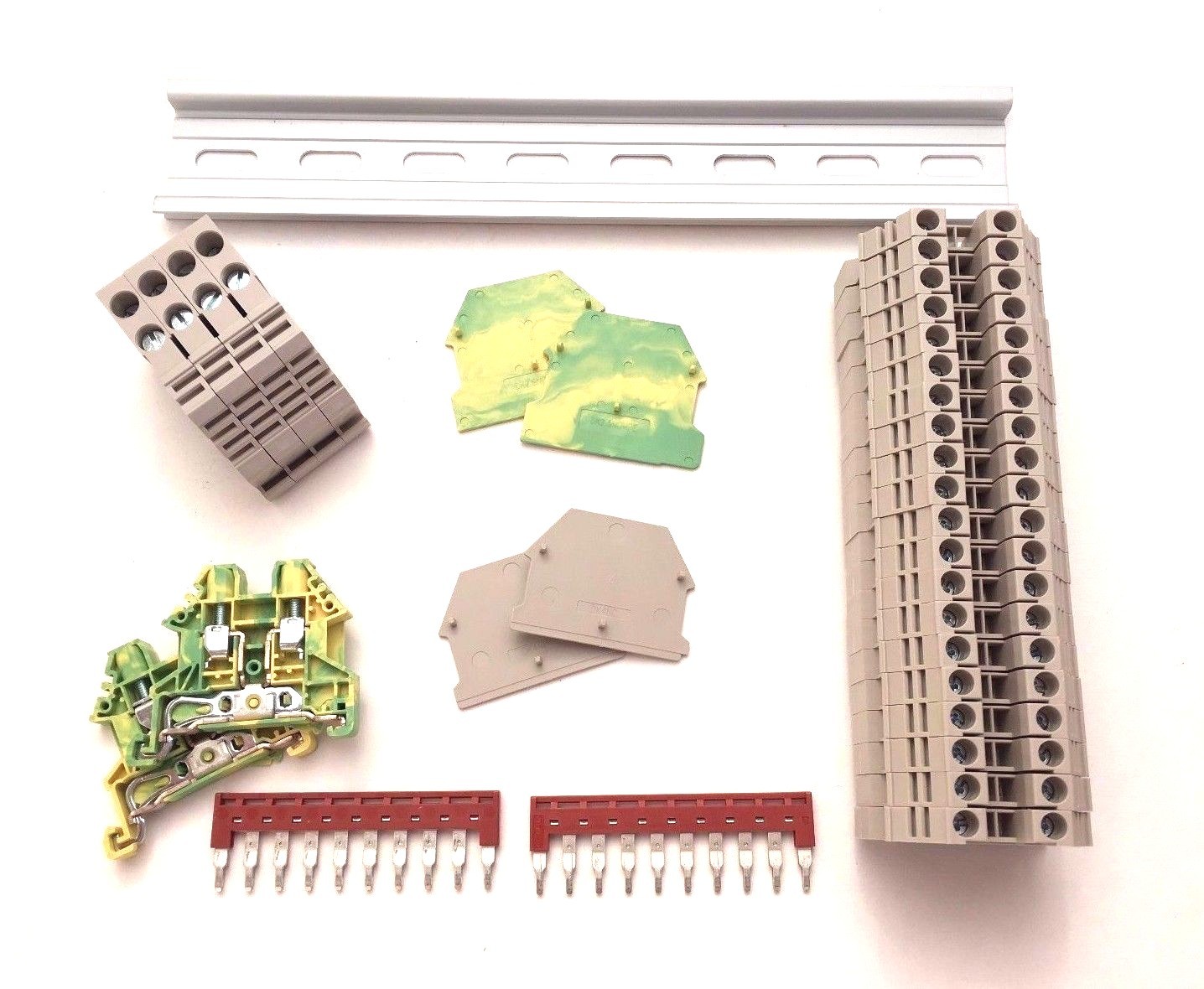

Item: Dinkle DIN Rail Terminal Block Kit #2 Aluminum Rail 8", (20) DK4N Blocks, (2) DK2.5NC-PE Ground Block Covers, (2) DK4NC Block Covers, (2) DK4N-PE Ground Blocks, (2) DSS4N-10P Ten Pole Jumpers, (4) SS2 End BracketsQuantity: 1 Kit Condition: New Technical Data (UL)Rated Voltage: 600VRate Current: 30AConductor Cross-section, Solid (AWG): 22-10Conductor Cross-section, Flexible (AWG): 22-10Rated Impulse Withstand Voltage: 6KVTorque (N-m): 0.6Screw: M3Wire Strip Length: 9-11mmInsulating Material: PATxHxW (mm): 6.1 x 39.6 x 40.35DIN Rail (mm): 35Jumper/Bridge: Press-fit/Insertion Free fast shipping! For more information, please message us.
