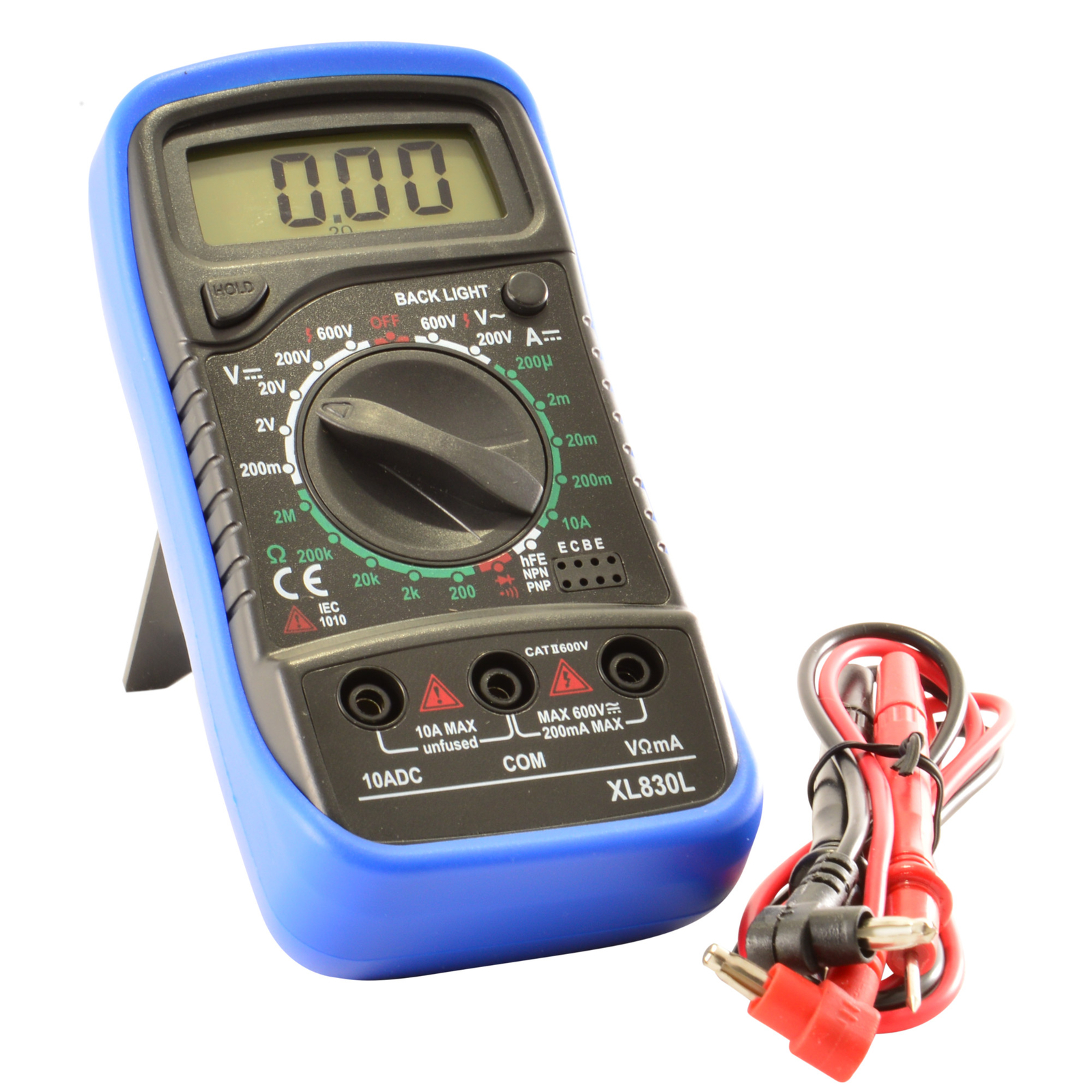

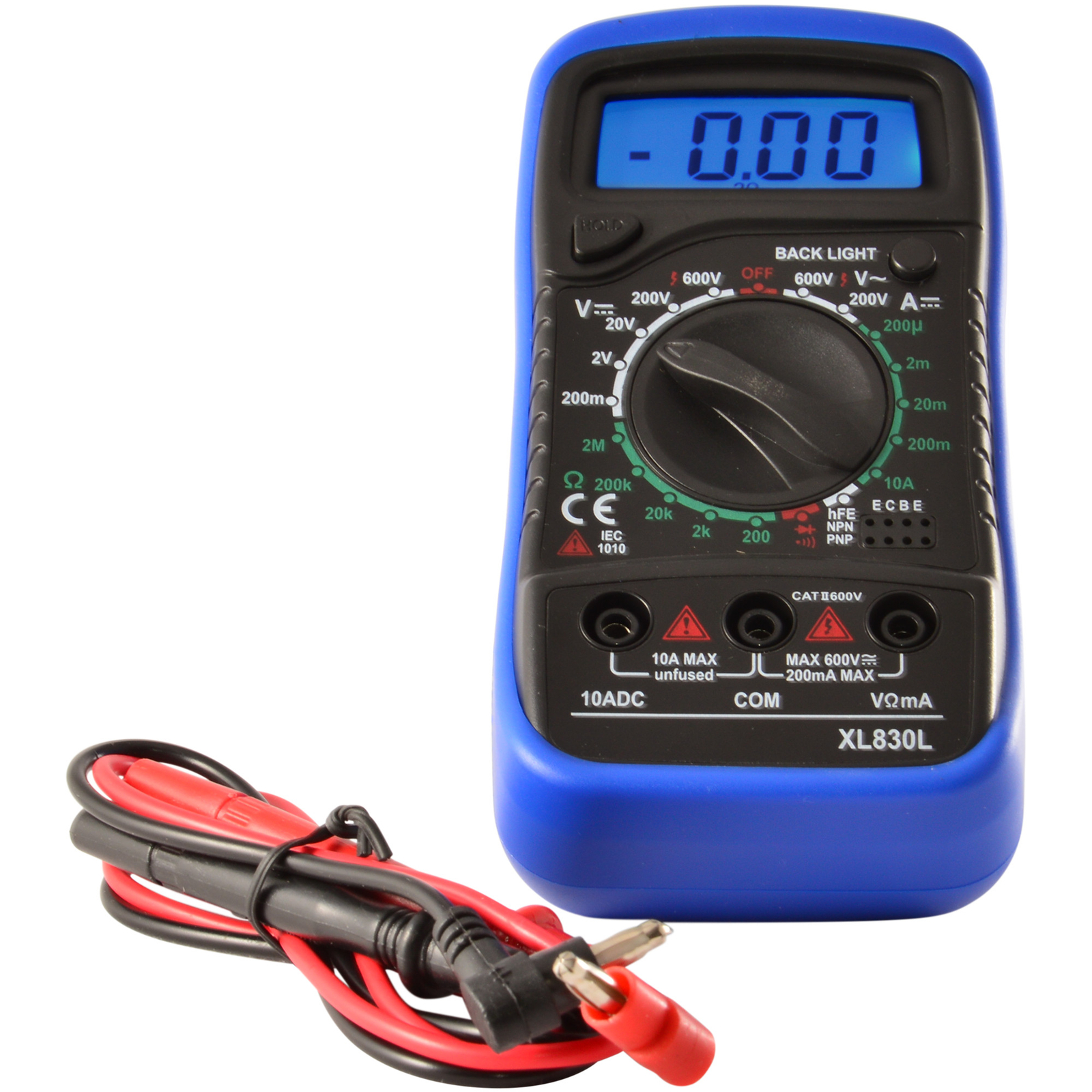

Digital Multimeter AC DC Voltmeter Ammeter Ohmmeter Volt Tester Meter XL830L
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Form Factor | Handheld |
| Maximum Input Voltage | 600V |
| AC Voltage Range | 100mV-600V |
| DC Voltage Range | 0.1mV-600V |
| Current Range | 0.0001mA-10A |
| Resistance Range | 100mΩ-2MΩ |
| Country/Region Of Manufacture | China |
| MPN | DMULB |
| Brand | JacobsParts |
| Test/Measurement Functions | Resistance |
| Features | Digital |
| Display | Digital |
Digital Multimeter AC DC Voltmeter Ammeter Ohmmeter Volt Tester Meter XL830L This digital multi-meter has all the functions you will need for electronics testing and electrical work. A wide range of functions cover just about every use case. Tests: AC Voltage, DC Voltage, Current, Resistance, Continuity, Diode, Transistor Continuity test has an auditory buzzer, Data hold button locks displayed value, Back-light button illuminates the display Probes and 9V battery included 1-year warranty DC Voltage Modes: 200mV (100µV resolution) 2V (1mV resolution) 20V (10mV resolution) 200V (100mV resolution) 600V (1V resolution) DC Current Modes: 200µA (0.1µA resolution) 2mA (1µA resolution) 20mA (10µA resolution) 200mA (100µA resolution) 10A (10mA resolution) AC Voltage Modes: 200V (100mV resolution) 600V (1V resolution) Continuity Test: If continuity exists a built in buzzer will sound Diode Test: Show the approximate forward voltage drop of the diode Resistance Test: 200Ω (0.1Ω resolution) 2kΩ (1Ω resolution) 20kΩ (10Ω resolution) 200kΩ (100Ω resolution) 2mΩ (1kΩ resolution) Transistor hFE Test: NPN & PNP 0-1000 3V 10µA Additional Features: Data hold button locks displayed value Back-light button illuminates the display Kickstand Package Includes: Multimeter Probe Cables Instruction Manual Ships in retail box Takes 9V battery (included) Product Guarantee We offer a 30 day return policy and a one year warranty. Buy with confidence! Item Location All orders ship from Indianapolis, IN, USA Same Item in Other Lot Sizes 2 Pack $15.89 Free shipping
