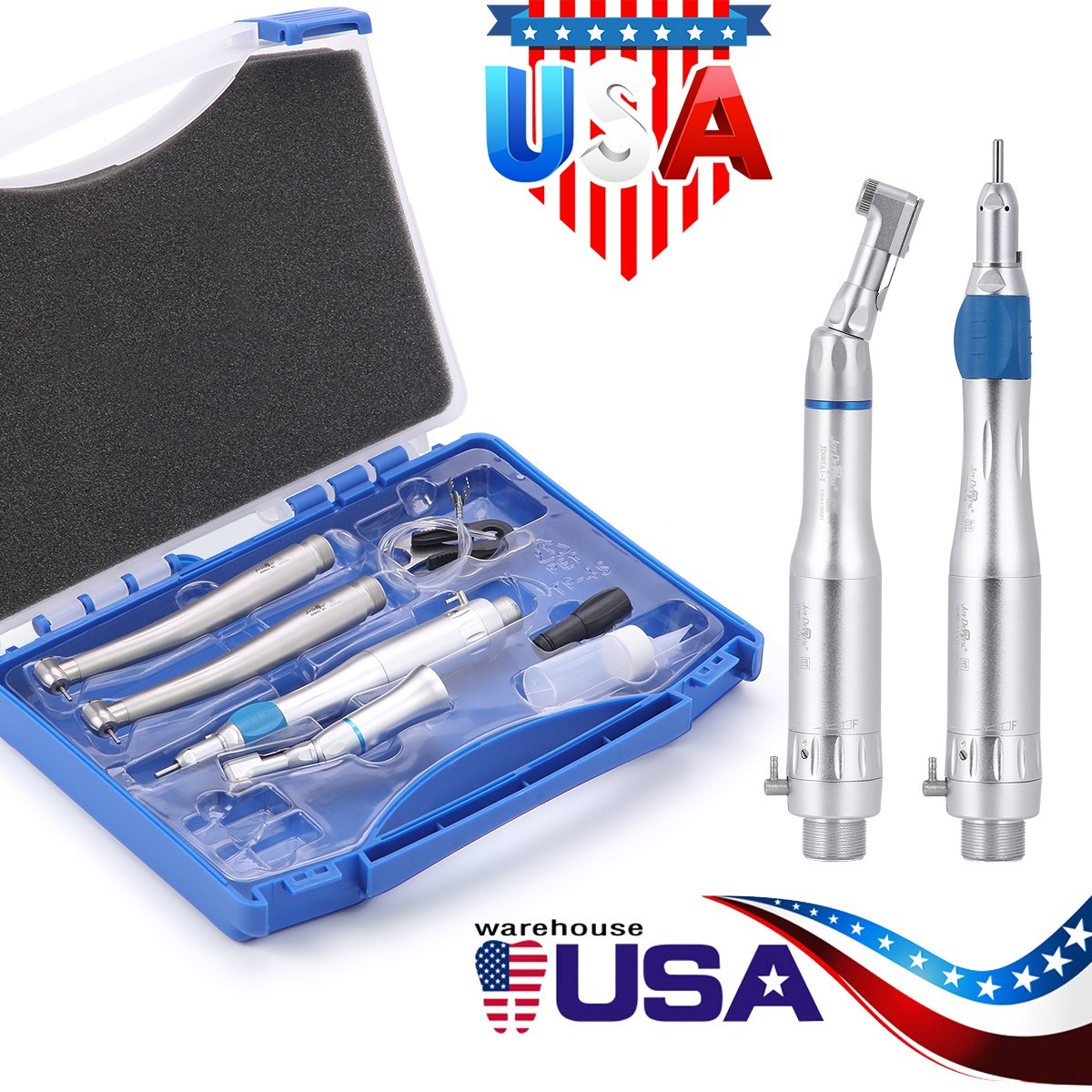

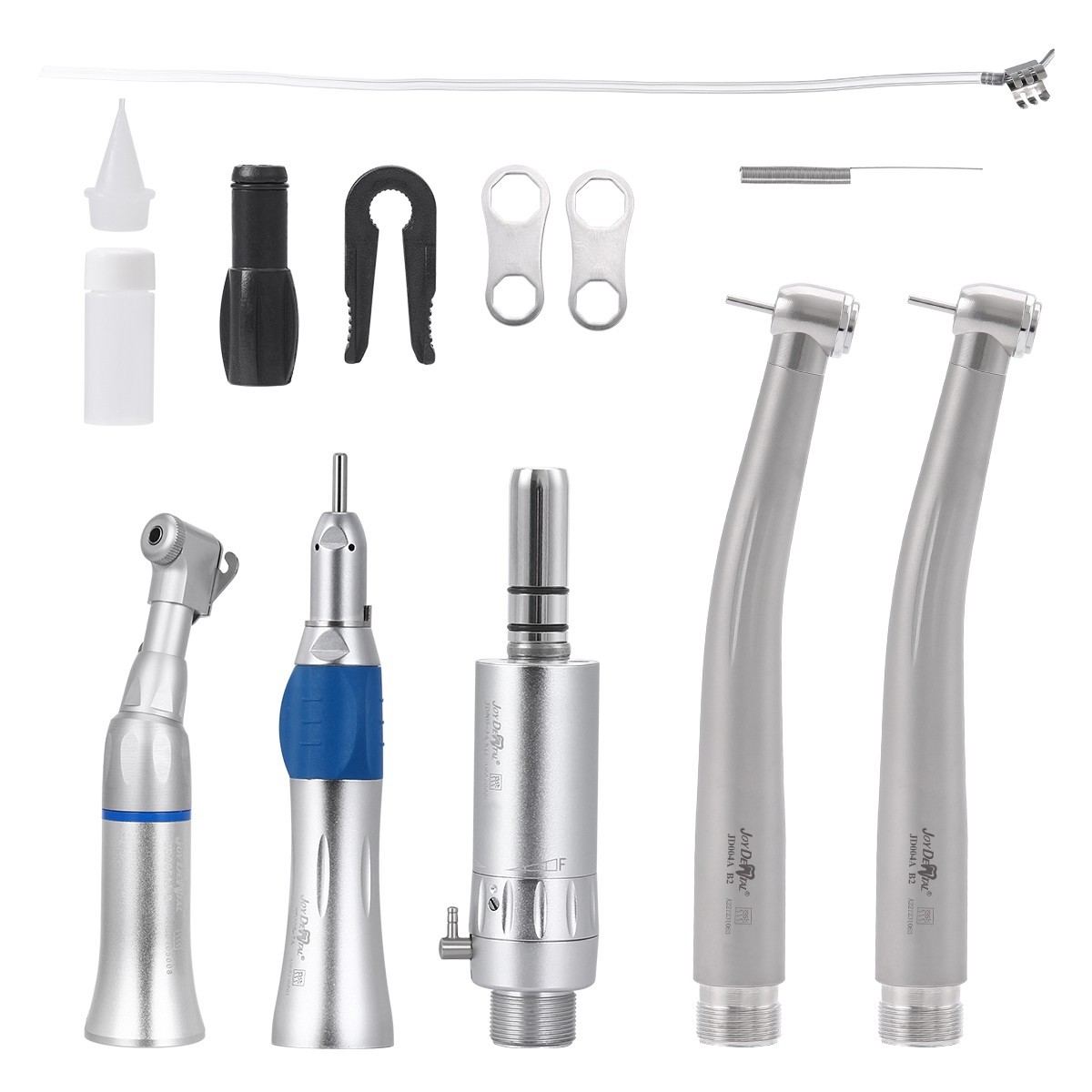

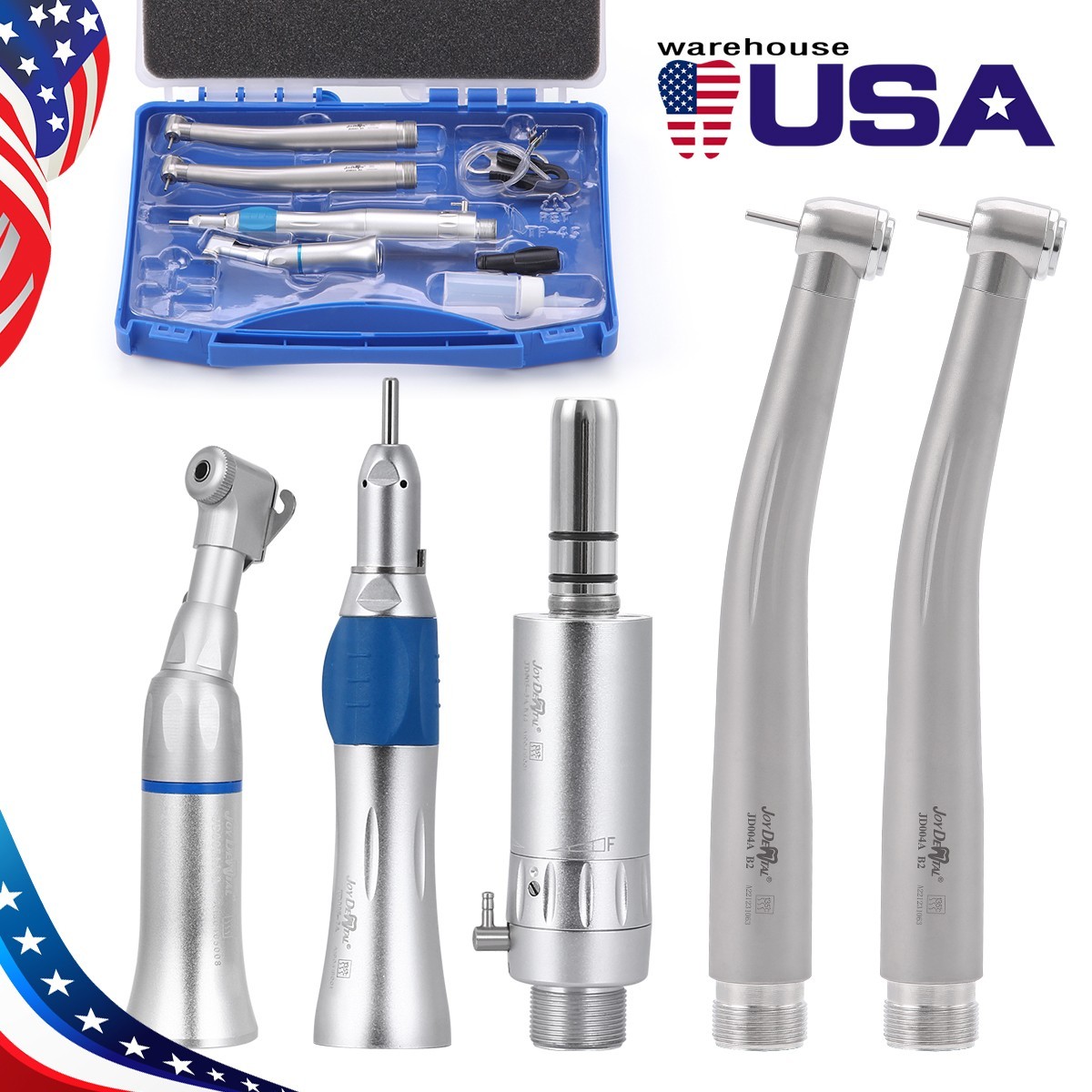

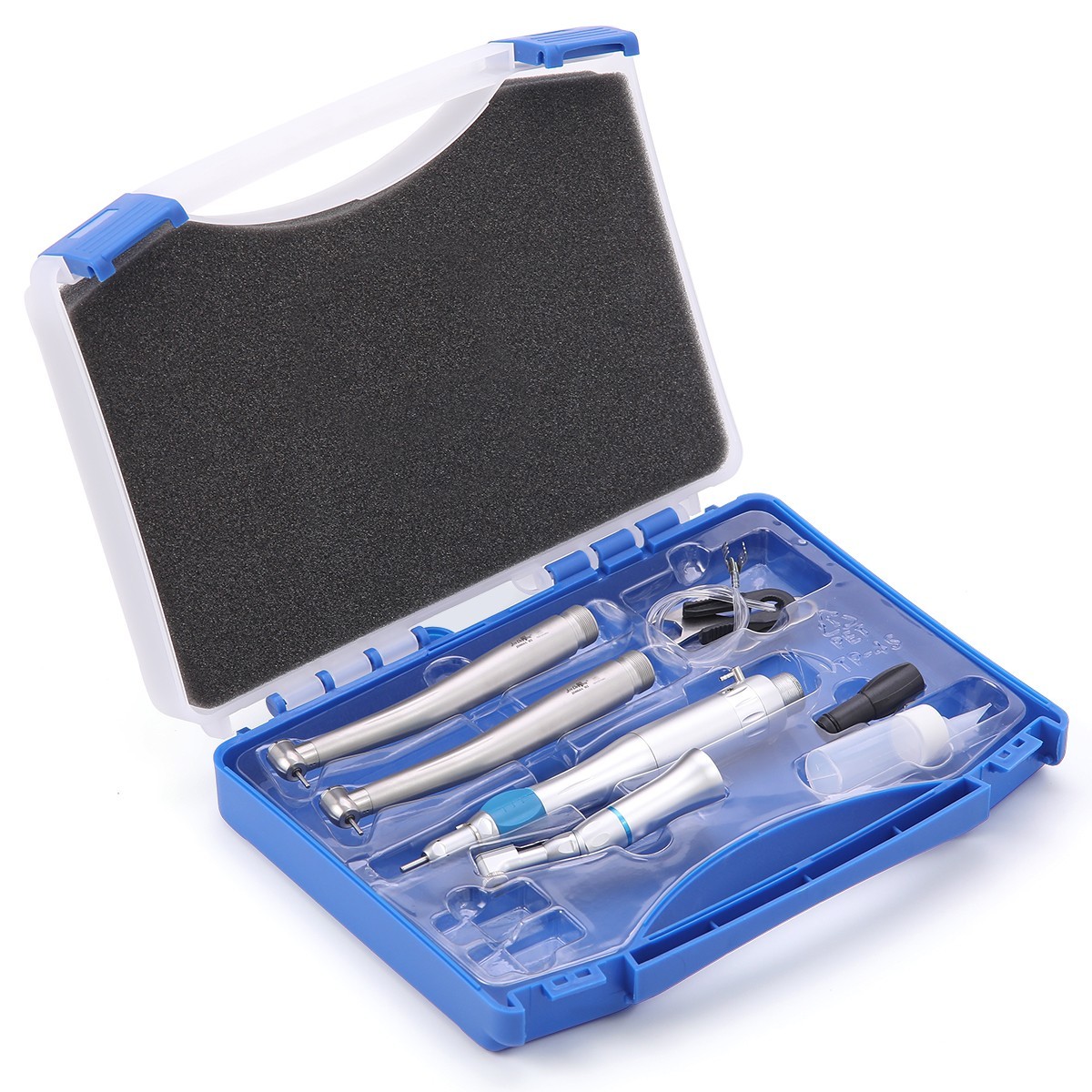

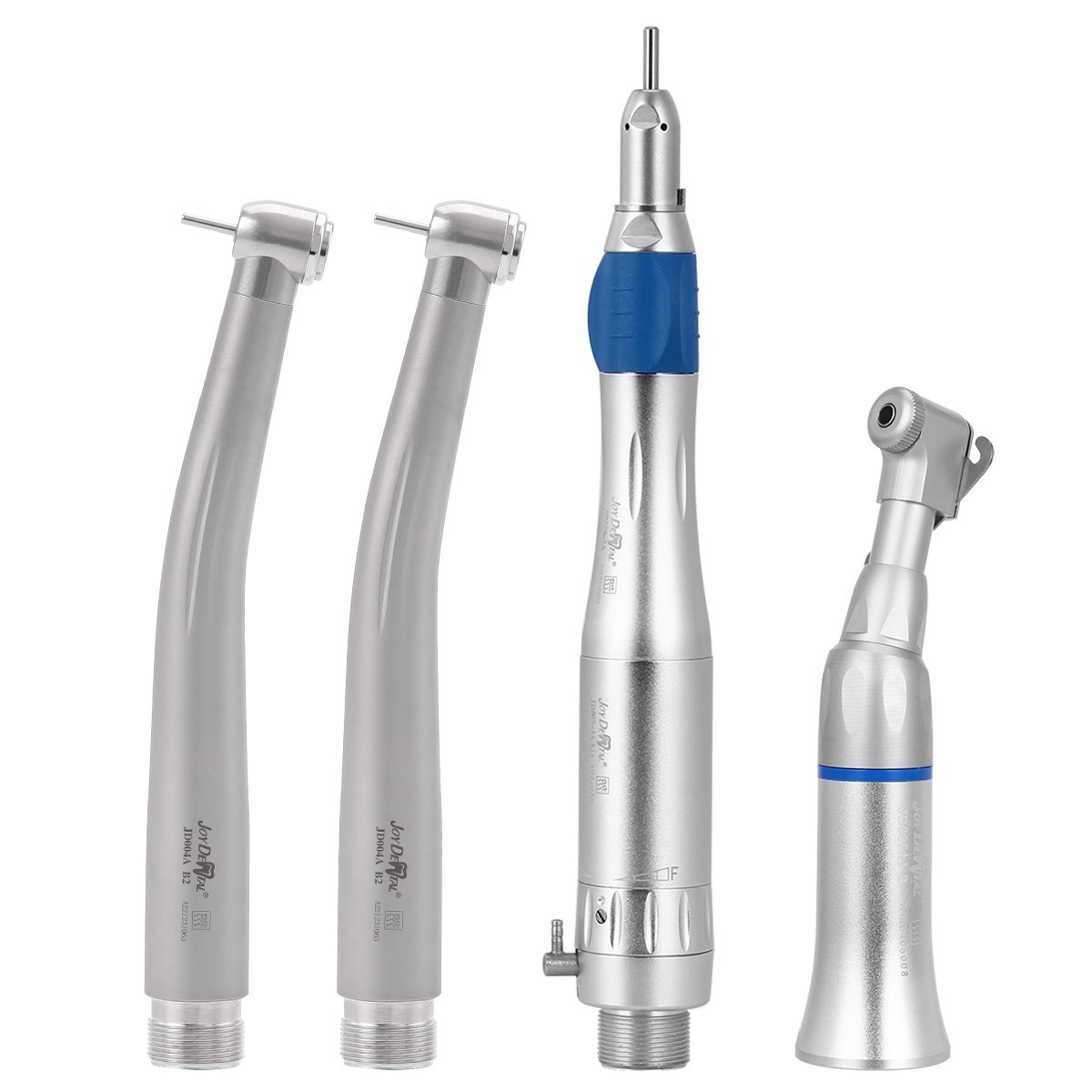

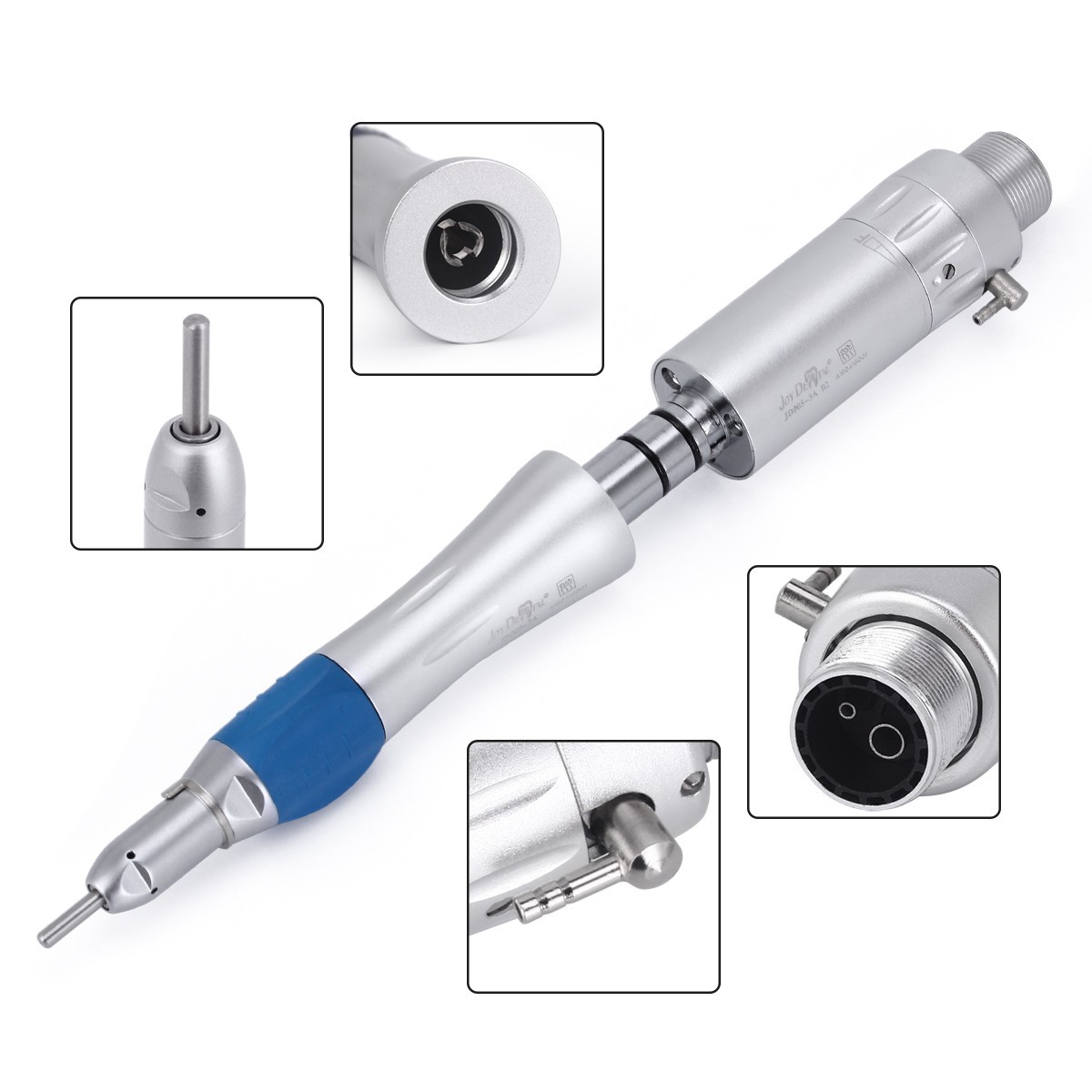

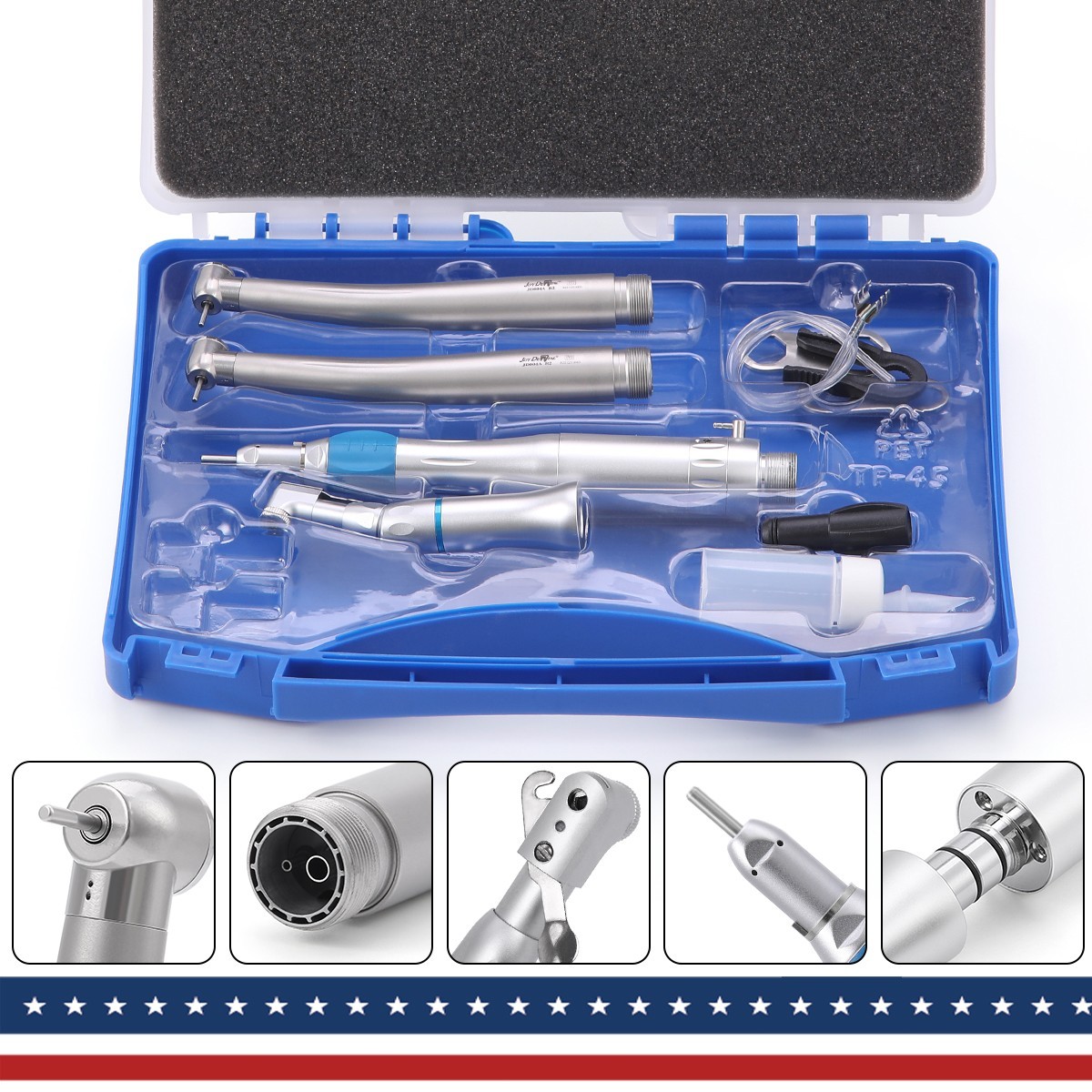

Dental Turbine High and Low Speed Handpiece Kit 2 Hole Set
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | AZDENT |
| Handpiece Type | High/Low Speed |
| Hose Compatibility | 2 Hole (Borden) |
| Handpiece Angle | Straight |
| MPN | 1107100206C |
| Country/Region Of Manufacture | China |
| Power Source | Pneumatic/Air |
| Chuck Type | Manual Chuck |
| Intended Use/Discipline | Dental Laboratory |

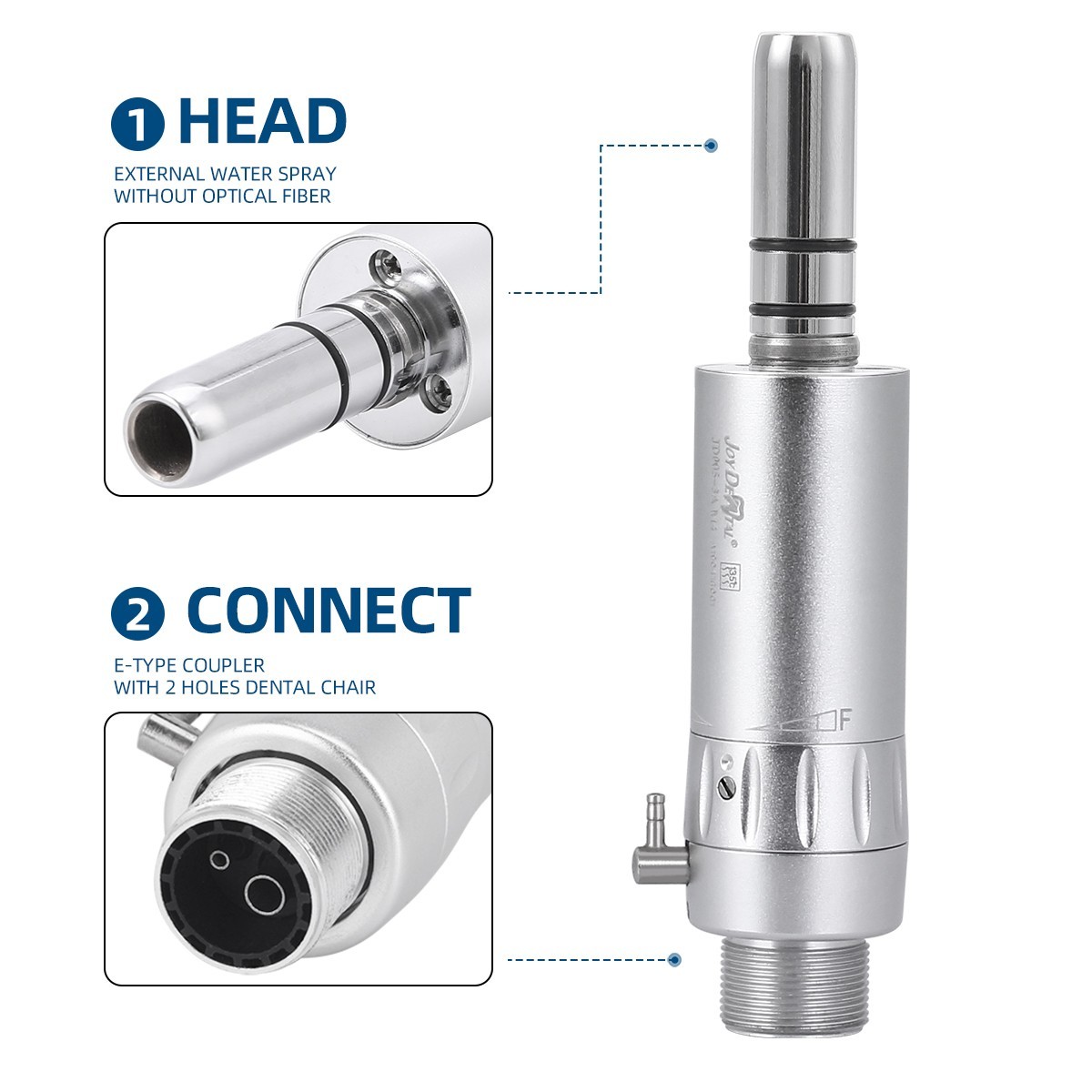

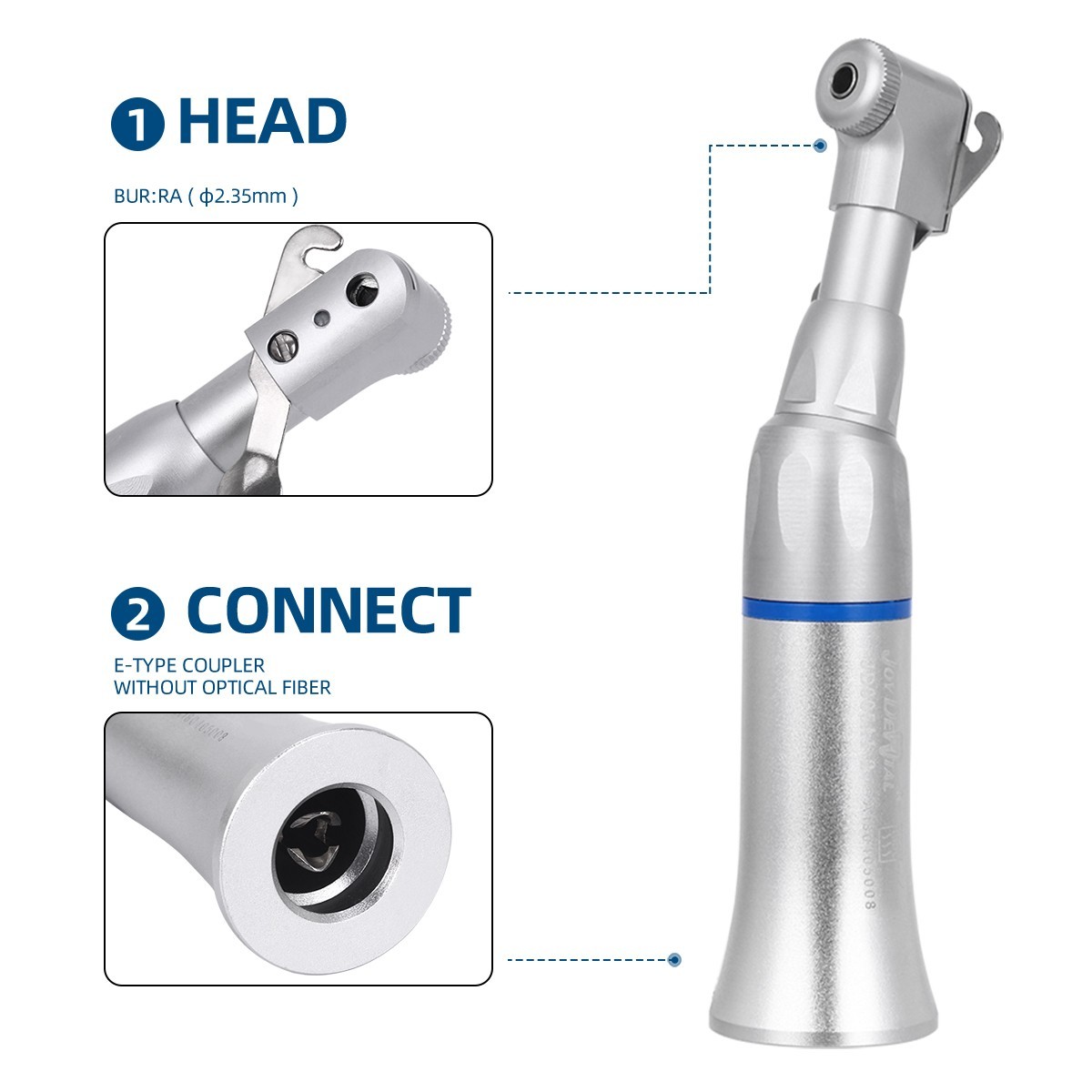

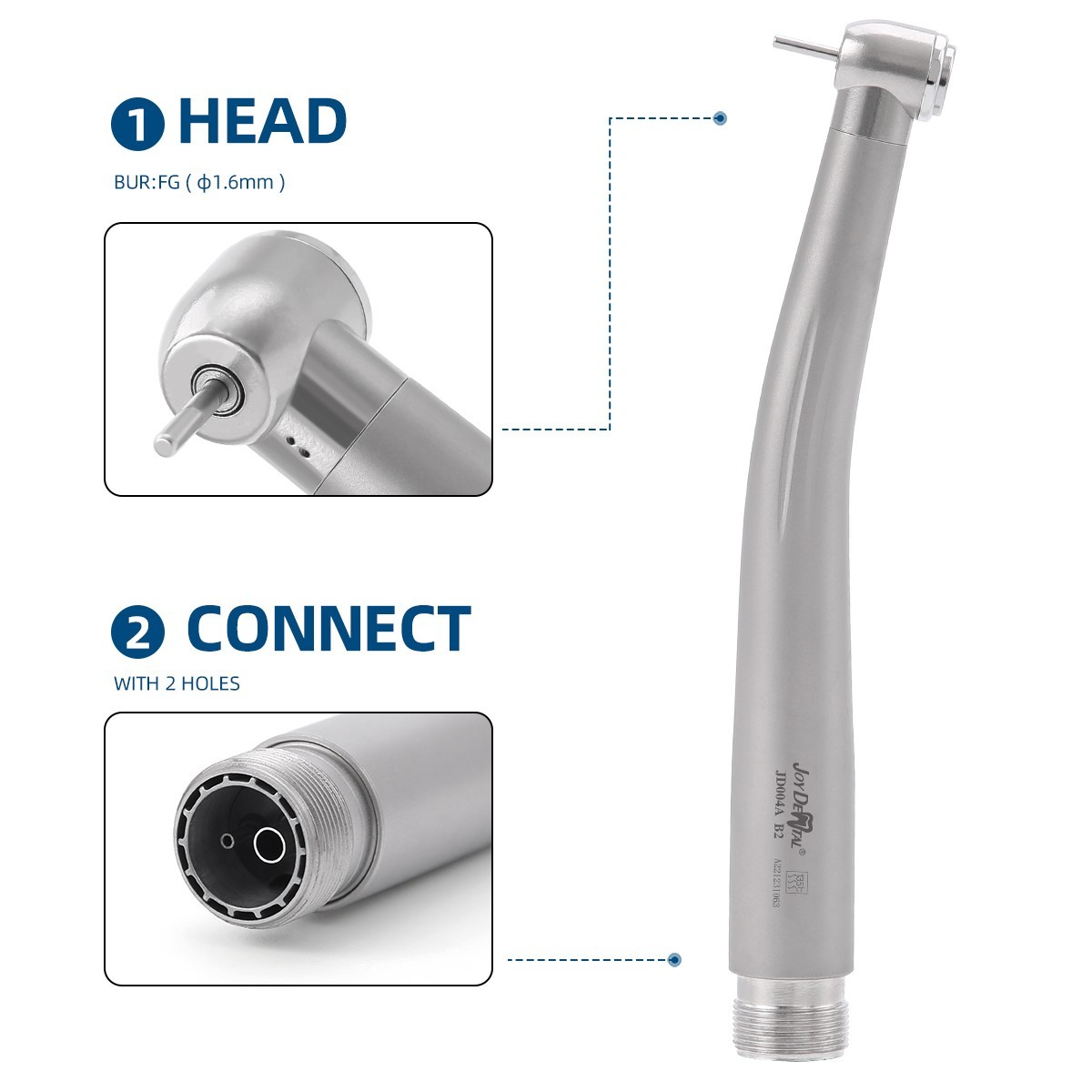

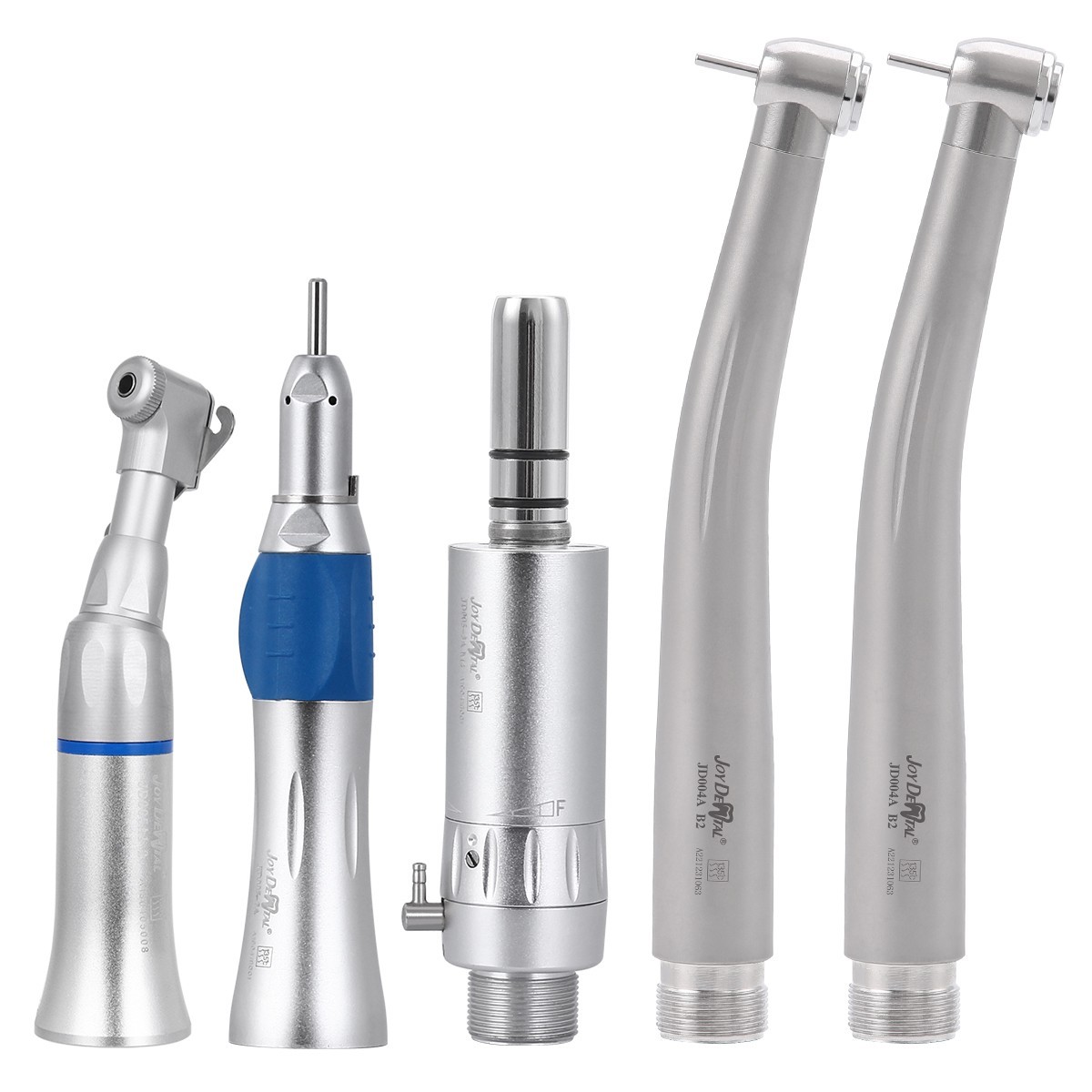

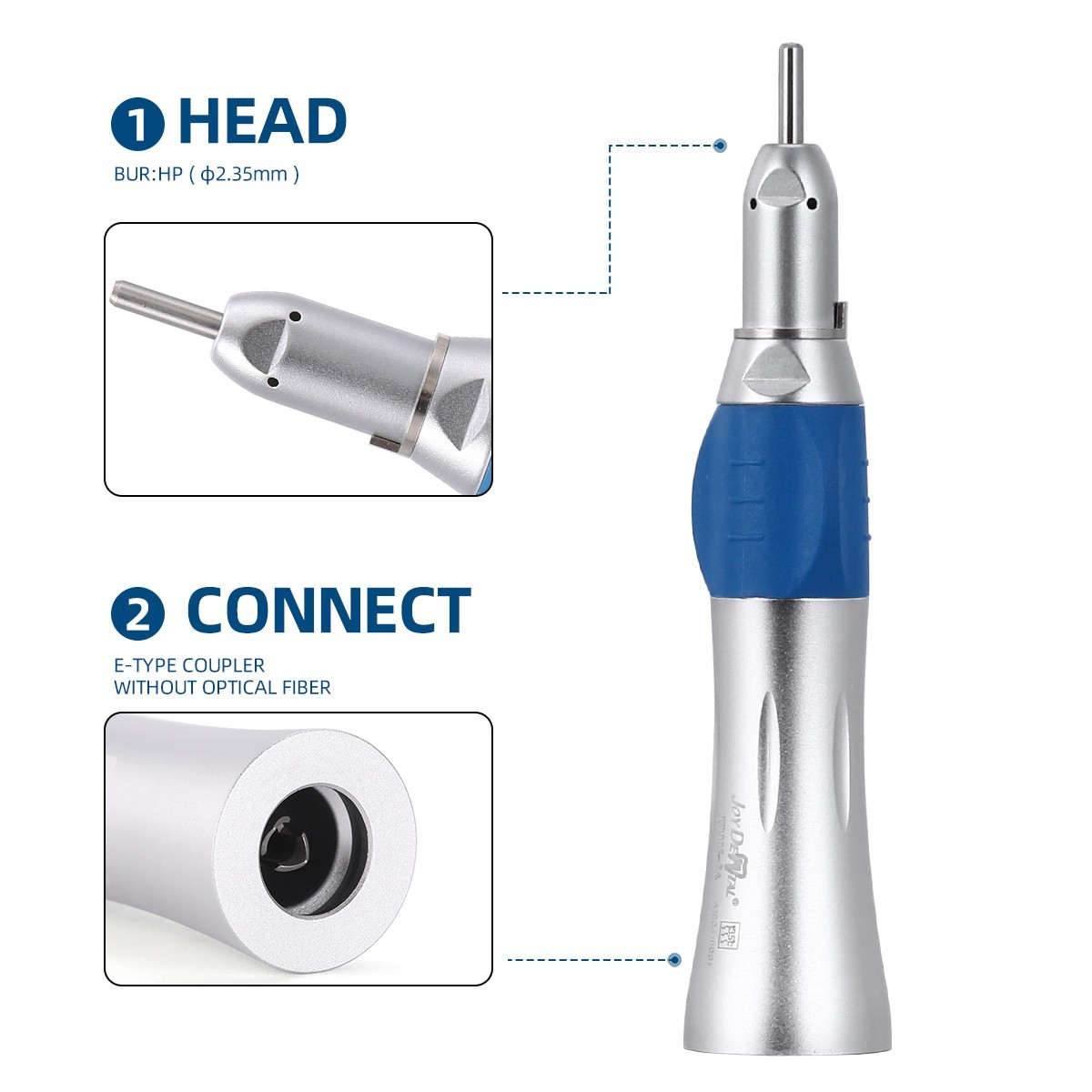

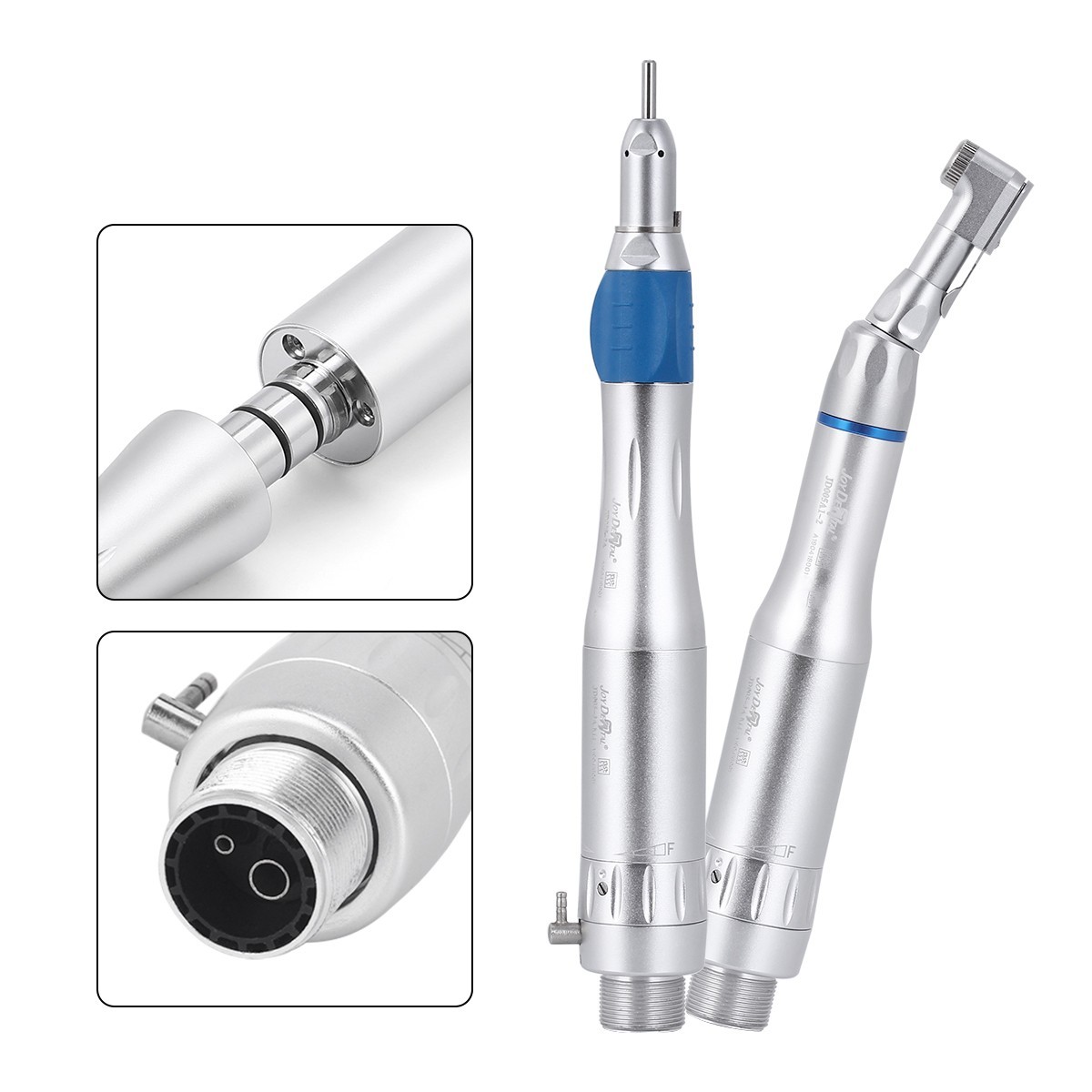

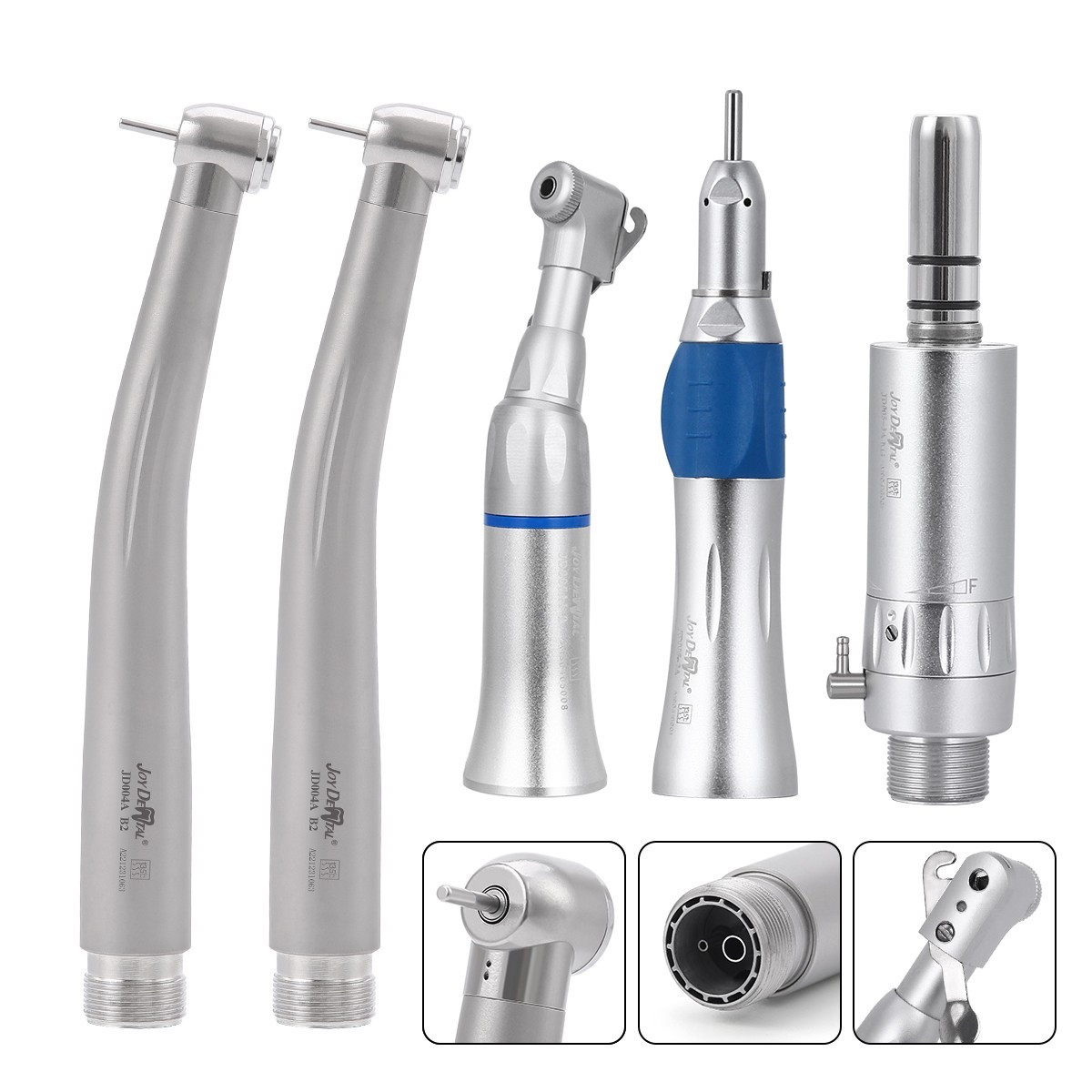

Dental High & Low Speed Handpiece Kit High speed handpiece Description: Standard Push button type, high speed handpiece, Single-way water spray Needle Change Type Push button Air Pressure 180~250 KPa (1.8~2.5 kgf/cm2) Water Pressure 198Kpa (2 kg) Rotation Speed 370,000-420,000 rpm Head Hight 13.14 mm Head Diameter φ11.2 mm Bur Applicable φ1.59mm~φ1.6mm×21mm~23mm (diameter×length) Noise ≤70dB Low speed kits Features:- E-type connector- Wrench type- Precise technology, Steady, no vibration while revolving, offering a steady operation.- Suitable for any E-type handpiece accords with ISO standard- 135°C Autoclavable, suitable for both steam and chemical autoclave Contra angle handpiece- Low Speed 22,000-27,000 rpm.- The shank of the instrument mounted therein is 2.35 mm- Fastening of the instruments with a turning latch- Autoclavable 135°C- For any lab or E-type motors Straight Nosecone- Working pressure: 0.3MPa ;- 0.25MPa (Measure meter is installed at the end of air motor to measure the air pressure).- Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)- Noise: ≤68dB- Air consumption: about 56L/min- Ratio: 1:1- Max speed of contra angle: 25000rpm/min. Air Mortor - Supply air pressure: 245-392KPa (2.5-4kgf/CM2)- 1:1 Direct Drive- 2 Hole - Max speed 20,000 min-1 Specifications Air-in Pressure(kg/c㎡) Motor Rotation(rpm) Air Wastage:(N1/min) 2.5 22,000 42 3 25,000 51 4 27,000 72 Packing List:- High speed handpiece push button 2 Holes : 2 each- E-type air motor 4-Holes: 1 each- Straight nose cone: 1 each- Contra Angle handpiece: 1 each- Water spray nozzle: 1 each- Oil spray nozzle: 1 each- CAP Spanner: 2
