DC Power Supply Variable Triple Output, 0-30V, 5A, LED Display, Twintex TP-2305C
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Twintex |
| Maximum Current Output | 5 A |
| Maximum Voltage Output | 30 V |
| Adjustable Power Supply Type | Linear Power Supply |
| MPN | TP-2305C |

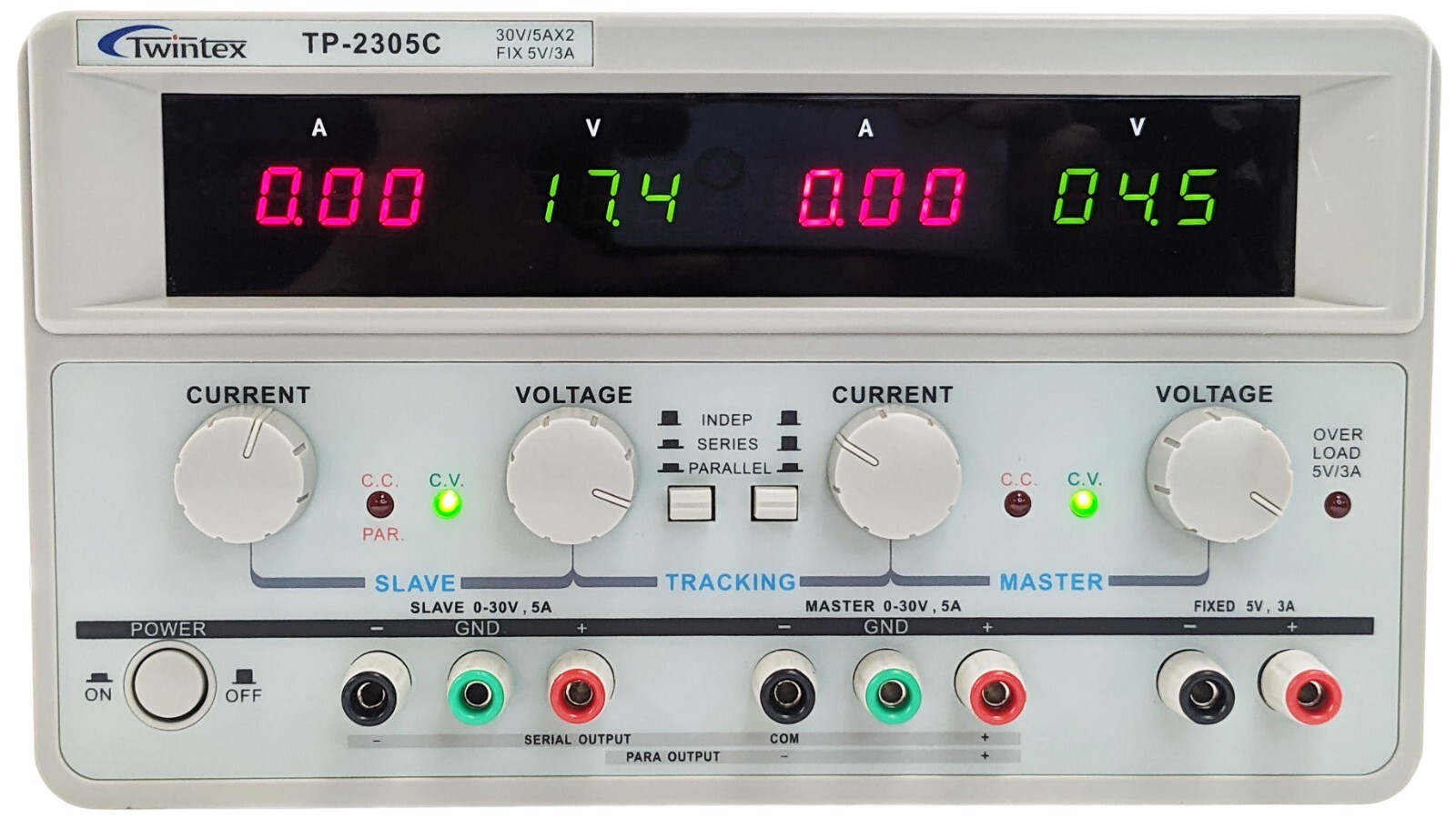

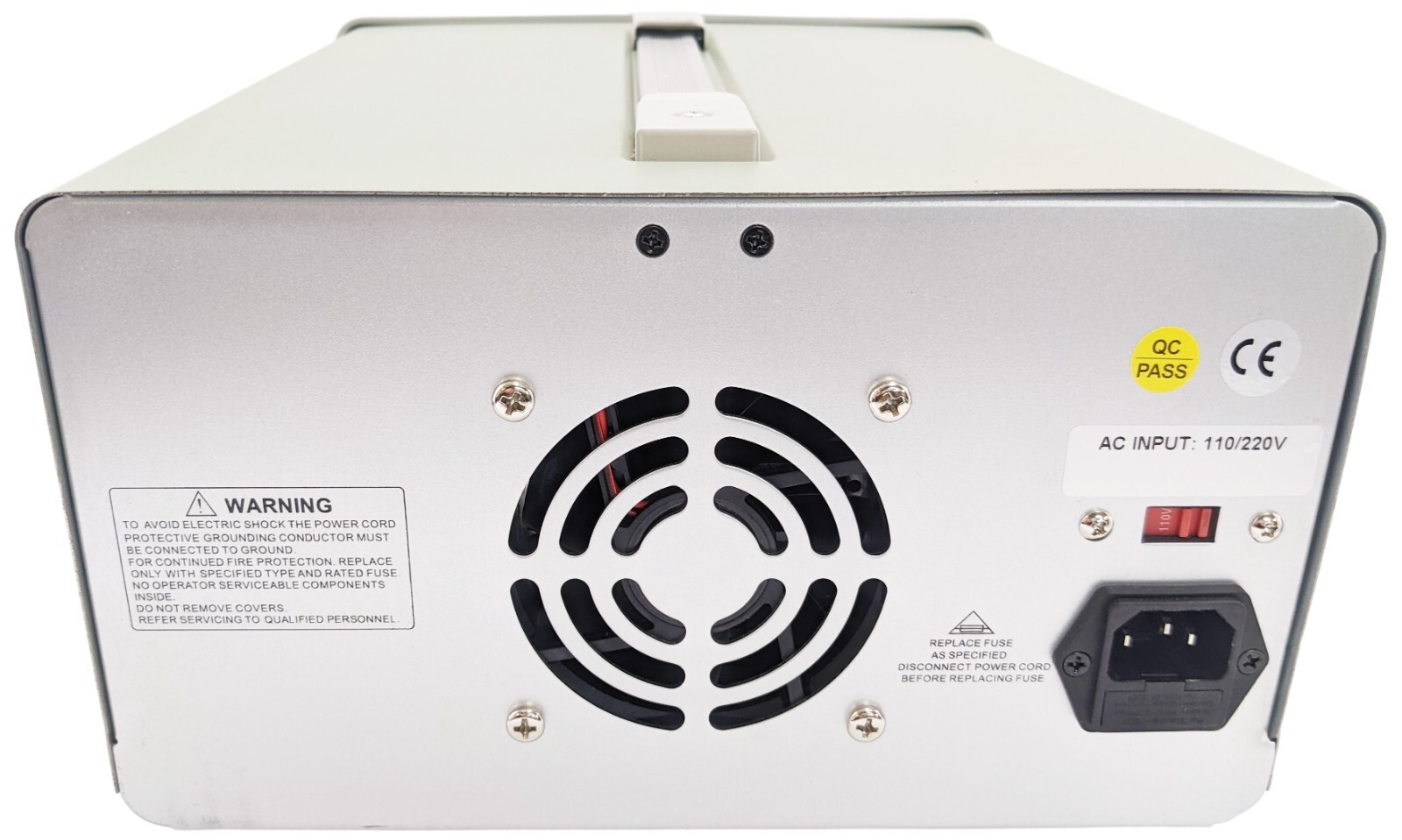

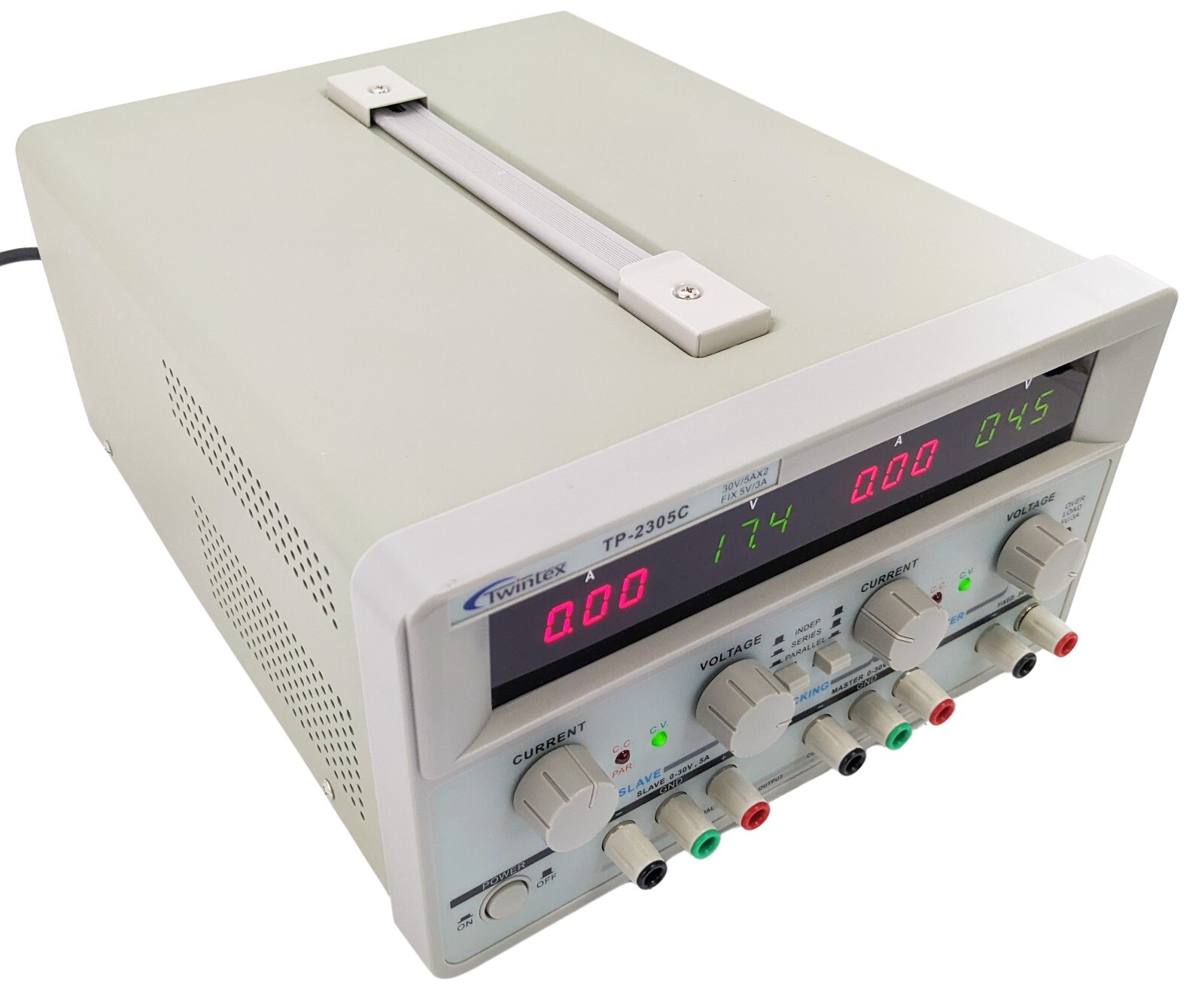

Science Purchase Our eBay Store About Us--> Contact Us--> Add to Favorite Sellers--> DC Power Supply Variable Triple Output, 0-30V, 5A, LED Display 224.95 --> The TP-2305C is a regulated power supply with triple outputs. This high quality linear power supply has three outputs: two outputs are continuously adjustable at 0-30V DC and 0-5A, and the third output is fixed at 5V DC and 3A. The two outputs can be used either in independent, series or parallel mode, providing either two independent outputs, or one output with twice the voltage or twice the current output, up to 60V or 10A. The unit comes with 4 color LED displays, providing accurate and clearly visible readout for the voltage and current value. LED displays are new trend in instrumentation, because they are more durable and easily visible even in a dark environment. This unit has a toggle switch in the back that allows operation in either 110V AC or 220V AC (please check that the switch is set appropriately before plugging it in).SPECIFICATIONS:Easy control for both current and voltage outputsDual adjustable outputs: 0-30V and 0-5AFixed output: 5V and 3AInput voltage: 110V AC and 220V AC switchableLine regulation: CV <= 0.01% + 2 mV, CC Load Regulation: CV <= 0.01% + 3mV, CC <= 0.2% + 3 mARipple noise: CV <= 0.5 mV RMS, CC <= 3 mA RMSProtection: constant current and short-circuit protectionDisplay reading accuracy: +/-1% for voltage and +/-2% for currentEnvironment: 0-40C, relative humidity Thank you for viewing our listing. If you have any questions about this item, please click the "Contact seller" link above.
