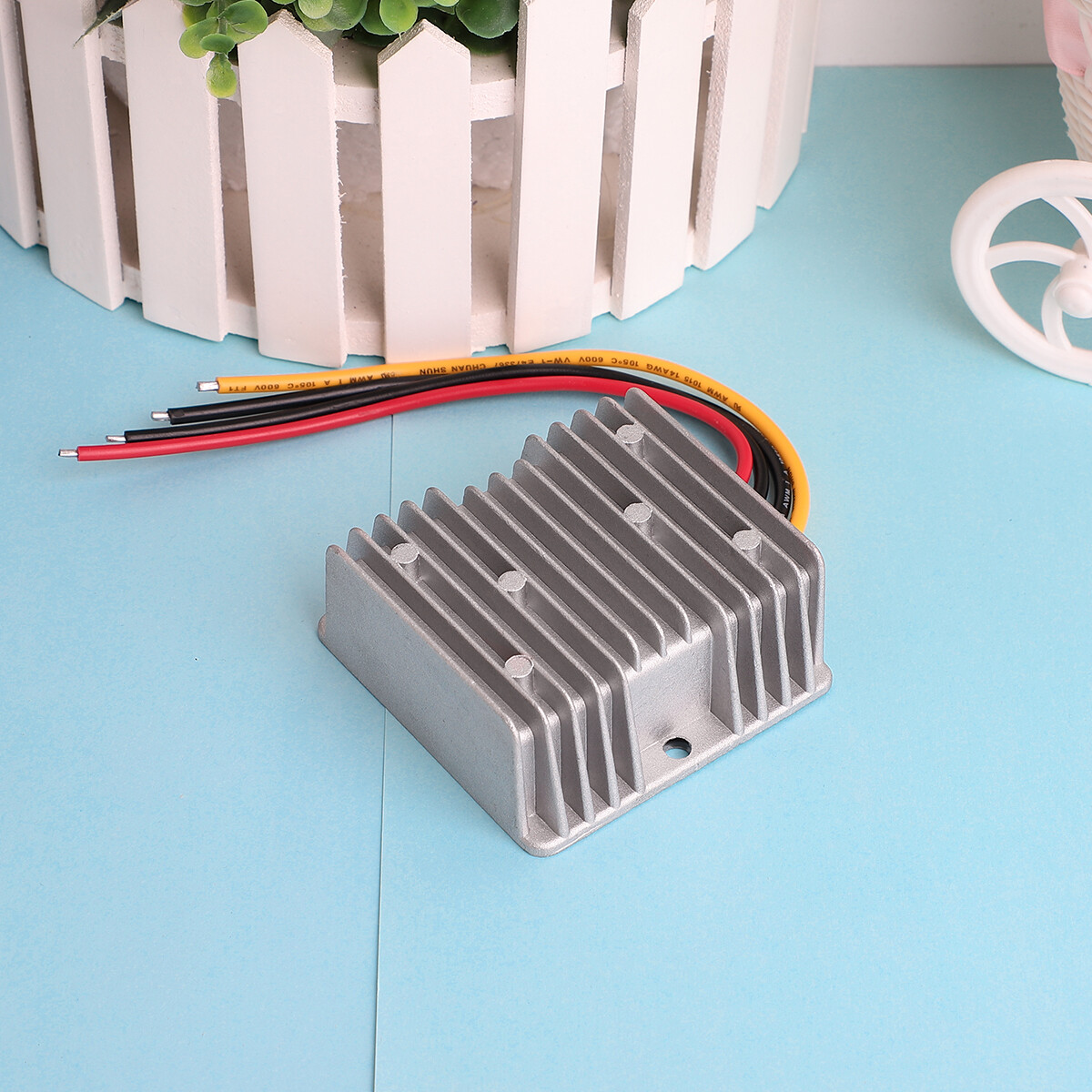

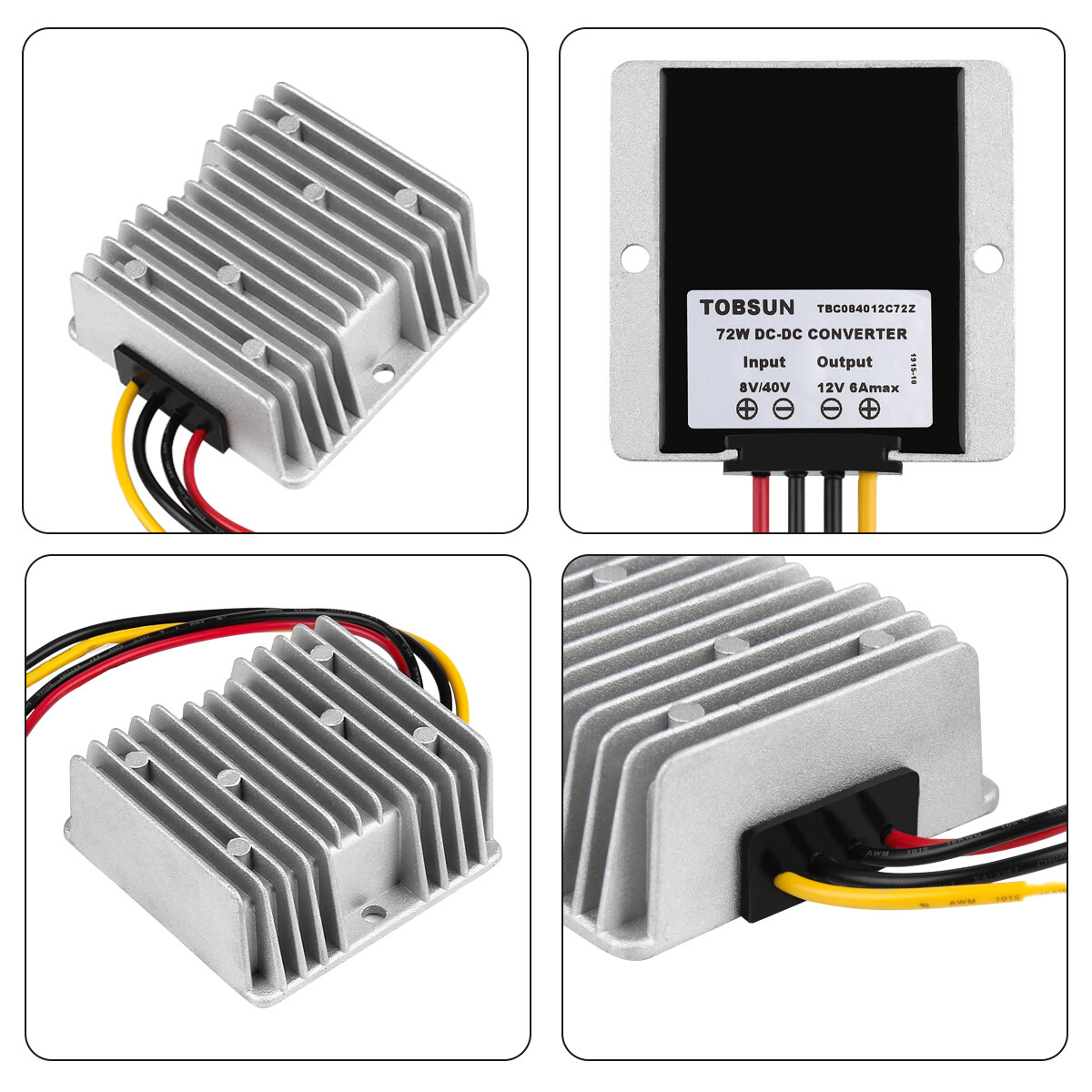

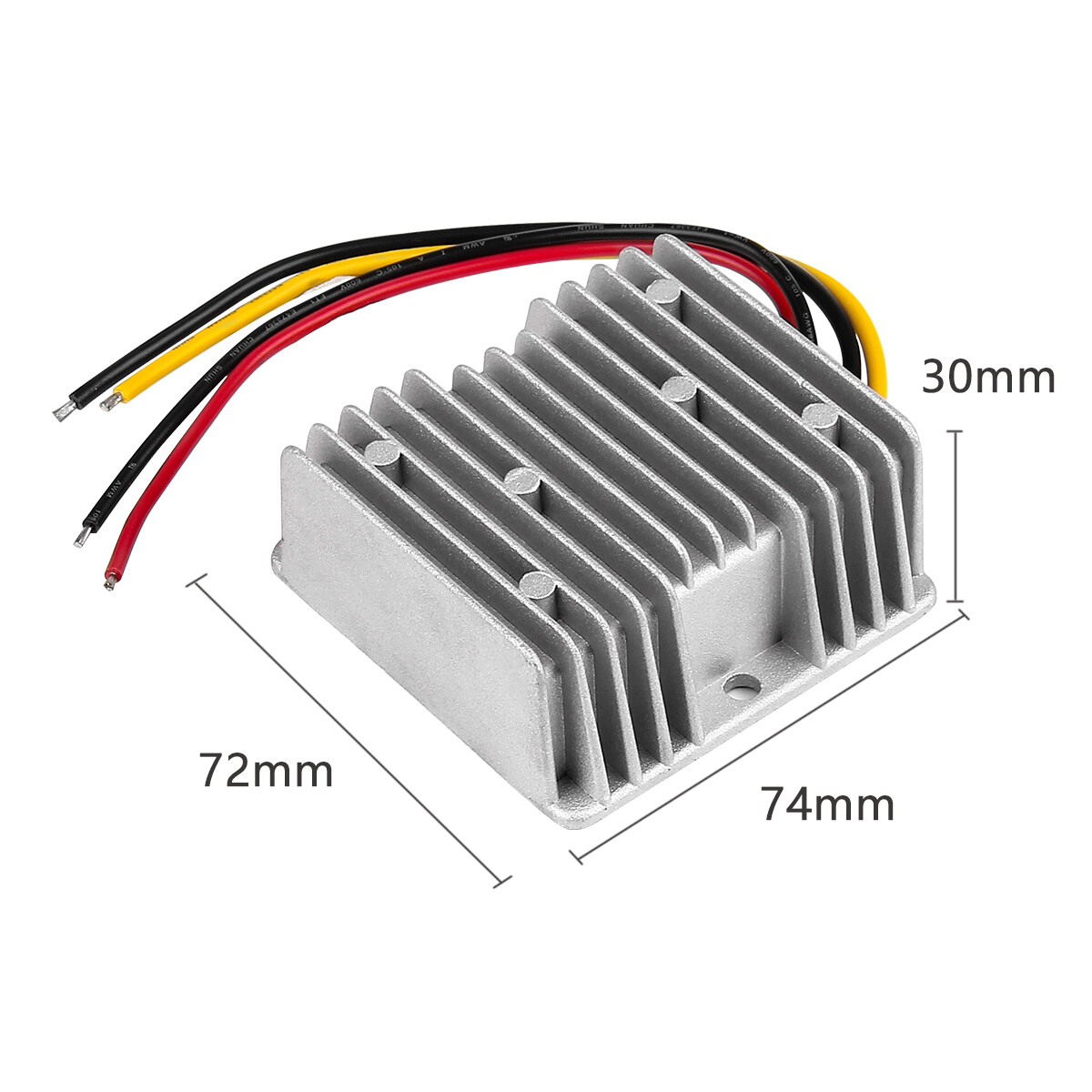

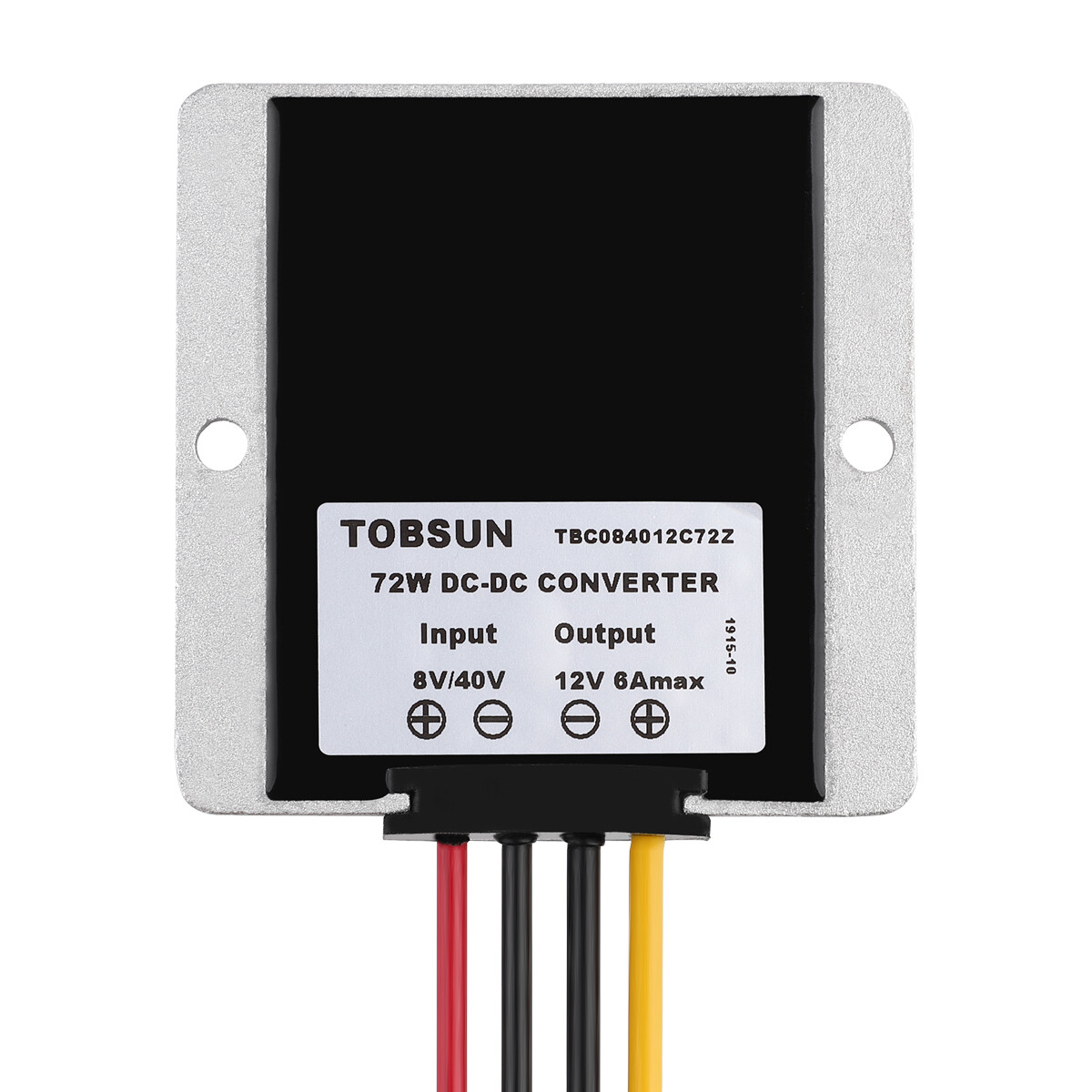

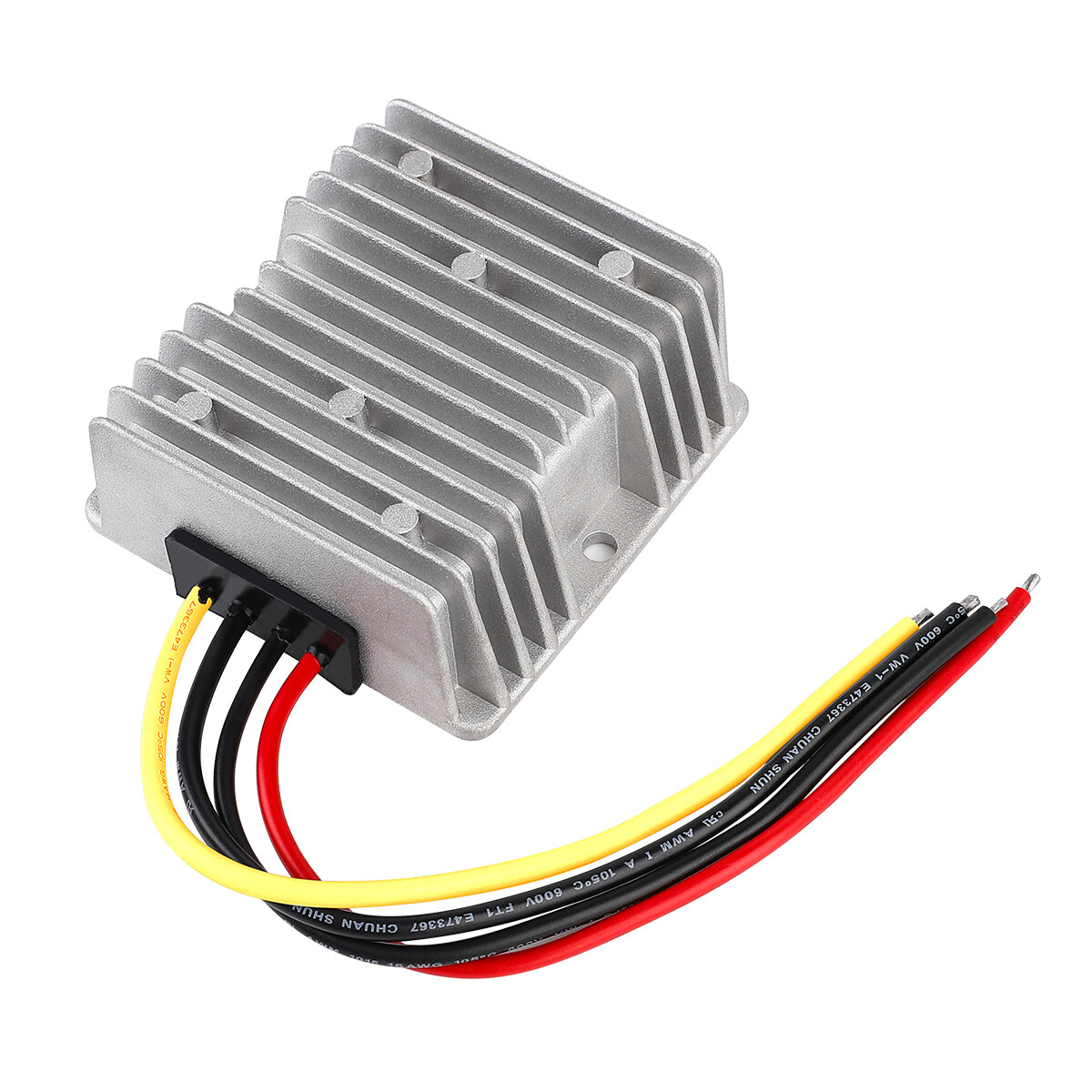

DC 8-40V to DC 12V 6A 72W Buck Boost Converter DC Voltage Regulator Waterproof
USD 23.75 USD
Specifications
| Nominal Voltage Rating (DC) | 8V-40V |
| Mounting Style | Stand Alone |
| Nominal Current Rating | 6 A |
| Current Conversion | DC to DC |
| Color | Silver |
| Nominal Power Rating | 72 W |
| Input Voltage | 12V/24V/36V(nominal) |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Installation Area | Indoor/Outdoor |
| Brand | Supernight |
| Output Voltage Rating (DC) | 12 V |
| Inrush Current Rating | 6 A |
| Input Range | 8V-40V |
| Features | Waterproof |
| Maximum Operating Temperature | 80 °C (176 °F) |
The synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiency. Notes: It's normal that the case is hot when converter inside temp is over 113℉, converter will protect itself when inside temp is over 185℉.
