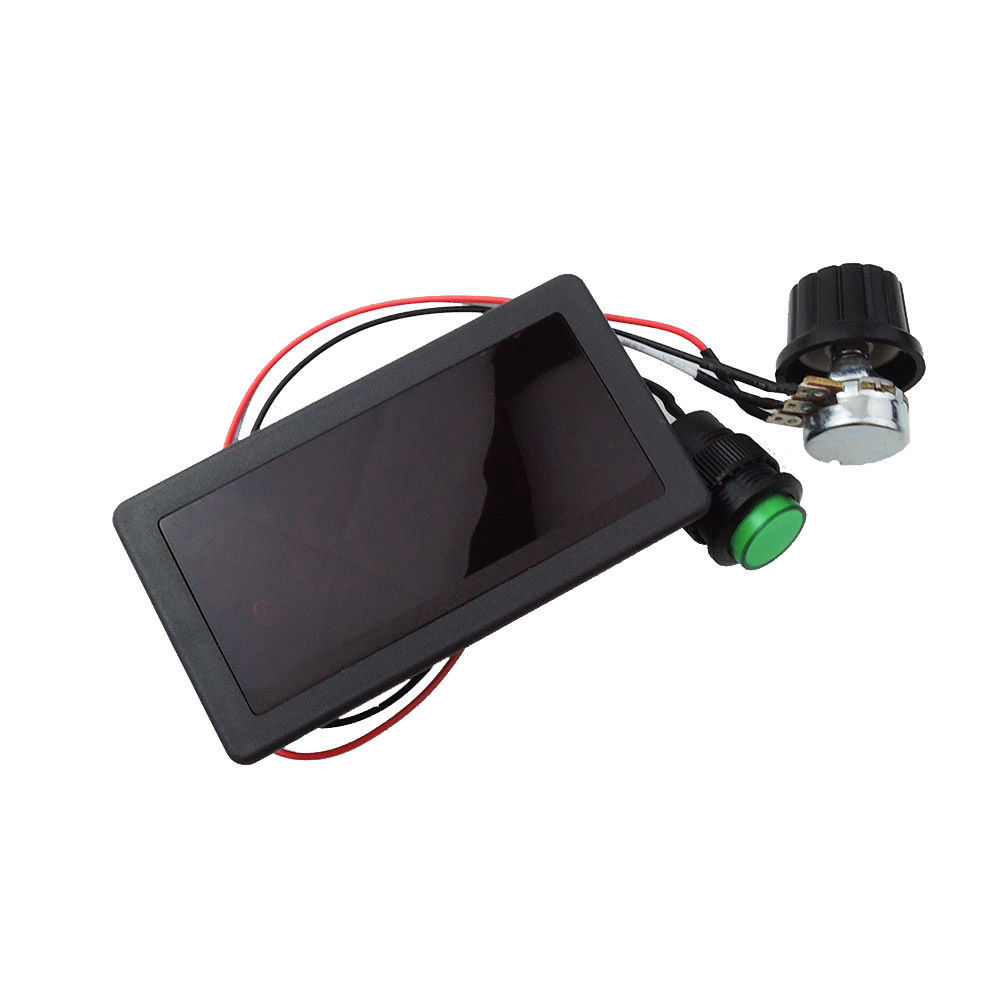

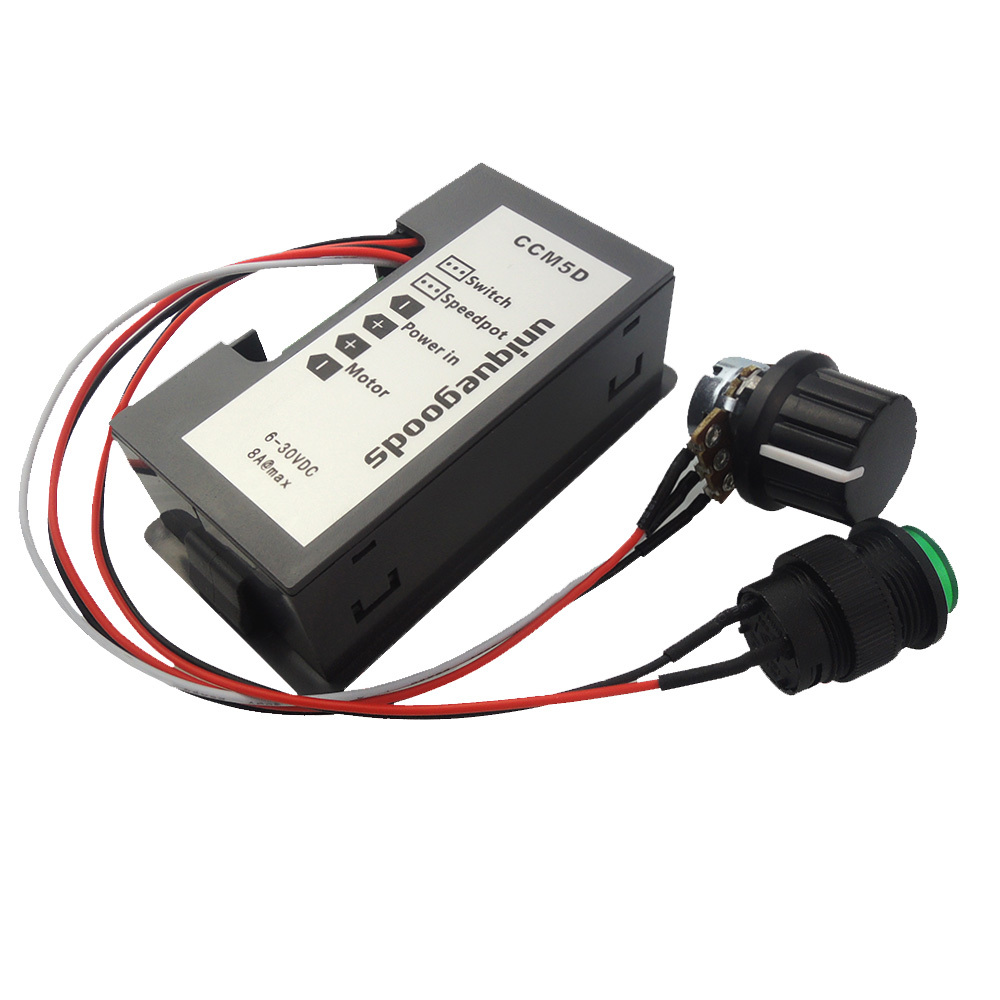

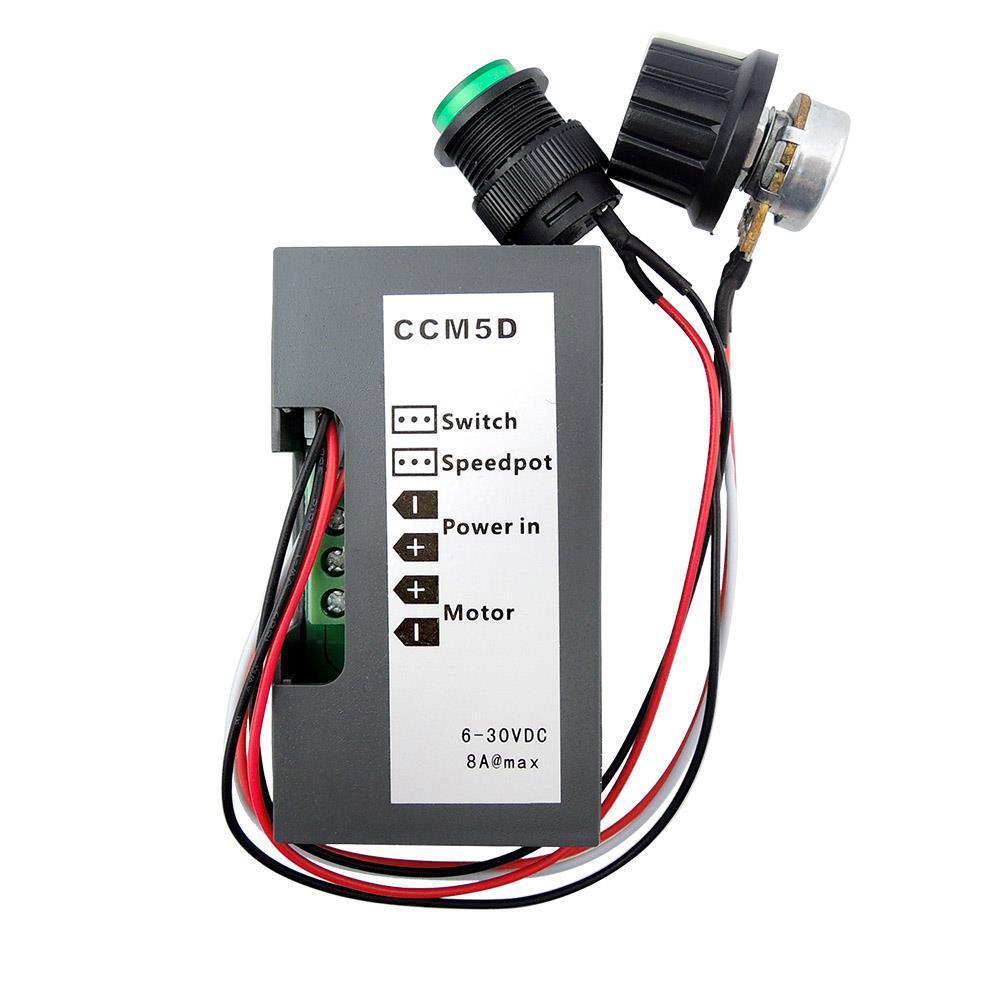

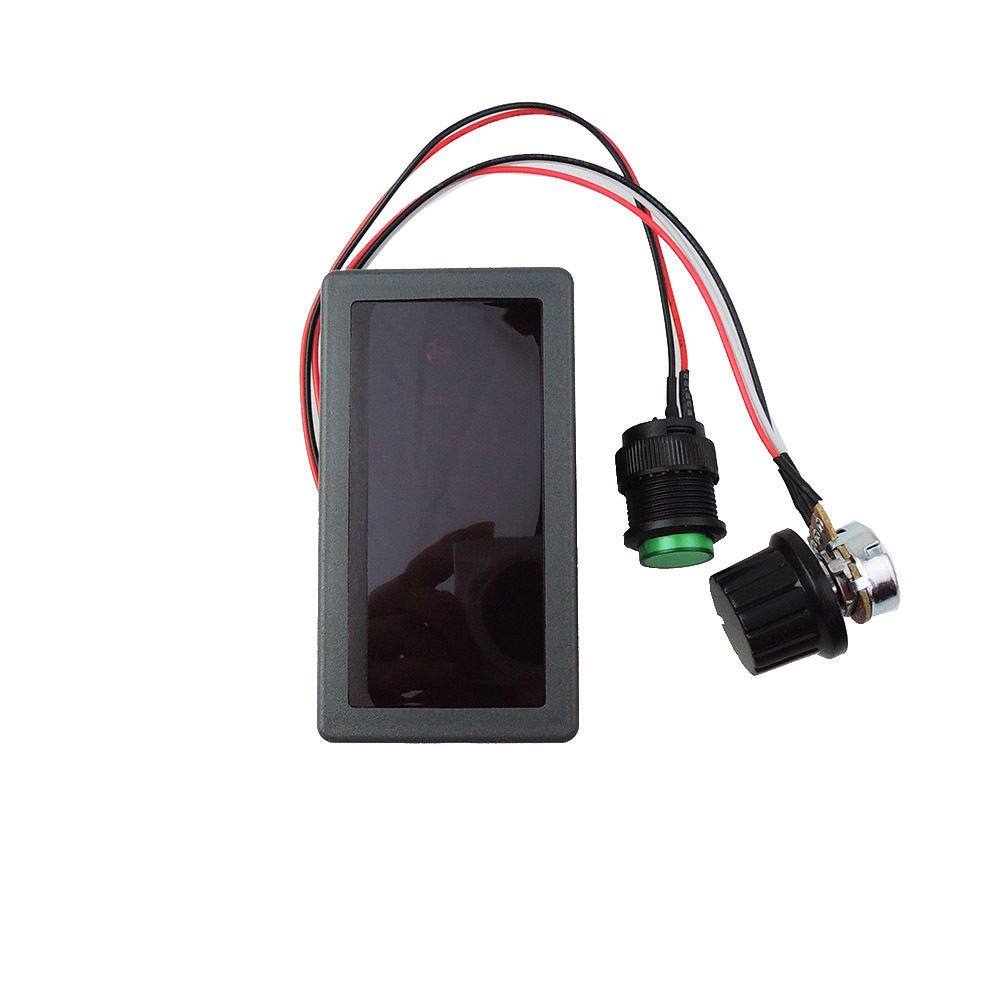

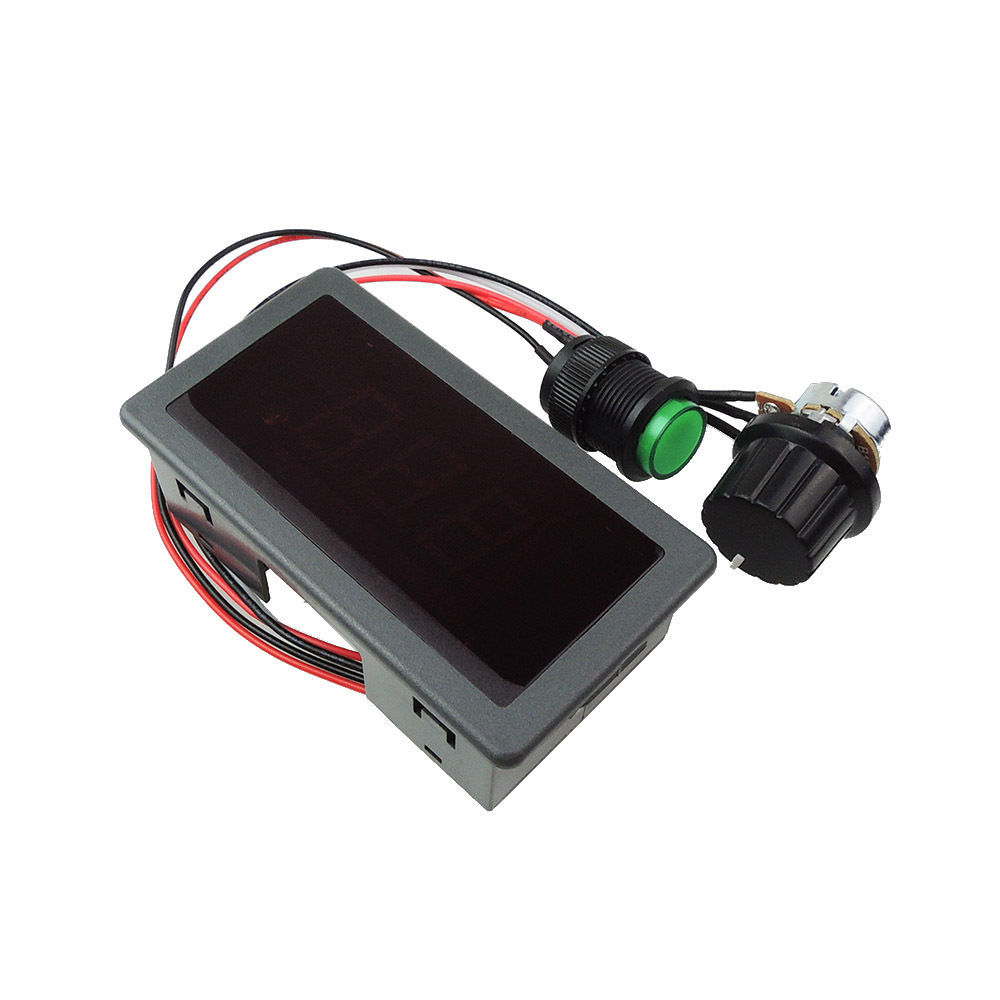

DC 6V 12V 24V PWM Motor Speed Controller Red Digital LED Display Regulator 8A
USD 6.29 USD
Specifications
| Adjustable Speed Range | 0%-100% |
| Brand | Unique Goods |
| Country/Region Of Manufacture | China |
| Duty Cycle Adjustable | 0%-100% |
| Maximum Amperage | 8 amps |
| Model | CCM5D |
| OEM Service | Acceptable |
| PWM Frequency | 16kHz |
| The LED Display The Duty Ratio | 0-100% |
| The Maximum Output Power | 240W |
| Voltage | 6-30V |
Adjustable speed range is 0%-100%. Suitable for the DC motor (or DC load) within 5A, Peak current 8A. PWM frequency:16kHz. The maximum continuous output current :5A;(Peak current 8A). The LED display displays the PWM output duty cycle.
