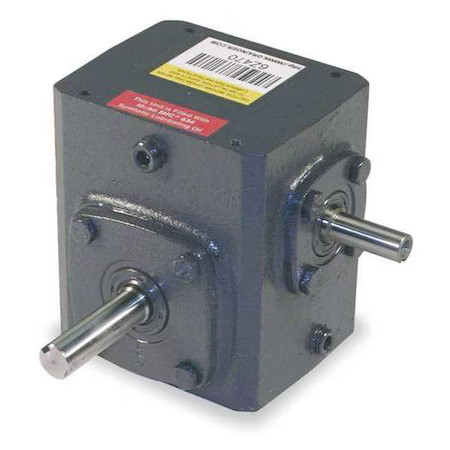

Dayton 6Z461 Speed Reducer, Indirect Drive, 15:1
USD 335.99 USD
Specifications
| Brand | DAYTON |
| MPN | 6Z461 |
| Model | 6Z461 |
| Weight | 4.0000 |
| Length | 6.500 |
| Width | 5.400 |
| Depth | 5.400 |
| UPC | 190735374771 |
Speed Reducer, Input Connection Type Indirect Drive, Gear Type Worm, Output Shaft Type Round, Maximum Output Speed 117 RPM, Worm Center Distance 1 in, Gear Ratio 15:1, Rotation CW/CCW, Maximum Input Horsepower 0.25 hp, Maximum Output Torque 100 in-lb, Overhung Load Capacity 150 lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Application Speed Reducer, Bearing Type Ball, Tapered Roller, Gear Material Hardened Steel, Manganese Bronze.
