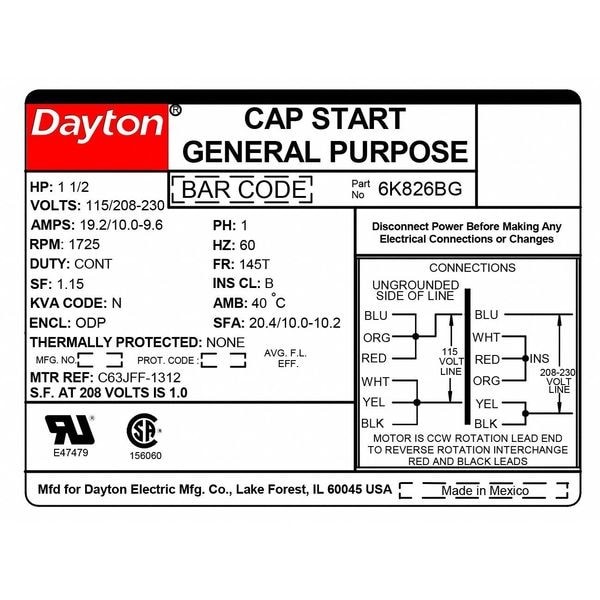

Dayton 6K826 Capacitor-Start General Purpose Motor, 1 1/2 Hp Hp, 115/208-230V
USD 412.99 USD
Specifications
| Weight | 40.0000 |
| Length | 18.500 |
| Width | 10.500 |
| Depth | 10.500 |
| UPC | 0190735366509 |
| Actual Rated Input Voltage | 115/208-230 |
| IEC Frame Size | 145 |
| Rated Load (HP) | 1 1/2 |
| AC Frequency Rating | 60 Hz |
| Enclosure Type | ODP (Open Drip-Proof) |
| Base RPM | 1725 |
| Shaft Type | Keyed |
| AC Motor Type | Induction/Asynchronous |
| Shaft Diameter | 7/8 in |
| MPN | 6K826 |
| Insulation Class | B (Max 266°F) |
| Mounting Type | Base-Mounted |
| Brand | Dayton |
| Reversible/Non-Reversible | Reversible |
| Protection Against Liquids | Steel |
| Service Factor | 1.15 |
| Nominal Rated Input Voltage | 230 V |
| Model | Dayton 6K826 |
| Starting/Locked Rotor Torque | 1 pounds |
| AC Phase | Single Phase |
Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle.
Related Items

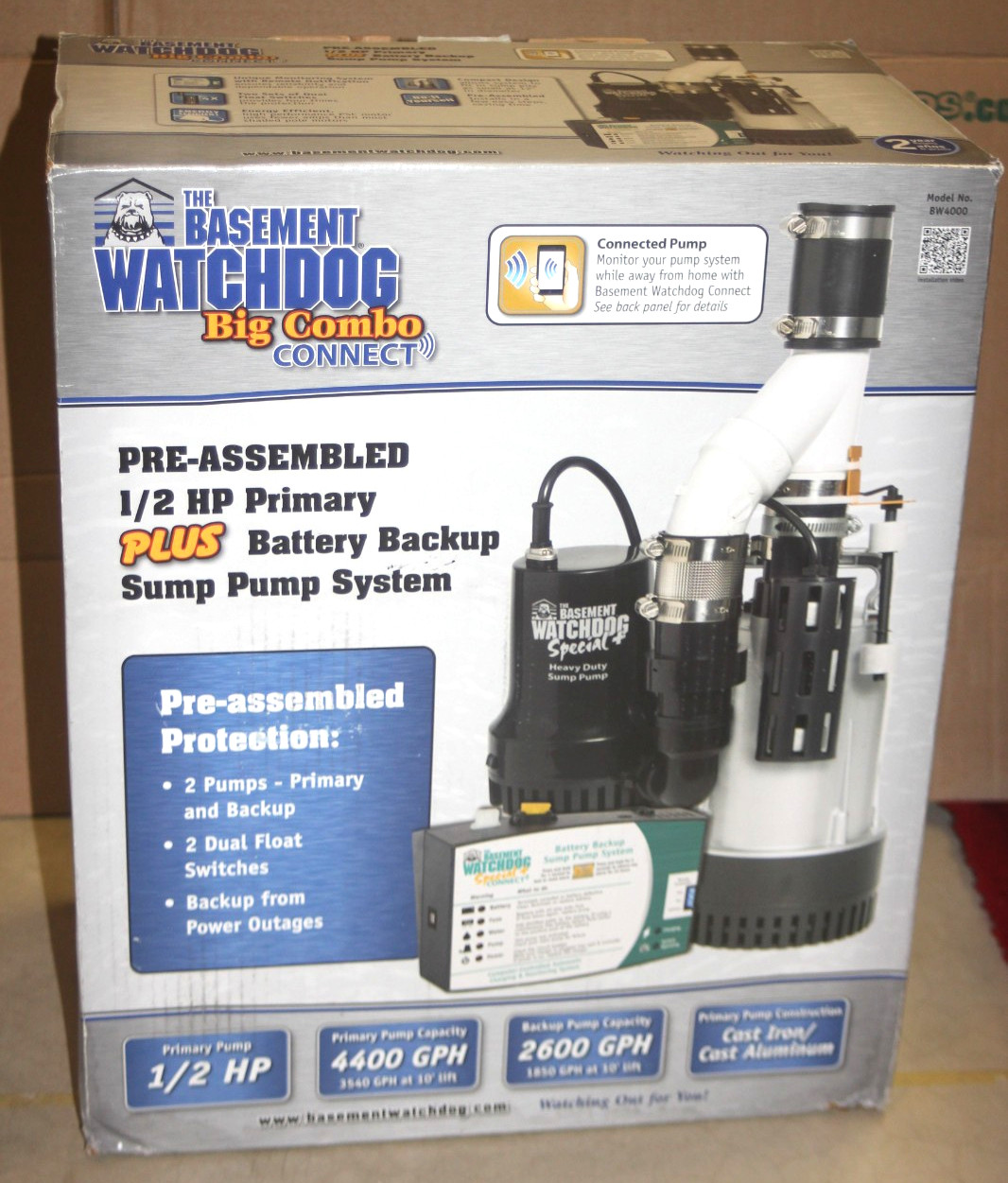

NEW BASEMENT WATCHDOG BW4000 1/2 HP Combination Submersible Sump Pump w Back Up

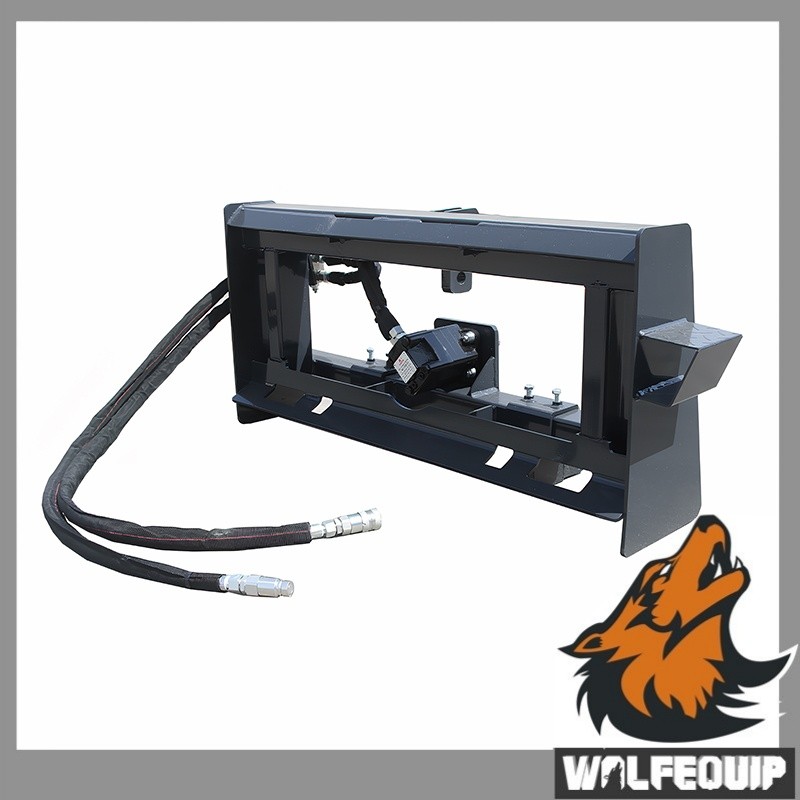

Wolfequip 3 Point Quick Hitch Attach Category 0,1,2 Tractor Skid Steer Adapter

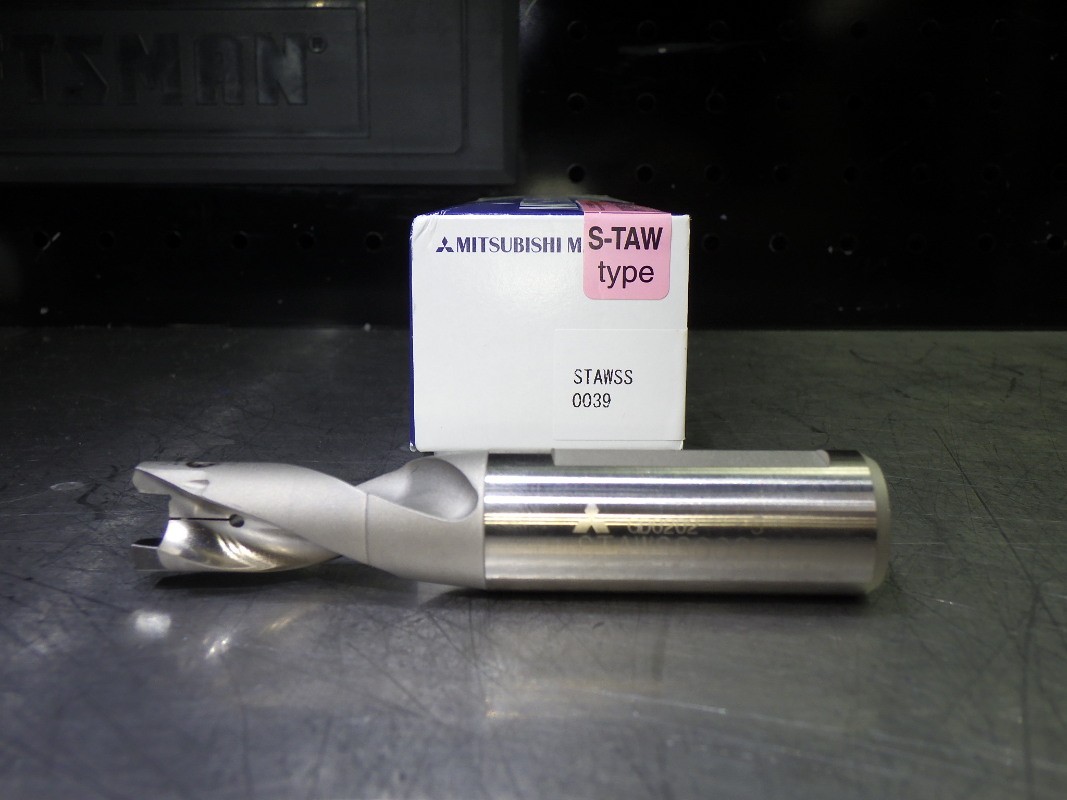

Mitsubishi .591-.61″ Coolant Thru Drill 3/4″ Shank STAWSS0039 (LOC2992B)

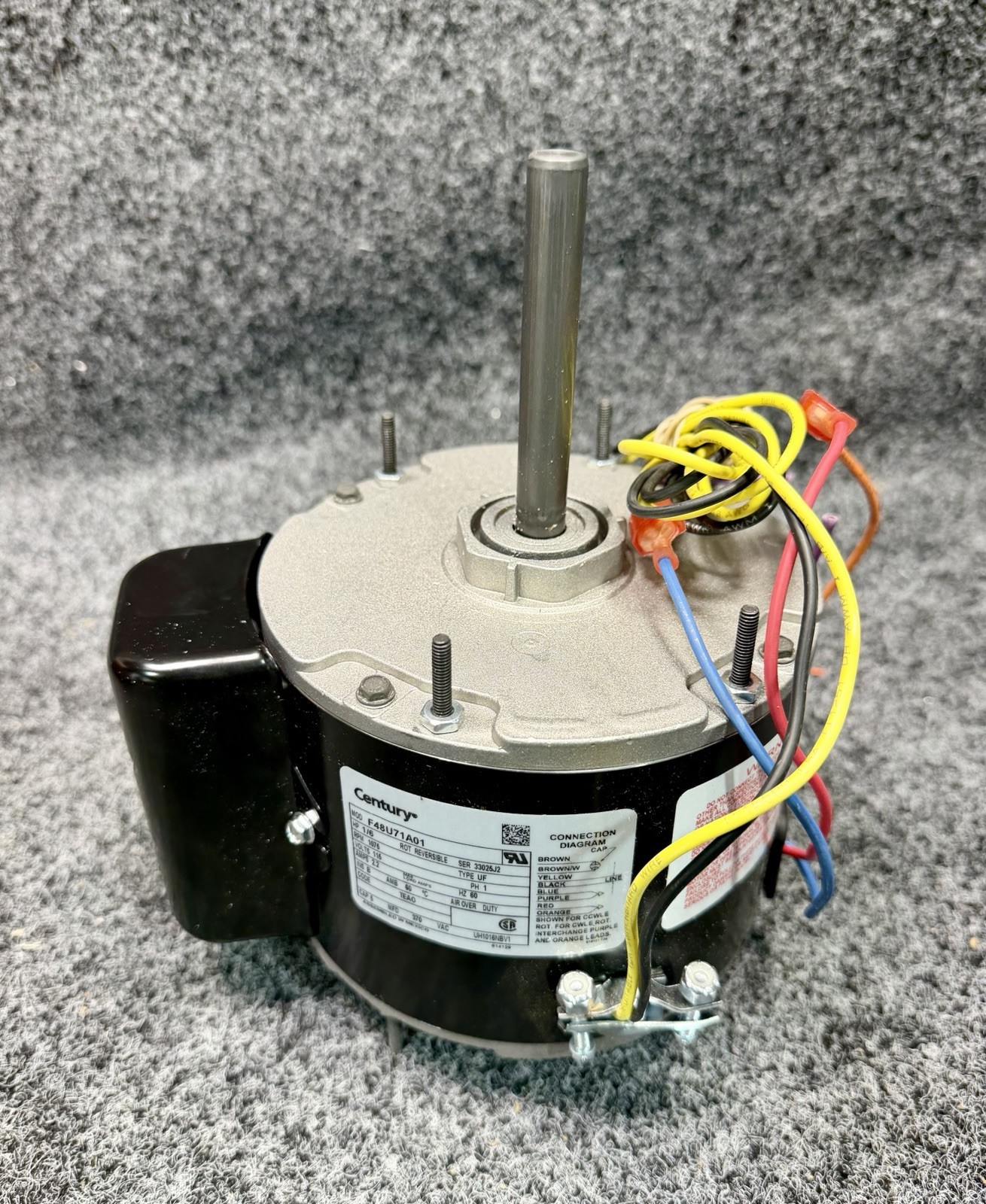

Century UH1016NBV1 F48U71A01 Unit Heater Motor 115V, 1075 RPM, 1/6 HP
Manufacturer Varies External thread repair tool with 1-3/8 – 6″ capacity NES3

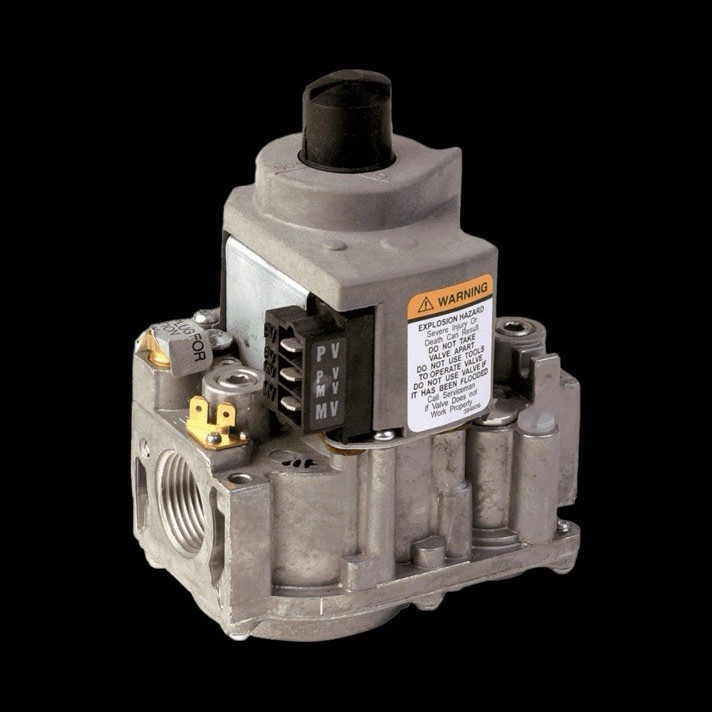

Honeywell VR8205A2024 Gas Valve 24V 60Hz For VR8205 VR8105 VR8305

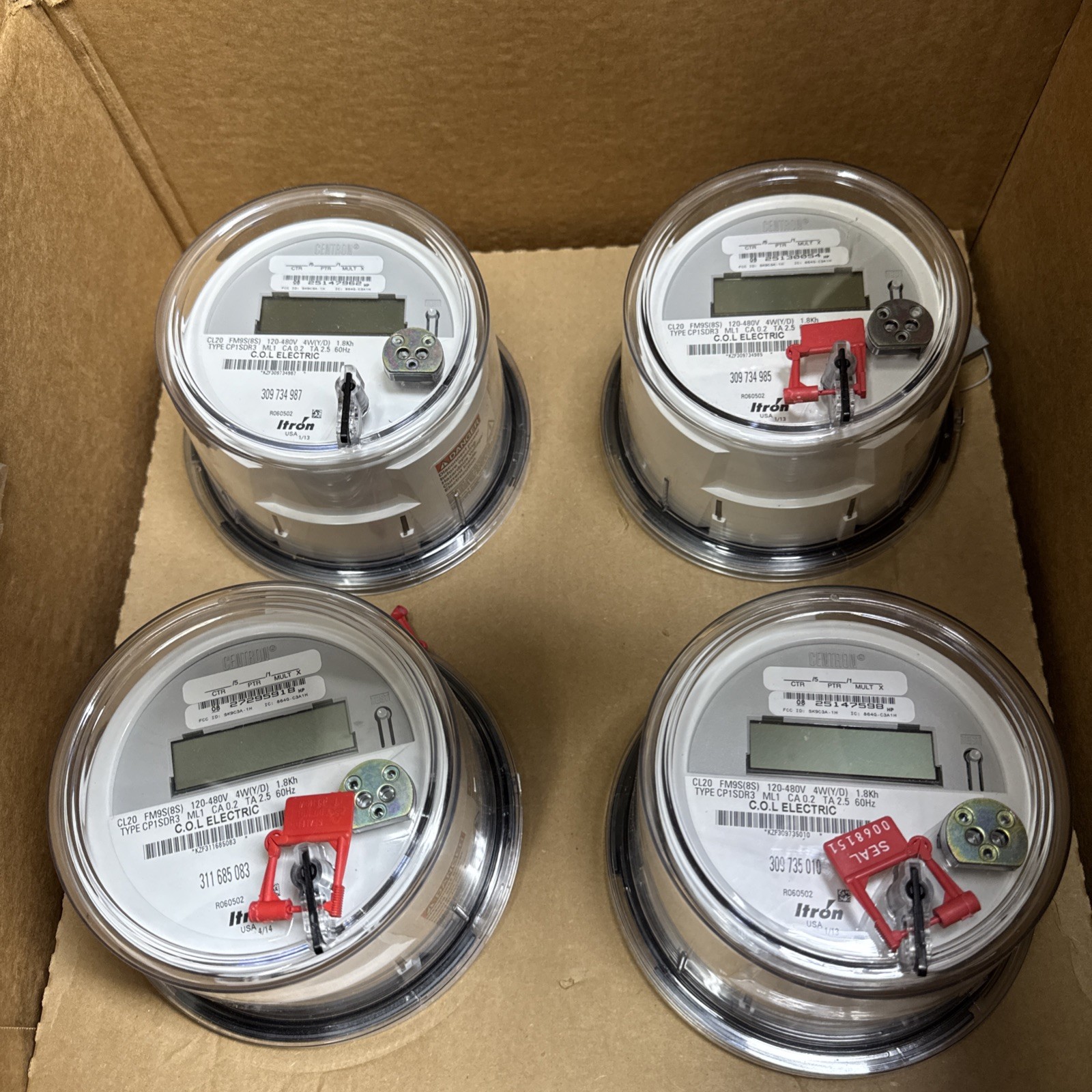

Lot Of 4 ITRON WATTHOUR METER KWH, CP1SDR3, FM16S, 4W, 10 LUG, Y/D 320A 120-480V
