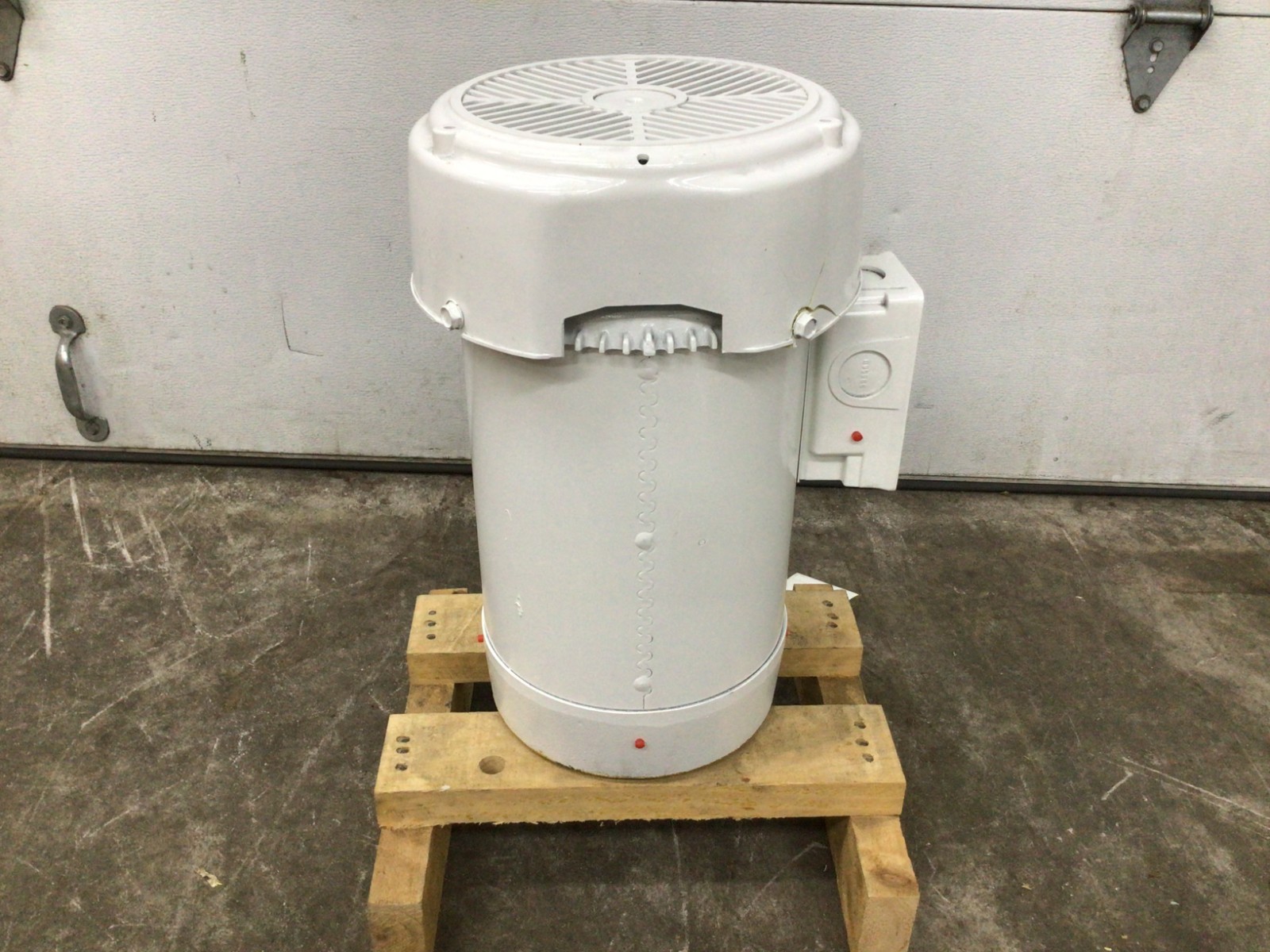

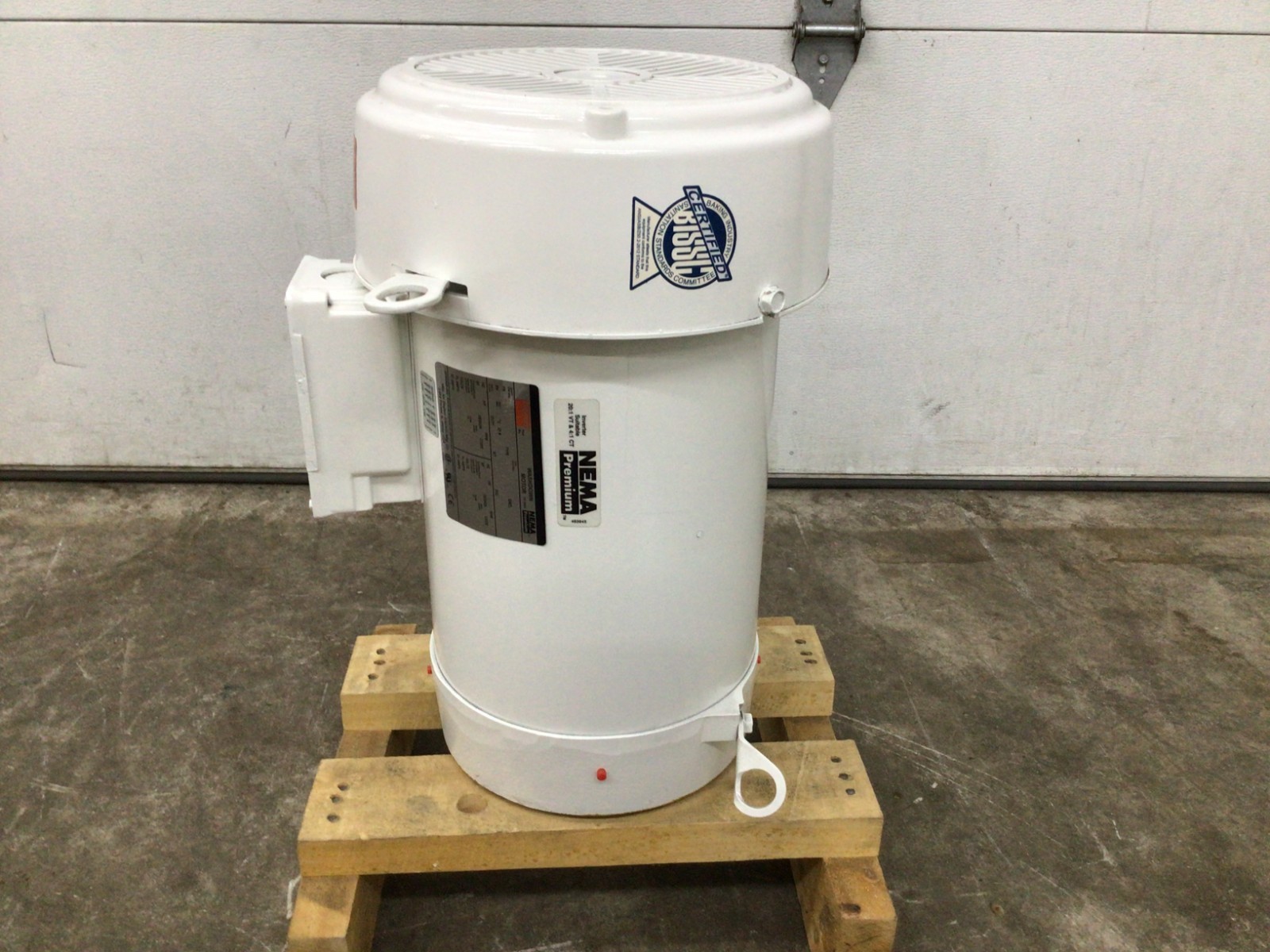

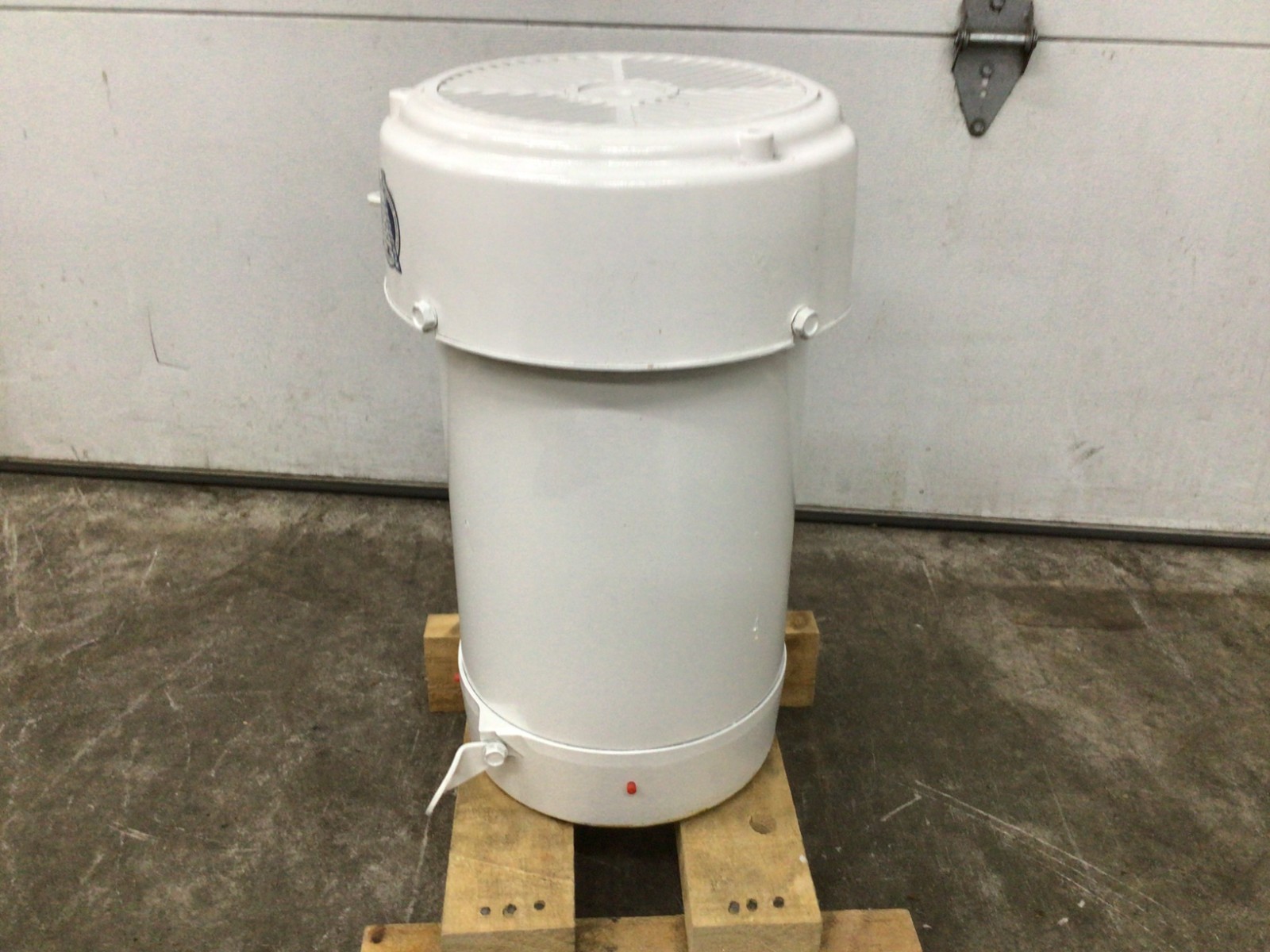

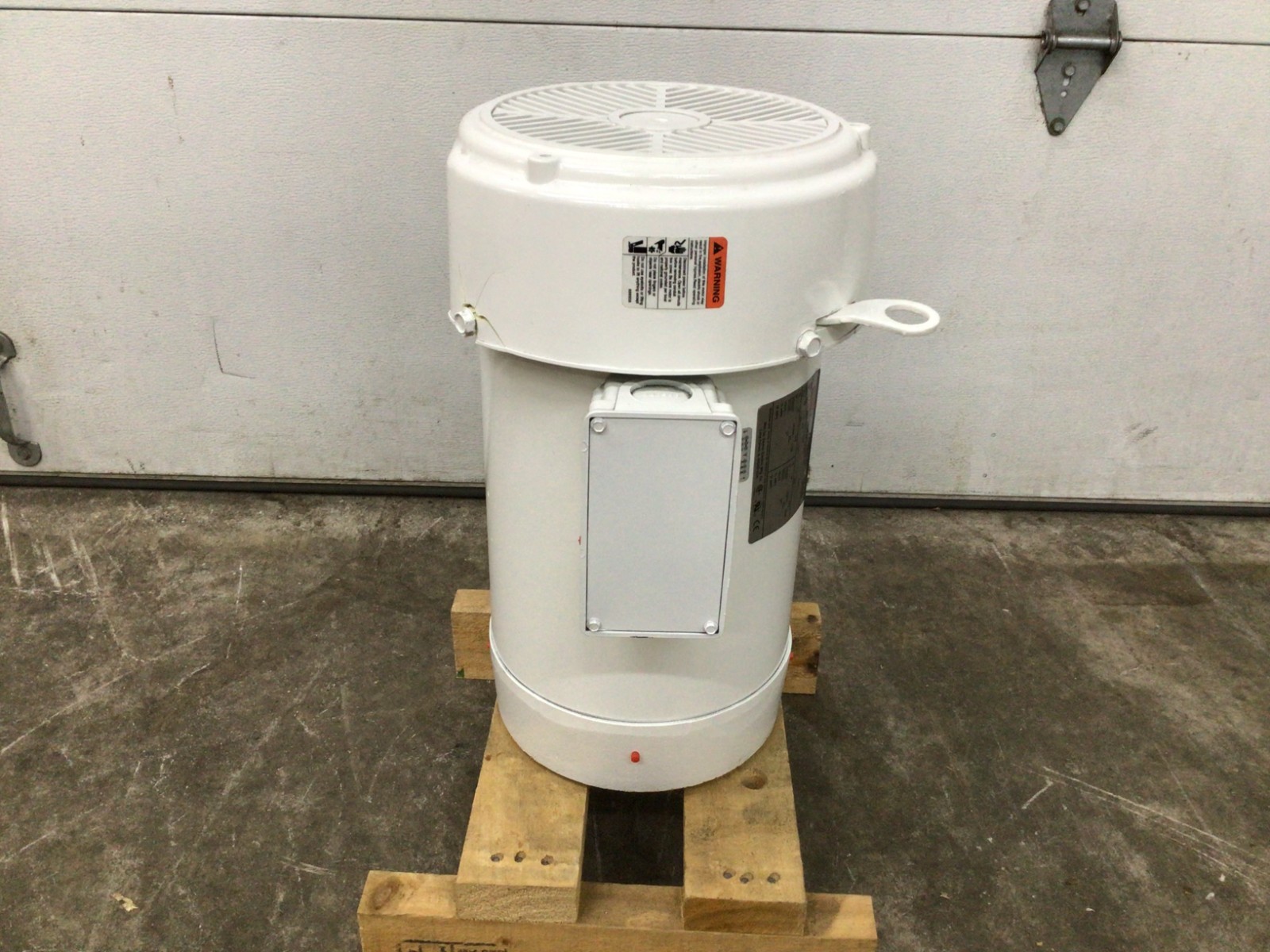

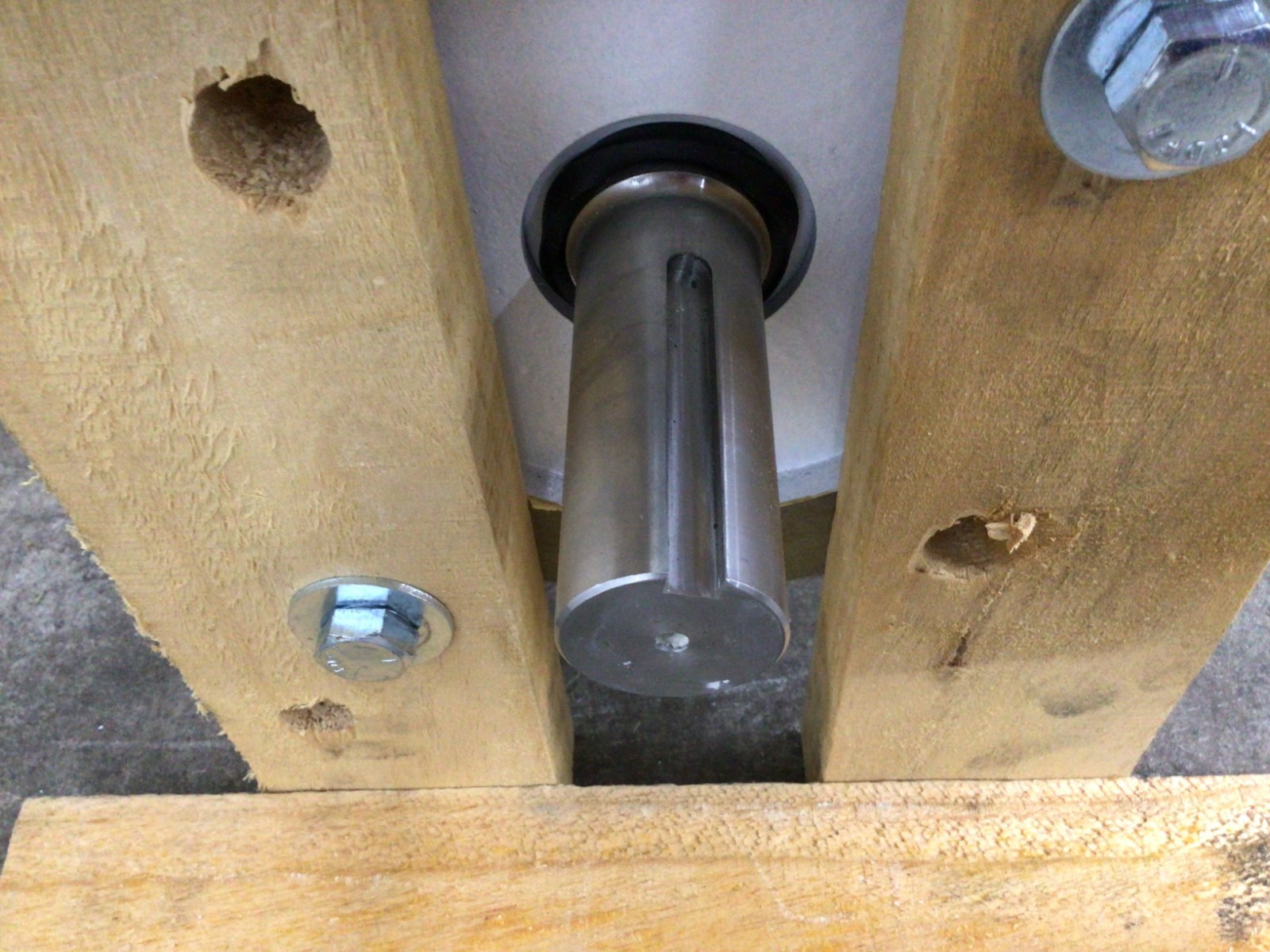

Dayton 2Dam8 Washdown Motor, 3 Ph, Tefc, 10 Hp, 3515 Rpm
USD 1402.50 USD
Specifications
| Frame | 215TC |
| Bearings | Ball |
| MPN | 2DAM8 |
| Max. Ambient Temp. | 40 Degrees C |
| Depth | 16.500 |
| Length Less Shaft | 17-1/16" |
| Item | Washdown Motor |
| Duty | Continuous |
| Voltage | 208-230/460 V |
| Motor Type | 3-Phase |

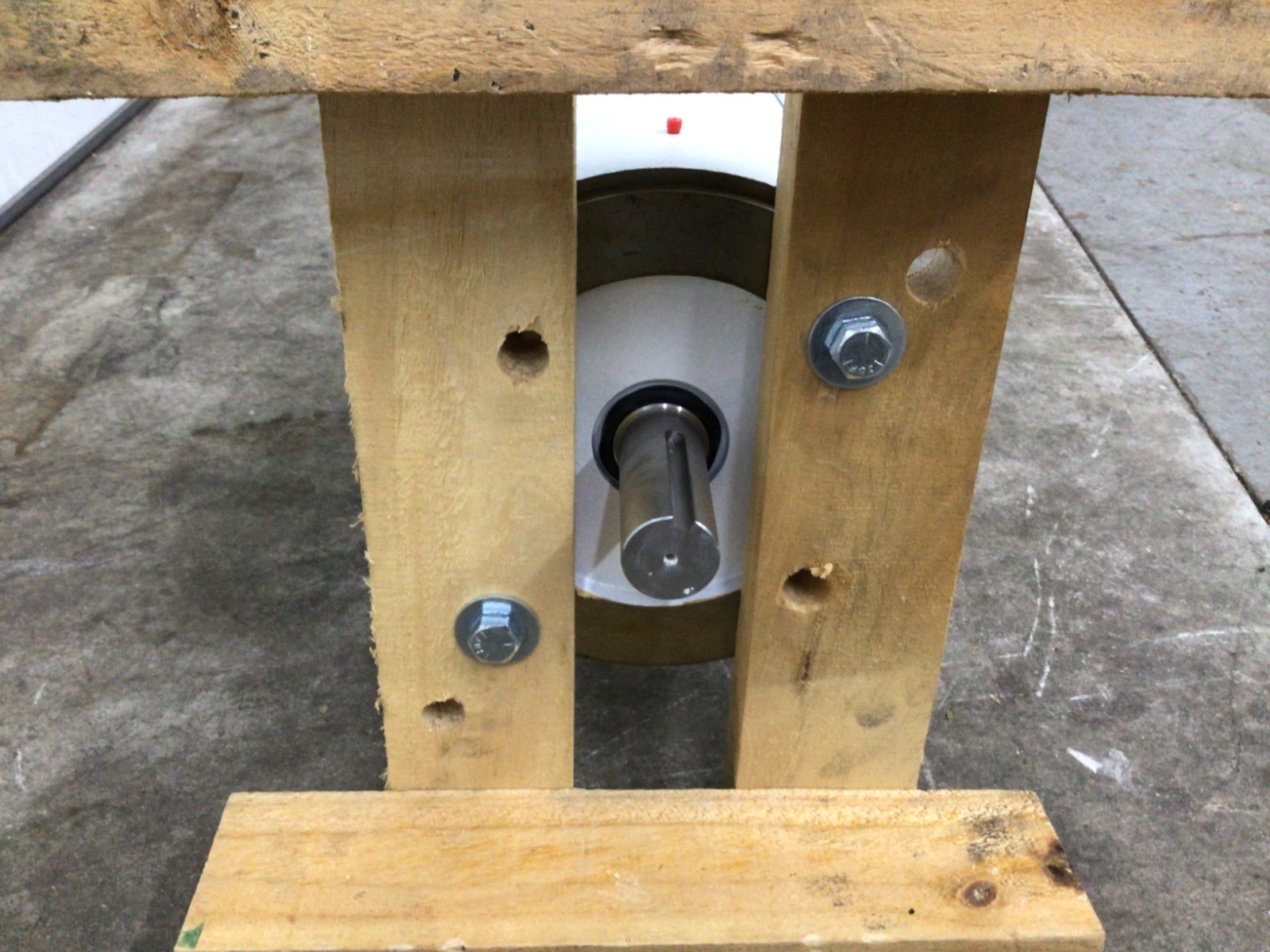

| Shaft Dia. (In.) | 1-3/8 |
| Style | Washdown Motor |
| Frame Material | Epoxy Coated |
| RPM Range | 3001-3600 |
| Width | 16.500 |
| Full Load Amps | 27.0-24.0/12.0 |
| Thermal Protection | None |
| Overall Length (In.) | 20-7/8 |
| Body Dia. | 9-1/2" |
| Nameplate RPM | 3525 |
| Overall Length | 20-7/8" |
| Rotation | CW/CCW |
| Weight | 145.0000 |
| Brand | DAYTON |
| Mounting | Face |
| Type | Washdown Motor |
| Length | 26.500 |
| Model | 2DAM8 |
| UPC | 190735218402 |
Motor Design. Motor Enclosure Type. Motor Shaft Rotation. Duty Cycle. Motor Thermal Protection. Full Load Current @ 60 Hz. Motor Application. Side-Mounted ConduitBox.
