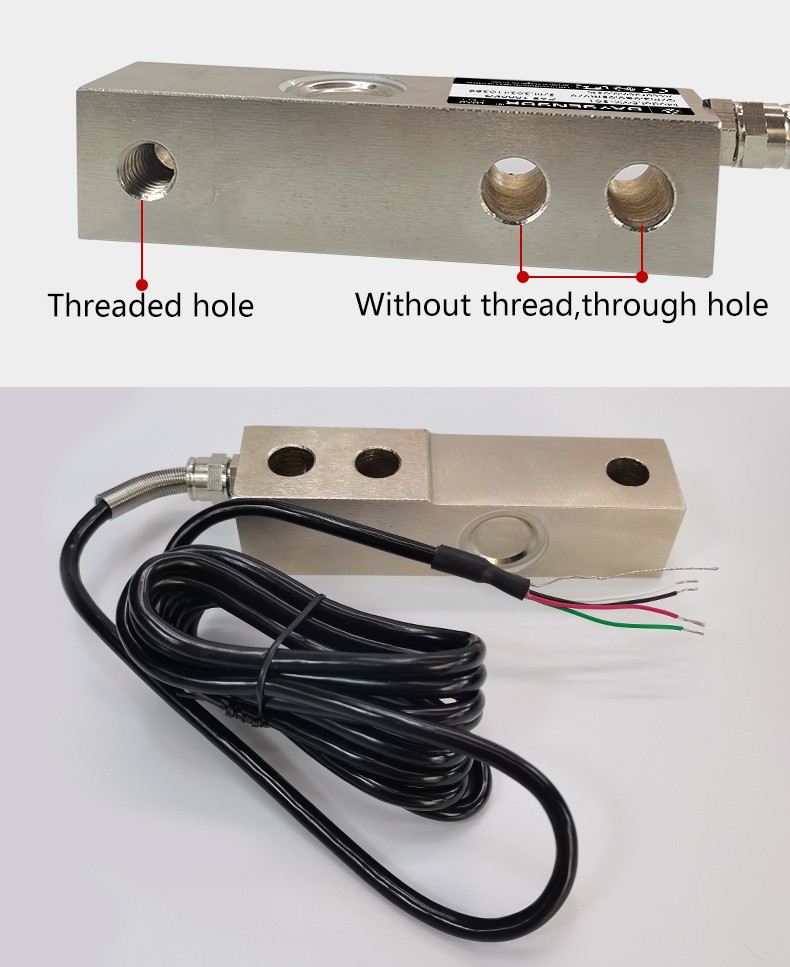

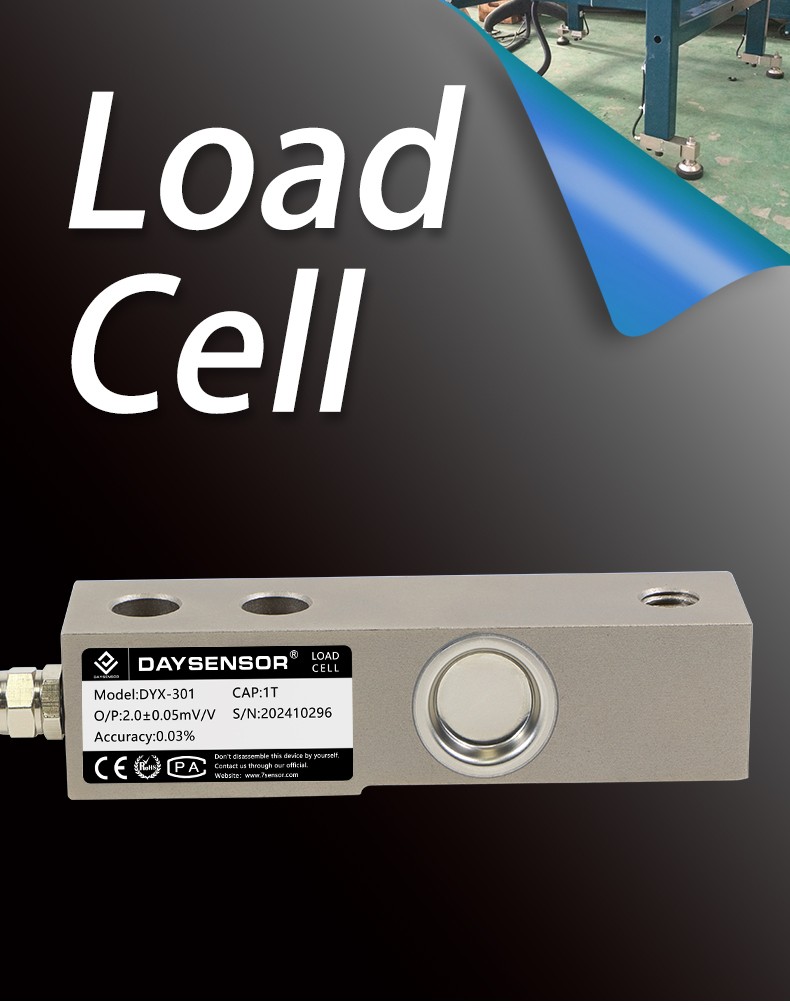

DAYSENSOR Shear Beam Load Cell Sensor with 4-Core Shielded Cable Weighing Sensor
DAYSENSOR Shear Beam Load Cell Sensor with 4-Core Shielded Cable Weighing Sensor DAYSENSOR Shear Beam Load Cell Sensor with 4-Core Shielded Cable Weighing Sensor DAYSENSOR Shear Beam Load Cell Sensor with 4-Core Shielded Cable Weighing Sensor DAYSENSOR Shear Beam Load Cell Sensor with 4-Core Shielded Cable Weighing Sensor DAYSENSOR Shear Beam Load Cell Sensor with 4-Core Shielded Cable Weighing Sensor DAYSENSOR Shear Beam Load Cell Sensor with 4-Core Shielded Cable Weighing Sensor DAYSENSOR Shear Beam Load Cell Sensor with 4-Core Shielded Cable Weighing Sensor DAYSENSOR Shear Beam Load Cell Sensor with 4-Core Shielded Cable Weighing Sensor DAYSENSOR Shear Beam Load Cell Sensor with 4-Core Shielded Cable Weighing Sensor

DAYSENSOR Shear Beam Load Cell Sensor with 4-Core Shielded Cable Weighing Sensor

USD 49.99 USD
SKU: zTpBl5K2
GTIN: Does not apply
Condition: New
Tags: ±0.03%F.S/10℃ ±0.03%F.S/30min ±0.053%F.S/10℃ ±1%F.S ≥5000MΩ 0-30 KG 0.03%F.S 150%F.S 2.0±0.05mV/V 3 V 3 Years 350±10Ω IP66
Categories: Cleaning & Janitorial Supplies

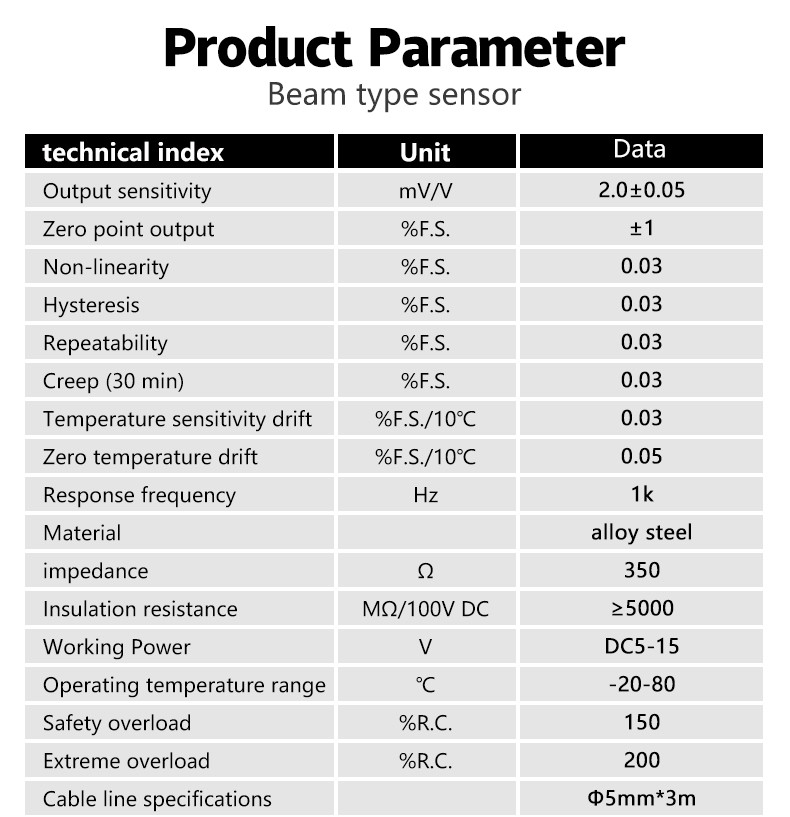

Specifications

Measurement Range0-30 KG
Zero Output±1%F.S
Safety Overload150%F.S
Creep±0.03%F.S/30min
Temperature Effect On Zero±0.053%F.S/10℃
Wanranty3 Years
Protection ClassIP66
Repeatability0.03%F.S
Input Impedance350±10Ω
Sensitivity2.0±0.05mV/V
Output Impedance350±10Ω
Temperature Effect On Output±0.03%F.S/10℃
Insulation Resistance≥5000MΩ

Dynamic Torque Transducer. Safety Overload 150%F.S. Load Cell Sensor. Zero Output ±1%F.S. Temperature Effect on Zero ±0.053%F.S/10℃. Muti-component Sensor. Temperature Effect on Output ±0.03%F.S/10℃. Customized output signal is 0-5V, 0-10V, or 4-20mA.
