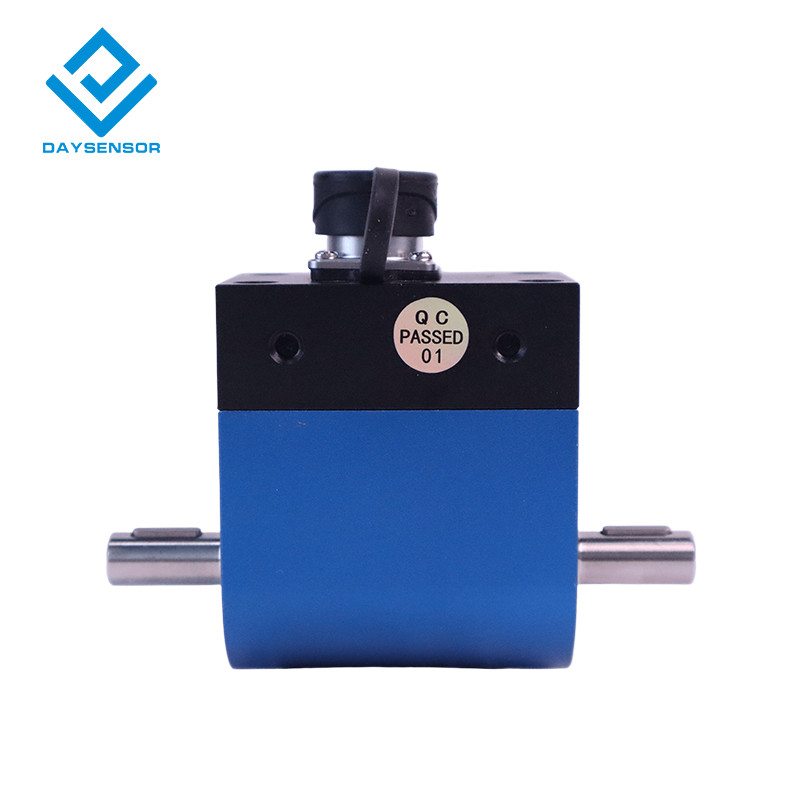

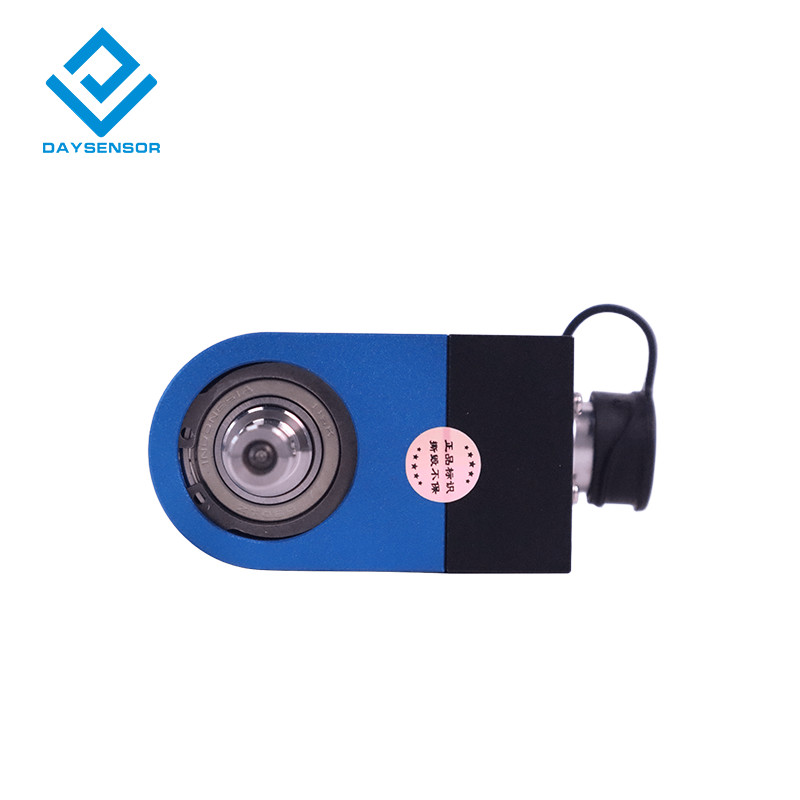

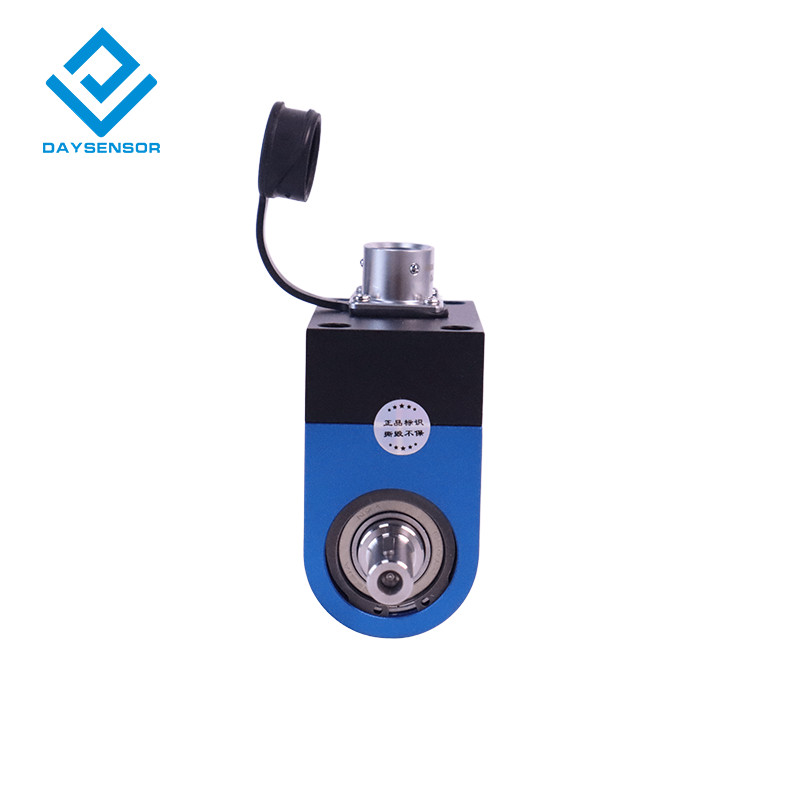

DAYSENSOR Rotary Torque Sensor for Dynamic Torque Measurement ,0.1% FS Accuracy
DAYSENSOR Rotary Torque Sensor for Dynamic Torque Measurement ,0.1% FS Accuracy DAYSENSOR Rotary Torque Sensor for Dynamic Torque Measurement ,0.1% FS Accuracy DAYSENSOR Rotary Torque Sensor for Dynamic Torque Measurement ,0.1% FS Accuracy DAYSENSOR Rotary Torque Sensor for Dynamic Torque Measurement ,0.1% FS Accuracy DAYSENSOR Rotary Torque Sensor for Dynamic Torque Measurement ,0.1% FS Accuracy DAYSENSOR Rotary Torque Sensor for Dynamic Torque Measurement ,0.1% FS Accuracy DAYSENSOR Rotary Torque Sensor for Dynamic Torque Measurement ,0.1% FS Accuracy DAYSENSOR Rotary Torque Sensor for Dynamic Torque Measurement ,0.1% FS Accuracy DAYSENSOR Rotary Torque Sensor for Dynamic Torque Measurement ,0.1% FS Accuracy

DAYSENSOR Rotary Torque Sensor for Dynamic Torque Measurement ,0.1% FS Accuracy

USD 659.99 USD
SKU: Wcvlk5Kz
GTIN: Does not apply
Condition: New
Tags: ±2%FS ＜0.03%F.S/10℃ ＜0.1%F.S/10℃ ≥2000MΩ/100VDC 0-0.1 Nm 0-50 MΩ 0.05%FS 0.05%FS/30min 0.1%FS 0.3%FS/year 350Ω 3m (Φ5mm) DC 5-15V
Categories: Cleaning & Janitorial Supplies

Specifications

Size0-0.1 Nm
Stability0.3%FS/year
Non-linearity0.1%FS
Creep0.05%FS/30min
Temperature Effect On Output＜0.03%F.S/10℃
Cable Length3m (Φ5mm)
Insulation Resistance≥2000MΩ/100VDC
Repeatability0.05%FS
Temperature Drift On Zero＜0.1%F.S/10℃
Zero Balance±2%FS
Excitation VoltageDC 5-15V
Impedance350Ω
Hysteresis0.05%FS

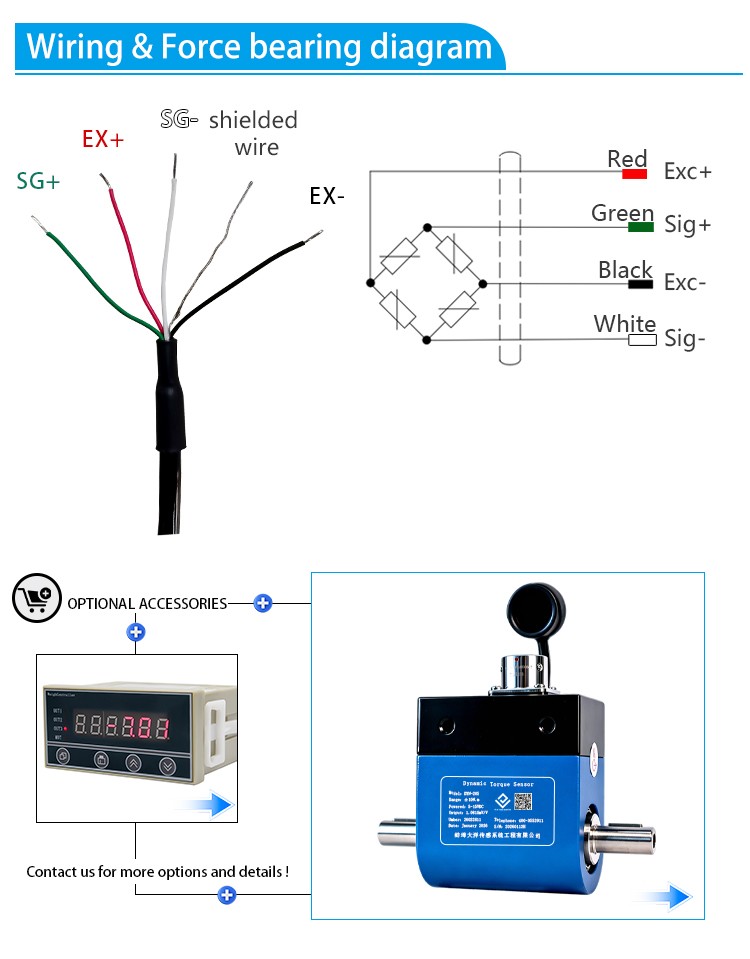

Electrical connection: 5 pin circular connector. Load Cell Sensor. Ultimate overload: 200%F.S. Safety overload: 150%F.S. Protection class: IP65.
