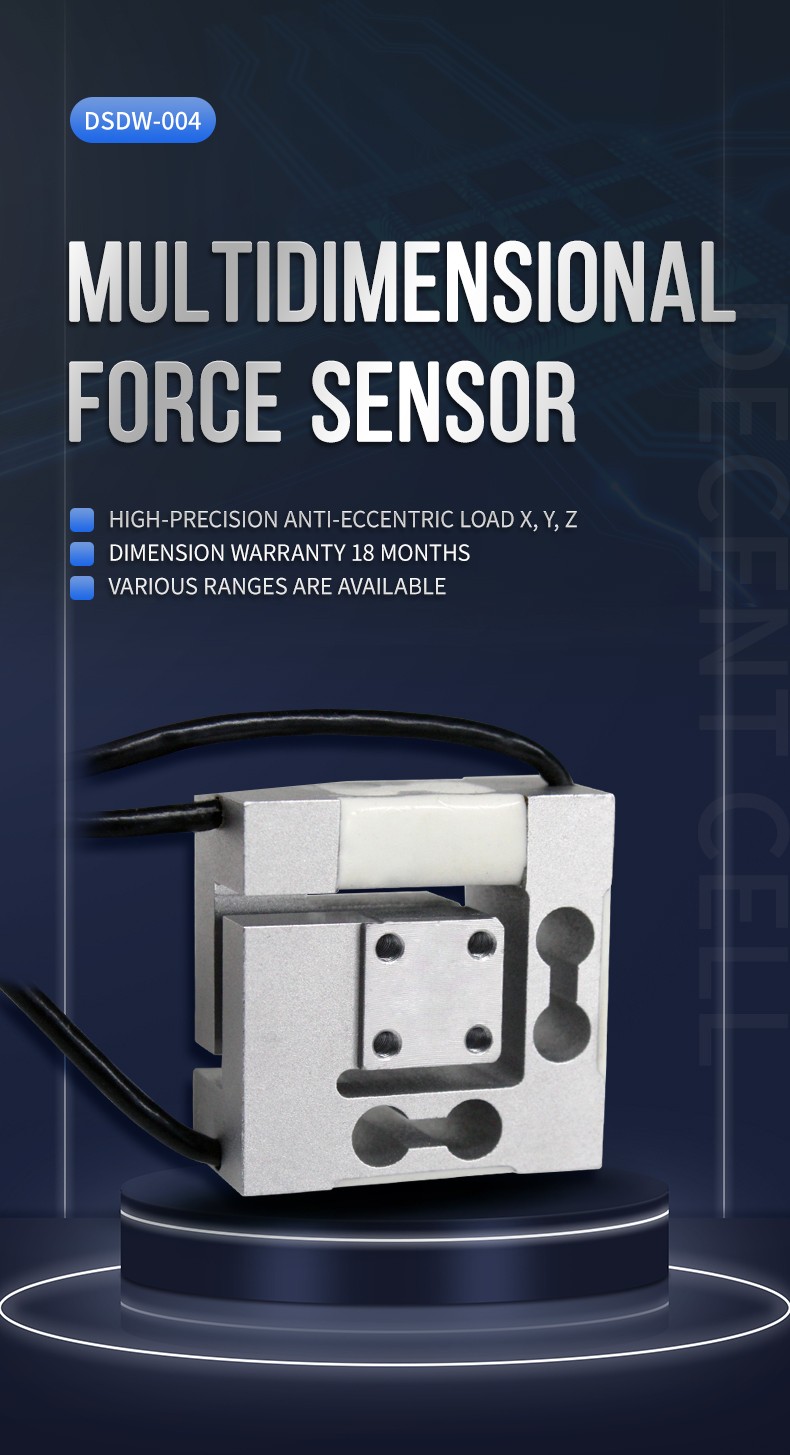

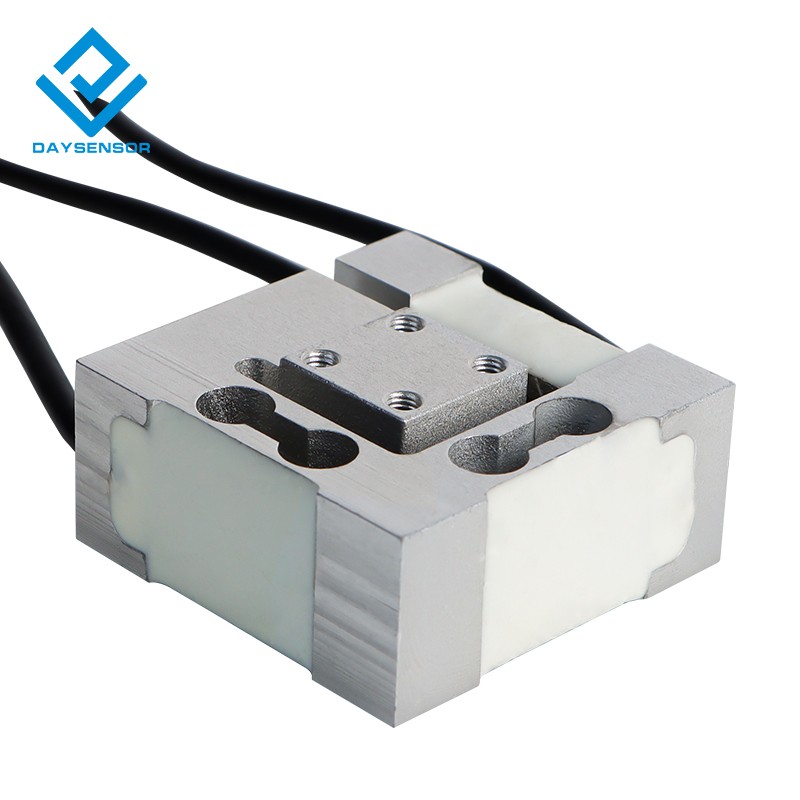

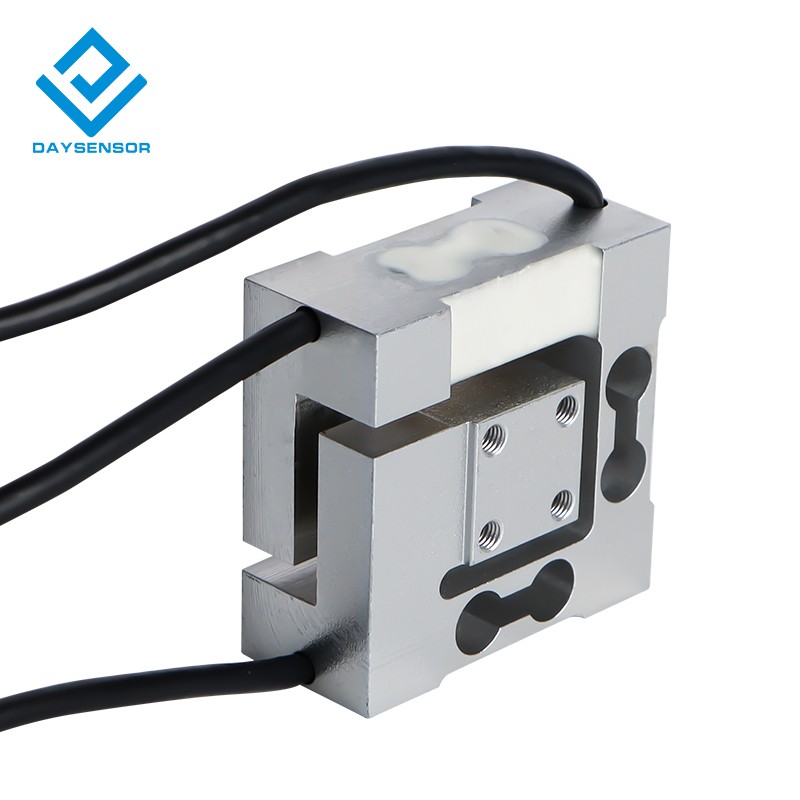

DAYSENSOR Multi-Axis Force Sensor,High Precision Miniature Load Cell Sensor
USD 389.99 USD

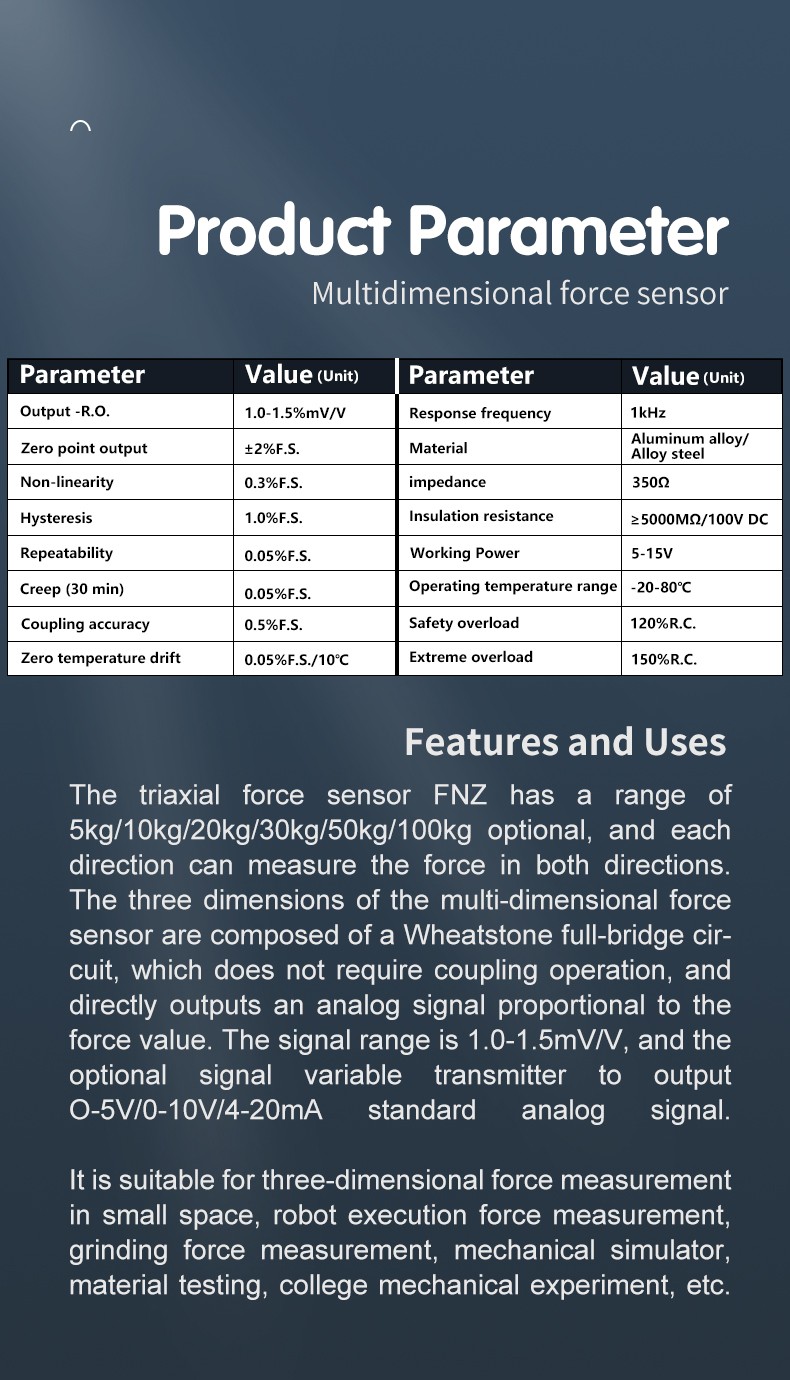

Specifications
| Measurement Range | 0-10kg（0-22 lb） |
| Zero Output | ±1%F.S |
| Safety Overload | 150%F.S |
| Creep | ±0.05%F.S/30min |
| Temperature Effect On Zero | ±0.05%F.S/10℃ |
| Material | Alloy steel |
| Wanranty | 3 Years |
| Brand | DAYSENSOR |
| Protection Class | IP66 |
| Repeatability | 0.05%F.S |
| Input Impedance | 350±10Ω |
| Sensitivity | 1.0±0.5mV/V |
| Output Impedance | 350±10Ω |
| Package List | 1*Load cell sensor |
| Temperature Effect On Output | ±0.05%F.S/10℃ |
| Insulation Resistance | ≥5000MΩ |

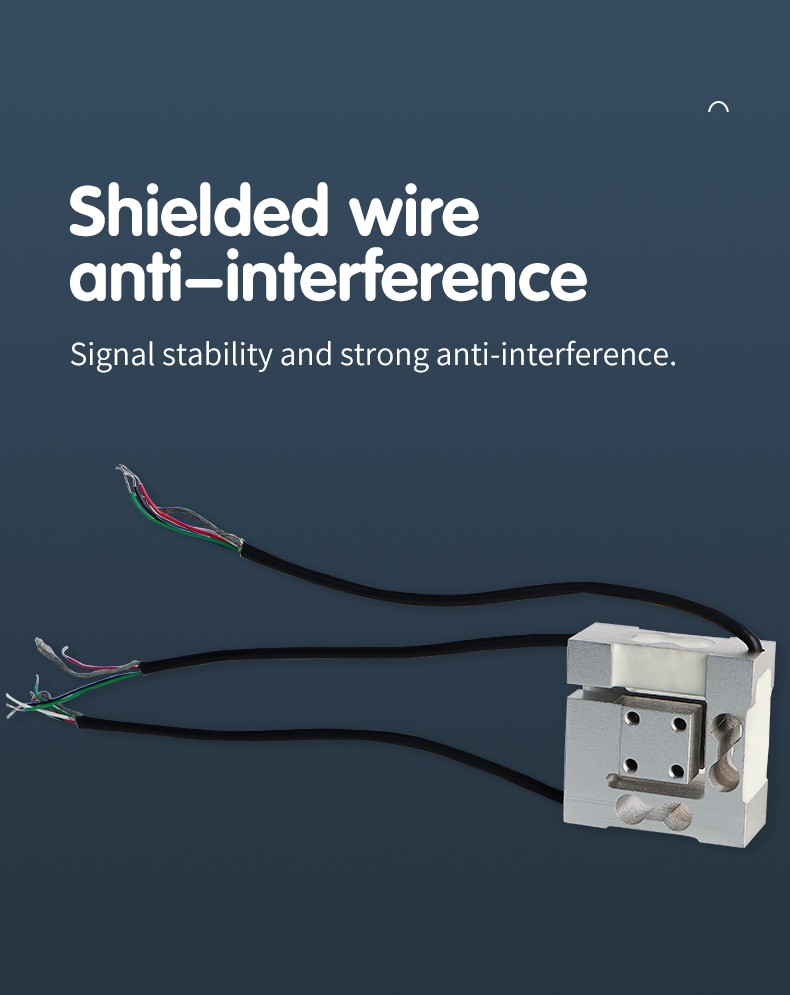

Accuracy 0.3%F.S (linearity + hysteresis ). Dynamic/Static Transducer. Safety Overload 150%F.S. Compact & Durable Design – High precision load cell, Small form factor enables installation in tight spaces; constructed from high-quality aluminum alloy with anti-interference signal output.
Related Items
Drafting Chair with Back Cushion Adjustable Foot Rest Black Alloy Steel Seat

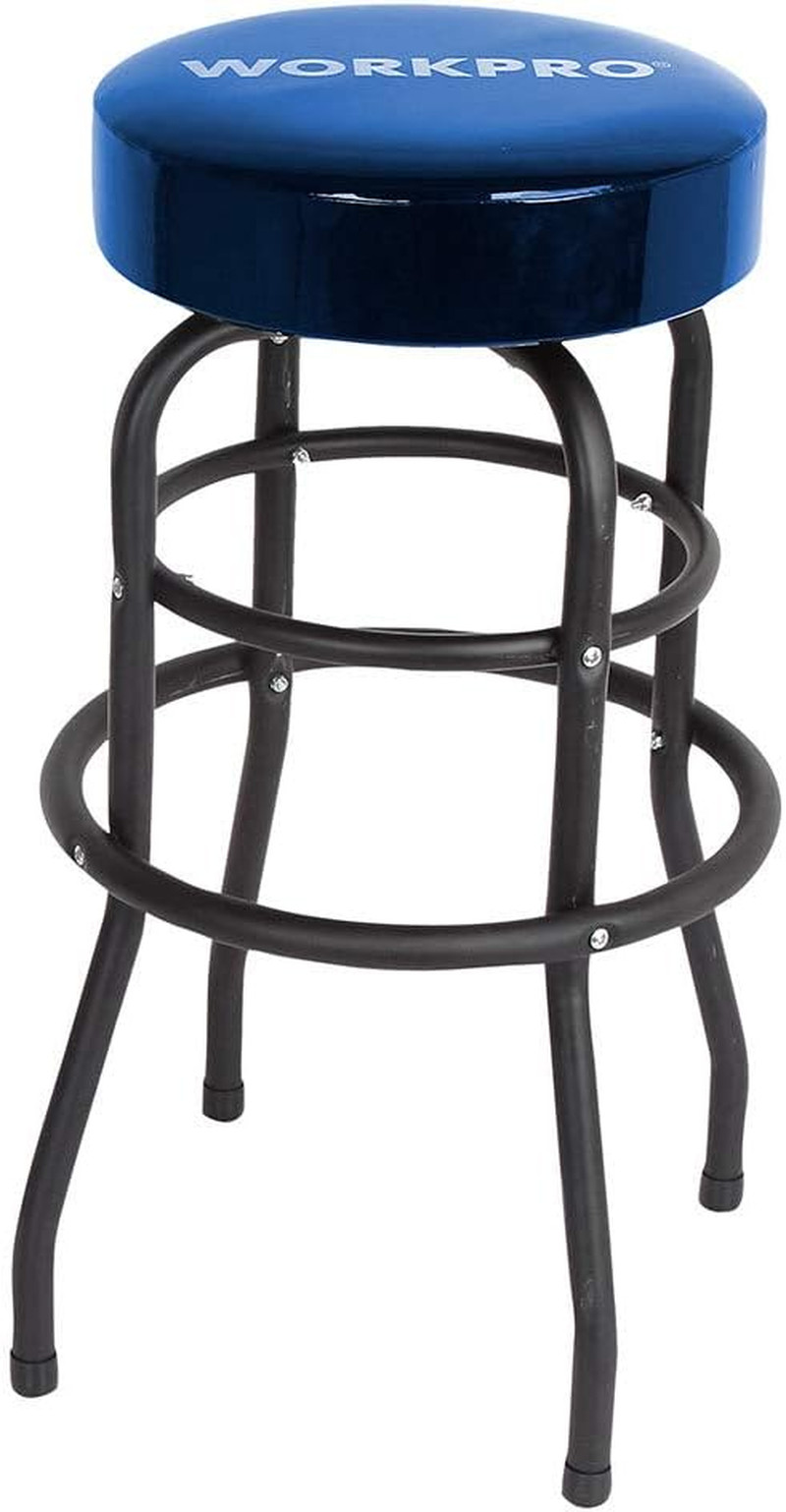

W112003 Garage Shop Stool, Heavy-Duty Steel Construction Garage Stool, Swivel Cu
