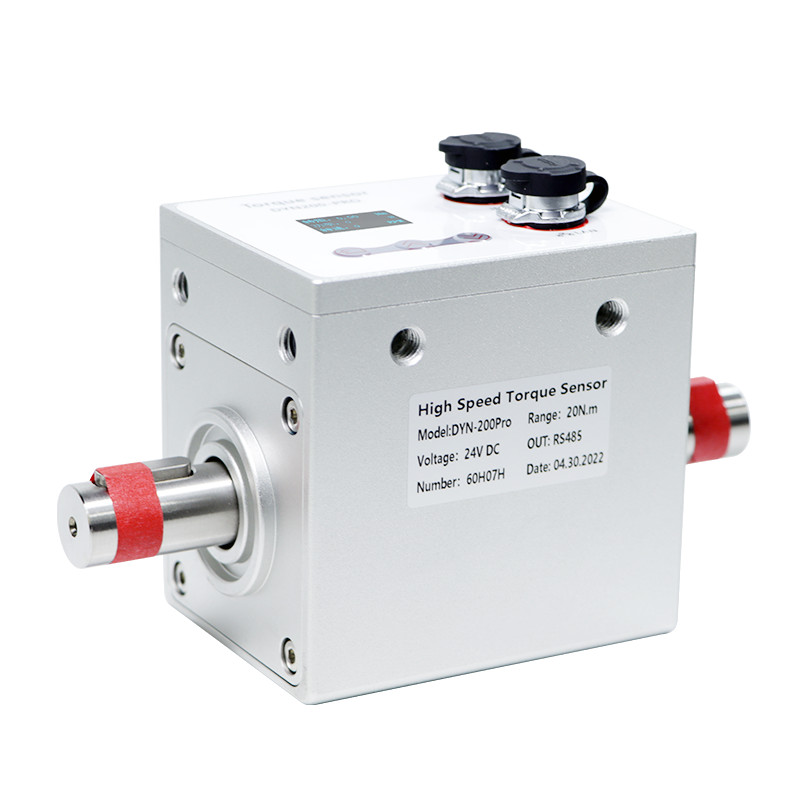

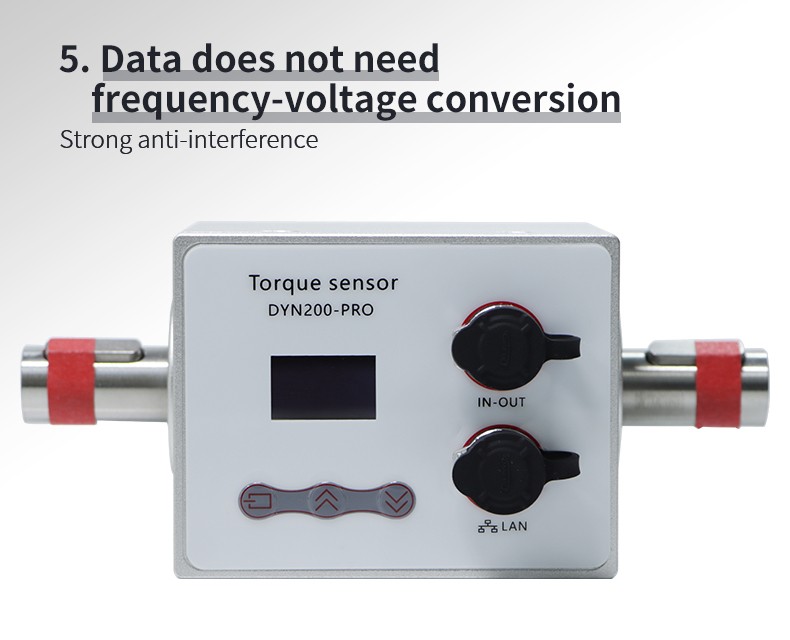

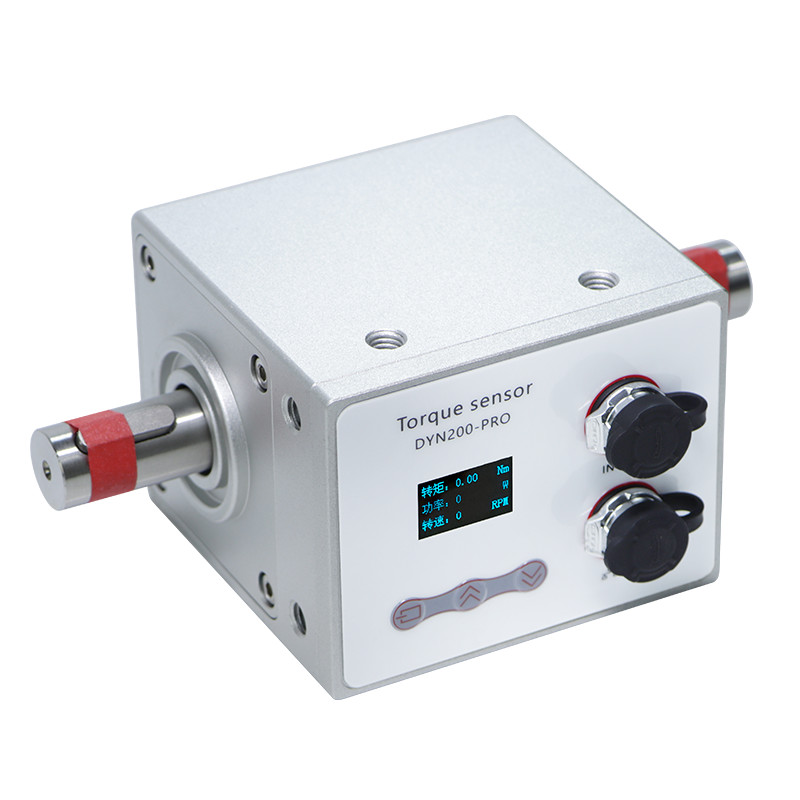

DAYSENSOR Dynamic Torque Transducer HighAccuracy LargeRange Rotating Measurement
USD 902.49 USD
Specifications
| Measurement Range | 0-0.1N.M |
| Rated Speed | 10000rpm |
| Package List | 1 x Sensor and 1 x Line |
| Signal Delay | 0.6ms (50% response) |
| Current Consumption | Below 150mA |
| Vibration Natural Frequency (rotor Part) | 19.4kHz |
| Rated Capacity | ± 30N.m |
| Allow Overload | 200% FS |
| Load Resistance | 2kΩ or more |
| Non-linearity | 0.1% FS |
| Speed Output | 60 pulses / rev |
| Temperature Effect Of Output | 0.01% FS / C |
| Item Type | Dynamic Torsion Sensor |
| Maximum Twisted Angle | 2.60 × 10rad (0.149 °) |
| Moment Of Inertia | 0.38kgcm |
| Torsion Output | ± 5VDC; 0-10V; 4-20mA |
| The Fastest Rotation Speed | 15000rpm |
| Repeatability | 0.03% FS |
| Lag | 0.03% |
| Response Performance | 1kHz |
| Torsion Constant | 3.85 × 10Nm / rad |
| Temperature Effect Of Zero Point | 0.01% FS / C |
| Power Input | DC24V |
Dynamic/Static Transducer. Item Type: Dynamic Torsion Sensor. Torsion Output: ± 5VDC; 0-10V; 4-20mA. Torsion Constant: 3.85 × 10Nm / rad. Load Cell Sensor. Load Resistance: 2kΩ or more. 1 x Sensor. Power Input: DC24V.
