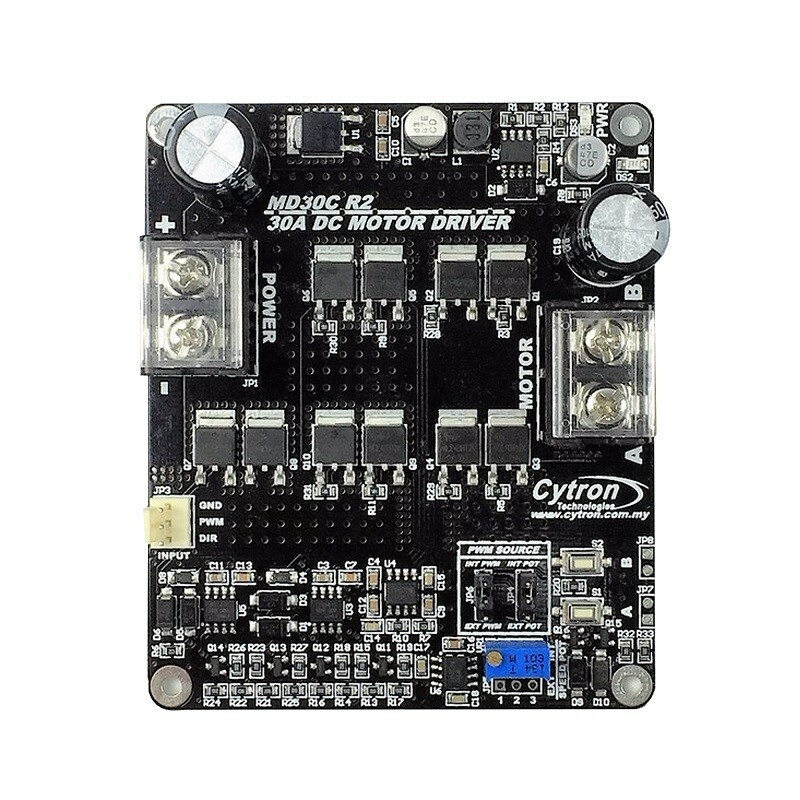

Cytron MD30C Rev 2 (R2) 30Amp 5V-30V DC Motor Driver, 3.3V-5V compatible input
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Model | MD30C Rev 2 (R2) |
| Country/Region Of Manufacture | Malaysia |
| MPN | unknown |
| Brand | Cytron |

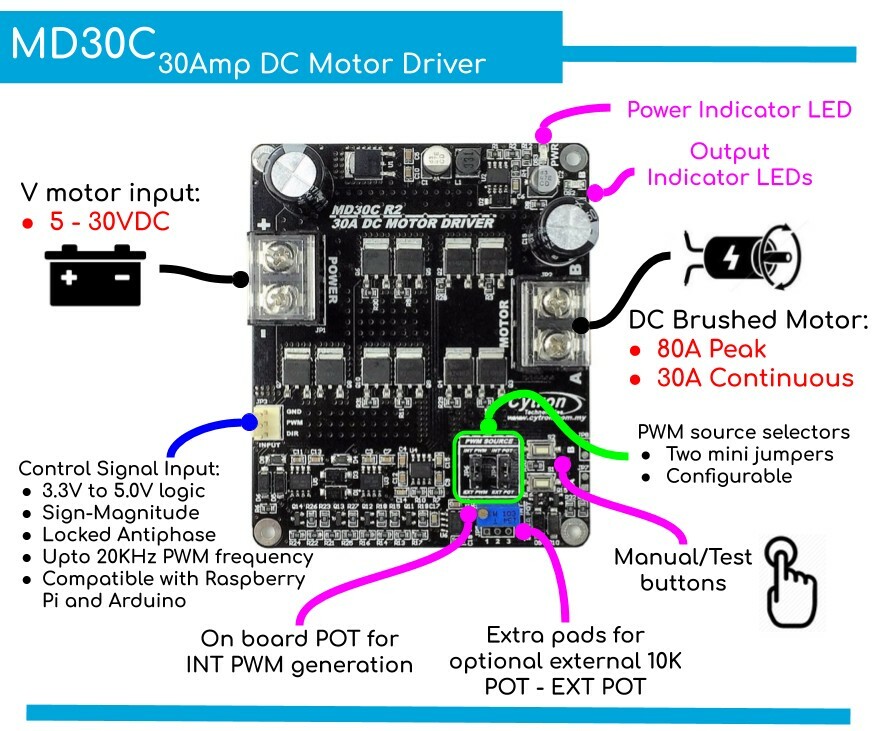

Cytron MD30C Rev 2 (R2) 30Amp 5V-30V DC Motor Driver, 3.3V-5V compatible input:Original Cytron, not a clone.In original, unopened box.Untested, but assumed to be in perfect working condition.New surplus, no warranty, no return, subject to prior sale.No accessories or additional items included.Price does not include tax, VAT, or shipping.Combined shipping not always feasible.Photos are from manufacturer, item shipped will be similar but might not be identical.Shipped via:USPS First Class Package (2 to 3 business days) (USA only).USPS Priority Mail Padded Flat Rate Envelope (1 to 3 business days) (USA only).USPS First Class Mail International / First Class Package International Service (delivery time unknown) (Worldwide).From Manufacturer:Note: MD30C is Revision 2.0 since January 2016.This is MD30C DC brushed motor driver. It is the successor of MD30B which is designed to drive medium to high power brushed DC motor with output current up to 80A peak (1 second) and 30A continuously. Full NMOS(solid state) design not only provides faster switching time, it is also more efficient and no heatsink or fan is required to get 30A continuous in room temperature.Besides that, MD30C also incorporates some user friendly features such as reverse polarity protection for Vin/Vmotor and onboard PWM generator which allows it to operate without additional controller. The motor can simply be controlled with the onboard switches and potentiometer. External switches and potentiometer can also be used. Which motor is good to be driven by MD30C? As long as the motor:DC Brushed motor (Two terminals)Operating voltage from 5V to 30VDCRated Current <= 30APeak Current <= 80AExample of suitable DC brush motor with MD10C (Not limit to):Relatively low current motor: SPG50 series, SPG30 and SPG30E series, IG45 series, IG42 series, IG32 series, DKM 40W series.Power Window Motor with coupling, left or right, or Wheel kit350W Electric Scooter Motor450W Electric Scooter Motor with GearDKM 120W seriesFeatures:Bi-directional control for 1 brushed DC motor, single channelMotor Voltage: 5V to 30VDCMaximum Output Current: 80A peak (1 second), 30A continuousReverse polarity protection for Vmotor3.3V and 5V logic level input, compatible with:5V Arduino boards such as Arduino UNO, Maker UNO, CT-UNO, Arduino Mega26503.3V Arduino board such as Arduino ZeroRaspberry Pi boards which include 3B, 3B+, 3A+, Zero, Zero W, Zero WHFull NMOS H-Bridge for higher efficiency and no heat sink is requiredRegenerative BrakingBrakes the motor when PWM pin is low (logic low)Speed control PWM frequency up to 20KHz (Actual output frequency is same as input frequency when external PWM is selected)Onboard PWM generator with switches and potentiometer for standalone operationSupport both locked-antiphase and sign-magnitude for external PWM operation. Note: PWM is not "RC PWM"Dimension: ~94mm x ~79mm
