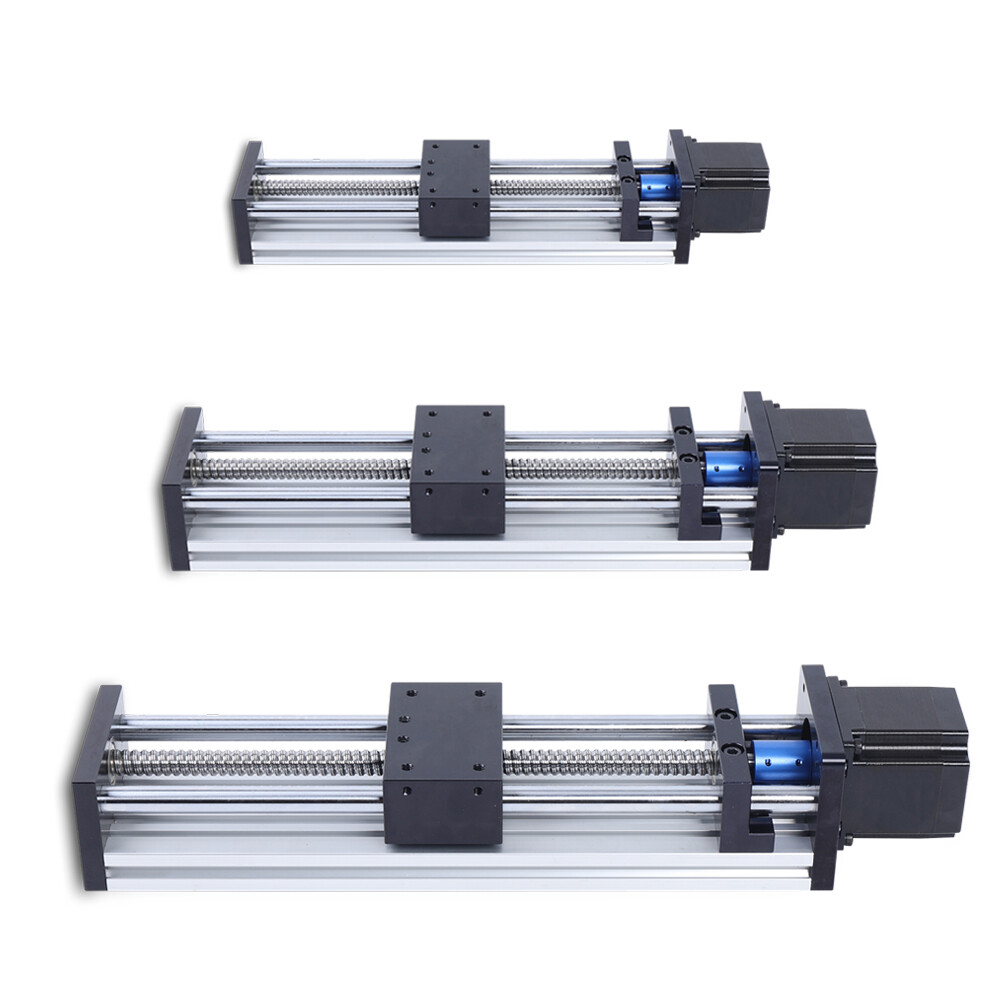

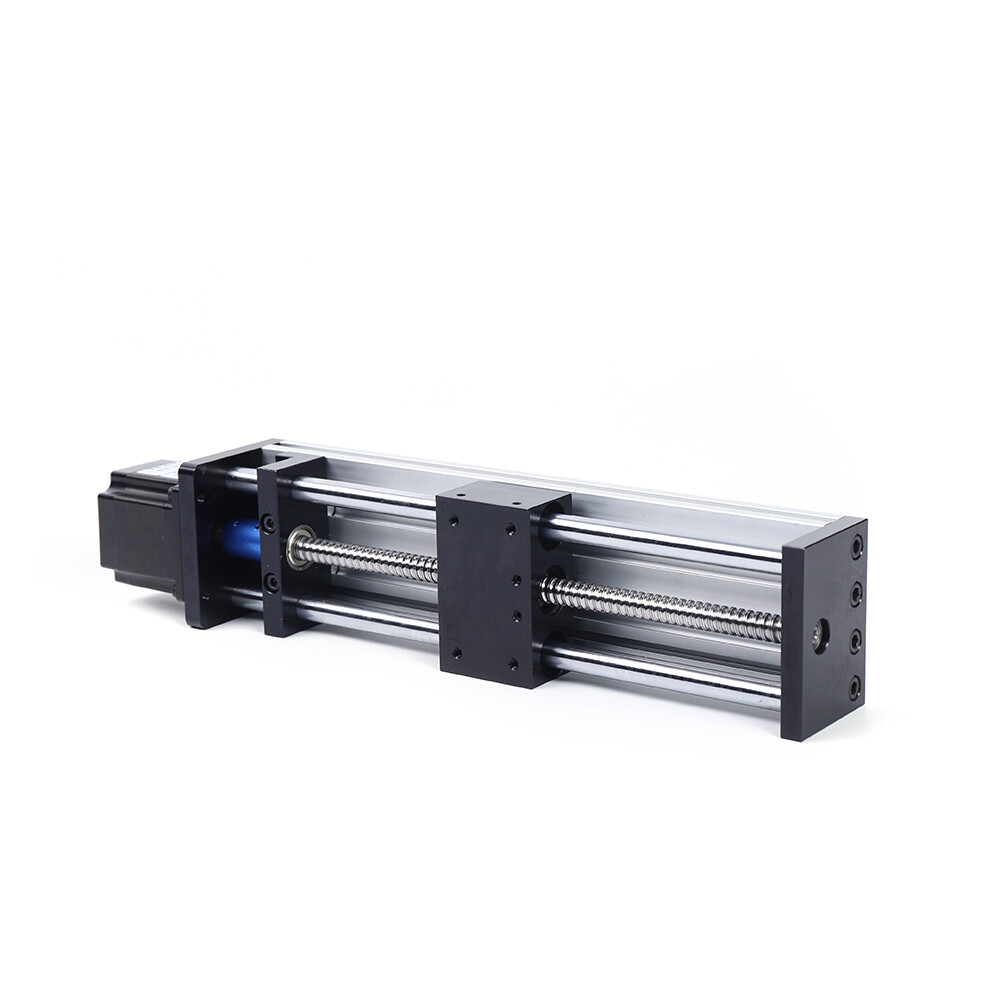

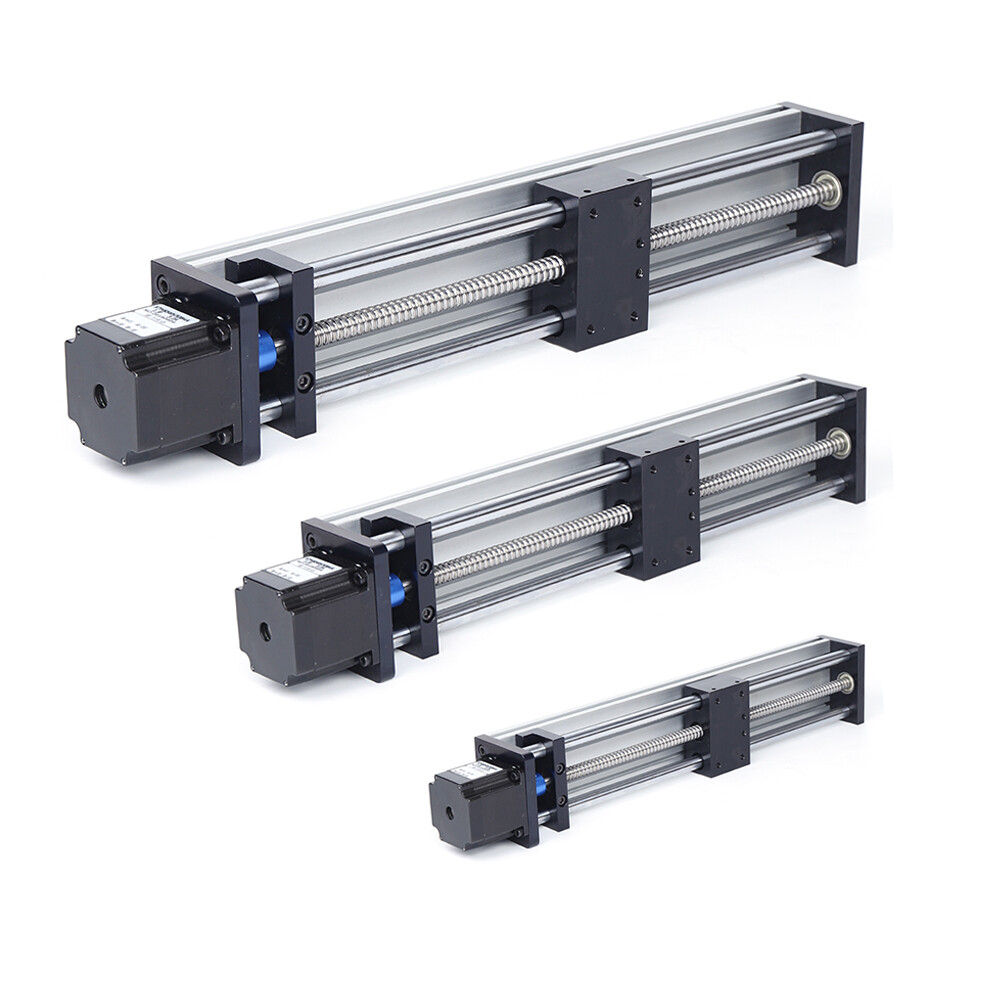

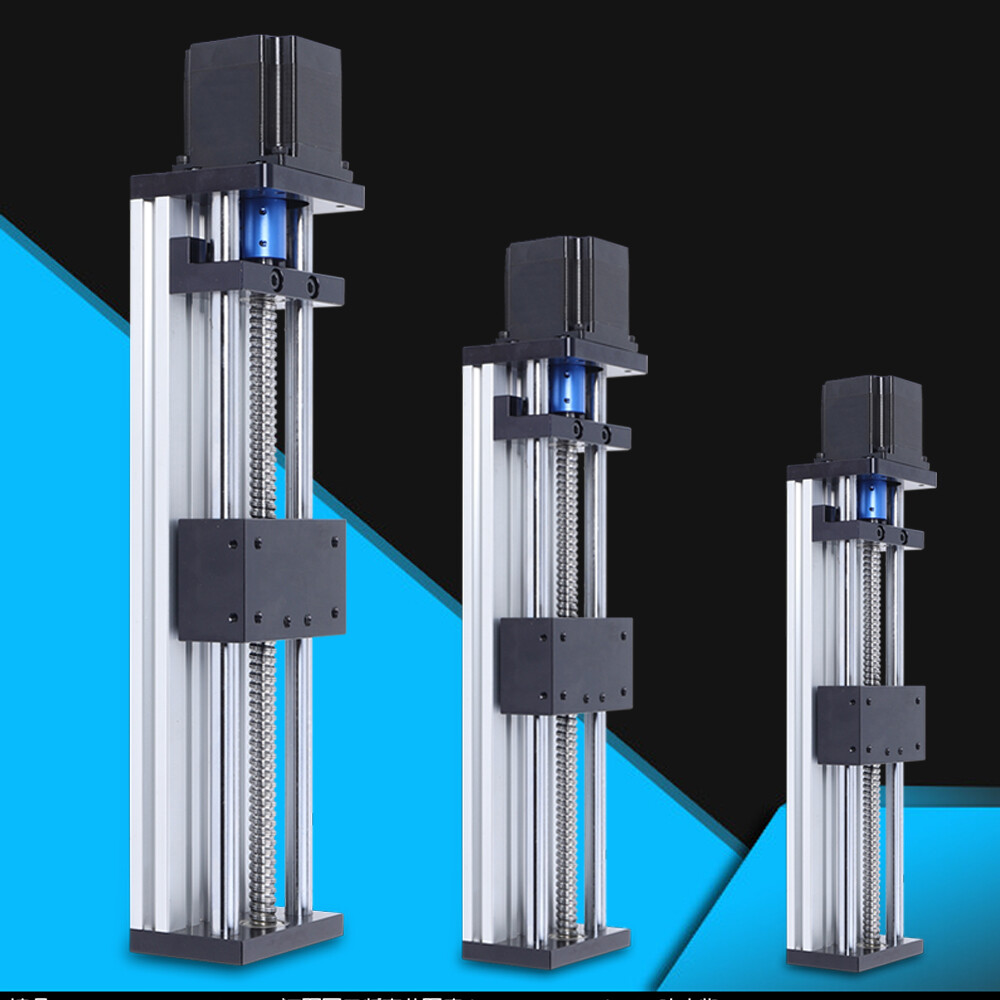

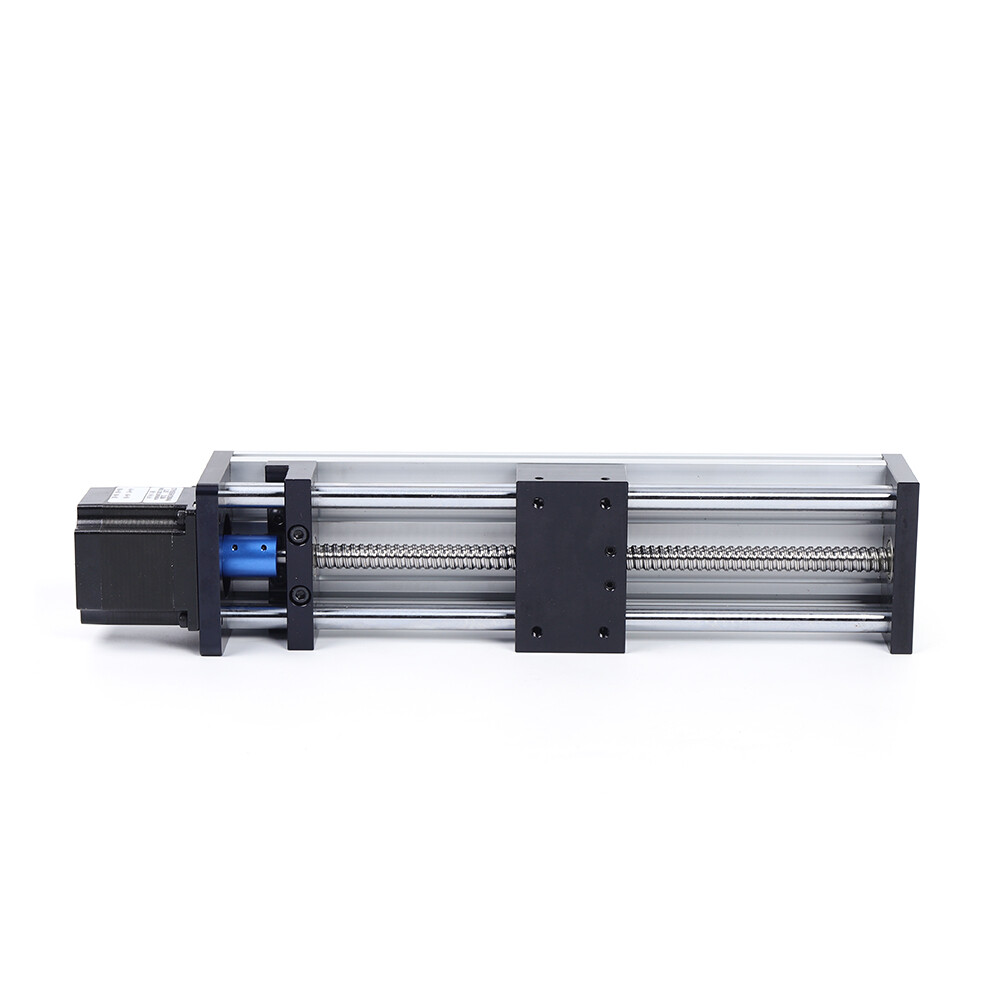

CNC Linear Actuator Ball Screw Slide Stage Rail Guide Motion Table Nema23 Motor
CNC Linear Actuator Ball Screw Slide Stage Rail Guide Motion Table Nema23 Motor CNC Linear Actuator Ball Screw Slide Stage Rail Guide Motion Table Nema23 Motor CNC Linear Actuator Ball Screw Slide Stage Rail Guide Motion Table Nema23 Motor CNC Linear Actuator Ball Screw Slide Stage Rail Guide Motion Table Nema23 Motor CNC Linear Actuator Ball Screw Slide Stage Rail Guide Motion Table Nema23 Motor CNC Linear Actuator Ball Screw Slide Stage Rail Guide Motion Table Nema23 Motor CNC Linear Actuator Ball Screw Slide Stage Rail Guide Motion Table Nema23 Motor CNC Linear Actuator Ball Screw Slide Stage Rail Guide Motion Table Nema23 Motor CNC Linear Actuator Ball Screw Slide Stage Rail Guide Motion Table Nema23 Motor CNC Linear Actuator Ball Screw Slide Stage Rail Guide Motion Table Nema23 Motor CNC Linear Actuator Ball Screw Slide Stage Rail Guide Motion Table Nema23 Motor

CNC Linear Actuator Ball Screw Slide Stage Rail Guide Motion Table Nema23 Motor

USD 60.00 USD
SKU: 4lR3VIJh
Brand: Unbranded/Generic
GTIN: Does Not Apply
Condition: New
Tags: 0.03mm 0.9NM 100mm 100mm 200mm 300mm 15kg 24V 3 Years 30kg-max 50kg 40-100mm/s ggp Linear Actuator Unbranded/Generic
Categories: Envelopes & Mailers

Specifications

Stoke100mm
BrandUnbranded/Generic
Voltage24V
Manufacturer Warranty3 Years
ModelGGP
Speed40-100mm/s

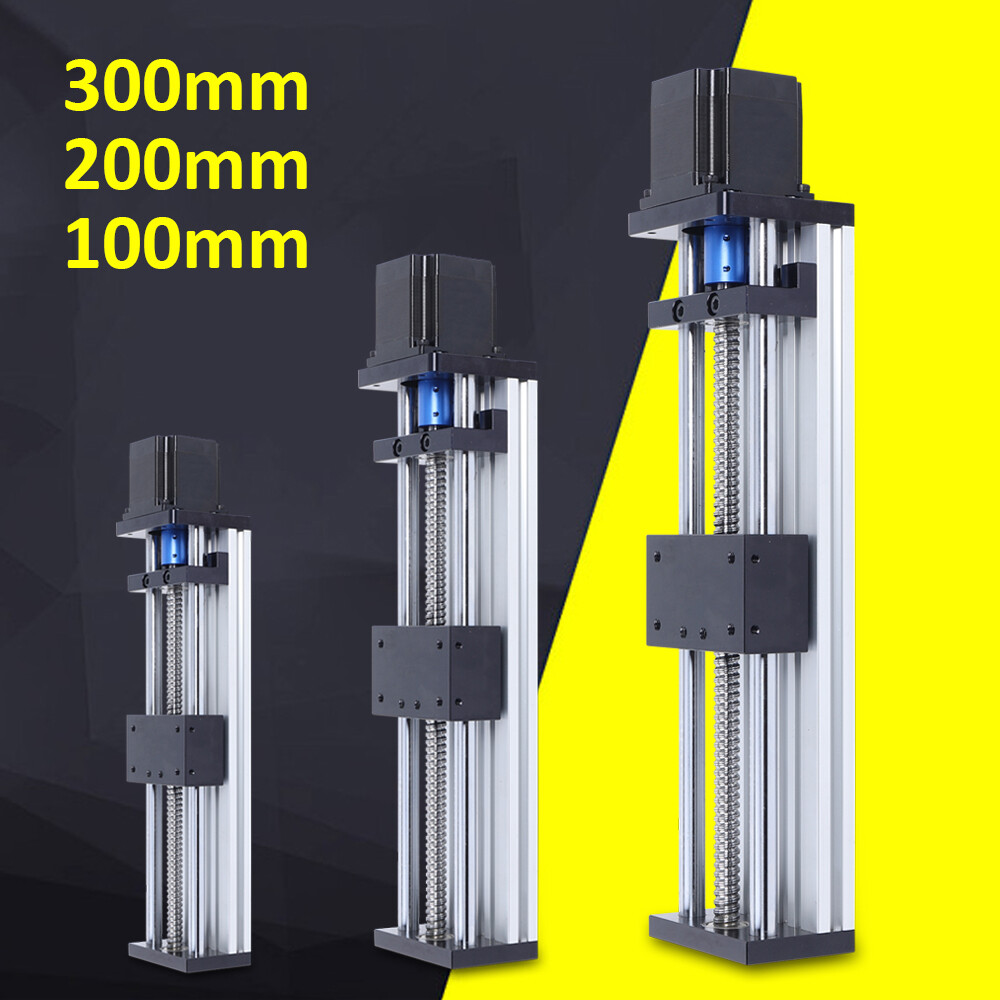

Effective Stroke100mm /200mm/ 300mm
Accuracy0.03mm
Horizontal Load30kg-max 50kg
Vertical Load15kg
Torque0.9NM

Ball Screw Linear Rail Motion Slide Table +23NEMA Stepper Motor CNC 100-300mm US Features： Model: GGP Effective stroke: 100mm /200mm/ 300mm Accuracy: 0.03mm Ballscrew diameter: 12mm; Lead: 4mm Speed:40-100mm/s Horizontal load: 30kg-max 50kg Vertical load: 15kg Nema 23 stepper motor; Diameter 57 * 56mm Voltage: 24V Current: 3A Torque: 0.9NM Lead: 4mm (one turn of the screw rod) Package Included: 1pc Ball Screw Guide Sliding Table 1pc 23nema stepper motor Product clearance: 1-2MM.

Related Items

17 in1 Half Face Gas Mask Facepiece Spray Painting Respirator Safety Suit F 6200
17 in1 Half Face Gas Mask Facepiece Spray Painting Respirator Safety Suit F 6200
 99.99% High-Purity Iron Rod Diameter 1mm- 50mm Electrodes Round Bar Length 100mm
99.99% High-Purity Iron Rod Diameter 1mm- 50mm Electrodes Round Bar Length 100mm
 Paste Filling Machine, Pneumatic Filling Machine, Filling Machine 100-1000 ml
Paste Filling Machine, Pneumatic Filling Machine, Filling Machine 100-1000 ml
 POP RIVETS 100 PC. 3/16 X 3/4″ ALUMINUM HEAD STEEL MANDREL POP RIVET
POP RIVETS 100 PC. 3/16 X 3/4″ ALUMINUM HEAD STEEL MANDREL POP RIVET
 Optical Trial Lens Set Metal Rim Optometry Kit 104PCS w/ Free Accessories + Case
Optical Trial Lens Set Metal Rim Optometry Kit 104PCS w/ Free Accessories + Case
 Komshine EX39 FTTX Fiber Fusion Splicer 0.01 db Splicing Loss ,3 Years Warranty
Komshine EX39 FTTX Fiber Fusion Splicer 0.01 db Splicing Loss ,3 Years Warranty
 UNKNOWN BRAND CLEAR GLASS GLOBE FIXTURE, APPROX 8 1/2″ HEIGHT, 4 1/8″ DIAMETER
UNKNOWN BRAND CLEAR GLASS GLOBE FIXTURE, APPROX 8 1/2″ HEIGHT, 4 1/8″ DIAMETER

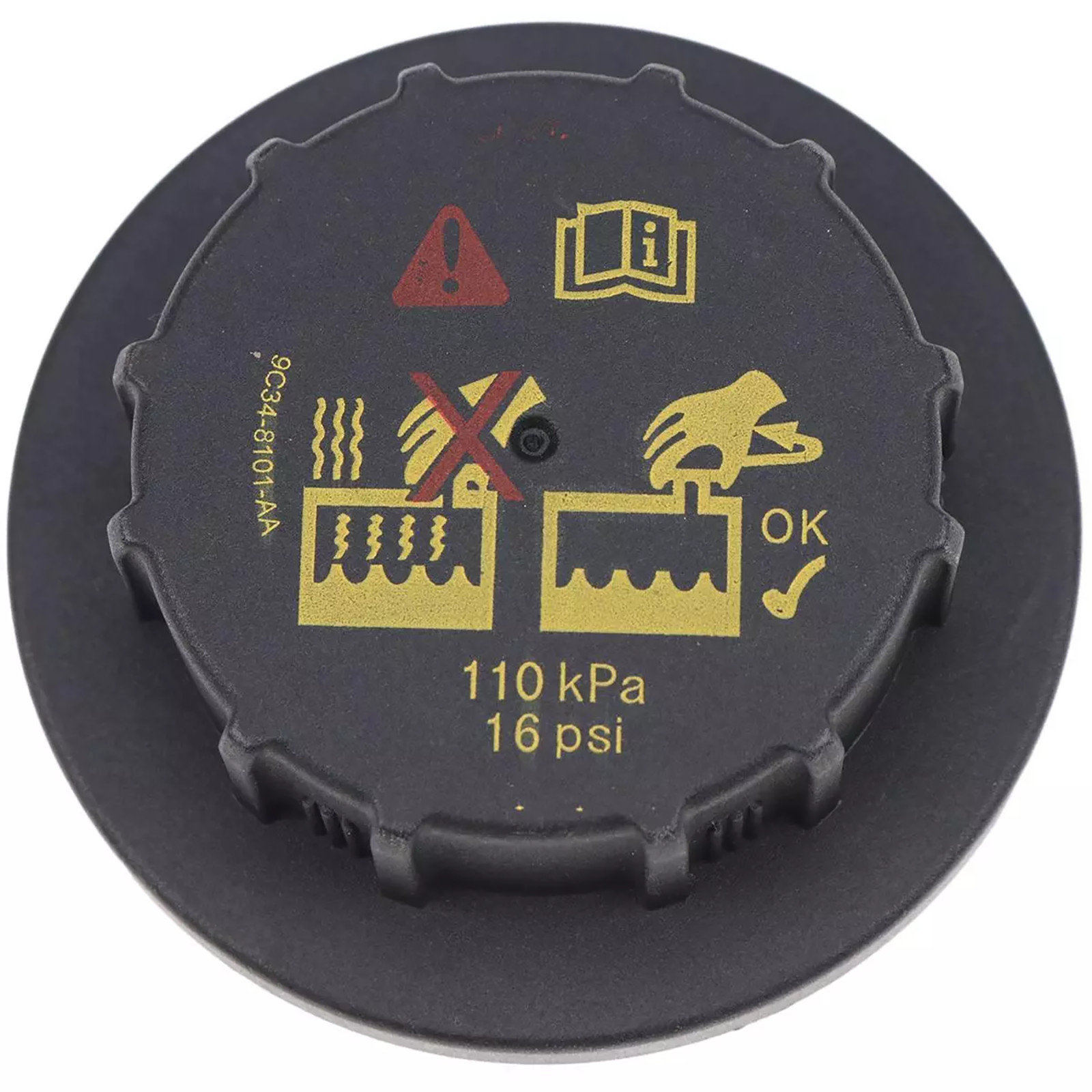

 Coolant Tank Cap 6733429 For Bobcat T250 T300 T320 T550 T590 T630 T650 T750 T770
