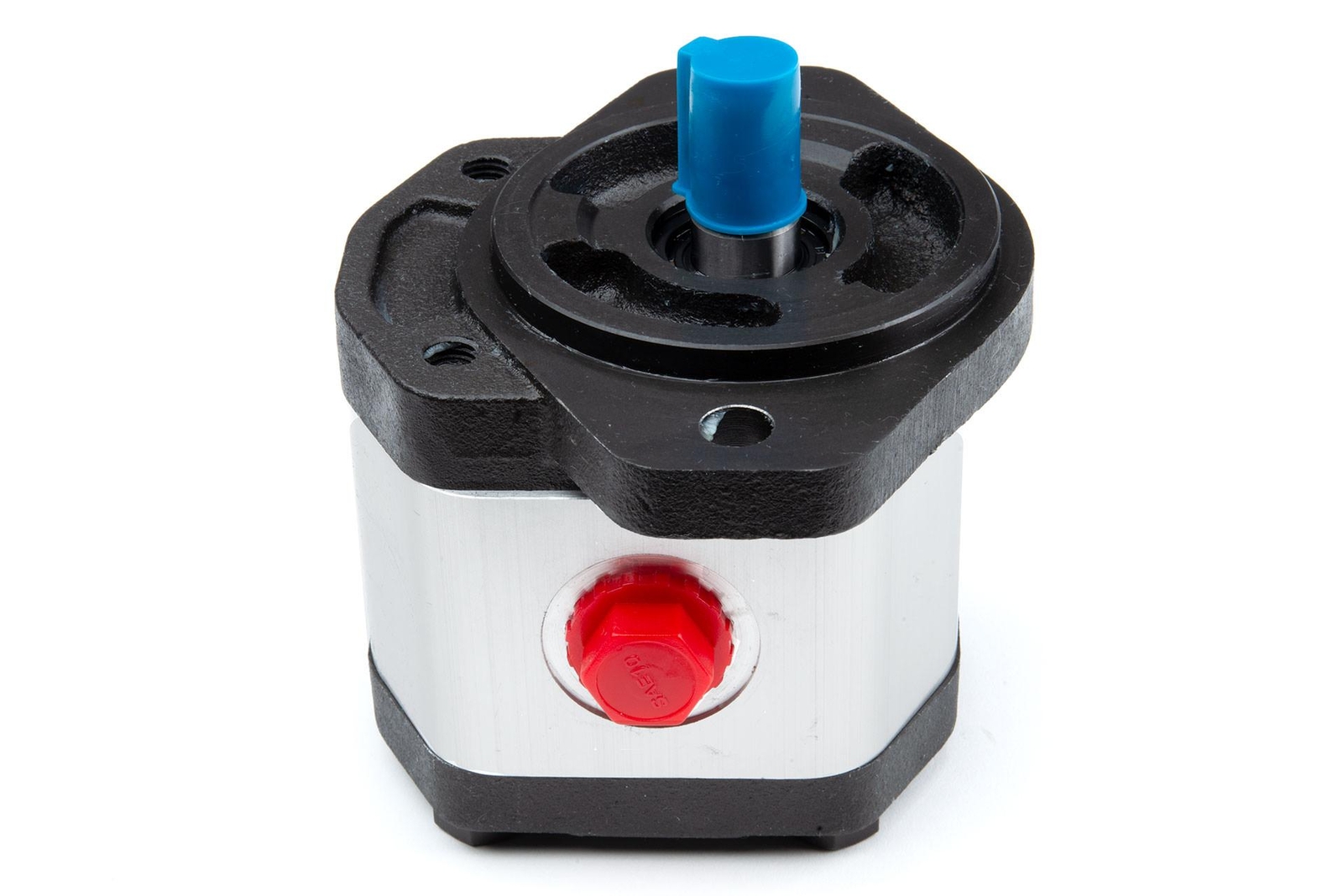

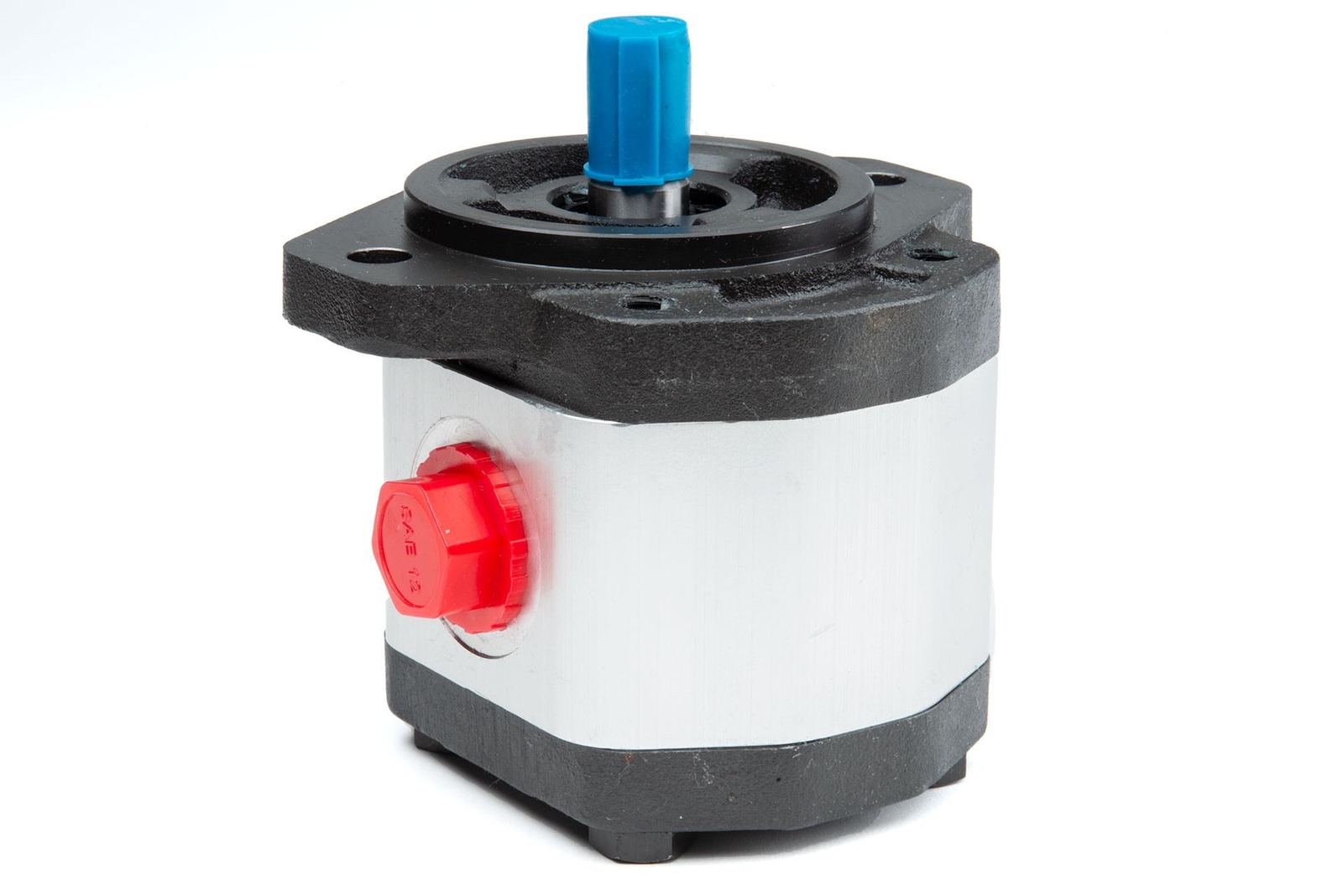

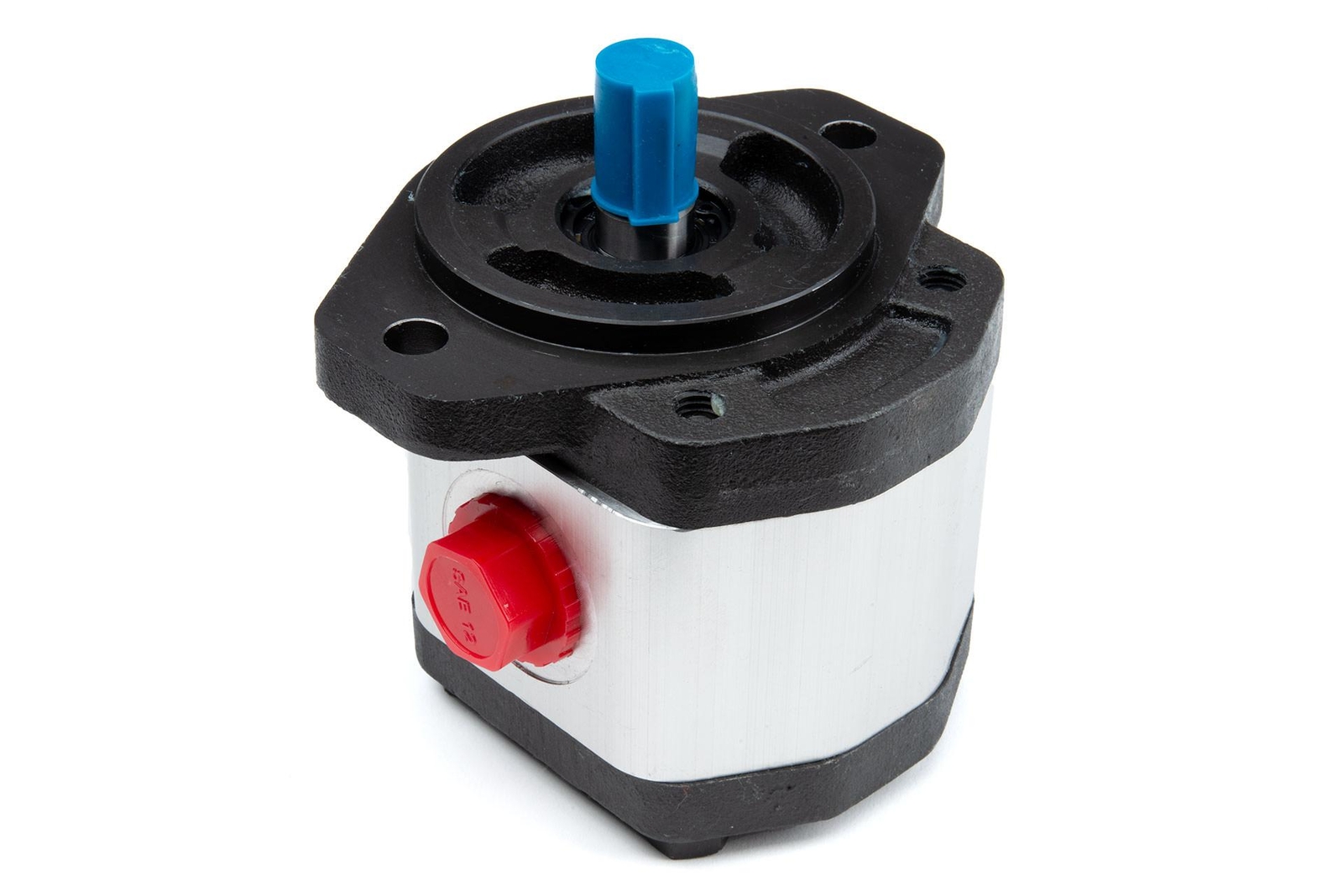

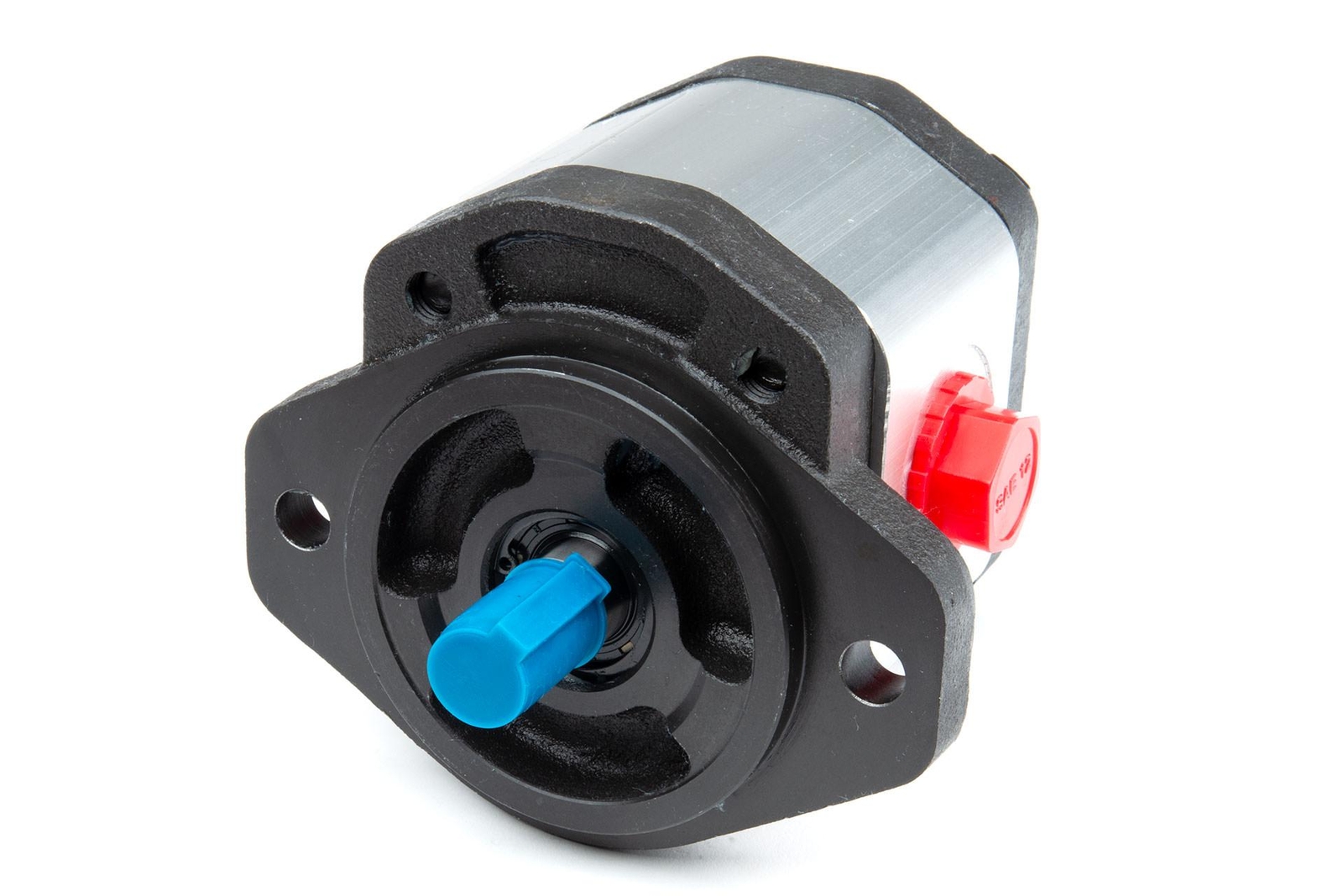

Chief Hydraulic Gear Pump, .389 CID, 4000 RPM, SAE 12 Pressure Port
USD 169.79 USD
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Chief |
| MPN | CB2A-F6SA |
| Hydraulic Pump Type | Gear Pump |
| Mounting | 2 bolt A flange |
| PSI | 3626 |
| Inlet Port Diameter | SAE 12 |
| Cubic Inch Displacement | 0.389 |
| Outlet Port Diameter | SAE 10 |
| RPM | 4000 |
| GPM (Flow) At 1800 RPM | 2.7 |
| Country/Region Of Manufacture | China |
| Unit Type | Unit |
This pump line offers aluminum body construction, high pressure hydraulic gear Pump with 11 displacement sizes from 0.24 to1.95 cu.in/rev. 4 to 32 cm3/rev . The standard mounting flange is SAE A � 2 bolt, The standard drive Shaft is a 5/8 inch Dia.meter straight with 5/32 straight key.
