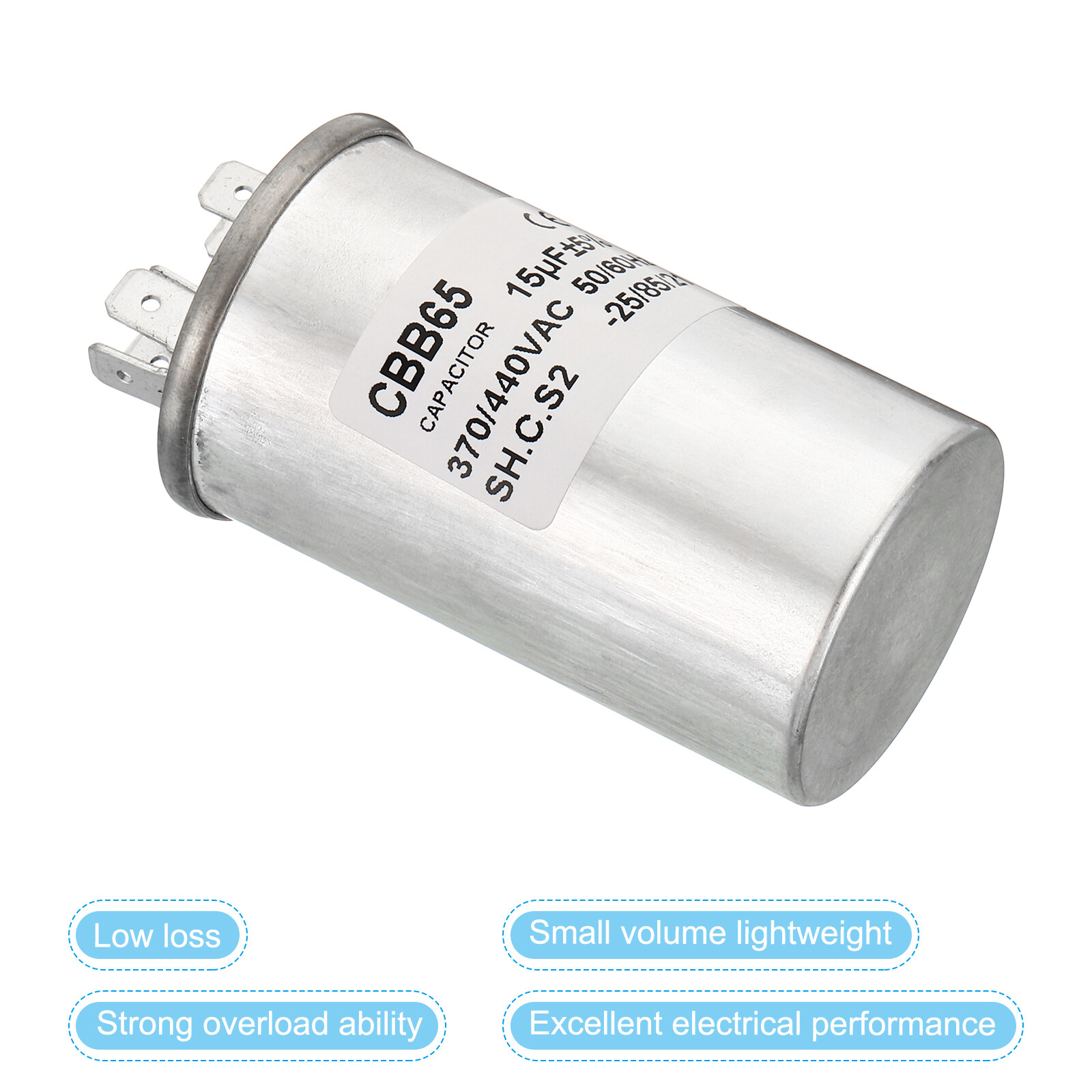

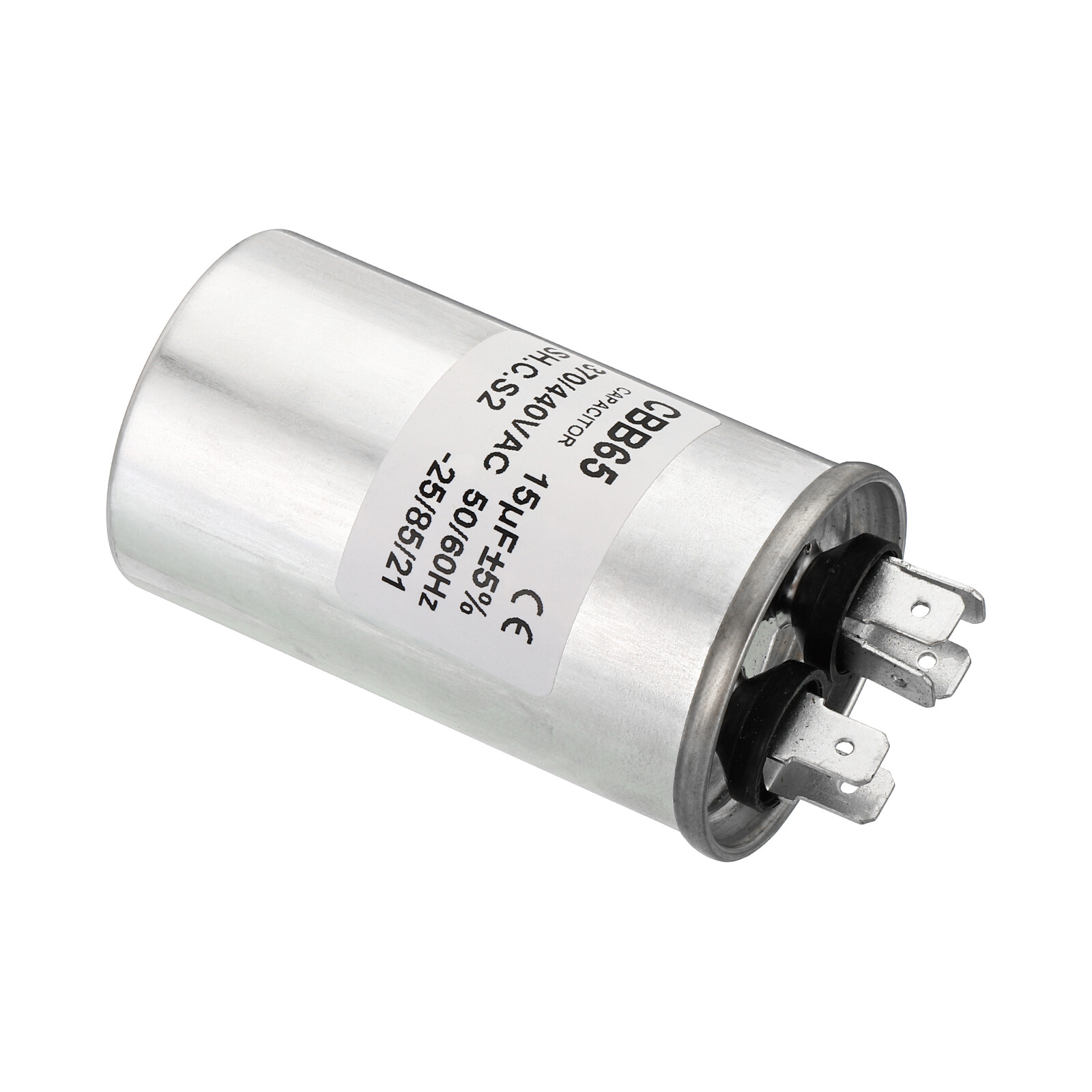

CBB65 15uF Run Capacitor 15mfd AC 370V / 440V Aluminum Case with 2 Terminal
Specifications
| Brand | uxcell |
| Type | Motor Run Capacitor |
| Termination Style | Pin |
| Mounting Style | Rack Mount |
| Maximum Operating Temperature | 85 °C (185 °F) |
| Manufacturer Warranty | None |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Tolerance Rating | ±5 % |
| Maximum Operating Voltage | 450 V |
| Shape | Cylinder |
| UPC | 619668004925 |

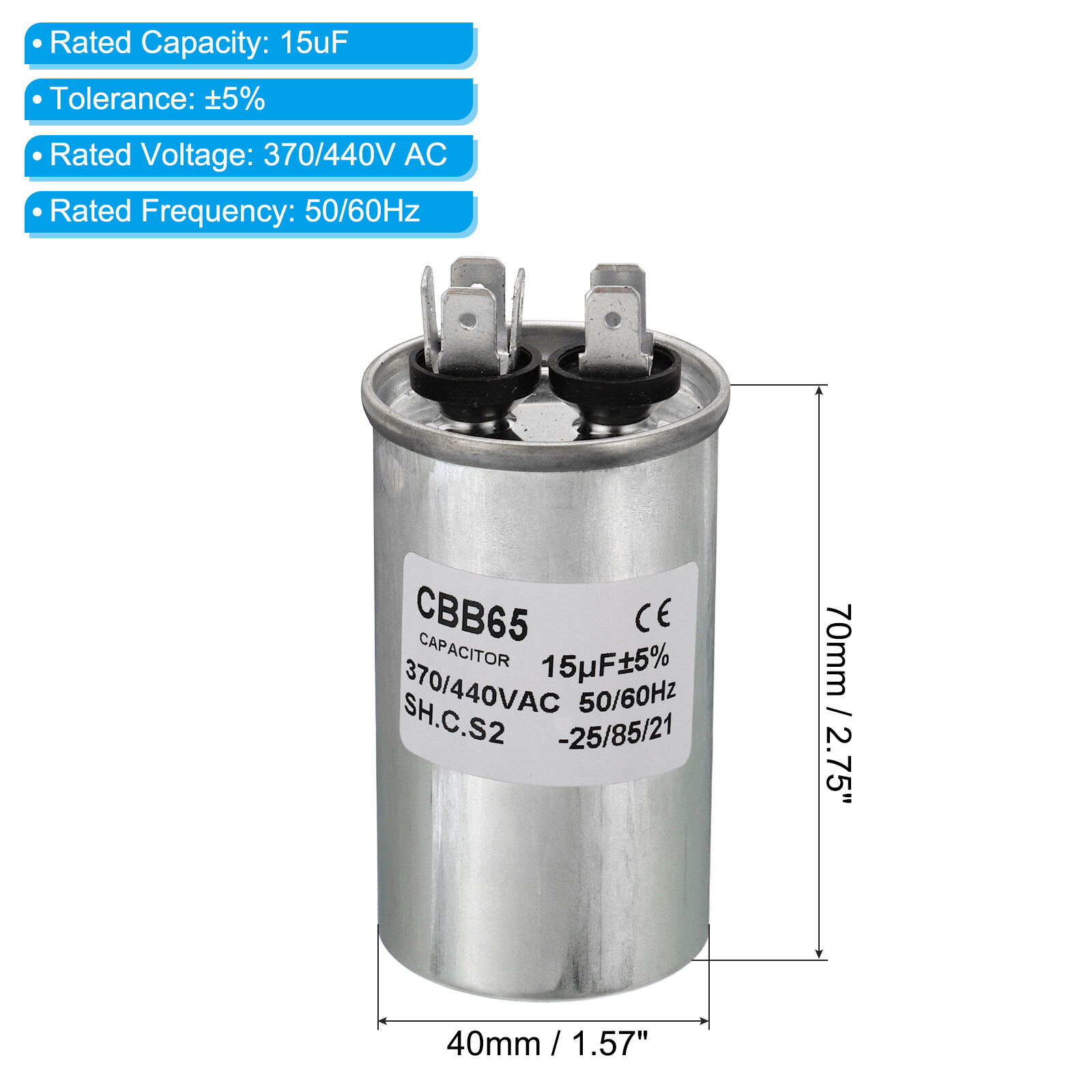

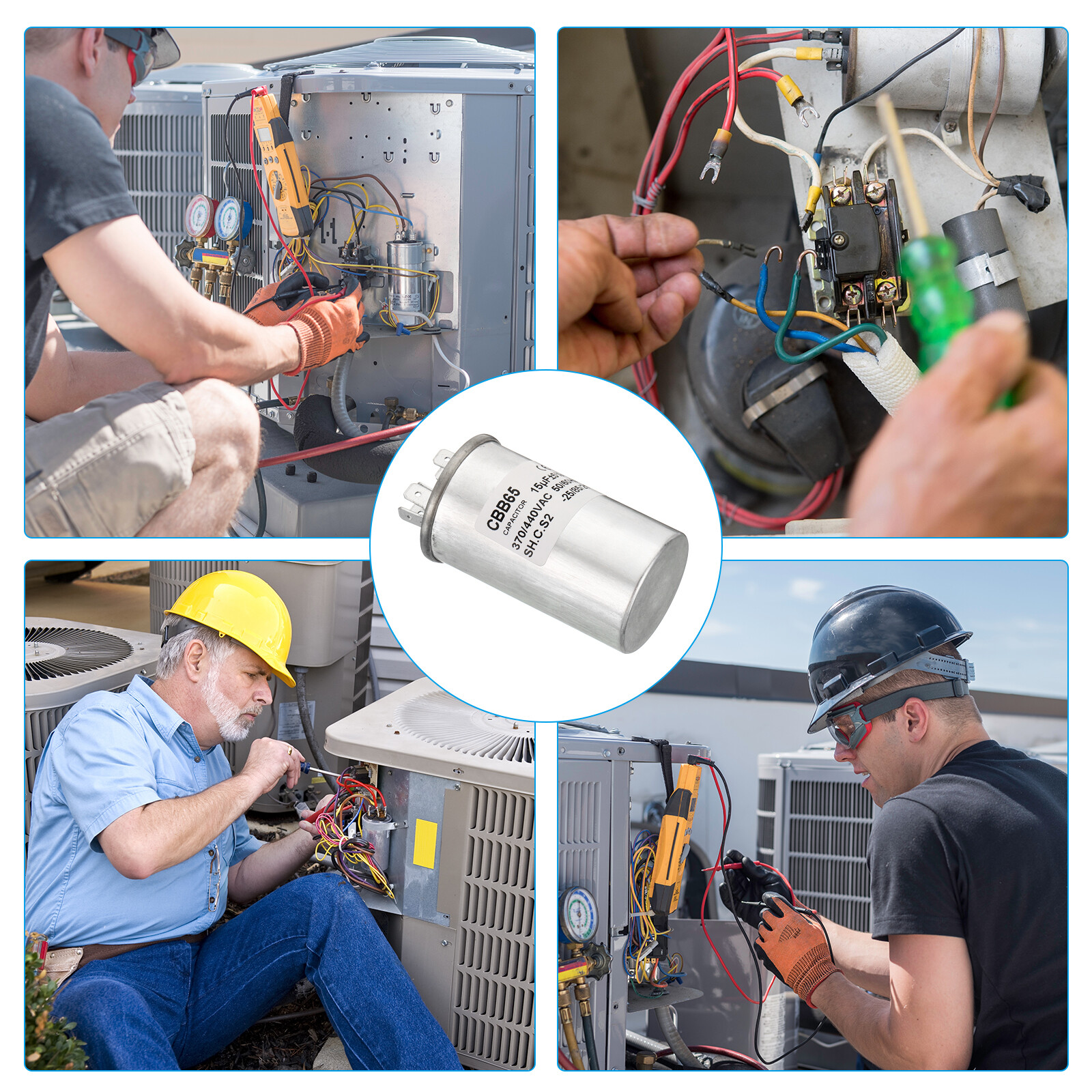

Product Details1.Advantage:This CBB65 run capacitor has characteristics of small volume, lightweight, low loss, strong overload ability, excellent electrical performance, reliable insulation performance, and current with good impact resistance.2.Specification:Model: CBB65;Material: Metallized Polypropylene, Aluminum Case;Lead End: 2 Terminal (6Pins);Rated Capacity: 15uF;Tolerance: ±5%;Rated Voltage: 370/440V AC;Rated Frequency: 50/60Hz;Climatic Category: -25/85/21;Overall Size: 40 x 70mm/1.56 x 2.73inch (D x H); Package Includes: 1 x CBB65 Capacitor3.CBB65 capacitor is applied to starting and working of a single-phase motor in a 50Hz/60Hz AC electric power system.widely used for air conditioners, air compressors, motors, refrigerators, heat pump condensers, HVAC, generators, illuminating lamps, fans, etc4.
