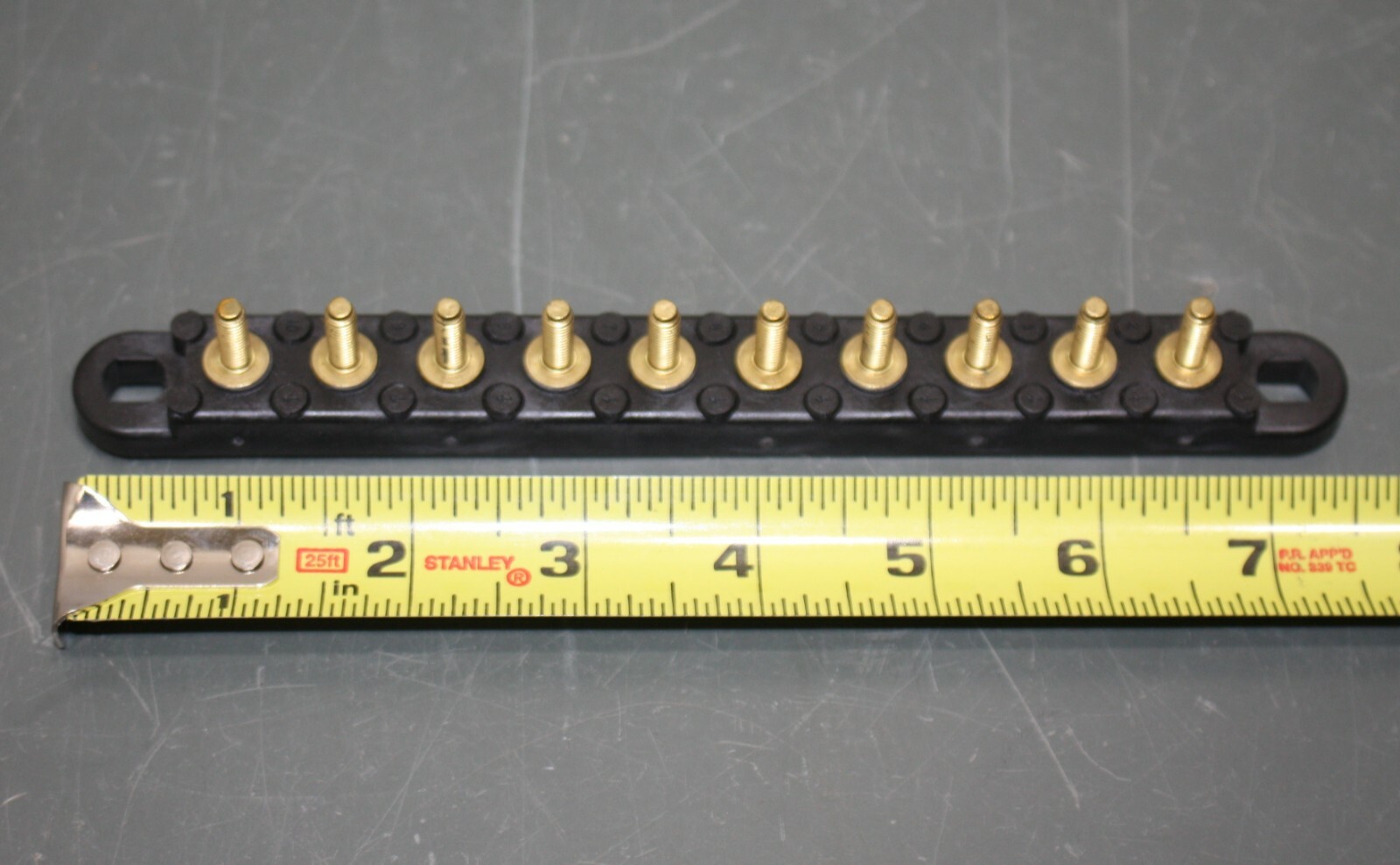

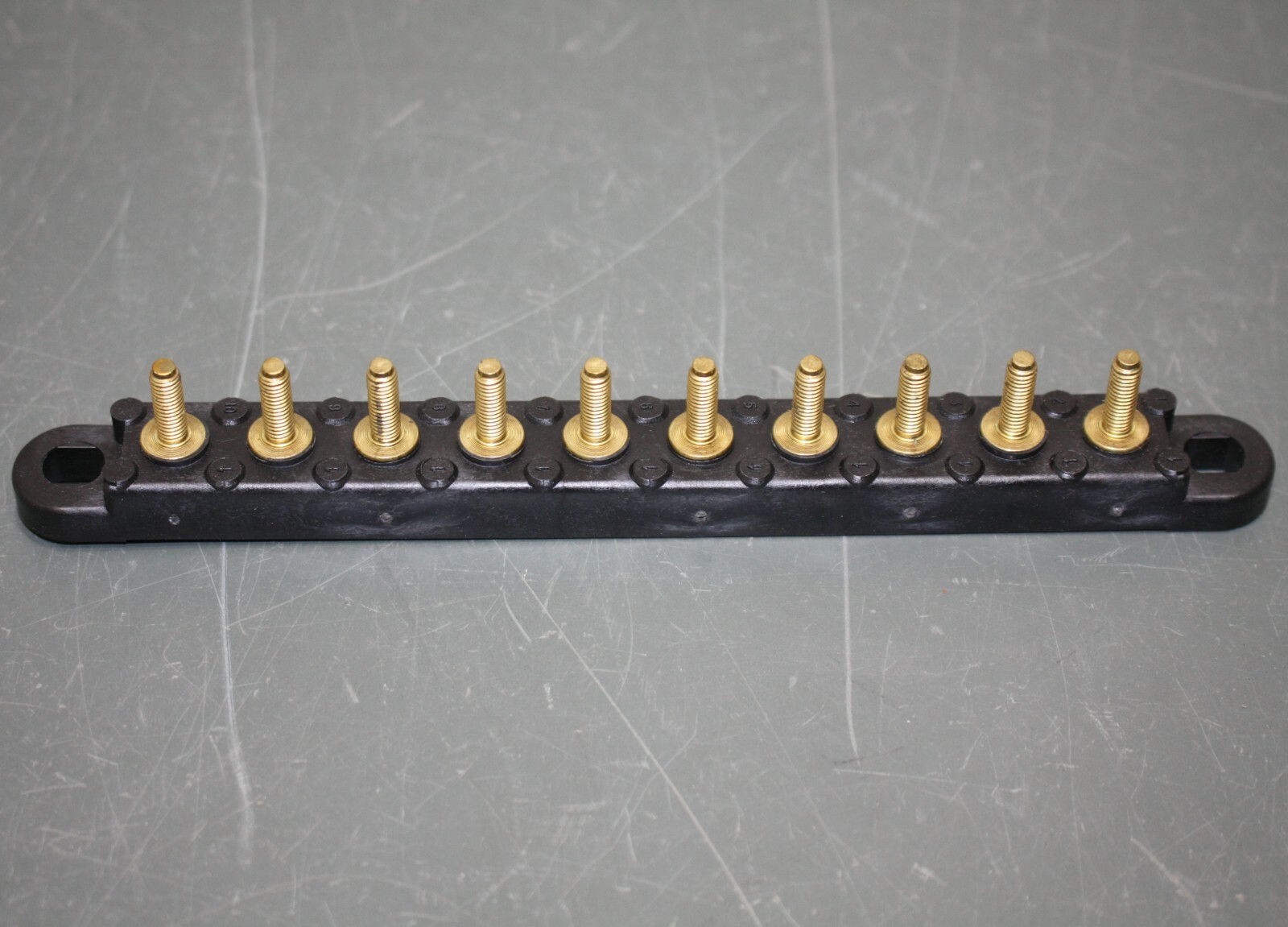

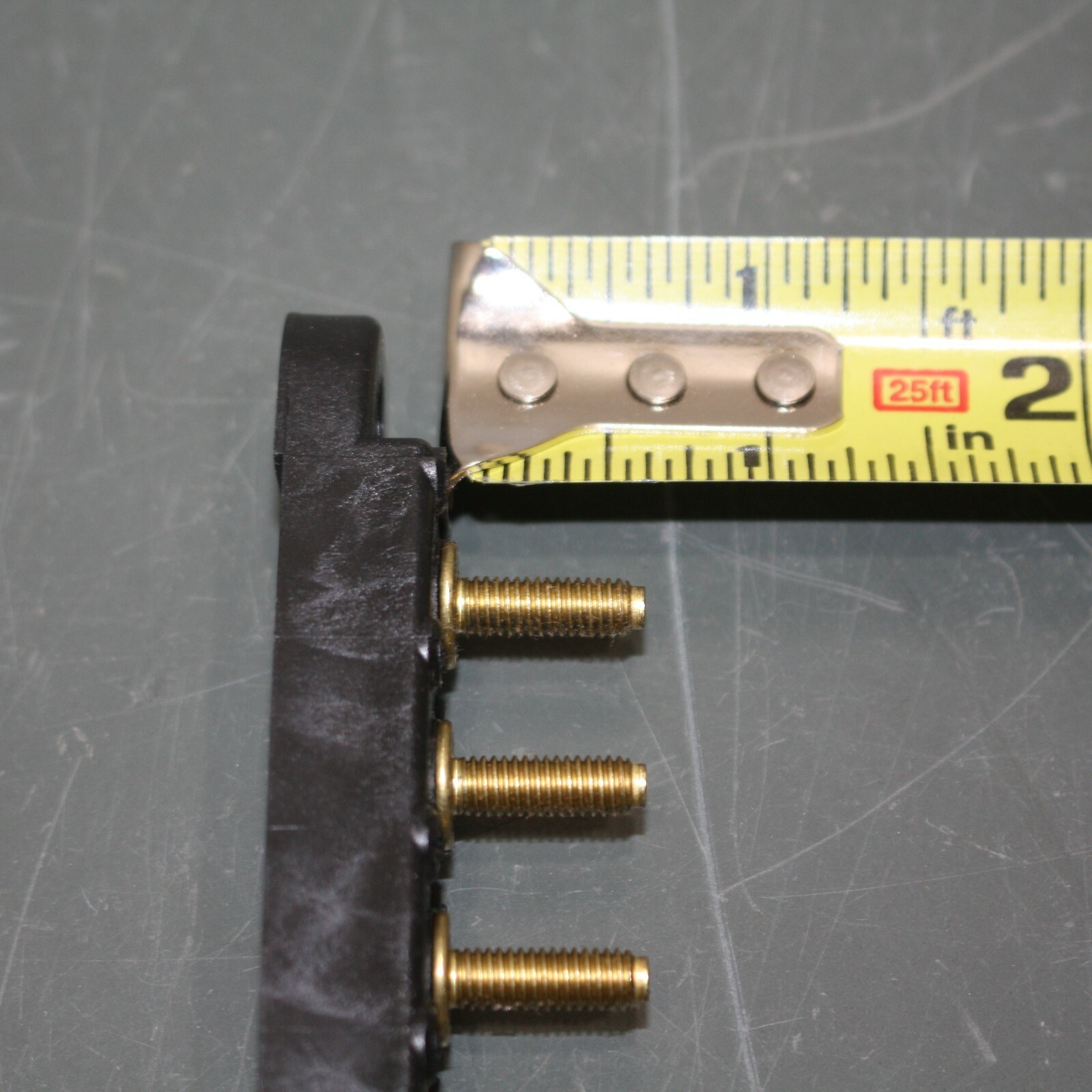

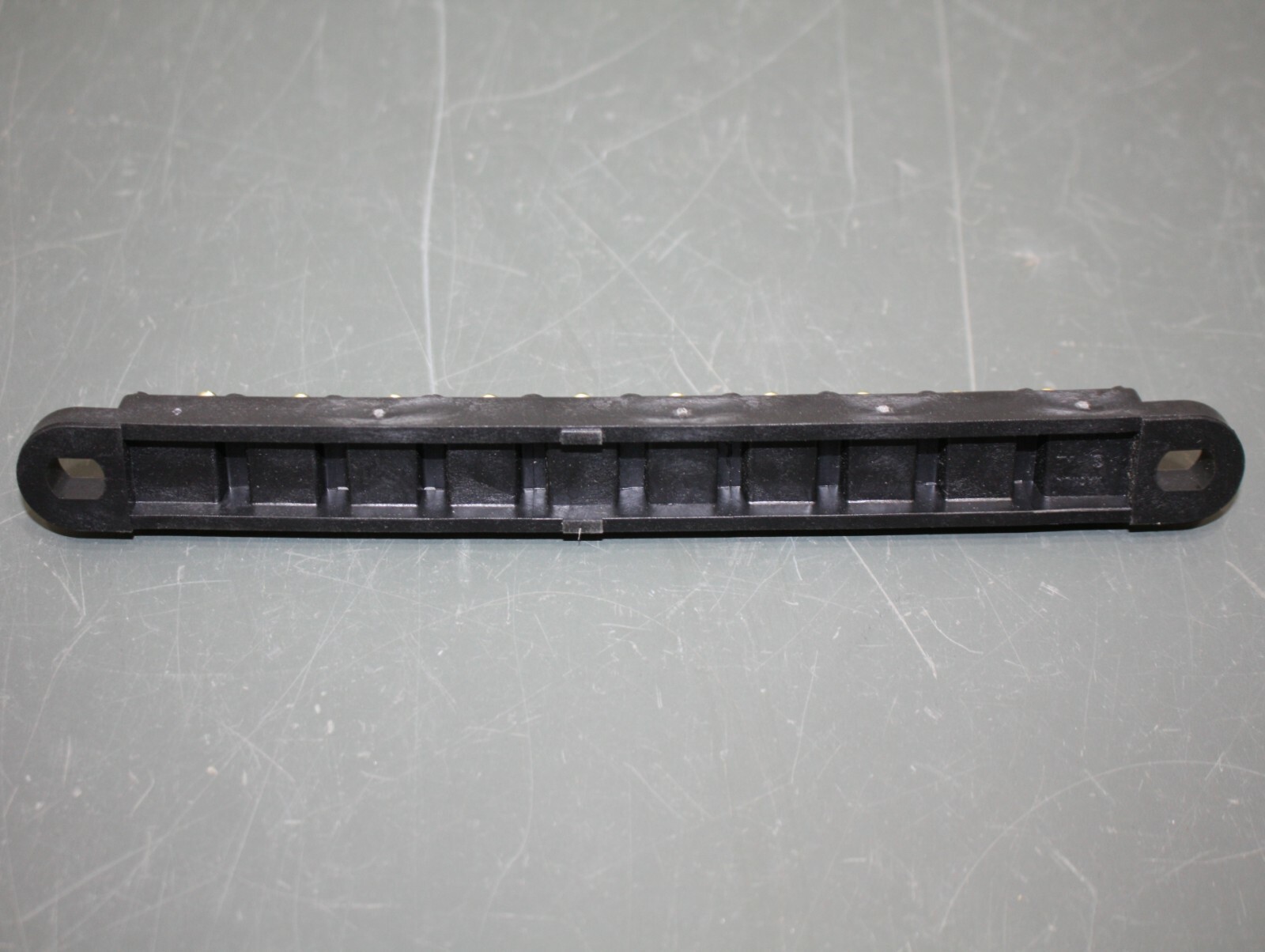

Bussmann Stud Junction Block JB1032-120-10, 30A, 300V, 10 Position, Brass, 10-32
USD 13.95 USD
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Country/Region Of Manufacture | United States |
| Gender | Male |
| Actual Pitch Spacing | 5/8" |
| Contact Material | Brass |
| MPN | JB1032-120-10 |
| Body Material | Thermoplastic |
| Brand | Eaton |
| Termination Type | Threaded |

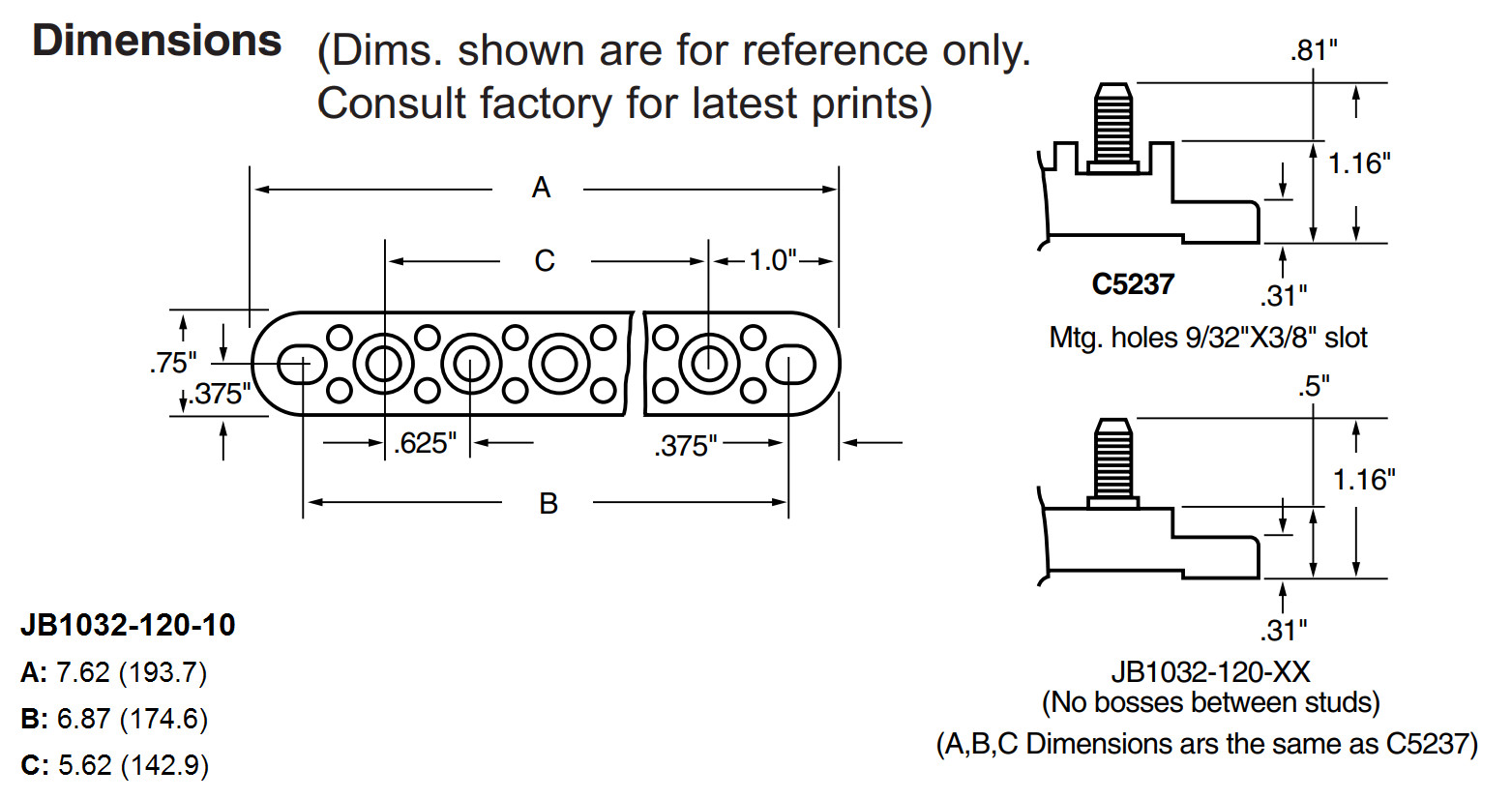

New, never used. Pulled from a factory case. Listing is for (1) unit. Technical SpecificationsStud Type Terminal Junction BlockGenuine Cooper Bussman Transportation ProductPositions: 10Stud Size: #10-32Stud Spacing: 5/8" (0.625")Amperage Rating: 30AVoltage Rating: 300V (UL), 600V (CSA)Maximum Temperature: 250° F / 120° CStud Torque Rating: 25 in-lb (2.8 Nm) maximumMounting Torque Rating: 24 in-lb (2.7 Nm) maximumMaterial: Black Thermoplastic with Brass StudsMounting Hole Size: 9/32" x 3/8" SlotNuts Included: NoCompliances: UL/CSA; CE CertifiedFeatures: Numbers and Arrows molded into base indicate terminals. Studs feature a "dog point" to guide nut onto thread.The posts are insulated from each other Overall Length of the block is 7-5/8".
