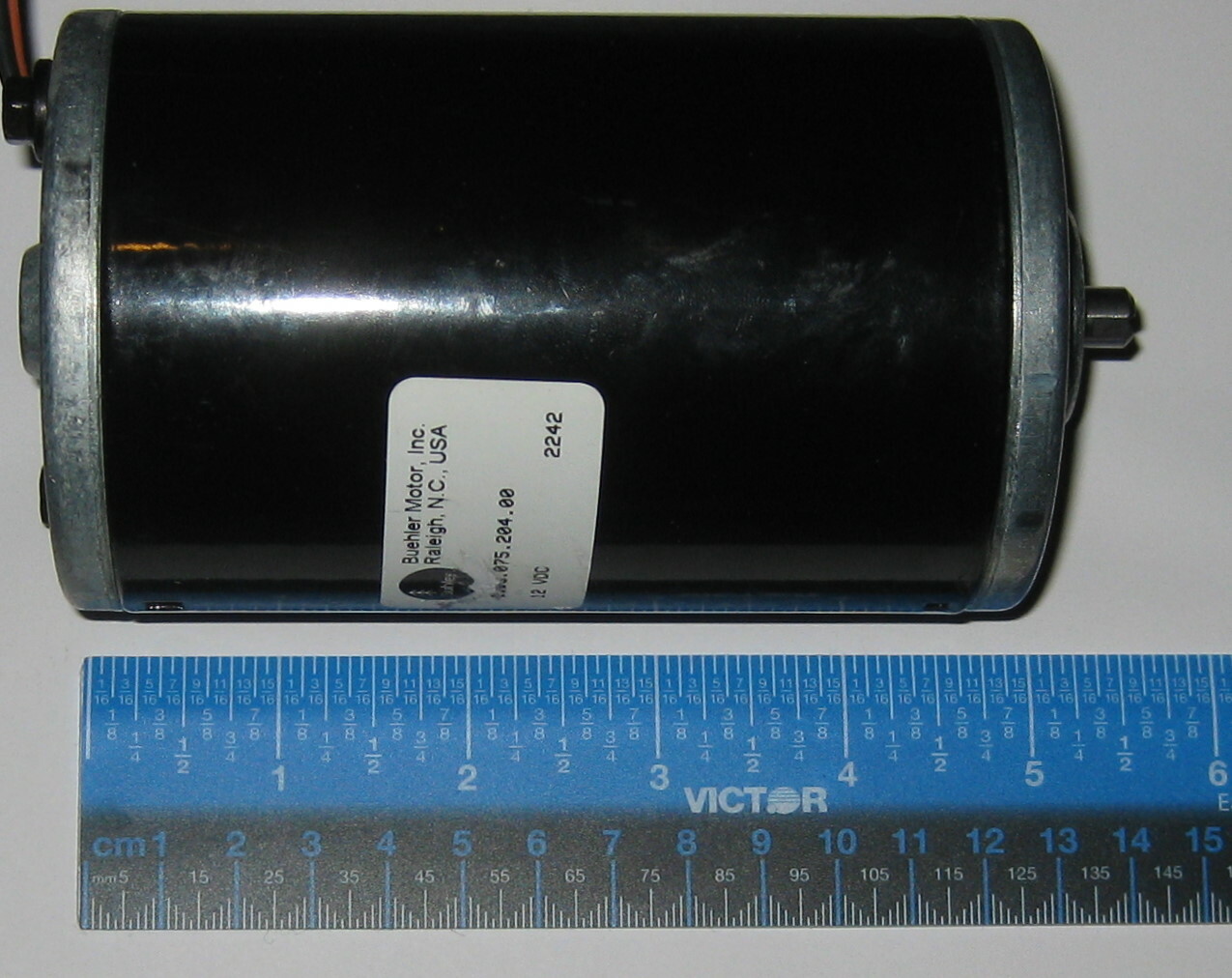

Buehler 12 VDC Large Hobby Electric Motor – 115 Watt – 6000 RPM – 3.04 N-m Stall
USD 49.95 USD
Specifications
| Full Load Amps | 15.3 A |
| MPN | 1.13.075.204.00 |
| Actual Rated Input Voltage | 12 V |
| DC Stator/Winding Type | Permanent Magnet |
| Shaft Type | Straight |
| Nominal Rated Input Voltage | 12 V |
| Starting/Locked Rotor Torque | 431 oz-in |
| Reversible/Non-Reversible | Reversible |
| Rated/Full-Load Torque | 28.3 oz-in |
| Shaft Diameter | 5/16 in |
| Base RPM | 6000 RPM |
| Brand | Buehler |
| Rated Load (HP) | 0.15 HP |
| Type | General Purpose Motor |
Stall current at 12 VDC: 160 A. Stall torque: 31,000 g-cm (431 oz-in). Operates on 1 - 12 VDC (12 VDC Nominal). No load speed of 6,000 RPM @ 12 VDC - 4.8 Amperes. No load speed of 500 RPM @ 1 VDC - 2 Amperes.
