Board Mount Pressure Sensor-Measurement Specialties 23A-005G 0-5psig Bottom Port
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | TE Connectivity |
| MPN | None |

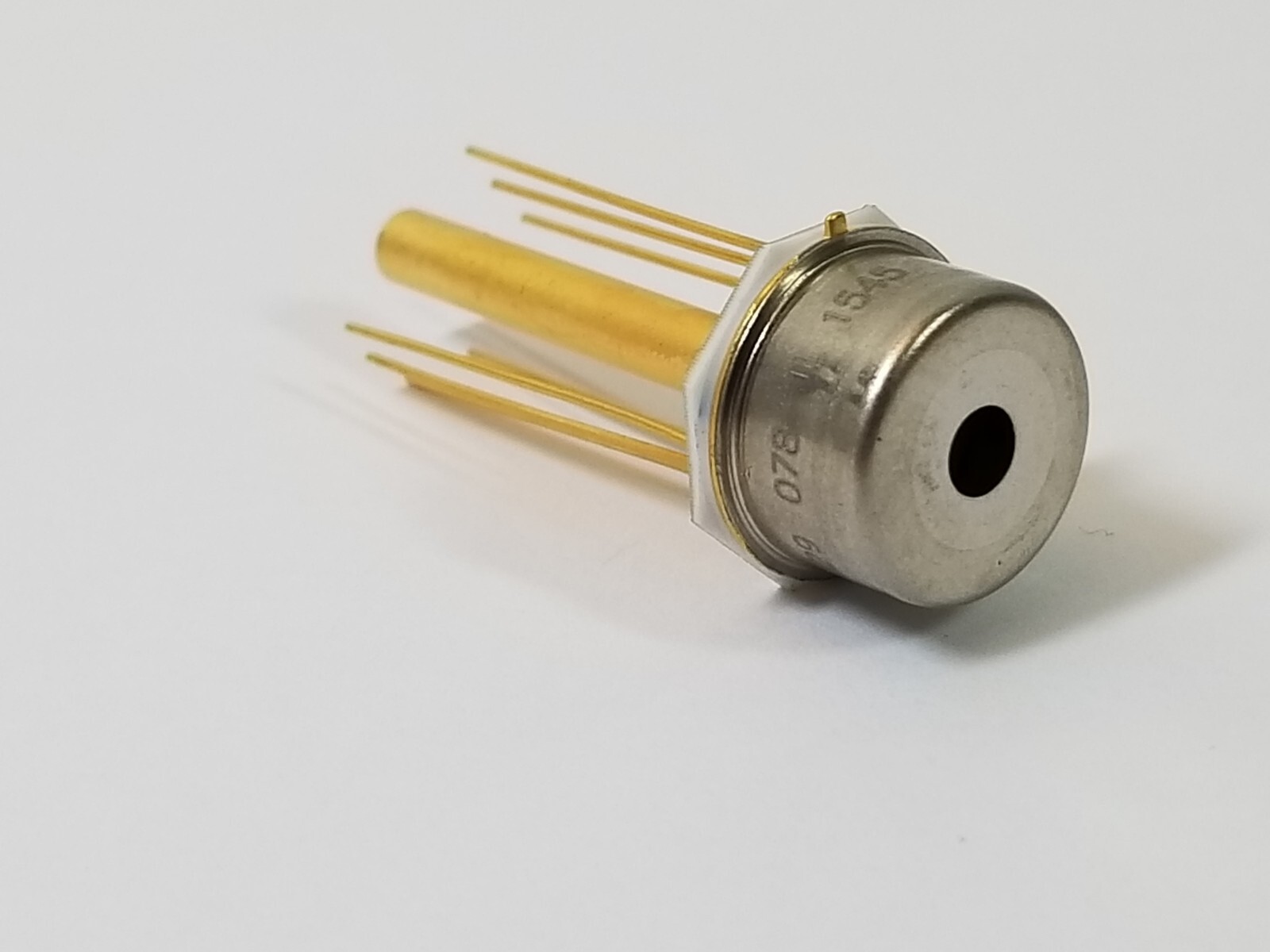

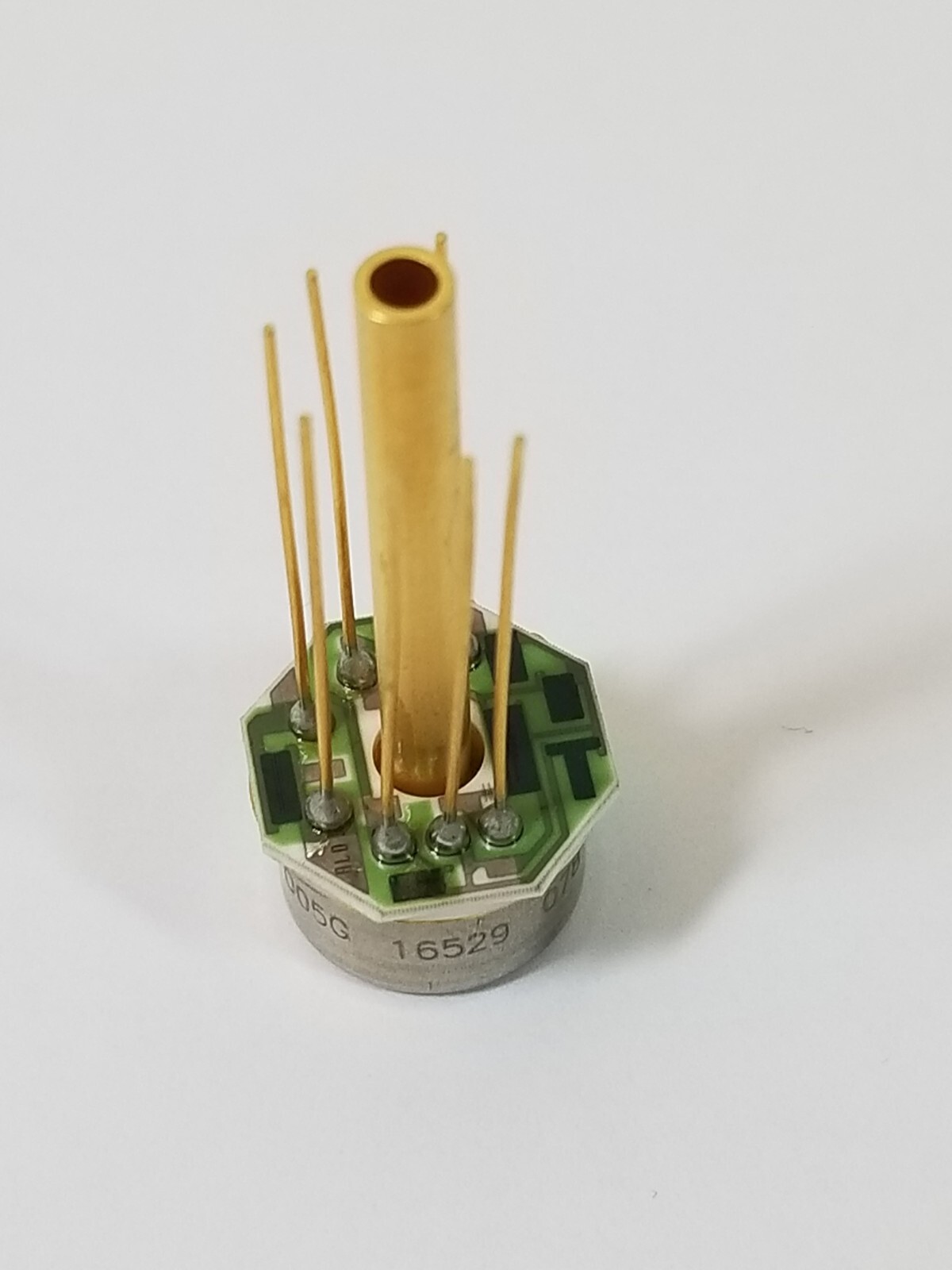

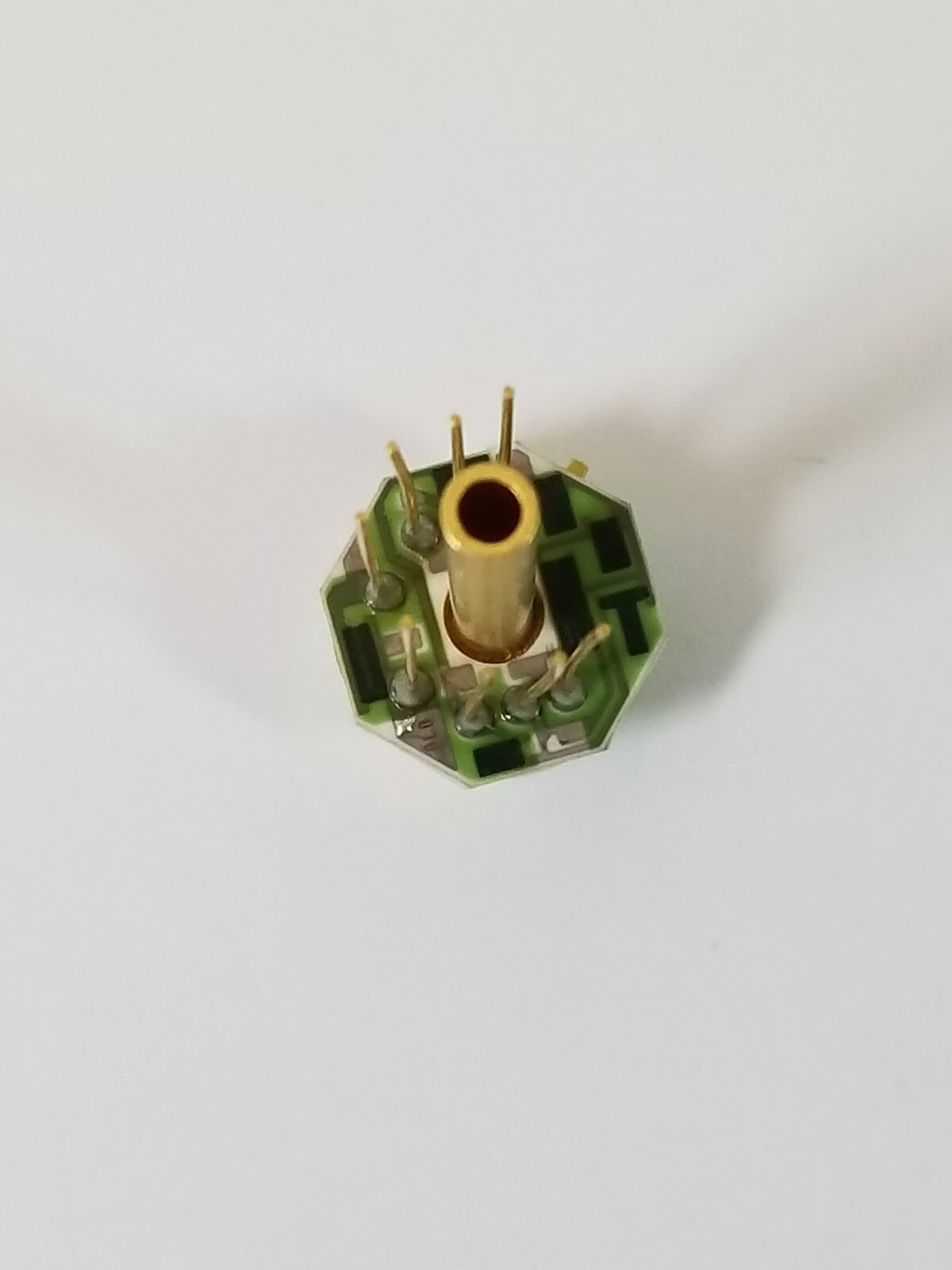

PC Board Mount Pressure Sensors 0-5psig BOTTOM PORT Measurement Specialties 23A-005G PC Board Mountable Pressure Sensor 0-100 mV Output Current Excitation Gage and Differential Temperature Compensated The 23 is temperature compensated, piezoresistive silicon pressure sensors packaged in a TO-8 configuration. It provides excellent performance and long-term stability. Integral temperature compensation is provided over a range of 0-50°C using laser-trimmed resistors. An additional laser-trimmed resistor is included to normalize pressure sensitivity variations by programming the gain of an external differential amplifier. This provides sensitivity interchangeability of ±1%. FEATURES TO-8 Package 0ºC to 50ºC Compensated Temperature Range ±0.3% Non Linearity 1.0% Interchangeable Span (provided by gain set resistor) Solid State Reliability APPLICATIONS Medical Instruments Process Control Factory Automation Leak Detection Airspeed Measurement Level Detection Supply Current: 1.5mA Ambient Temperature: 25°C (unless otherwise specified) PRESSURE RANGE 0 – 1 psi PARAMETERS MIN TYP MAX UNITS NOTES Span 65 100 150 mV 1 Zero Pressure Output -2 2 mV Pressure Non Linearity -0.3 ±0.2 0.3 %Span 2 Pressure Hysteresis -0.05 ±0.01 0.05 %Span Input & Output Resistance 2500 4400 6000 Ω Temperature Error – Span -1.0 ±0.5 1.0 %Span 3 Temperature Error – Zero -1.0 ±0.5 1.0 %Span 3 Thermal Hysteresis – Zero ±0.1 %Span 3 Supply Current 1.5 2.0 mA Response Time (10% to 90%) 1.0 mS 4 Output Noise (10Hz to 1kHz) 1.0 µV p-p Insulation Resistance (50 Vdc) 50 M Ω 5 Long Term Stability (Offset & Span) ±0.2 %Span 6 Pressure Overload 10 psi Compensated Temperature 0 50 °C Operating Temperature -40 +125 °C Storage Temperature -50 +150 °C Weight 3 grams Solder Temperature 250ºC Max 5 Sec. Media Non-Corrosive Dry Gases Compatible with Silicon, Pyrex, RTV, Gold, Nickel, and Aluminum Notes 1. Ratiometric to supply current. 2. Best fit straight line. 3. Maximum temperature error between 0°C and 50°C with respect to 25°C. 4. For a zero-to-full scale pressure step change. 5. Minimum distance between case and pins. 6. Long term stability over a one year period with constant current and temperature. Product AttributeAttribute Value Manufacturer:TE Connectivity Product Category:Board Mount Pressure SensorsRoHS:CompliantPressure Type:Gauge Operating Pressure:0 psi to 5 psi Accuracy:0.05 % Mounting Style:Through Hole Package / Case:TO-8 Minimum Operating Temperature:- 40 C Maximum Operating Temperature:+ 125 C Series:23 Brand:Measurement SpecialtiesOperating Supply Current:1.5 mAOutput Voltage:100 mVProduct Type:Pressure Sensors
