Bendix Scintilla SB, SF Series Magnetos Service Instructions Manual #782
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | All |
| Country/Region Of Manufacture | United States |
| Compatible Equipment Make | Universal |
| Model Year | All |
| MPN | Does Not Apply |
| Brand | Bendix |
| Compatible Equipment Type | All |

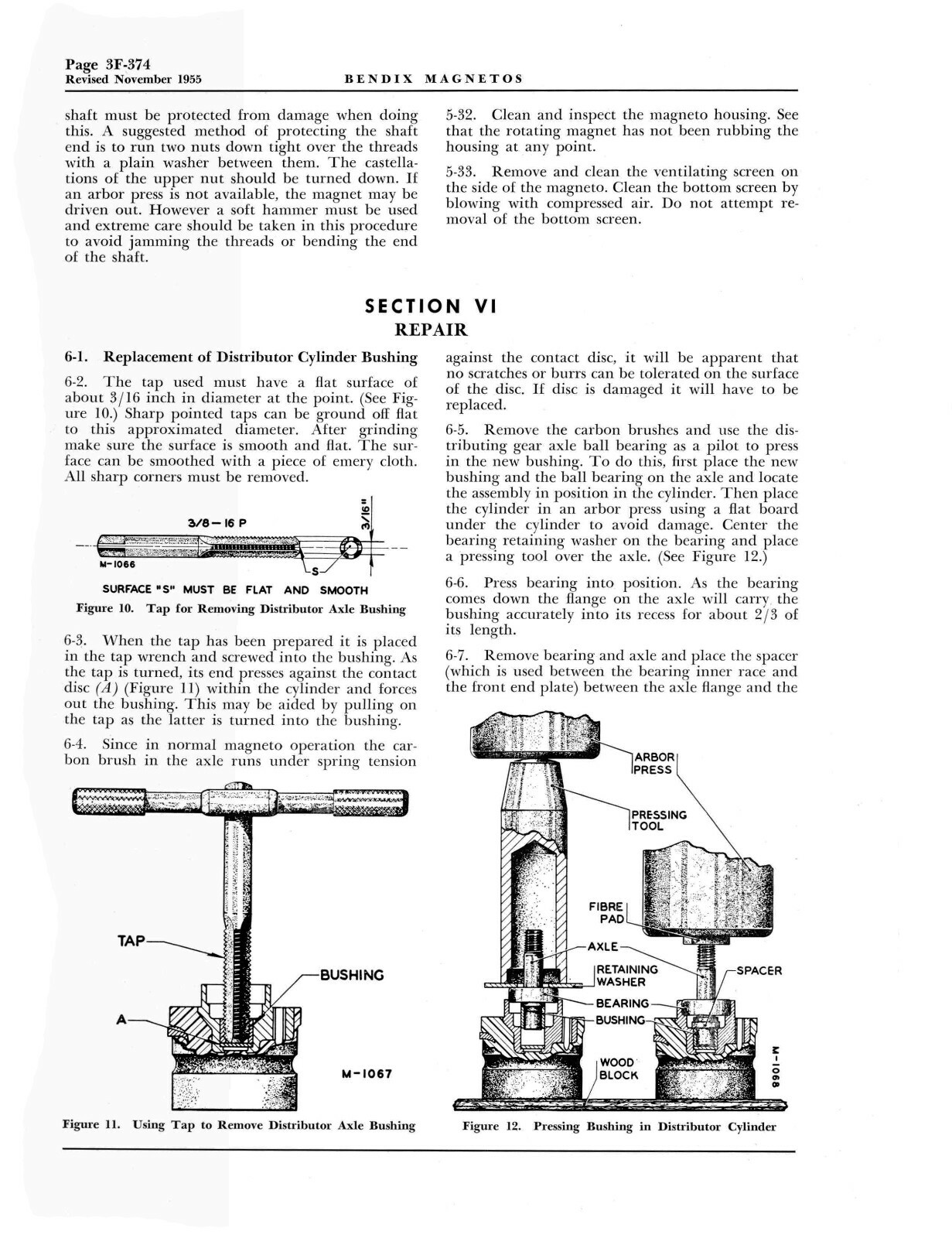

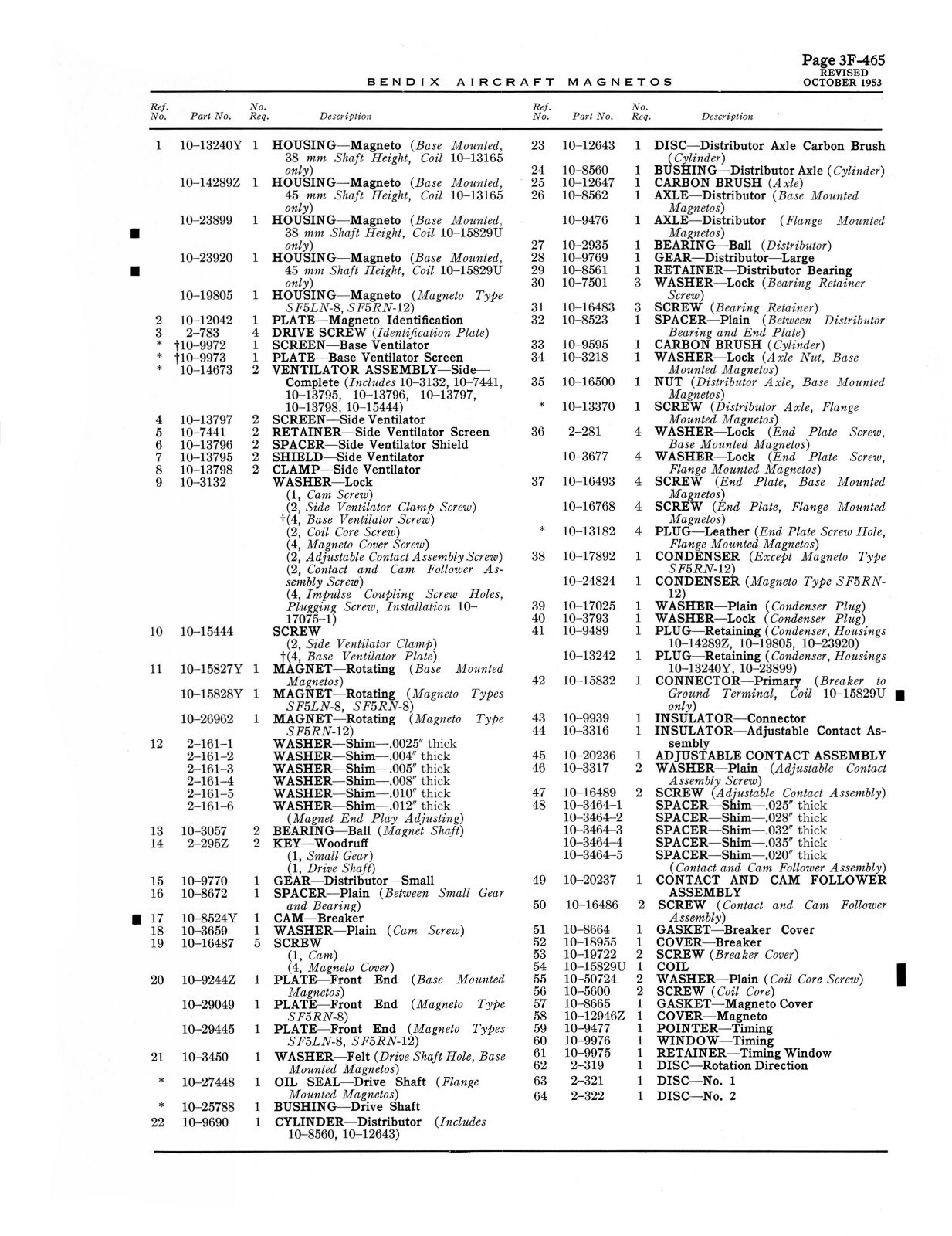

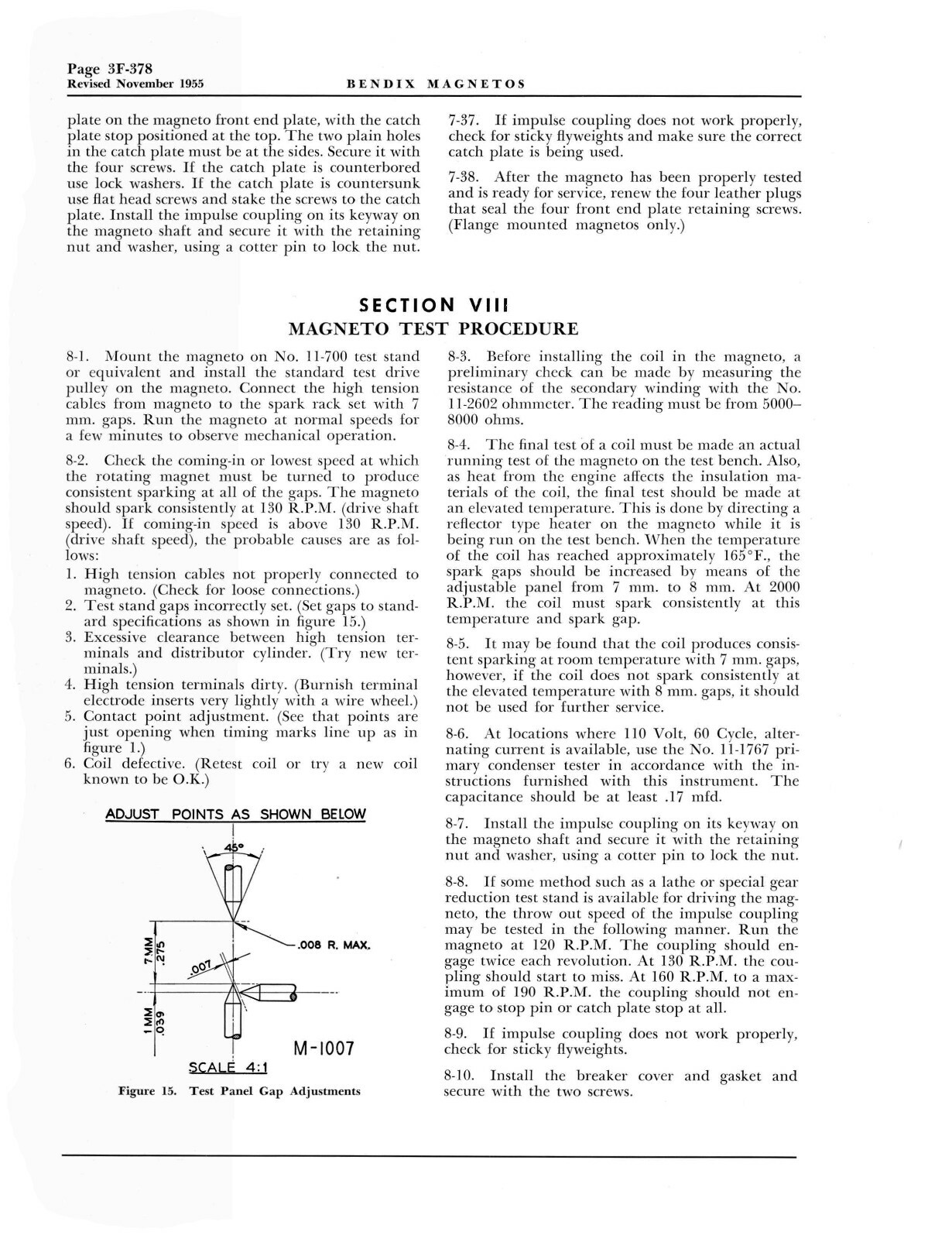

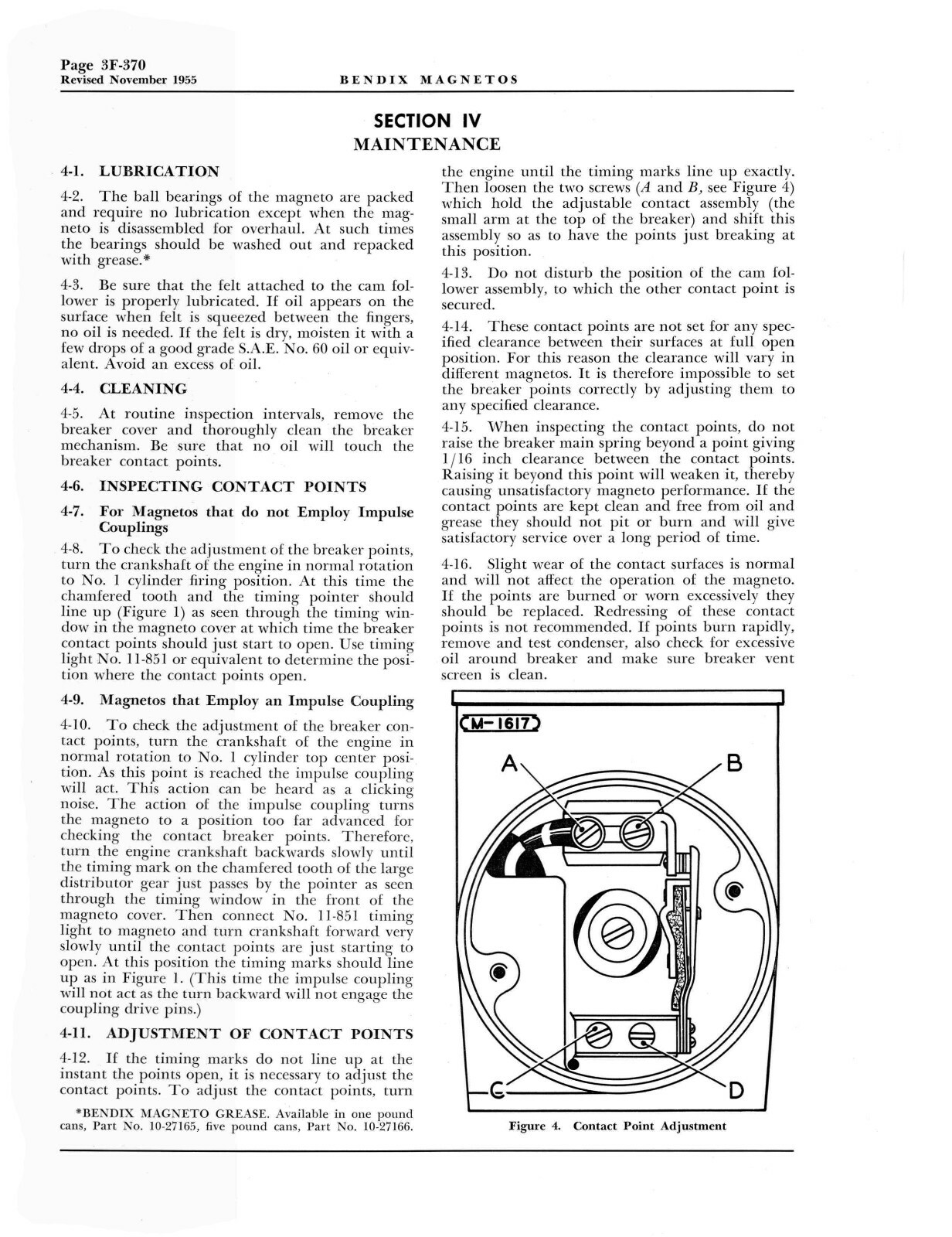

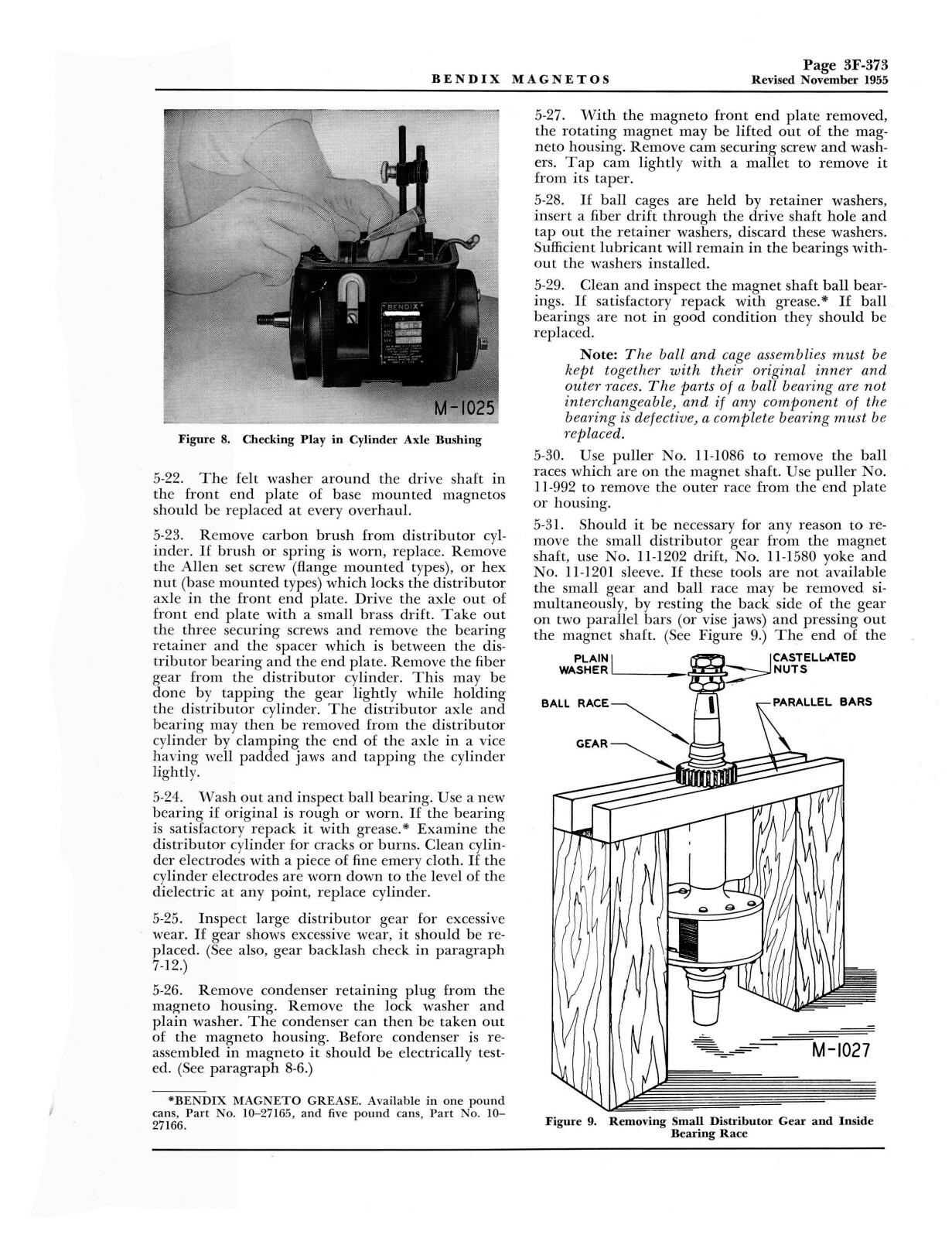

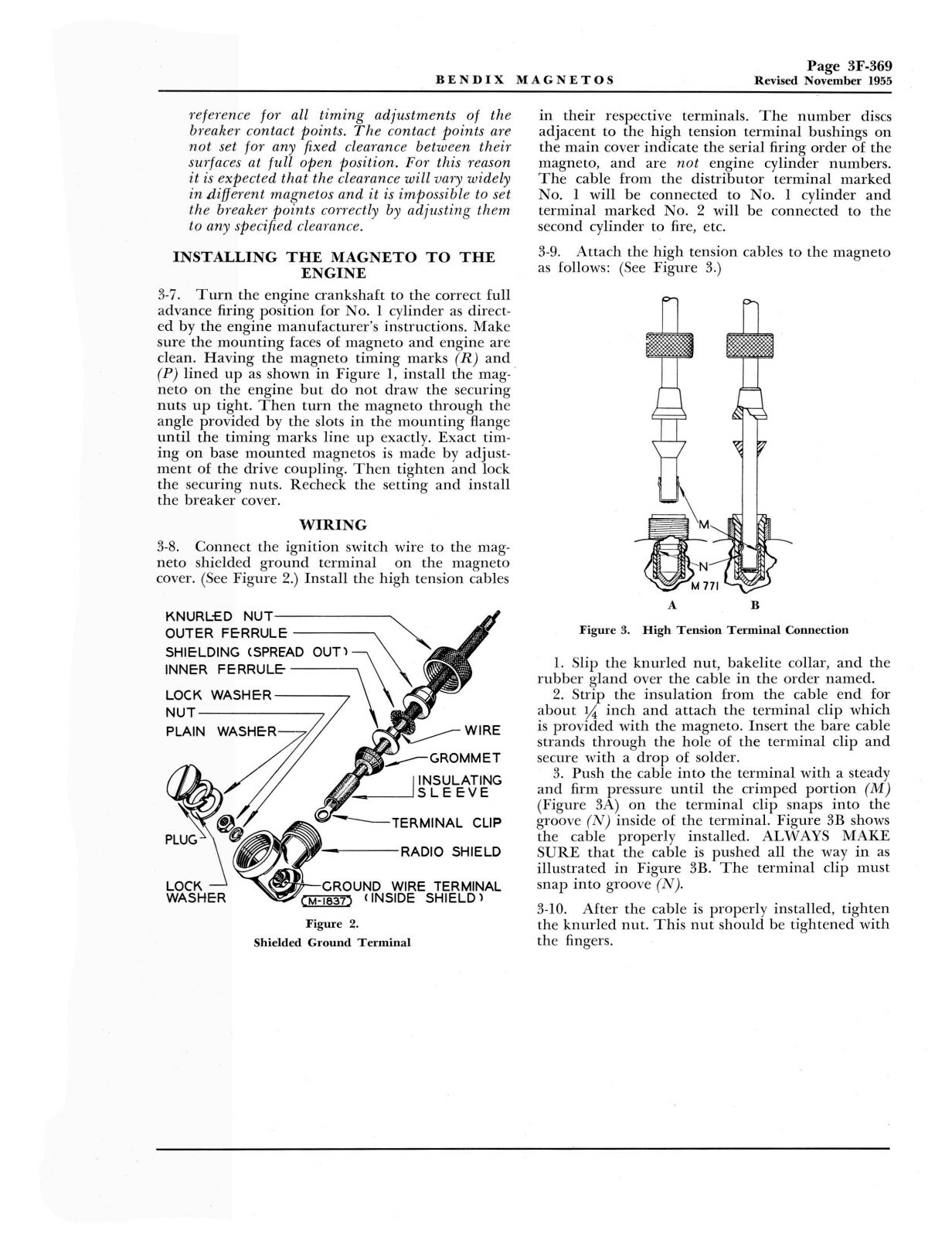

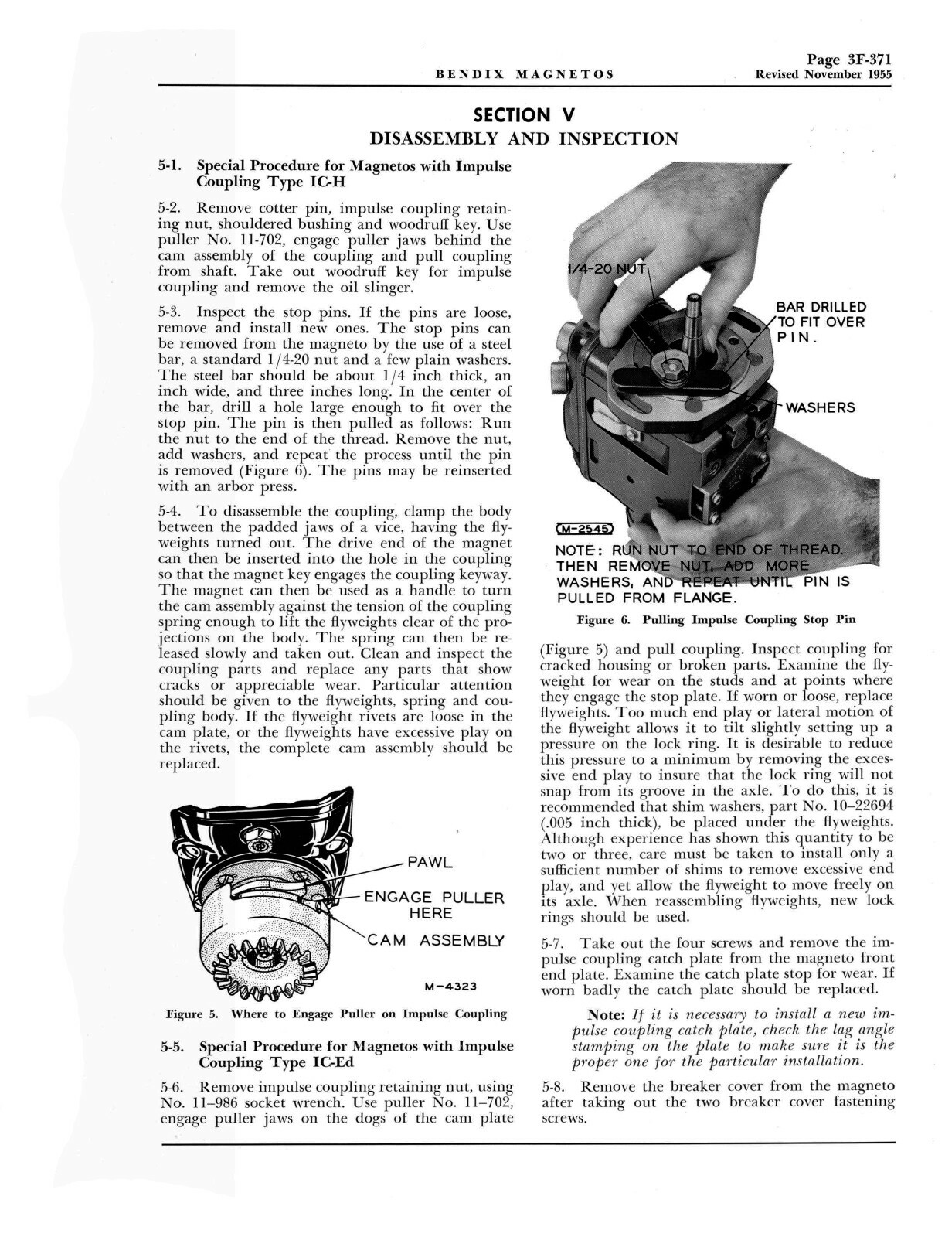

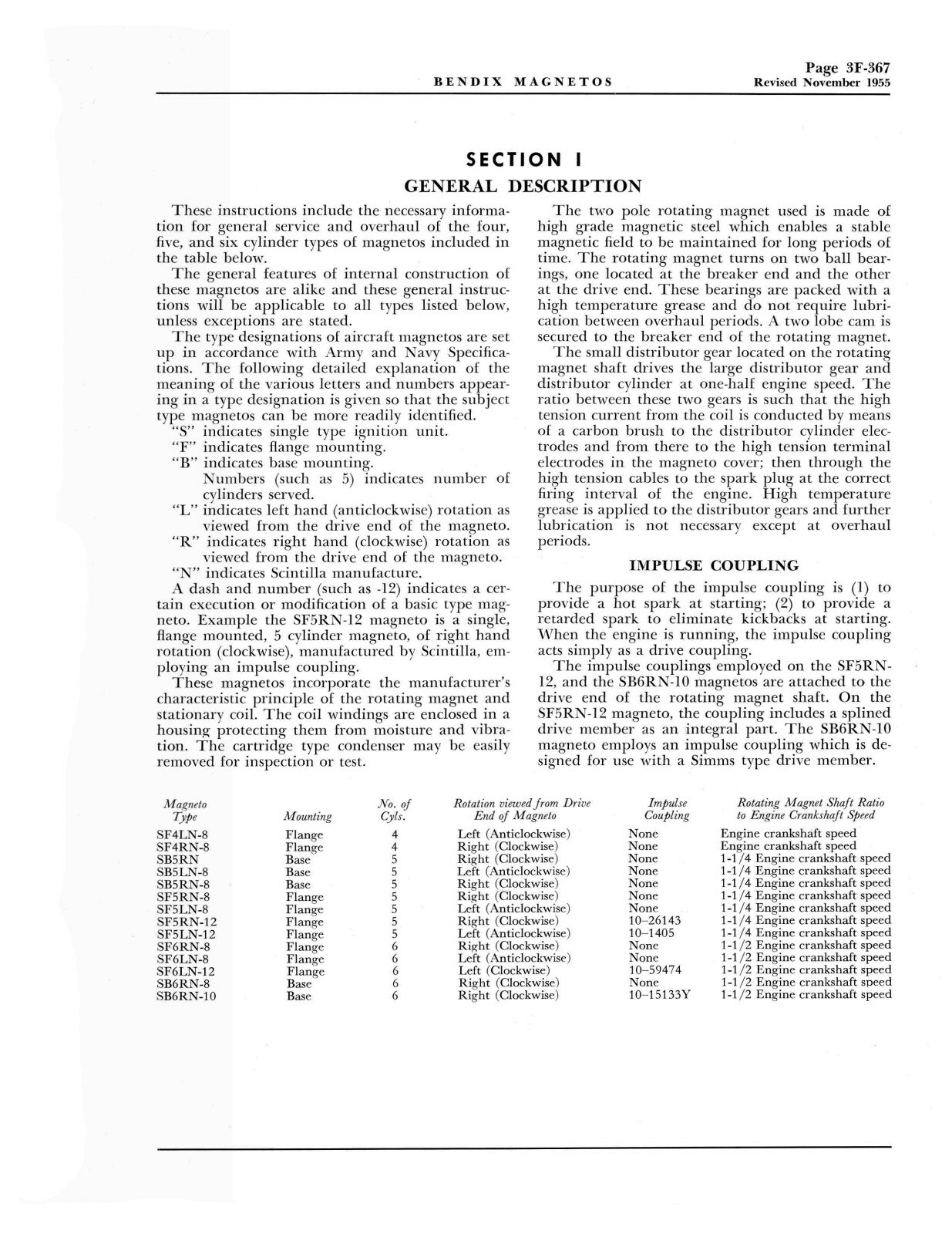

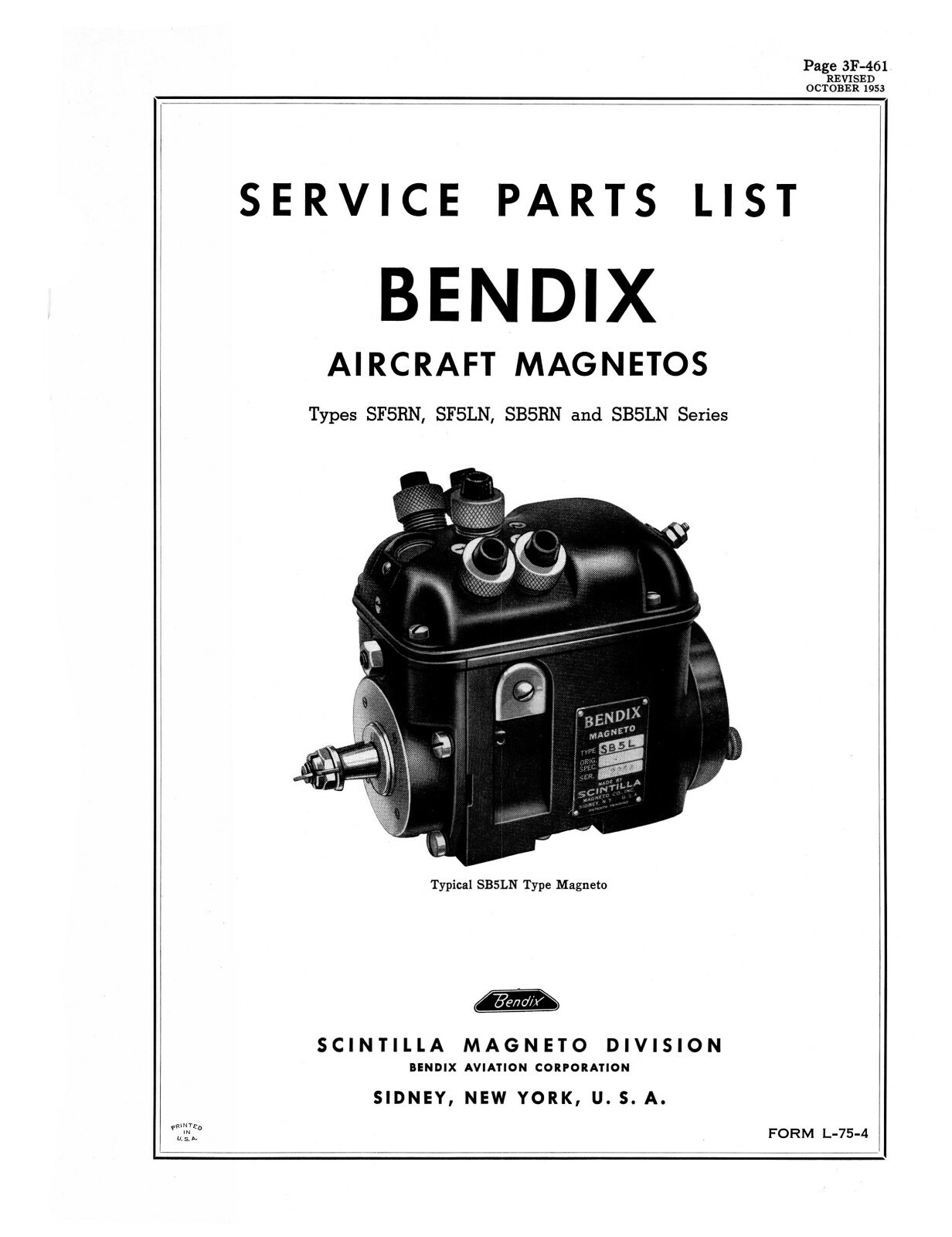

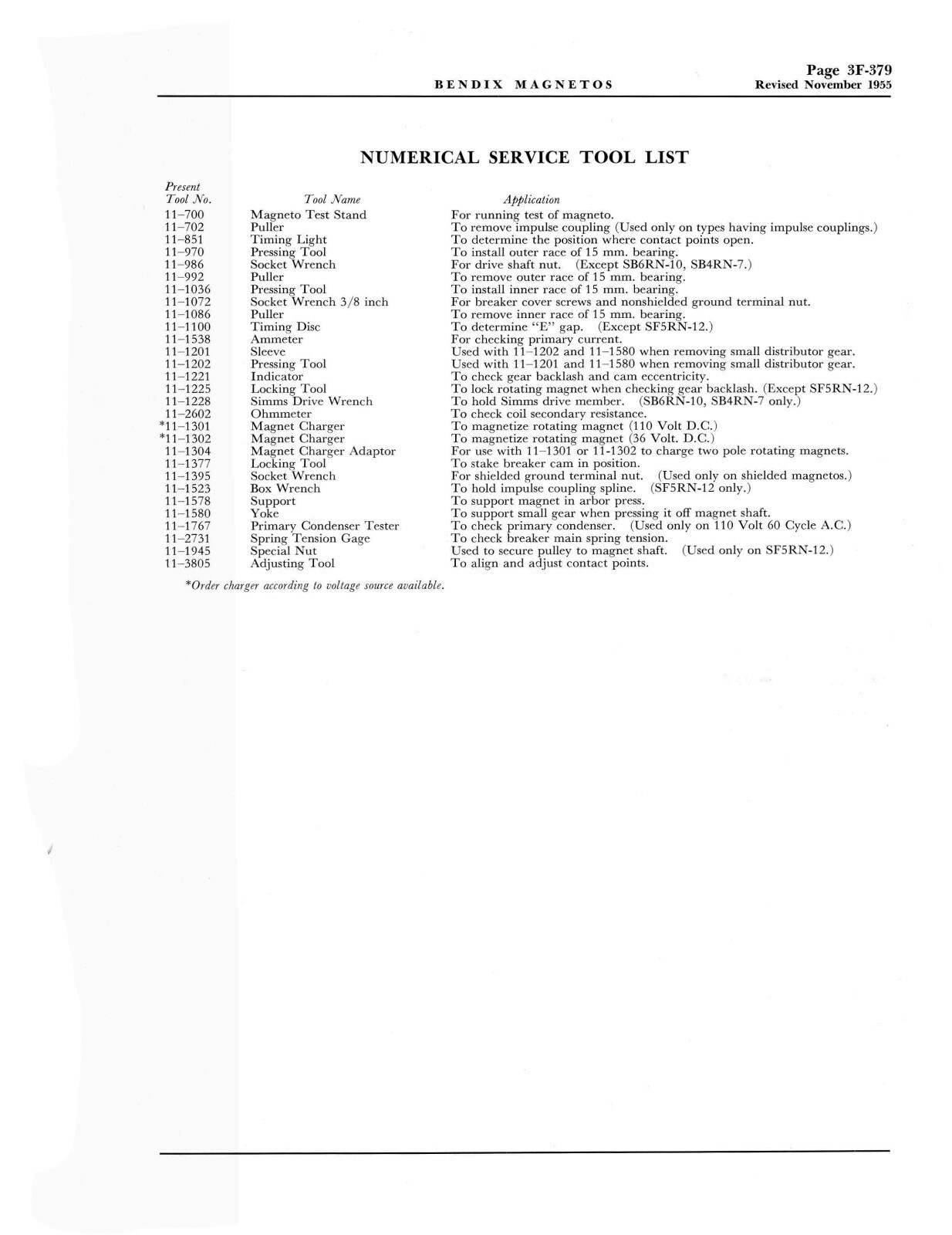

Bendix Scintilla SB, SF Series Magnetos Type of Manual: Service and Parts For Models: SB4, SB5, SB6, SF4, SF5, SF6 Description: This manual covers the Bendix Scintilla SB & SF Series Magnetos. It covers General Description, Installation, Maintenance, Disassembly, Reassembly, Test Procedure, and it also includes an Exploded Parts View and Parts List. The manual has about 20 pages. To view the Table of Contents, to inspect the quality of the manual, and to view select pages, please click on the gallery images above. NOTE: This manual may not be the latest revision. If you are servicing an aircraft magneto, please make sure that you have the latest manufacturer information. Includes sections on:Service ChartGeneral DescriptionElectrical OperationMaintenanceDisassembly and ReassemblyRepairMagneto Test ProcedureExploded Parts ViewsService Parts List Number of Pages: Approx. 20 Publication Date: May-1951 Publication No.: L-350 Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free unless otherwise stated or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales See my for more manuals.
