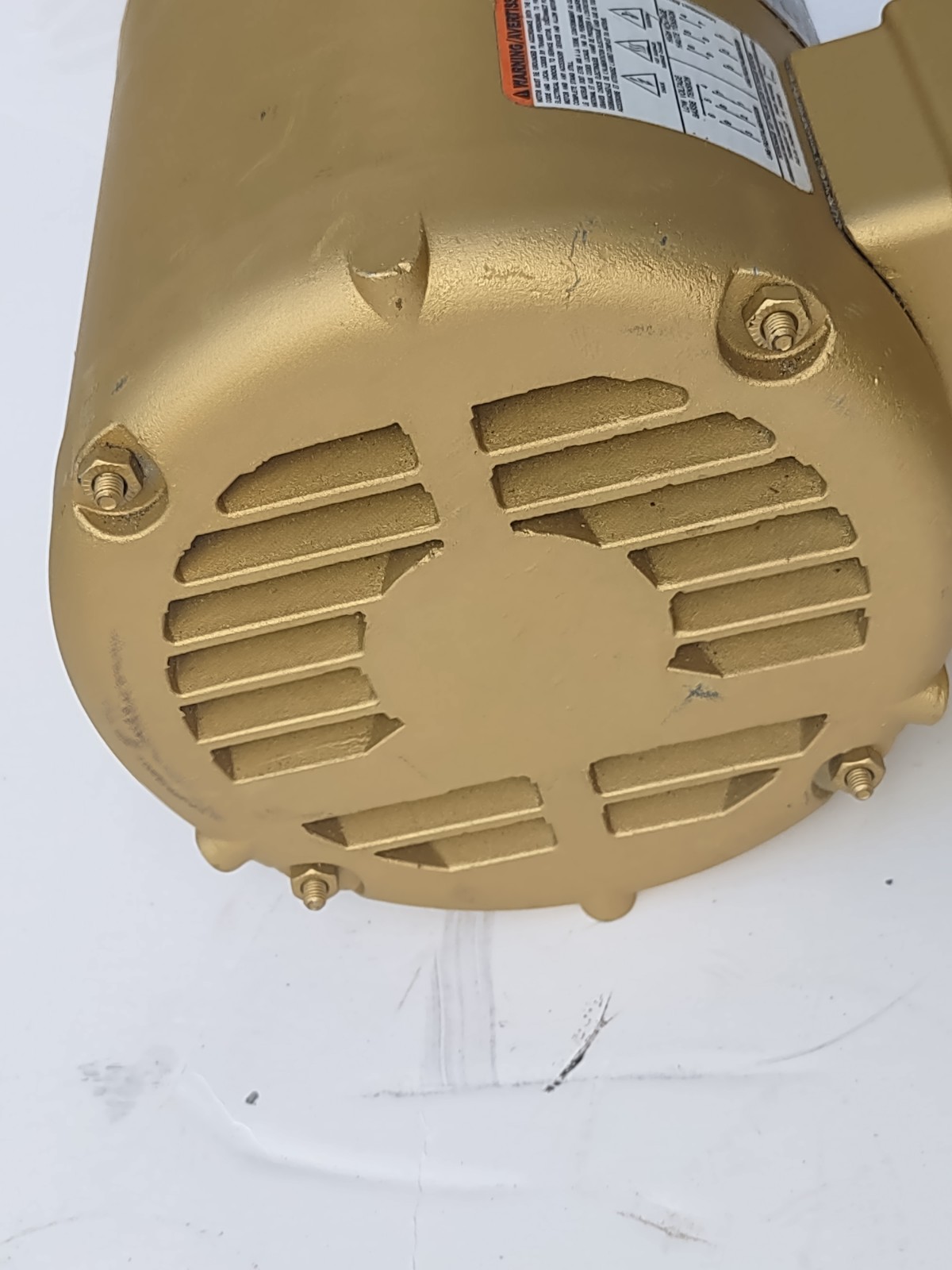

Baldor Reliance EM3116 Super E Motor 1HP 3-Phase 230/460V 1750RPM Foot-Mounted
USD 299.95 USD
Specifications
| Actual Rated Input Voltage | 230/460 |
| Full Load Amps | 2.9/1.45 |
| AC Frequency Rating | 60 Hz |
| Enclosure Type | ODP (Open Drip-Proof) |
| Base RPM | 1750 |
| AC Motor Type | Induction/Asynchronous |
| MPN | EM31116 |
| Insulation Class | F (Max 311°F) |
| Mounting Type | Foot-Mounted |
| Brand | Baldor Reliance |
| Service Factor | 1.15 |
| Model | SuperE Motor |
| Nominal Rated Input Voltage | 230 V, 460 V |
| AC Phase | Three Phase |
The Baldor Reliance EM3116 Super E Motor is a 1HP 3-Phase electric motor designed for general purpose applications. It has an actual rated input voltage of 230/460V and a base RPM of 1750. The motor is induction/asynchronous, foot-mounted, and has a NEMA Design Letter of Design B. With a service factor of 1.15 and an insulation class of F, this motor offers reliable performance for a variety of industrial automation and motion control needs. OLD STOCK SURPLUS NEW OPEN BOX. THIS MOTOR WILL BE SHIPPED VIA FEDEX GROUND
Related Items
50kVA Step Up Transformer 208V to 480V Industrial Power Converter 3 Phase

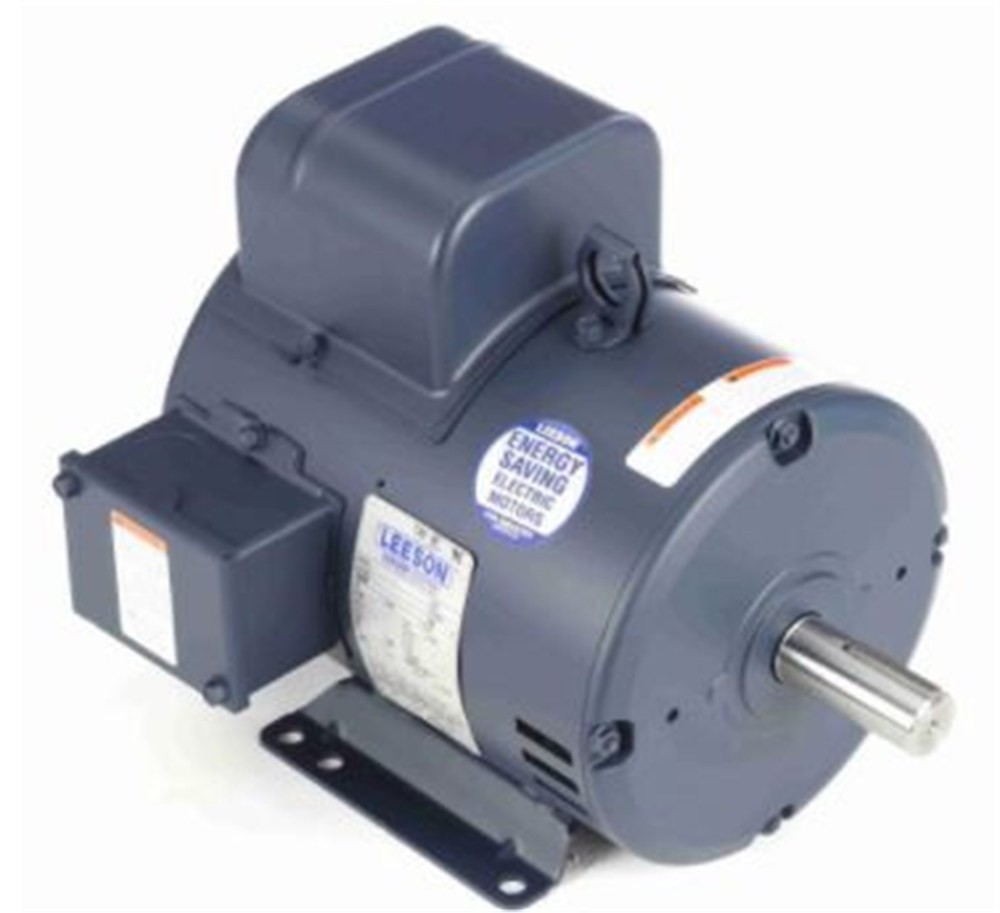

Leeson Electric Motor | 3 HP 1740 RPM 115V Single Phase 184T Frame ODP | 131534
