Auto-Ranging Digital Multimeter with 4000 Counts and Backlit LCD Display, Mea…
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Electronix Express |
| MPN | ZT100 |
| Color | Light Blue |

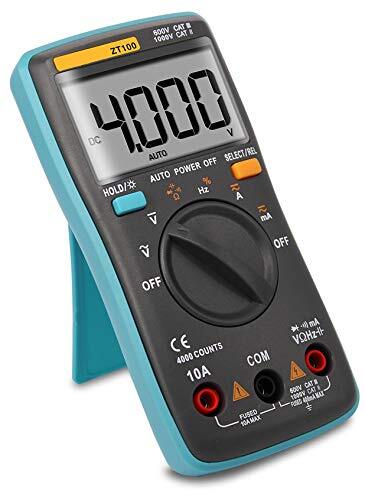

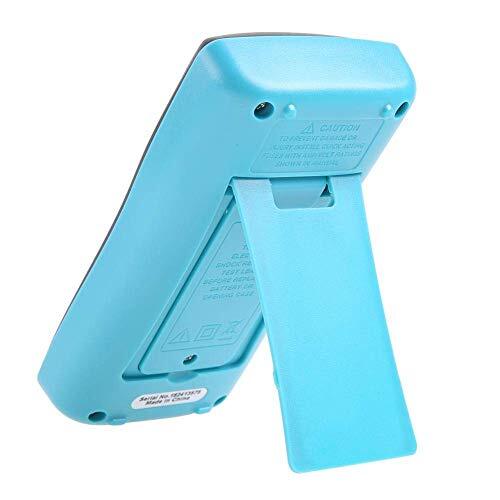

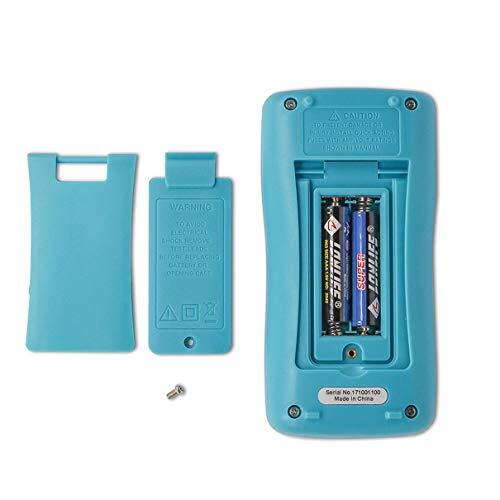

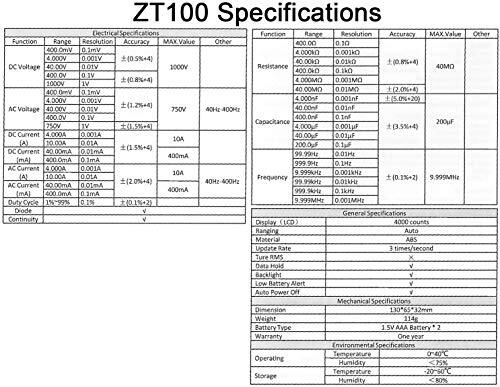

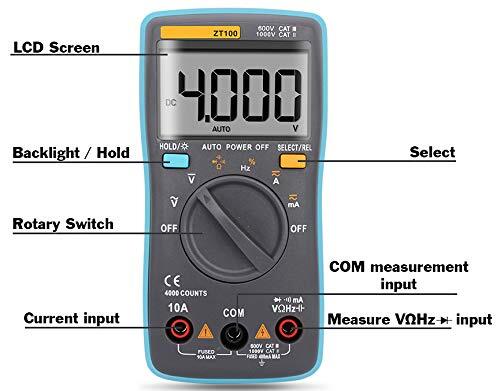

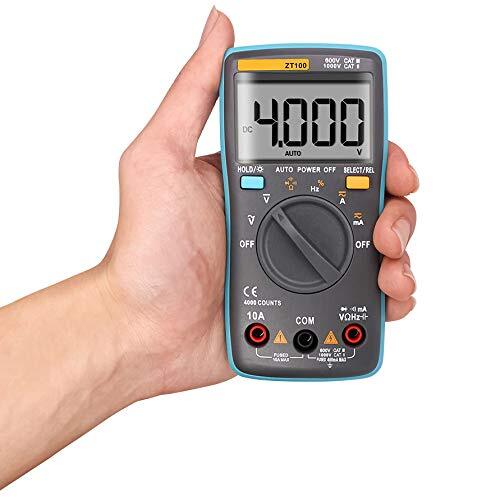

The ZT100 is a battery powered, auto-ranging digital multimeter with 4000 counts and backlit LCD display. It can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode, and continuity. It is compact and lightweight for carrying in your hand or pocket and also features a fold out stand for easy viewing. It is powered by 2x AAA batteries (included) and comes with leads and instruction manual. Measures 2.55" x 1.25" x 5.11" and weighs about 4 ounces (4.5 ounces with batteries). Specifications: DC volts: 400mV/2V/40V(±0.5%+4), 1000V(±0.8%+4) AC volts: 400mV/20V/400V(±1.2%+4), 750V(±1.5%+4) DC current: 40mA-10A(±1.5%+4) AC current: 40mA-10A(±2.0%+4) Resistance: 400Ω-4M(±0.8%+4), 40MΩ(±2.0%+4) Capacitance: 4nF±(5.0%+20), 40nF±(2.5%+4), 400nF-200uF±(3.5%+4) Display: 4000 counts Ranging: Auto Material: ABS Update Rate: 3 times/second Data Hold Backlight Low Battery Alert Auto Power Off Measurement mode: Double-integral style A/D transform Polarity automatic recognition 10A large current measurement, mA level small current measurement
