Assembly DK2.5N Red/Black 10 Gang DIN Rail Dinkle 12AWG 20A 600V
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | DK2.5N |
| Compatible Mounting Type | Wire |
| Brand | Dinkle |

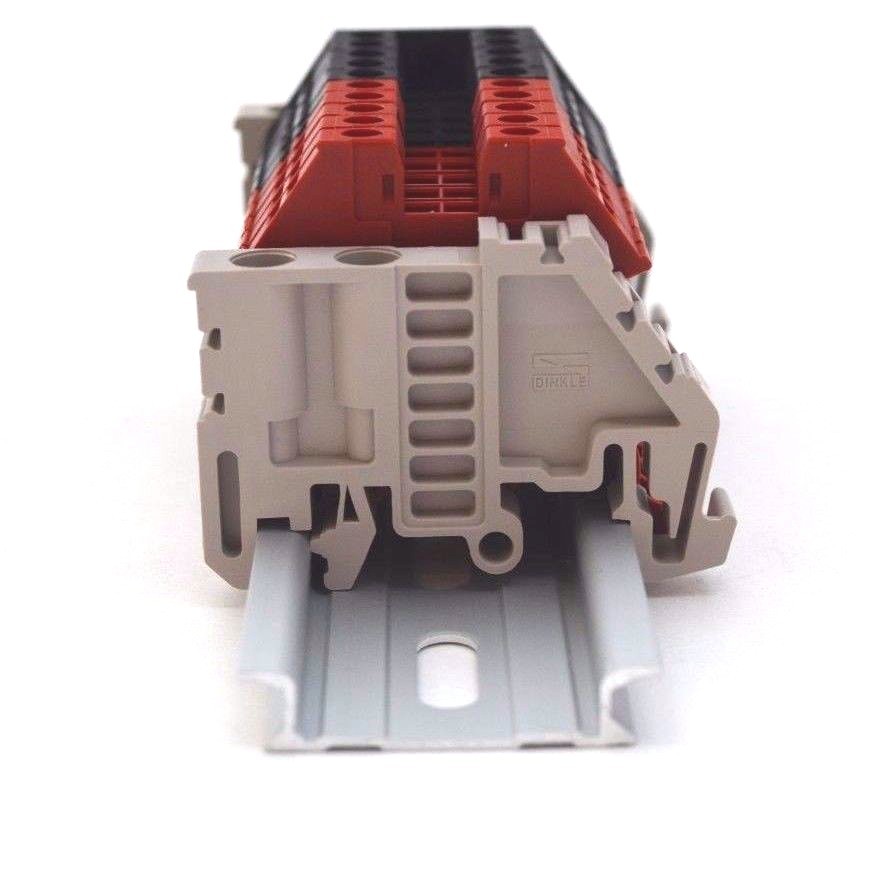

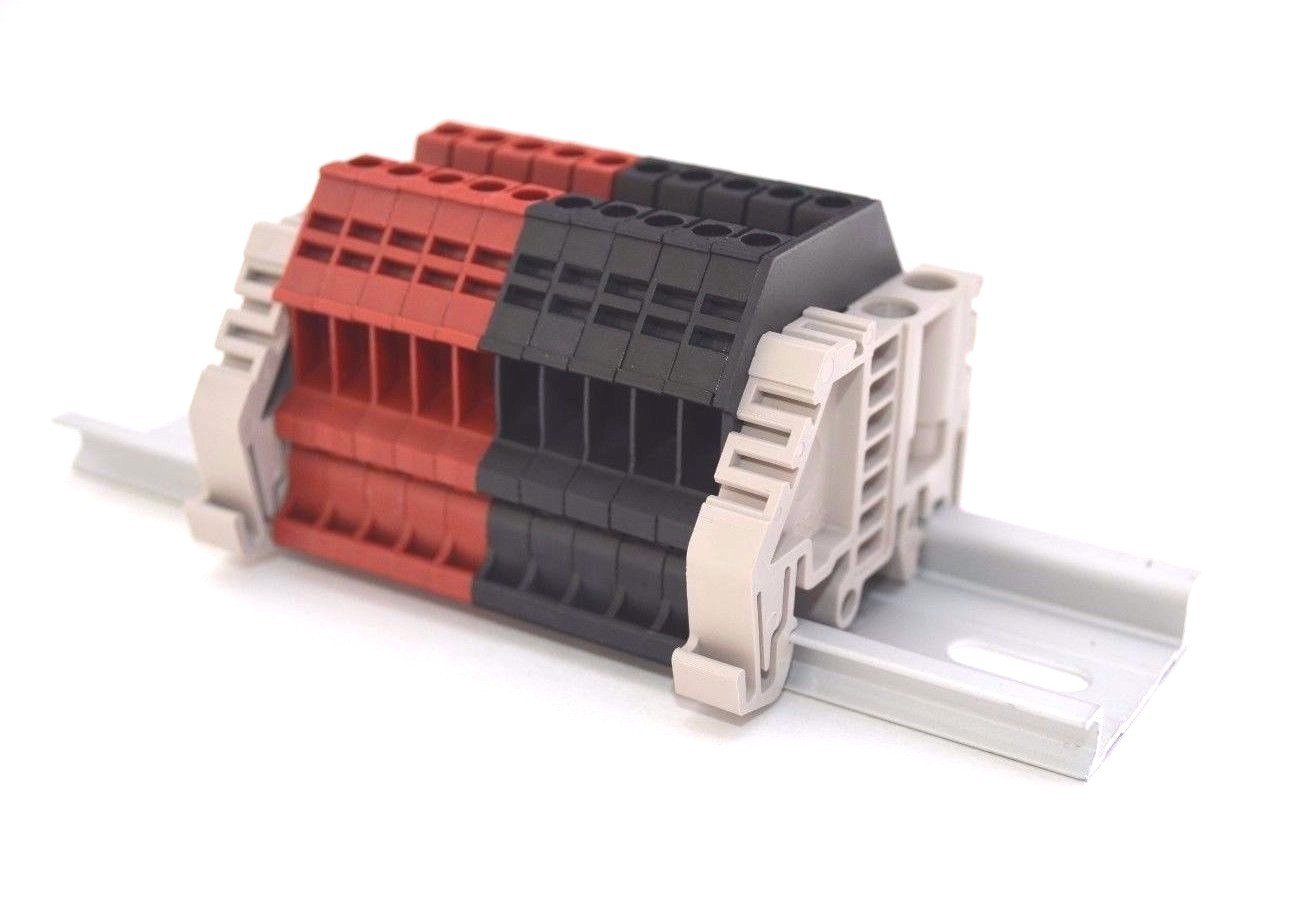

Item: Assembly DK2.5N-BK and DK2.5N-RD 10 Gang with Dinkle DIN Rail Terminal BlocksQuantity: 1Condition: New Technical Data (UL)Rated Voltage: 600VRate Current: 20AConductor Cross-section, Solid (AWG): 22-12Conductor Cross-section, Flexible (AWG): 22-12Rated Impulse Withstand Voltage: 6KVTorque (N-m): 0.4Screw: M2.5Wire Strip Length: 9-11mmInsulating Material: PATxHxW (mm): 5.1 x 39.6 x 40.5 (Individual Blocks)DIN Rail (mm): 35, 32Jumper/Bridge: Press-fit/Insertion This assembly includes 5 DK2.5N-BK Dinkle terminal blocks, 5 DK2.5N-RD Dinkle terminal blocks, 2 SS2 end brackets, and 1 DK4NC-BK end cover, all mounted on a 5" piece of aluminum RoHS rail. These are 10 separate circuits. Free fast shipping! For more information, please message us.
