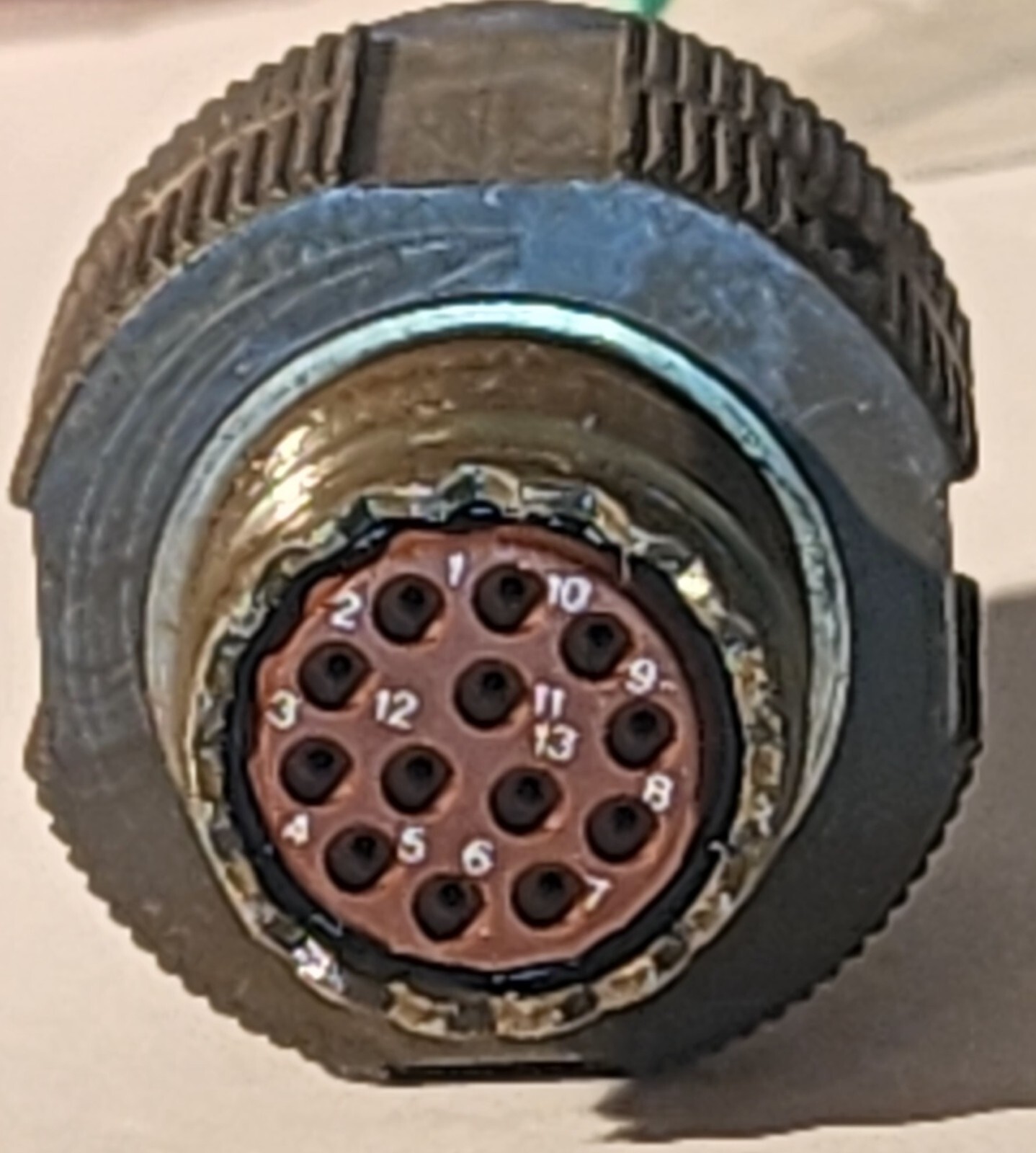

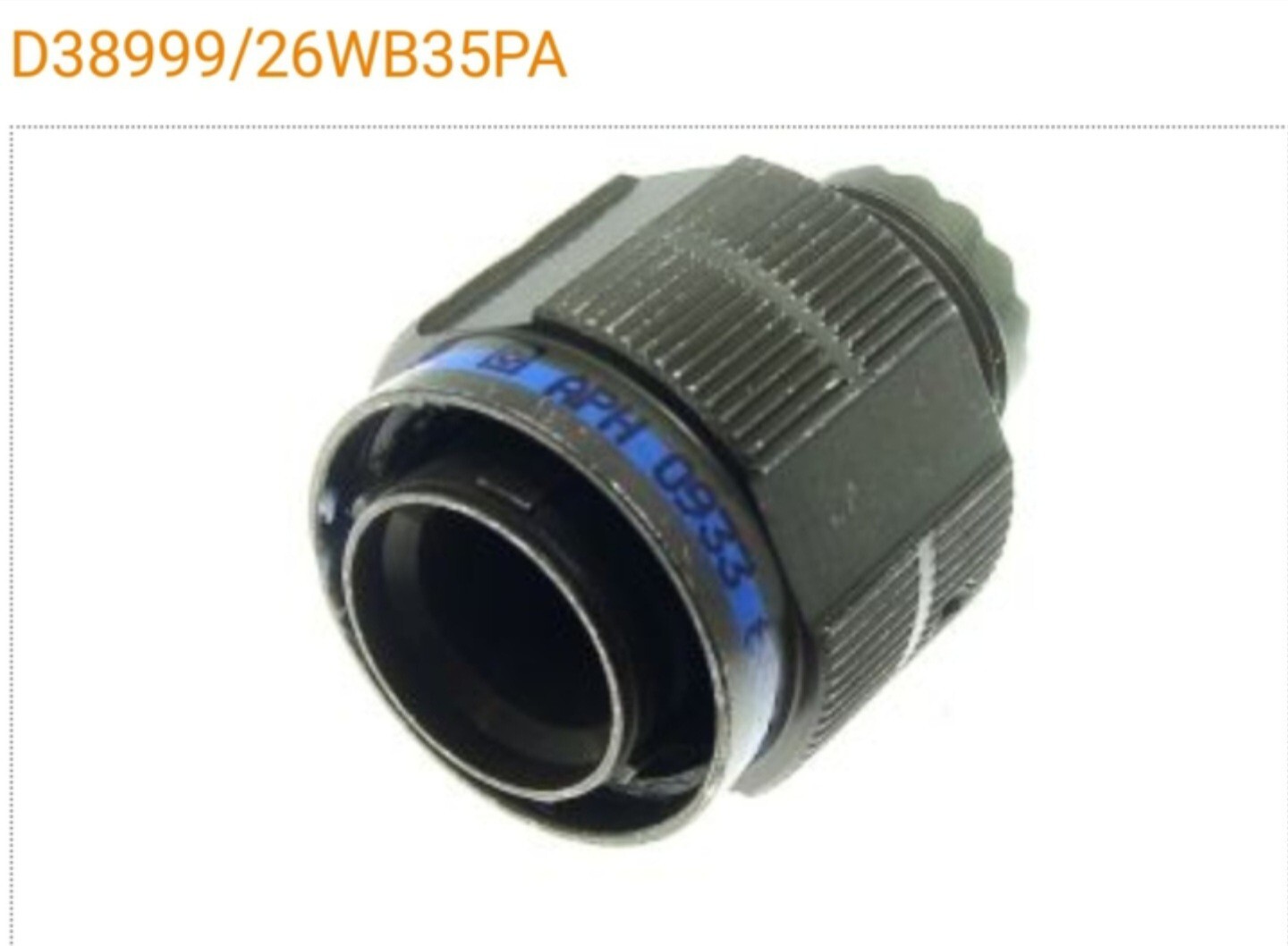

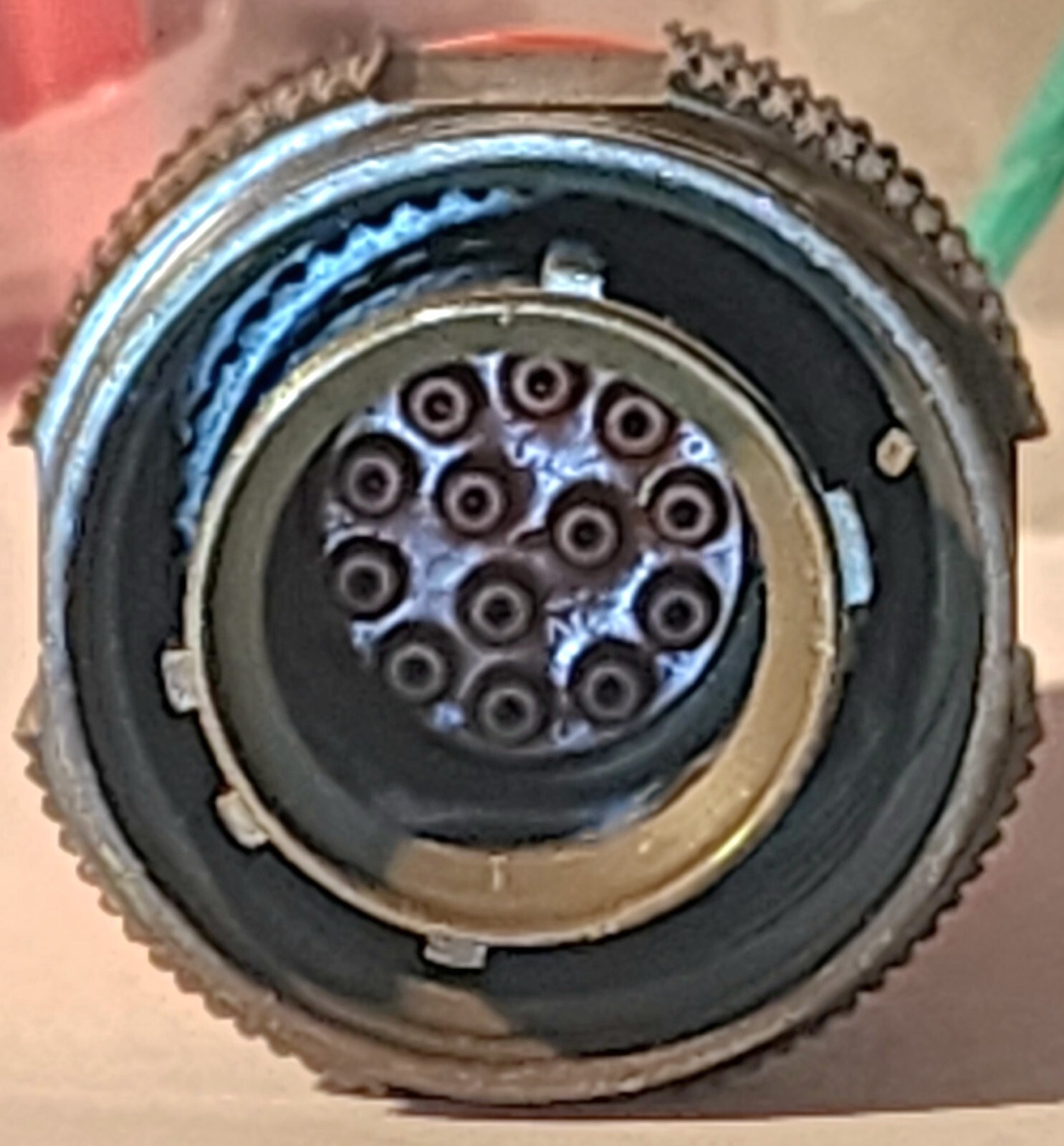

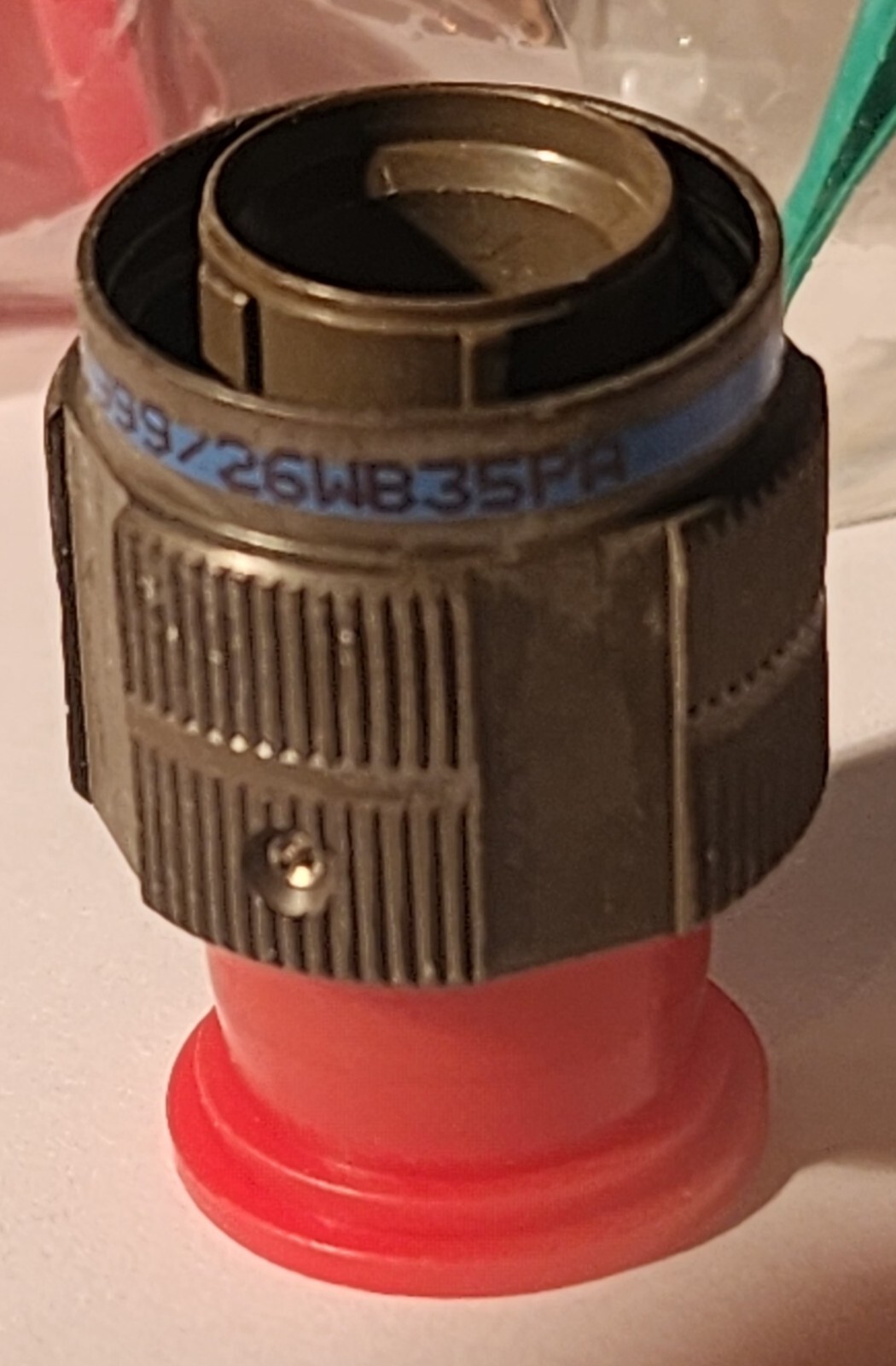

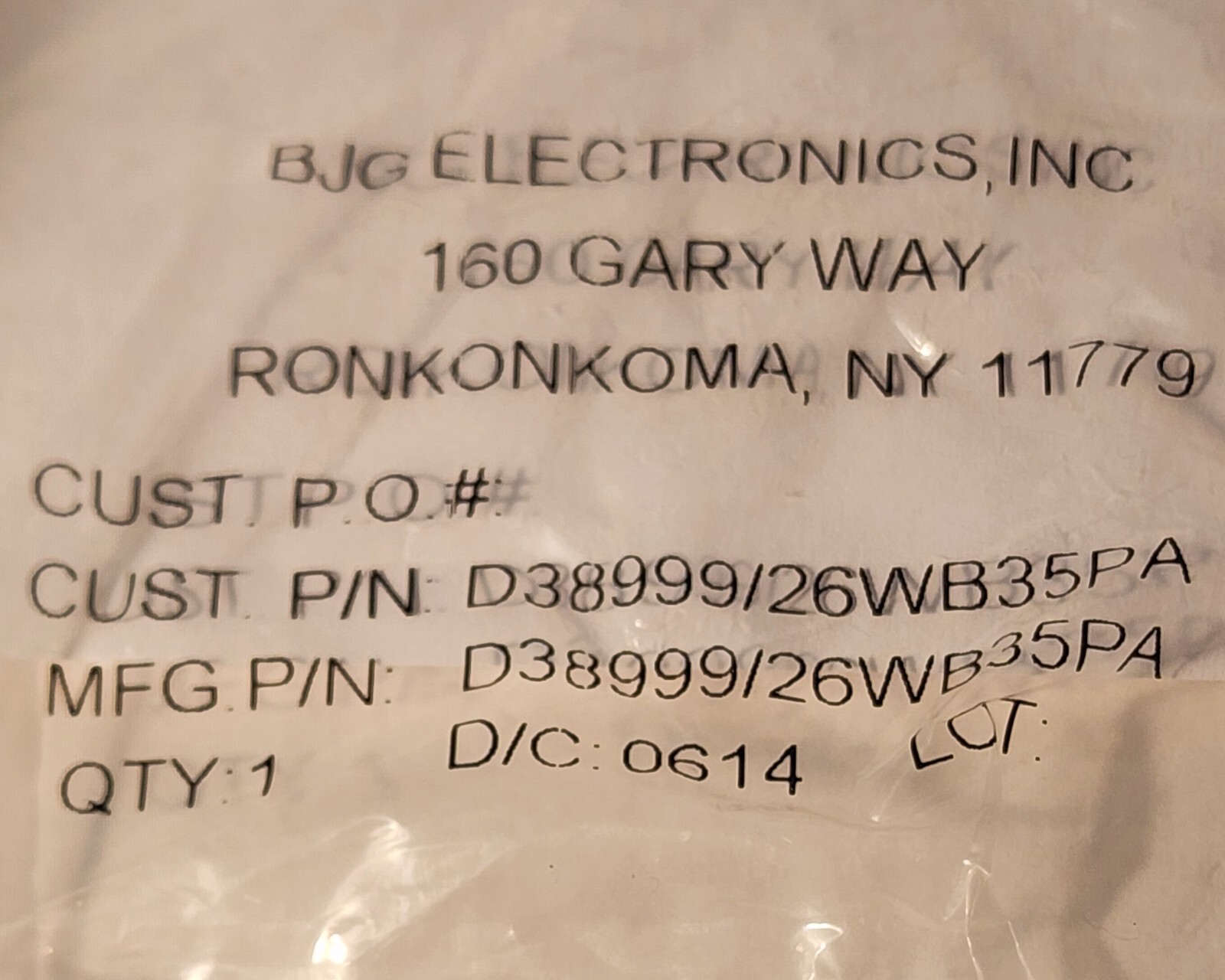

Amphenol Aerospace D38999/26WB35PA & M39029/58-360 KIT
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Ingress Protection | Environment Resistant |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Maximum Current Rating: | 5/Contact A |
| Product Dimensions | 31.34 mm |
| Part # Aliases: | LP-251415-725 |
| Unit Type | Unit |

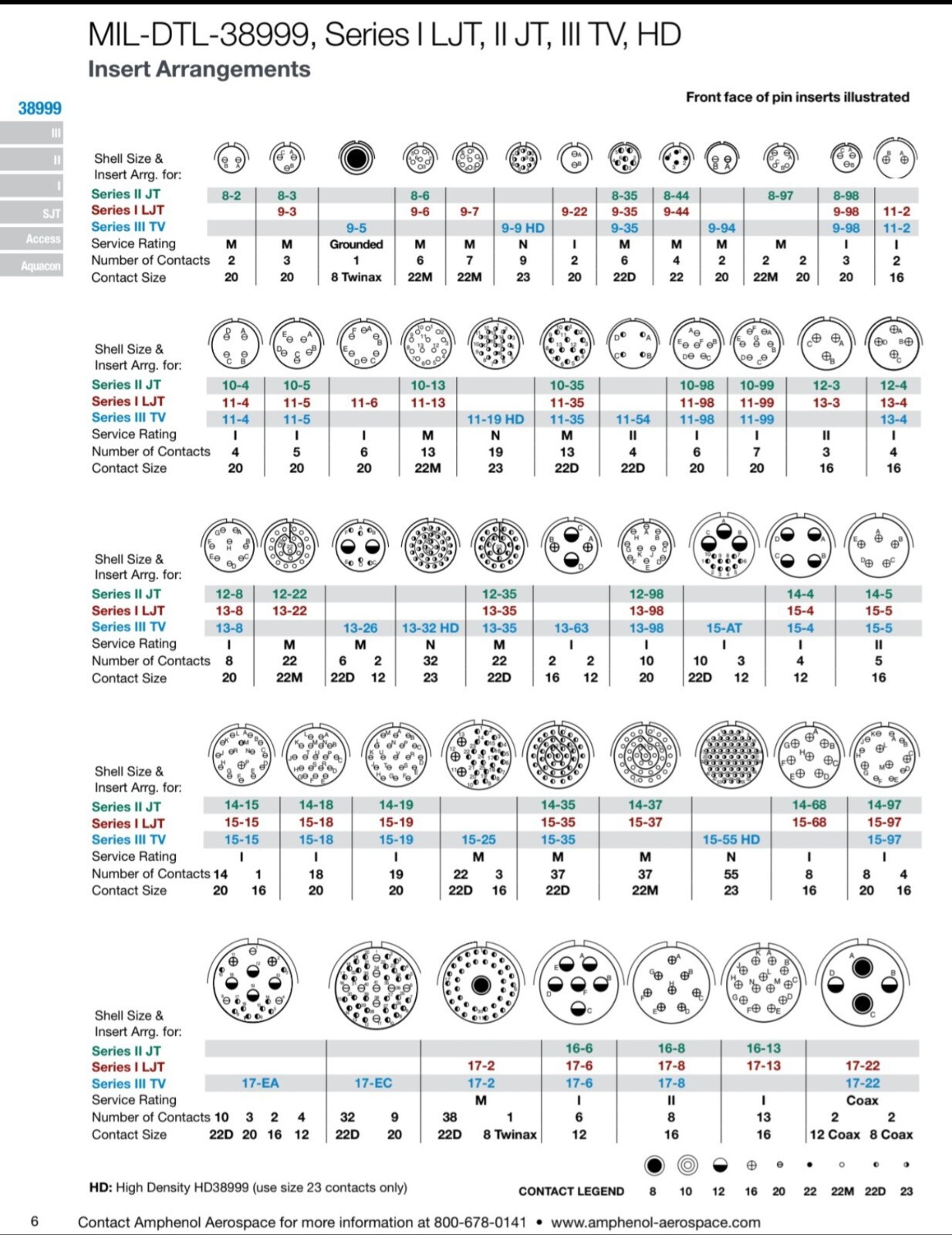

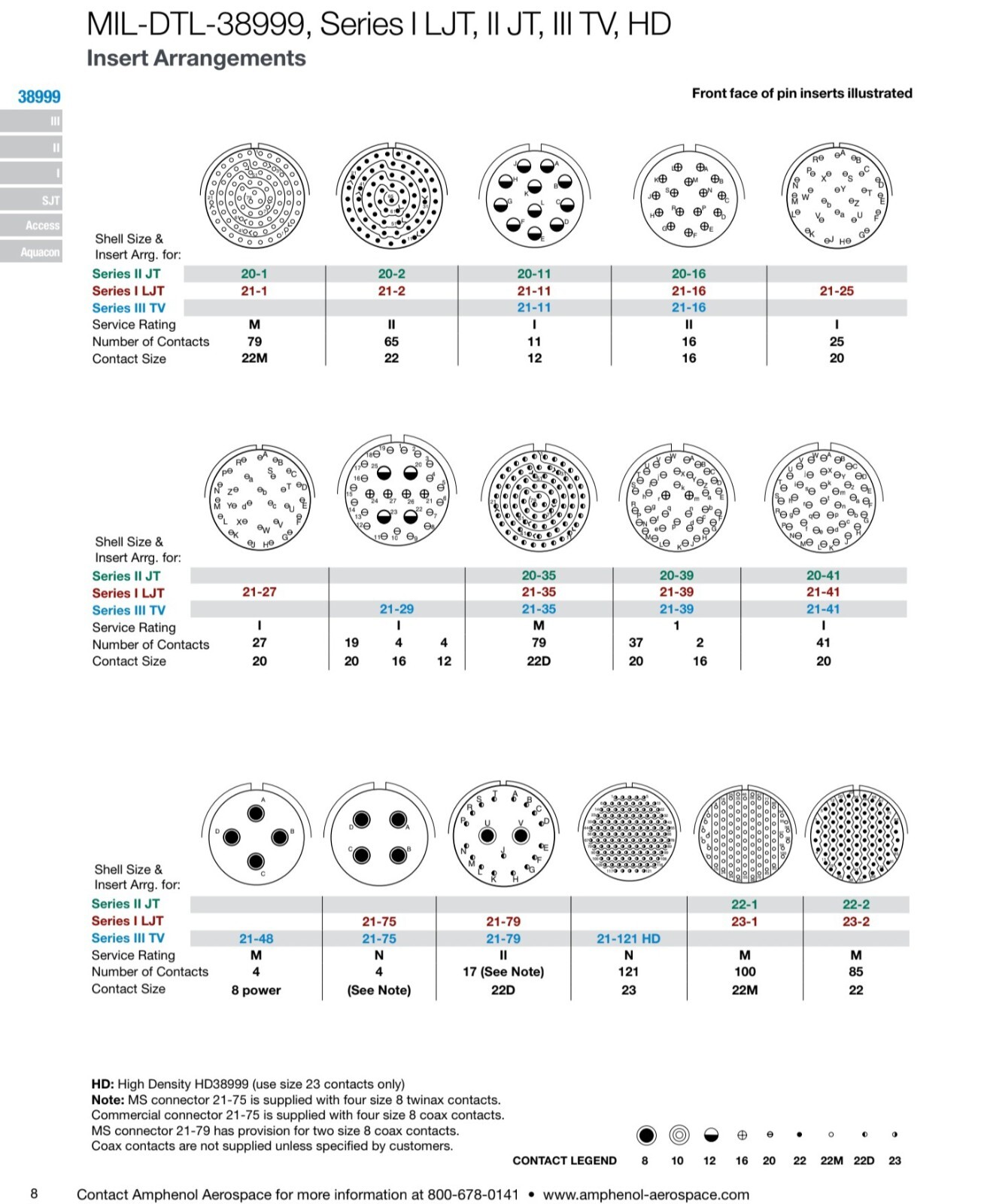

| Shell Size - Insert | 11-35 |
| Contact Gender: | Pin (Male) |
| Number Of Pins | 13 Position |
| Contact Material | Aluminum |
| Unit Quantity | 1 each |
| Contact Finish - Mating | Gold |
| Contact Type: | Machined |
| Color | Olive Drab Cadmium |
| Material | Copper Alloy |
| Shielding | Shielded |
| Fastening Type | Threaded |
| Mounting Type | Free Hanging (In-Line) |
| Brand | Amphenol |
| Connector Part # Aliases: | 88-552042-35G |
| Unit Weight: | 0.531200 oz |

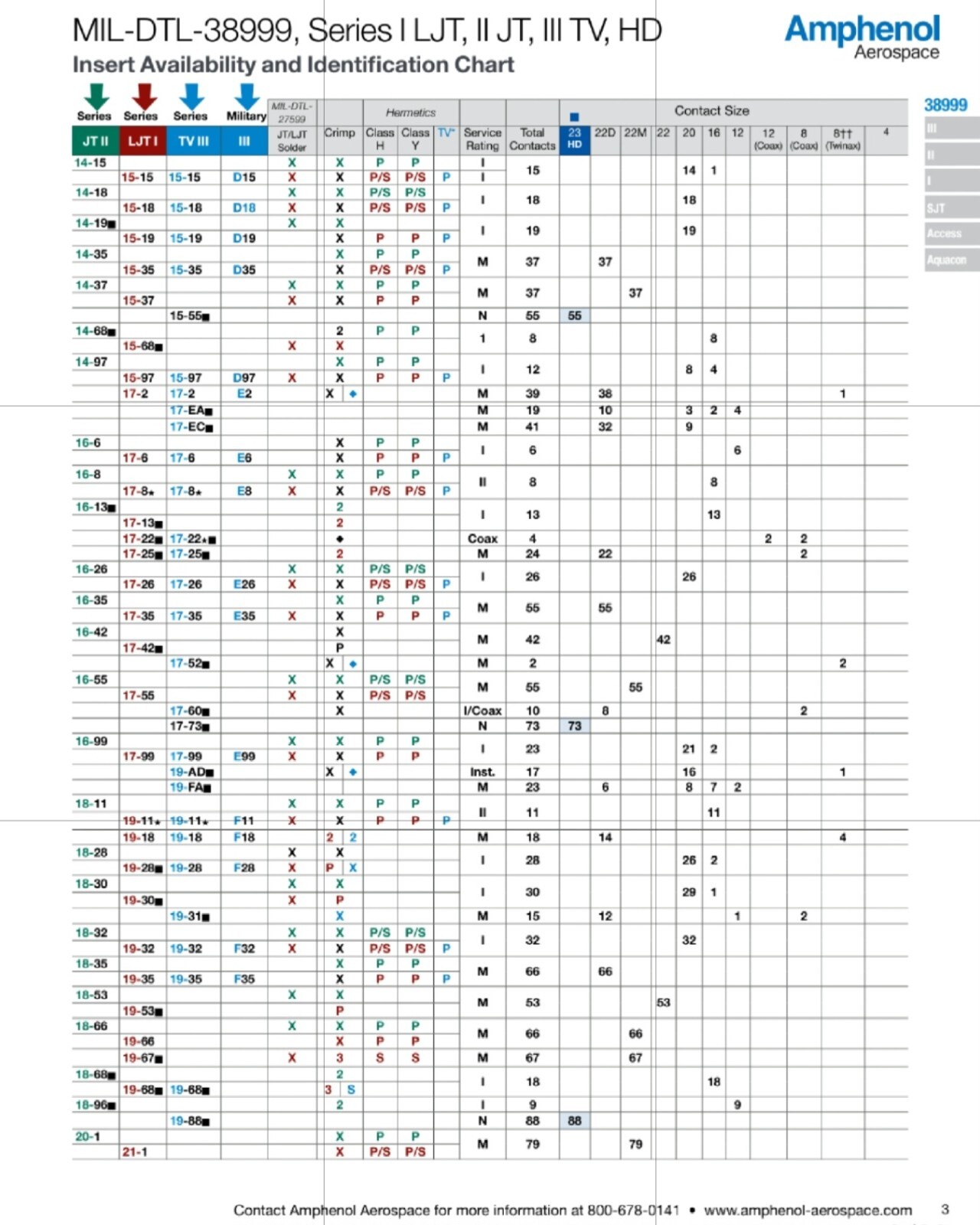

| Type | MIL-DTL-38999 III |
| Product Length | 31.34 mm |

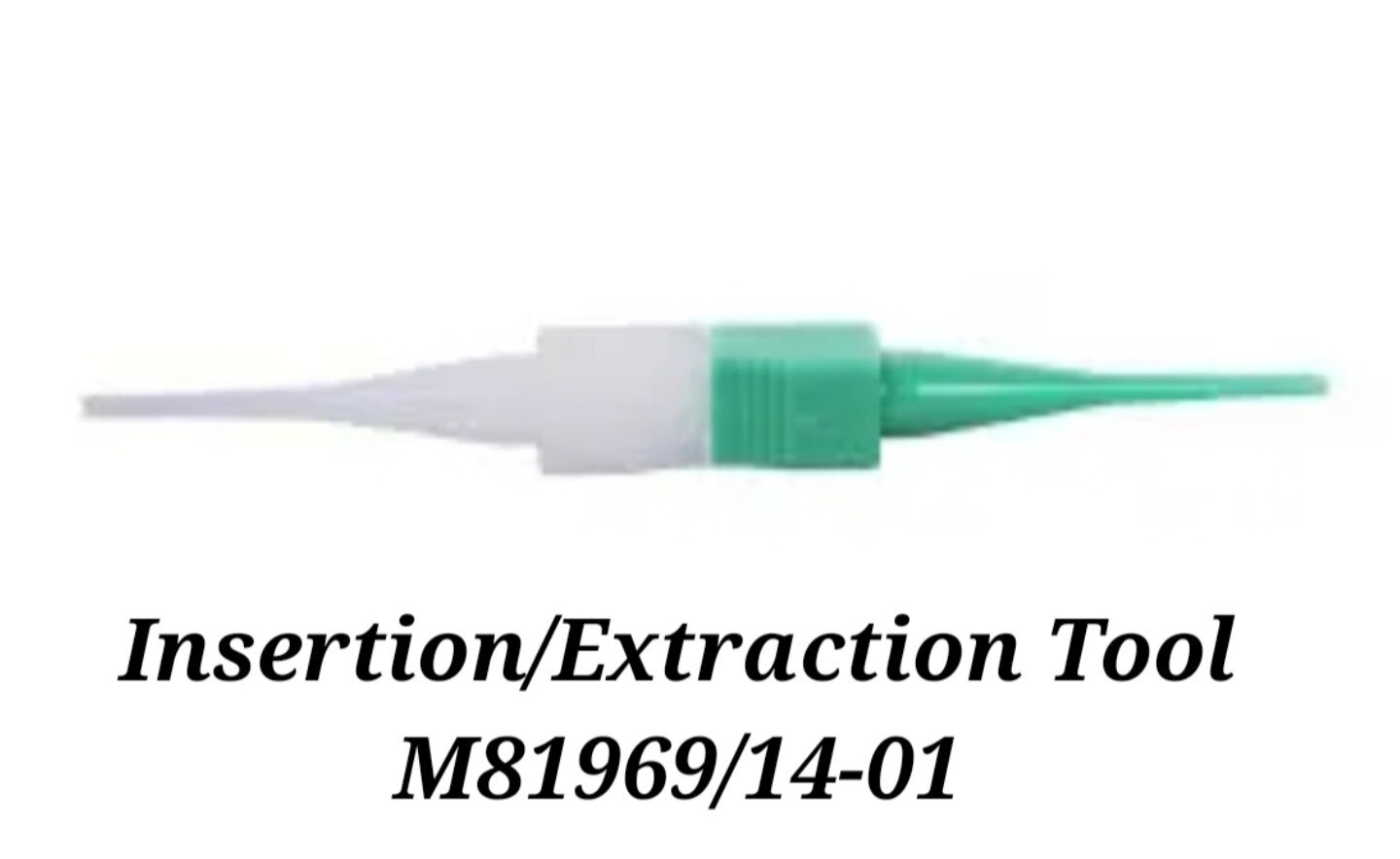

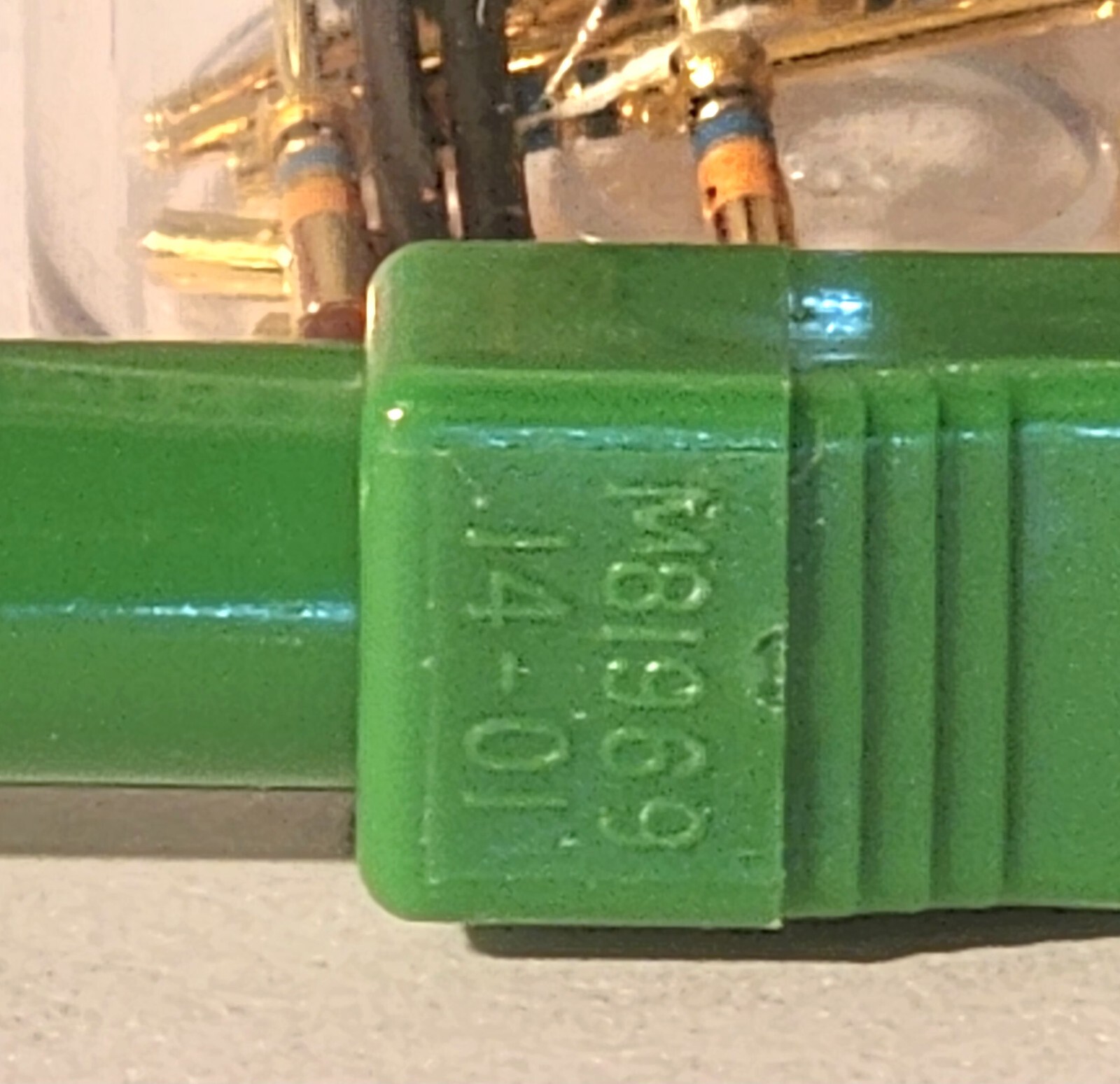

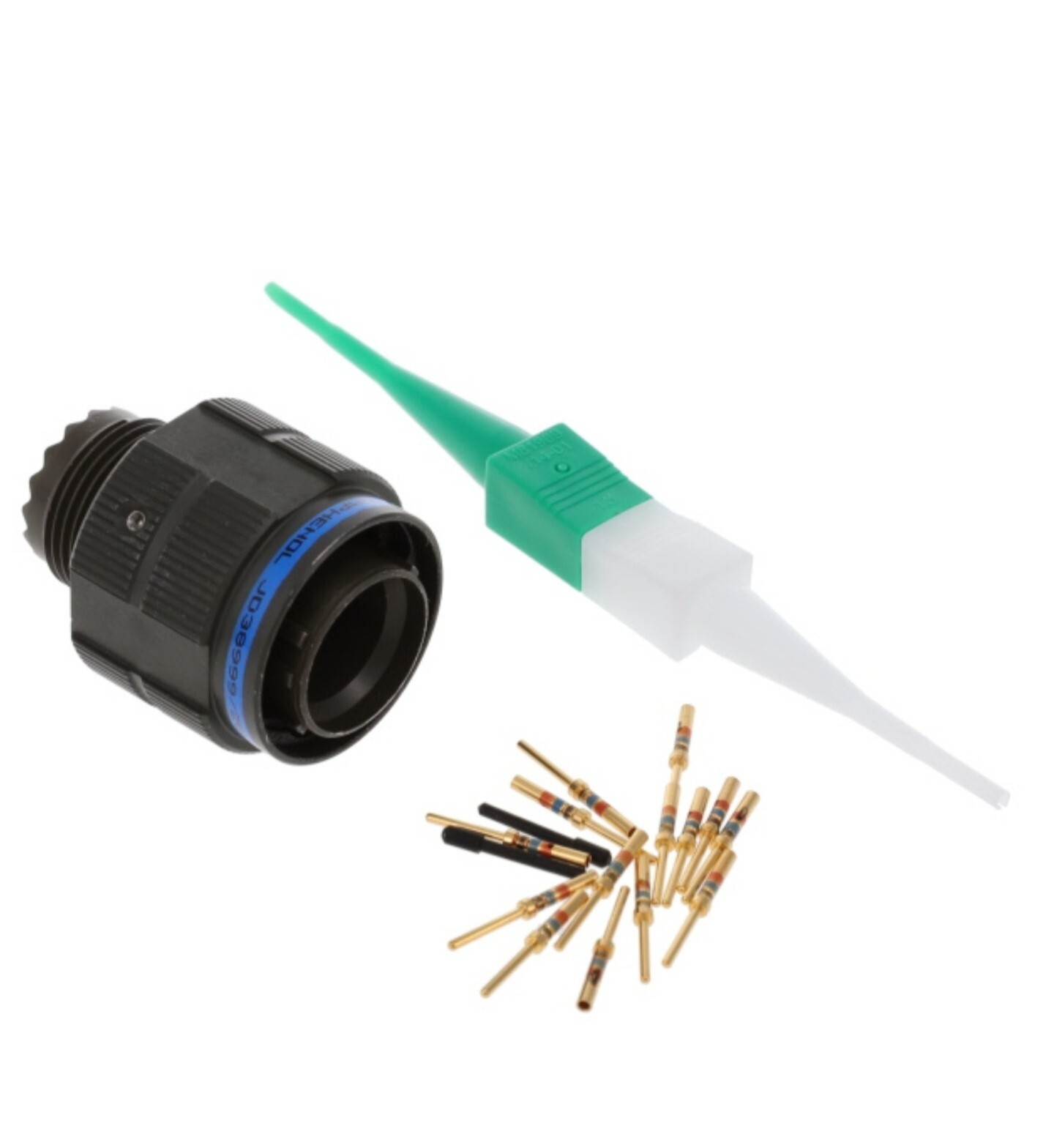

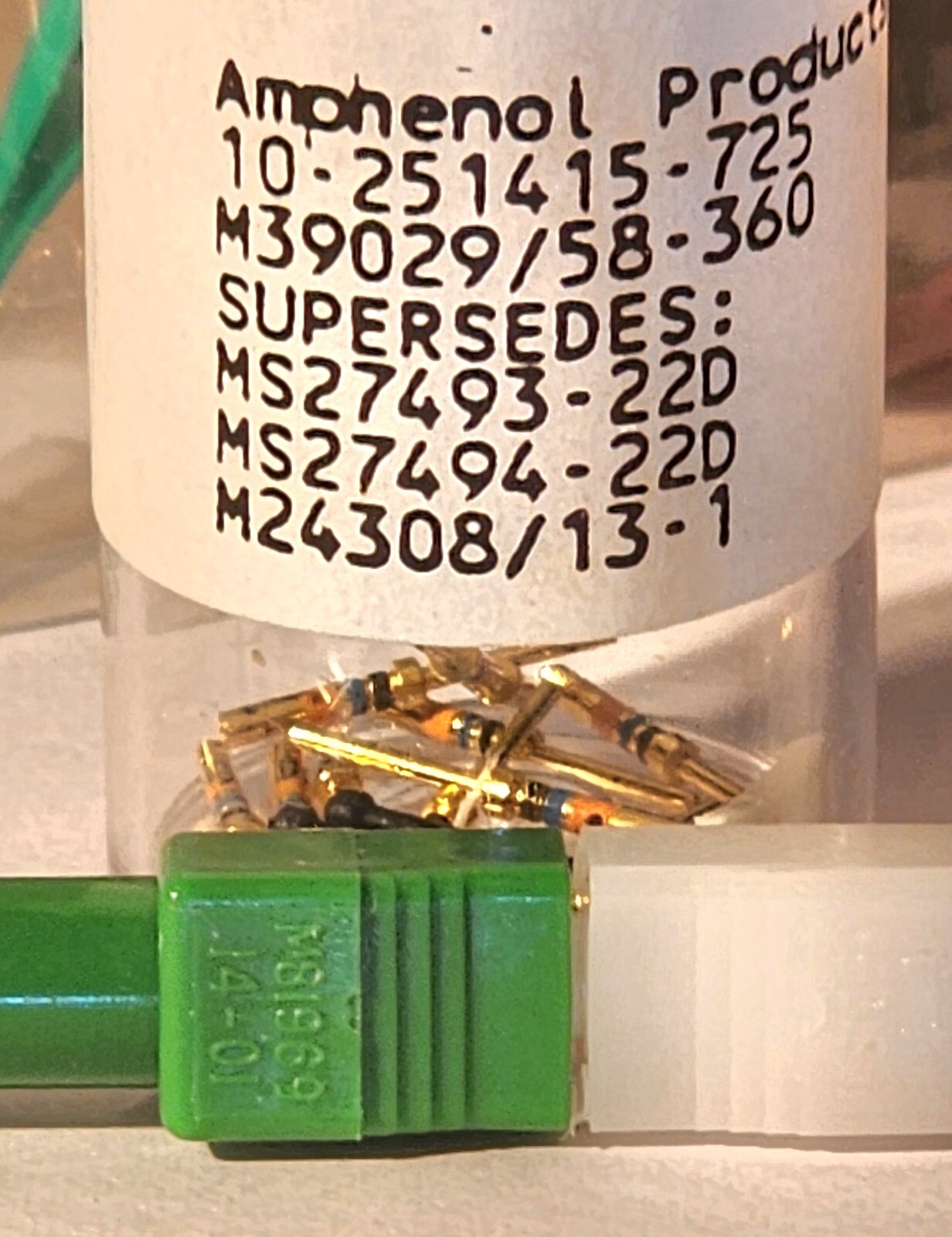

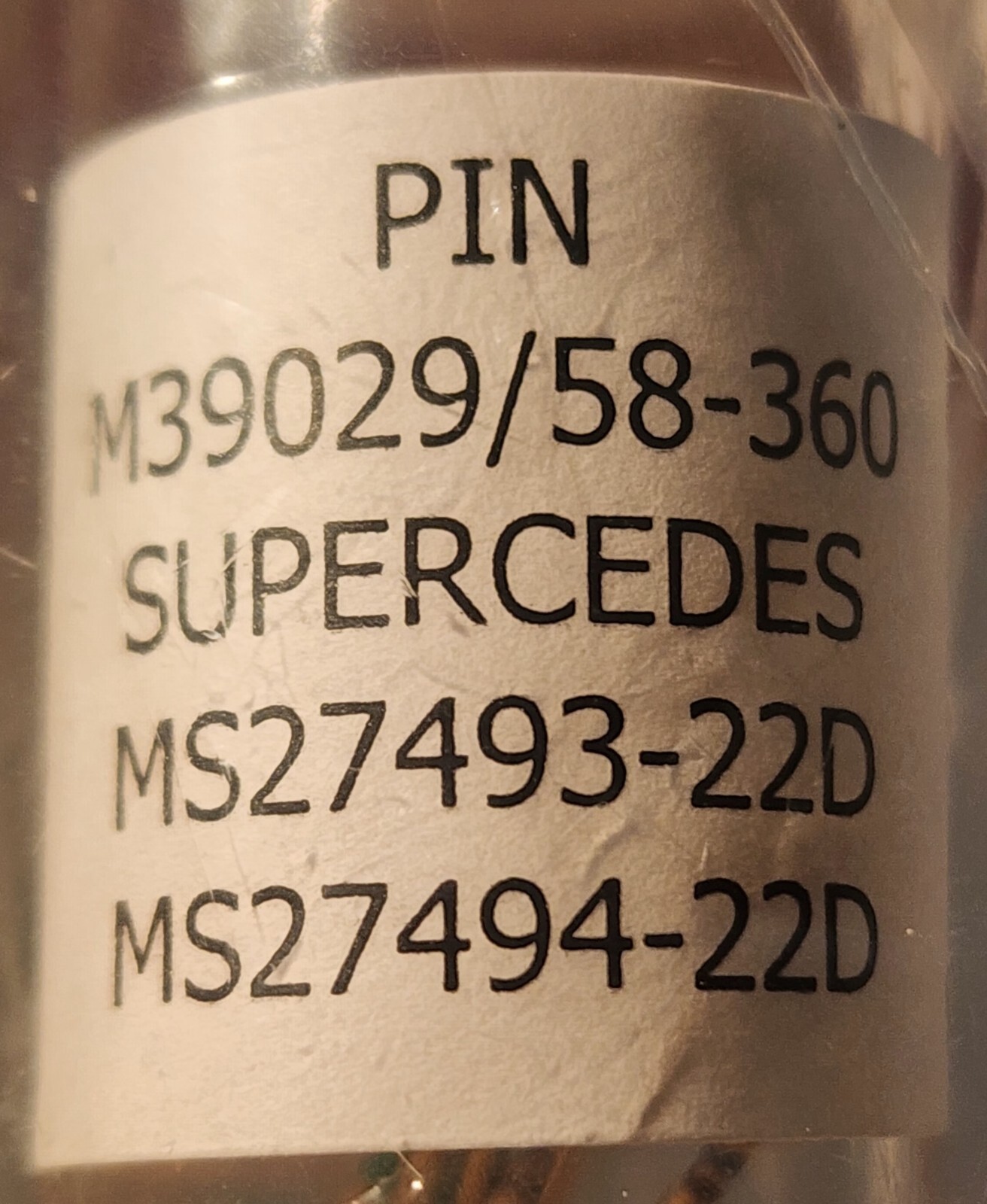

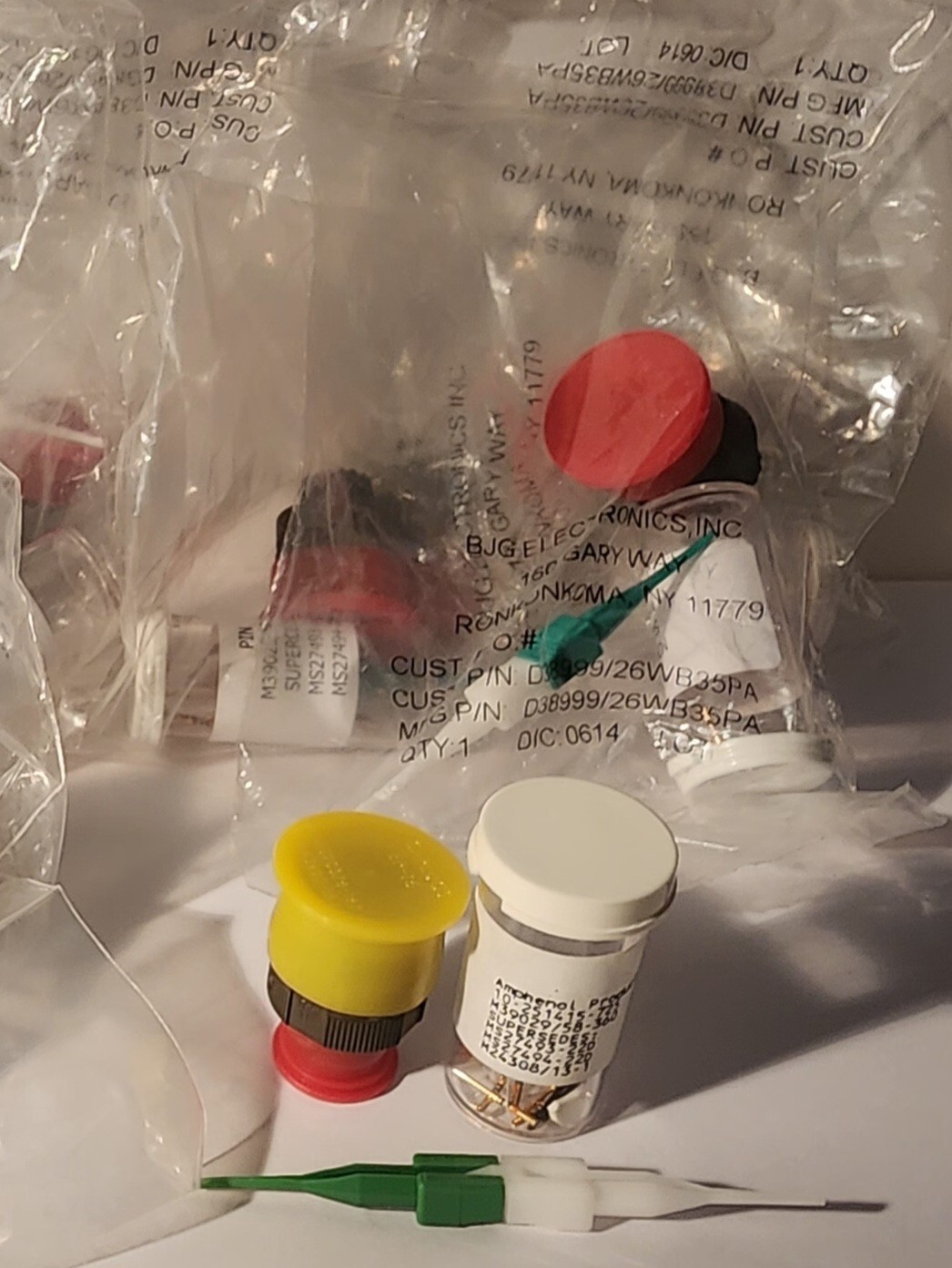

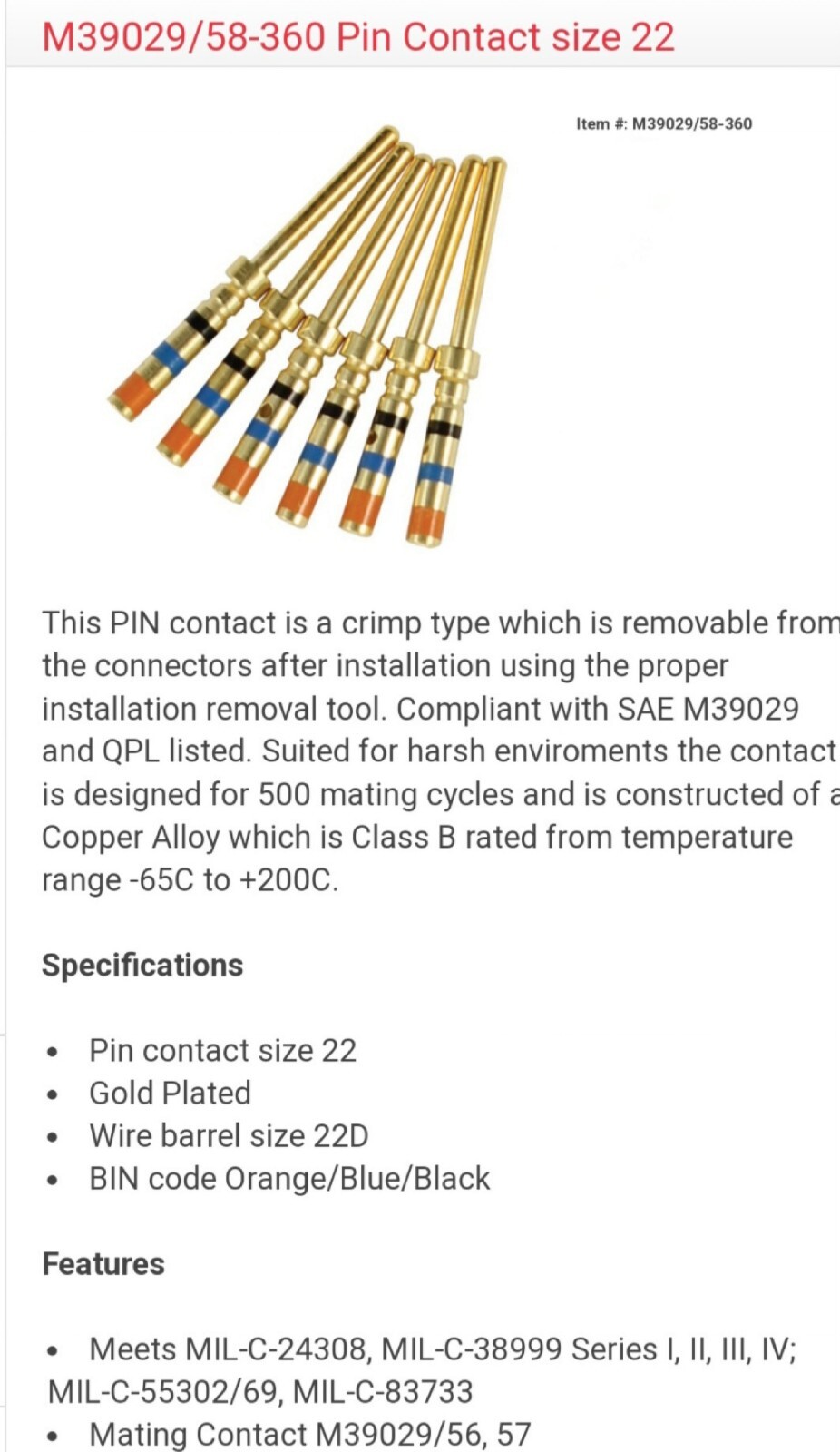

Connector Kit also Includes Pins, Insertion and Extraction Tool Specifications of Pins M39029/58-360Circular MIL Spec Contacts CONT SZ 22D QPL PIN MIL-DTL-38999 Series III ConnectorsAmphenol MIL-DTL-38999 Series III Circular Connectors deliver high-performance capabilities for demanding general duty and harsh environment applications. Developed to operate under severe high temperature and vibration, the connectors feature rapid coupling via a Tri-Start™ thread, shell-to-shell, or metal-to-metal bottoming. Amphenol designed these connectors to provide an EMI shielding capability of 65dB minimum at 10GHz and corrosion resistance of up to 500-hour salt spray exposure. Amphenol MIL-DTL-38999 Series III Circular Connectors offer a rated current range of 1.5A to 5A, a temperature range of -65°C to +175°C, minimum insulation resistance of 5000MΩ, and a dielectric withstanding voltage of 1000VRMS. These rugged and highly reliable circular connectors are ideally suited for industrial, commercial air, military, C4ISR, and space applications.Product AttributeAttribute ValueManufacturer:AmphenolProduct Category: MIL Type:MIL-DTL-39029Contact Gender:Pin (Male)Contact Size:22DTermination Style:CrimpContact Plating:GoldContact Type: Series: M39029 - See SPECIFICATIONS Brand:Amphenol AerospaceContact Material:Copper AlloyProduct Type: Product ComplianceUSHTS:8536694020CNHTS:8536690000CAHTS:8536690030JPHTS:853669000KRHTS:8536699000TARIC:8536699099MXHTS:8536699999BRHTS:85366990ECCN:EAR99Circular MIL Spec Contacts Machined Circular MIL Spec Contacts
