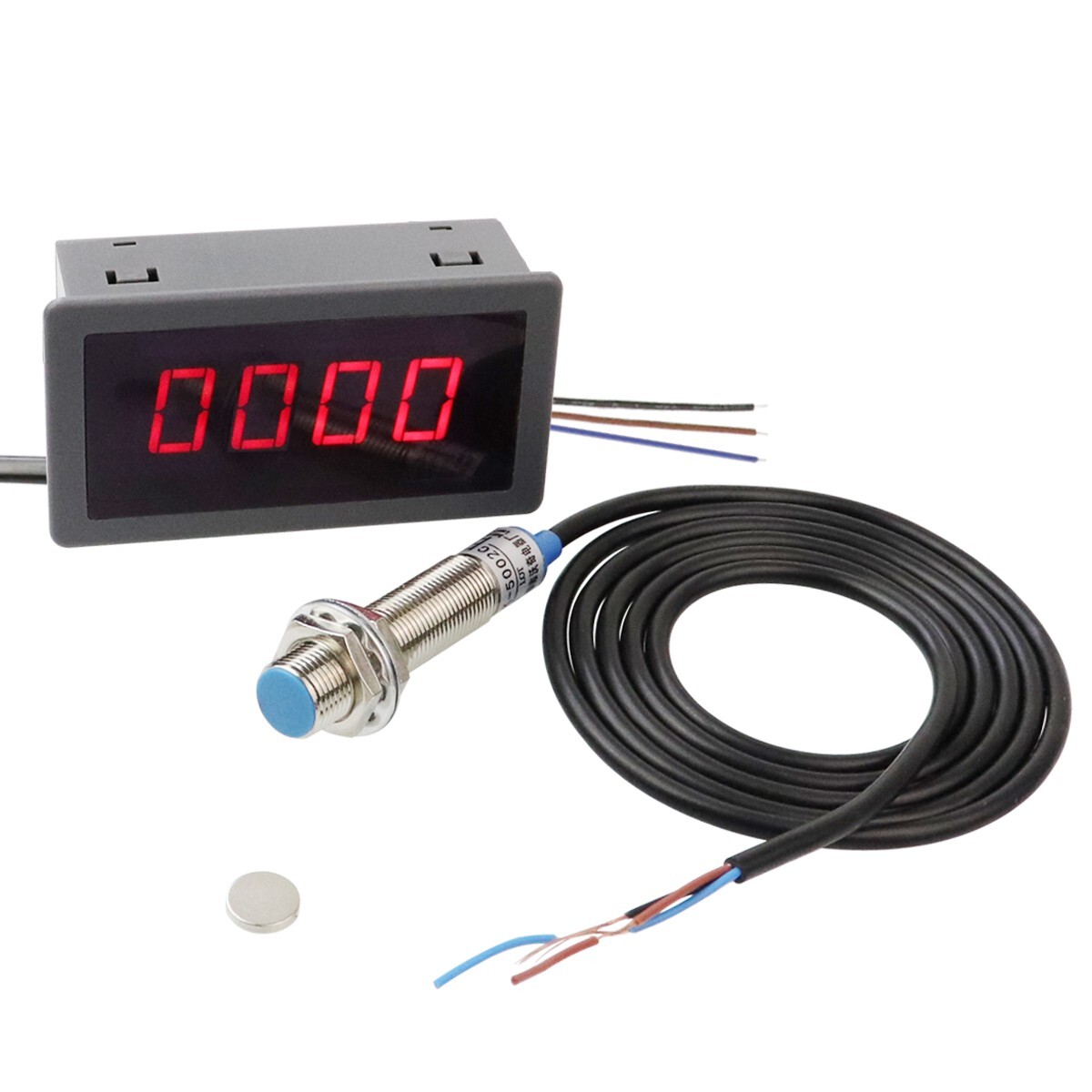

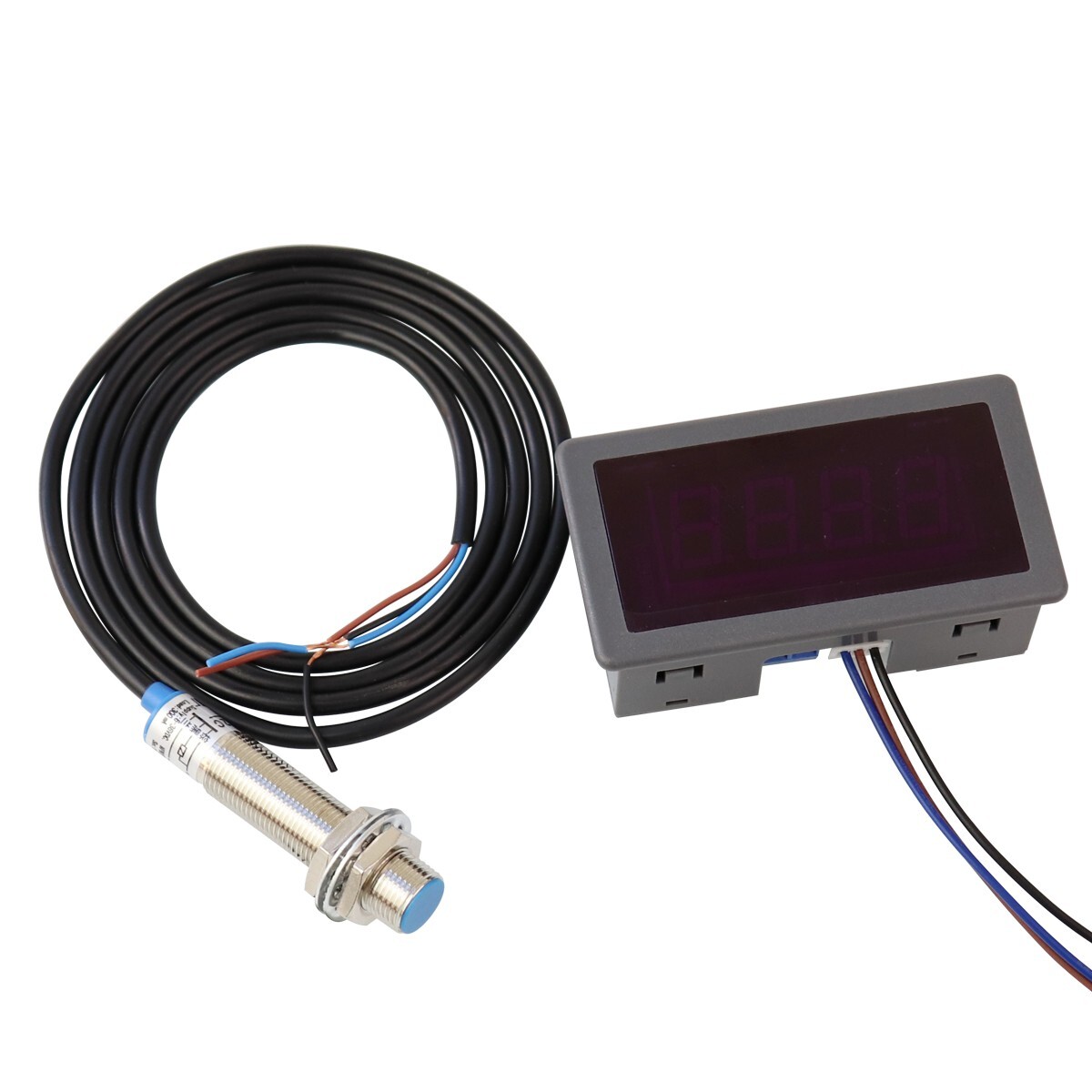

AC 110V 220V Digital Led Motor Speed Tachometer RPM 10-9999 Hall Meter Gauge
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Unbranded |
| Input Voltage | 110V-230V AC |
| Display Color | Red |
| MPN | does not apply |
| Country/Region Of Manufacture | China |
| Meauring Range | 10-9999 RPM |

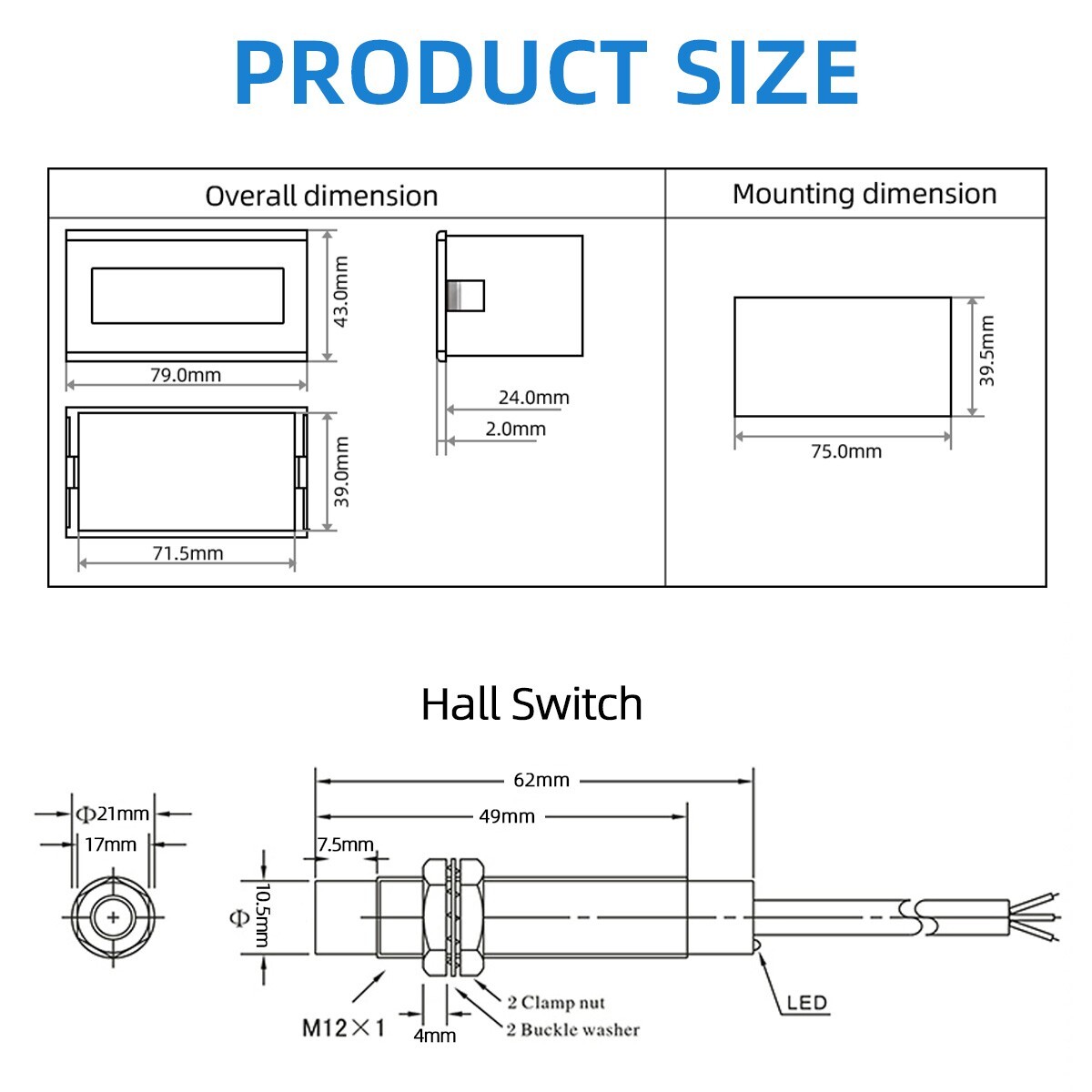

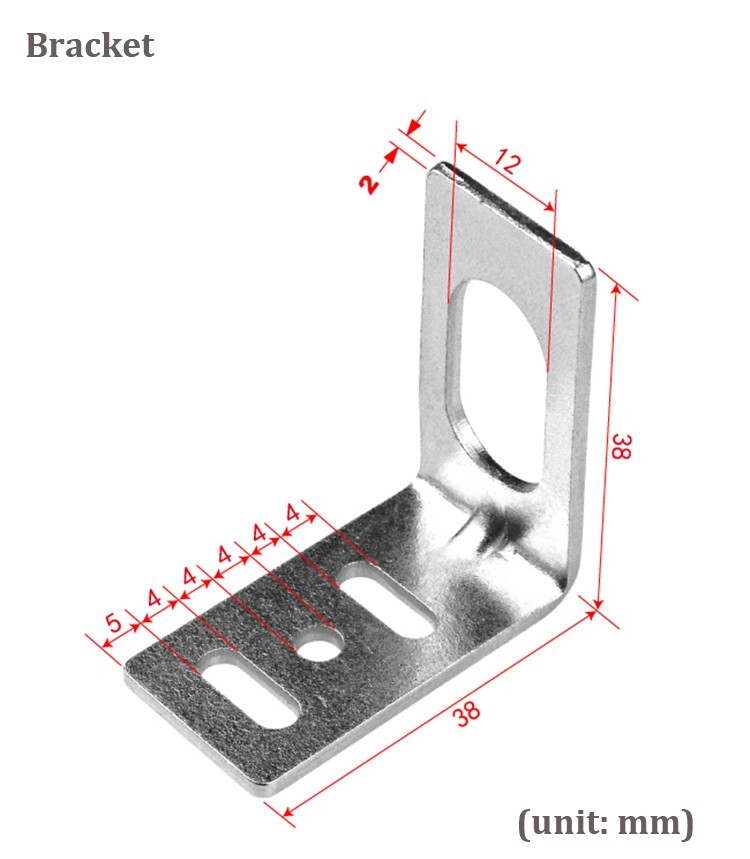

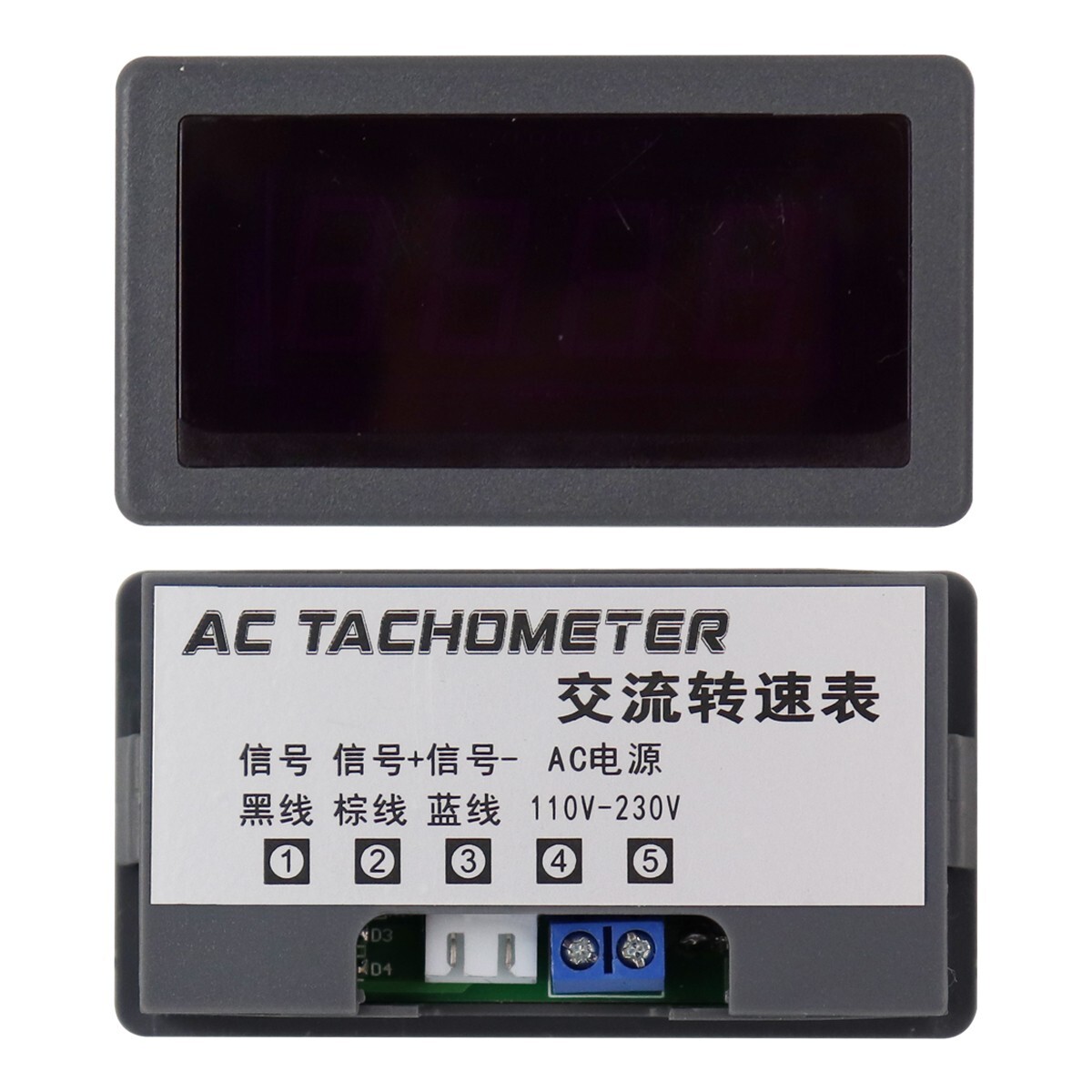

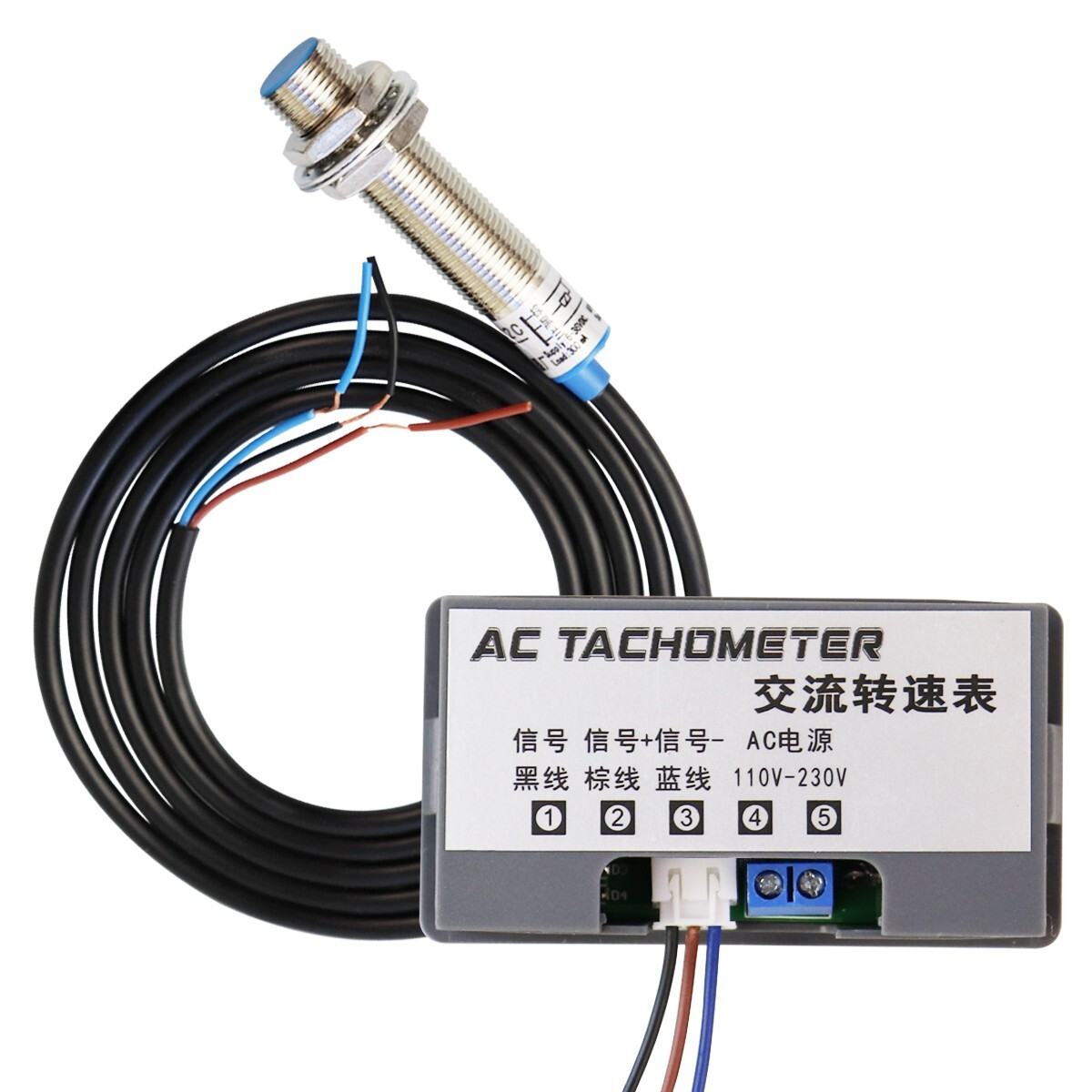

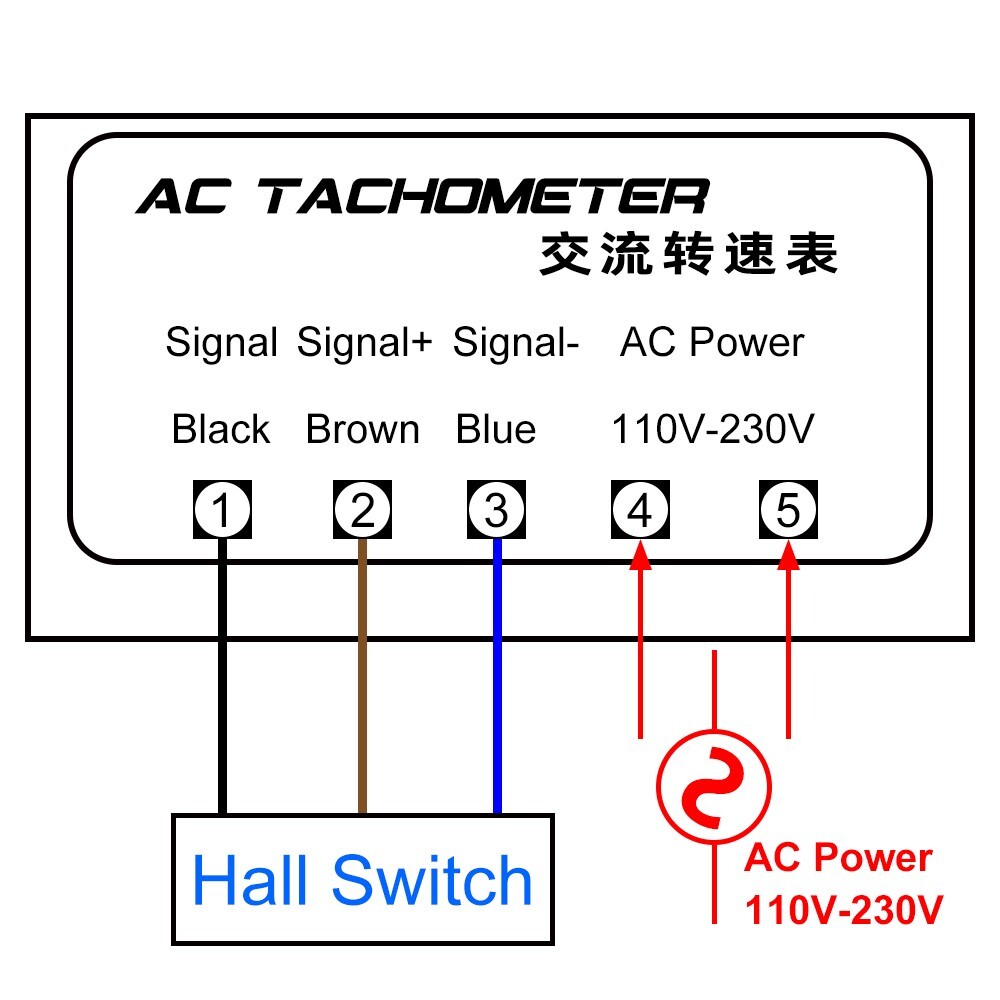

AC 110V 220V Digital Led Motor Speed Tachometer RPM 10-9999 Hall Meter Gauge Parameter Working power: AC 110V-230V Display : 0.56" Red LED , 4 - digits Measuring range: 10-9999 RPM Accuracy: ±0.1% , reading ±1 word Display refresh rate: >3 times/second Over measure range display: Below the detection range, "LLLL" is displayed; Above the detection range, "HHHH" is displayed Recommended distance between sensor and magnet: wthin 10mm(0.39in) Size: 79mm*43mm*26mm/3.11" *1.69" *1.02" Operating Instruction Please connect the wiring as the label on the product; (1). the black wire, brown wire, and blue wire are respectively connected to the corresponding wires of the same color of the Hall switch (2). N and L of the AC power connect to the blue terminal The Hall switch needs to be fixed firmly with a bracket. the installation distance between the Hall switch and the magnet must be within 10mm(the effective distance is subject to the detected magent) The magnet has N/S sides, only one side is valid
