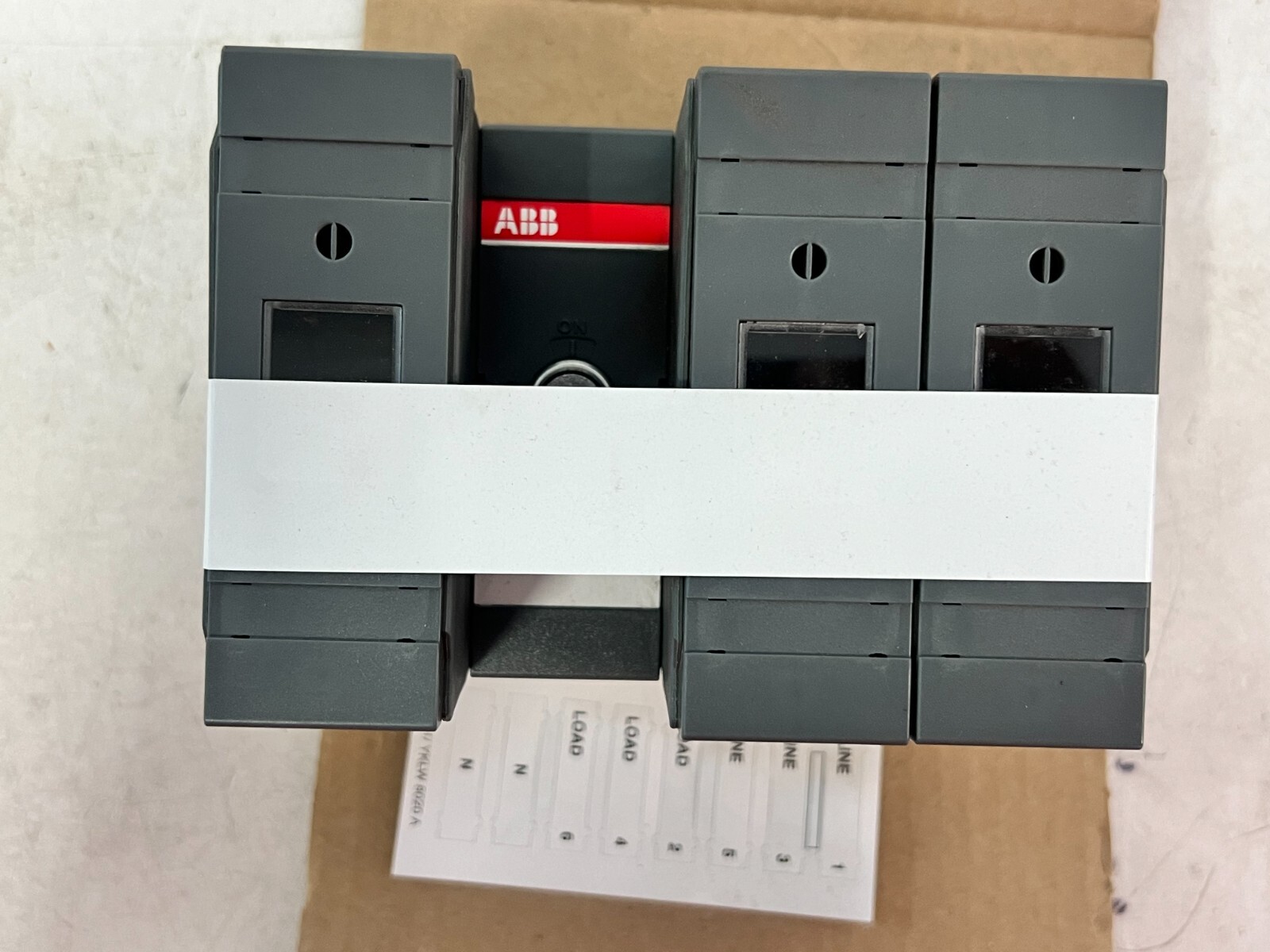

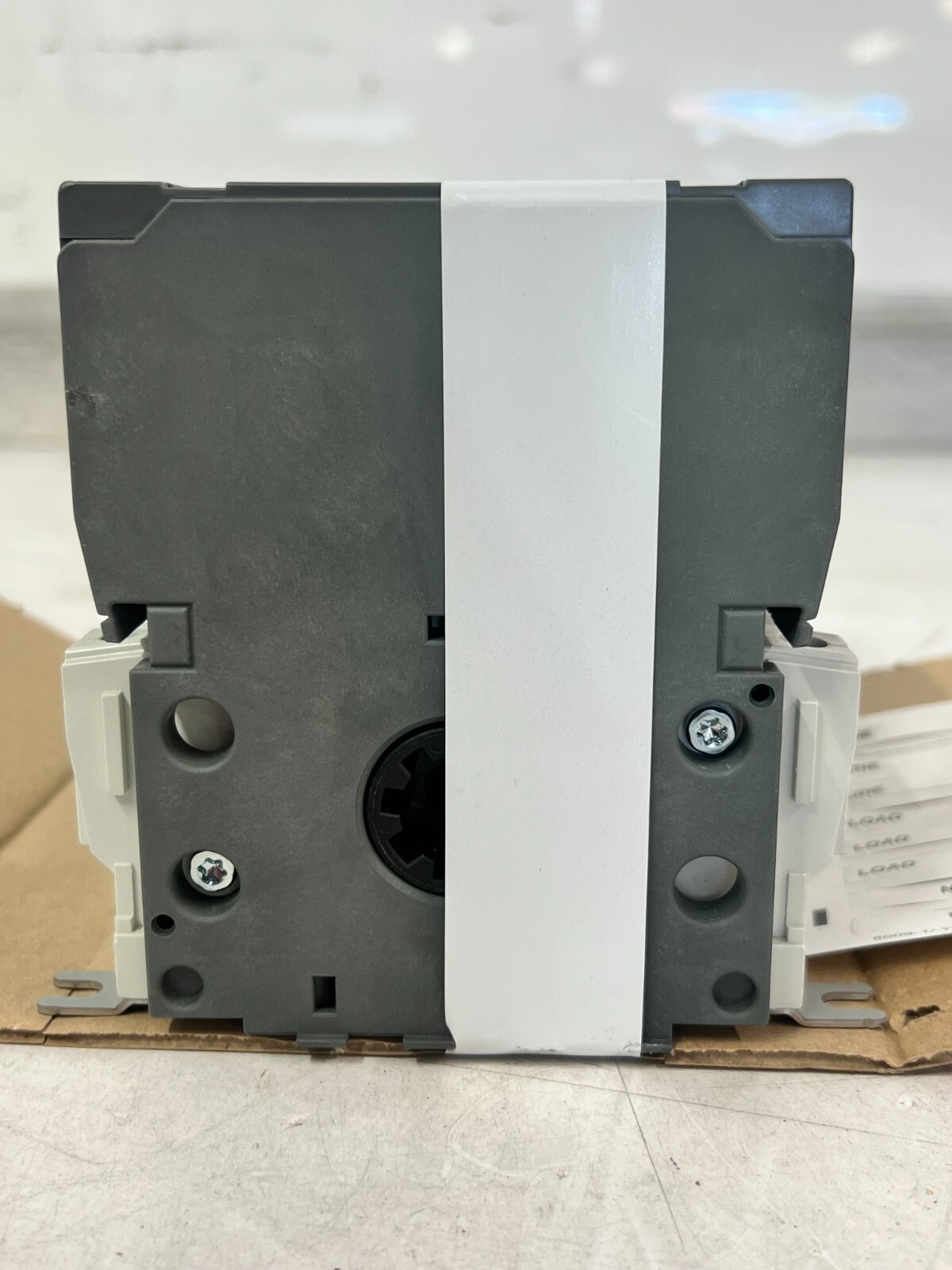

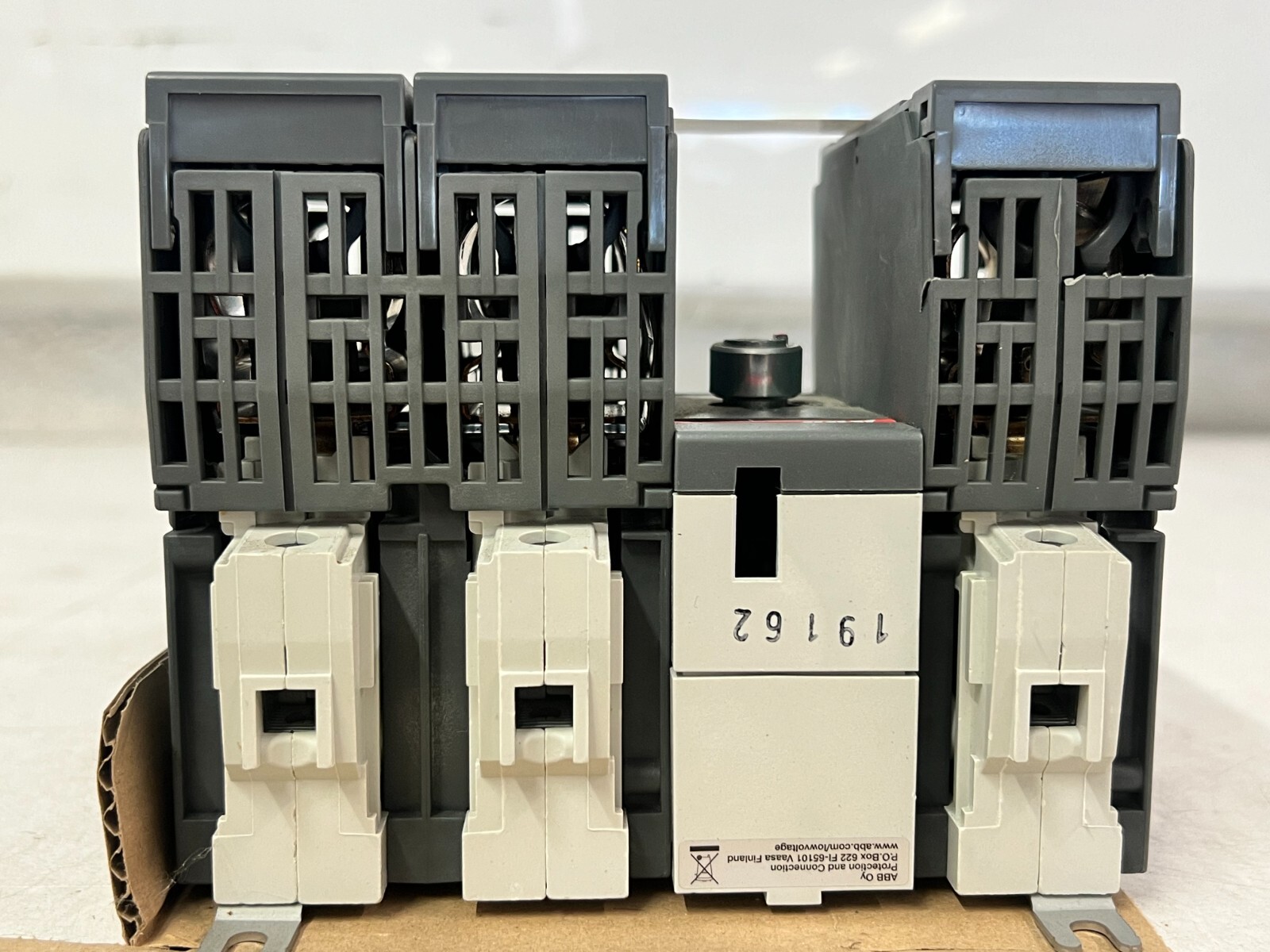

ABB Fusible Disconnect Switch 60AMP 600V DIN Rail Mount Class J Fuse OS60GJ12
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | ABB |
| Mounting Style | DIN Rail |
| Operation Method | On/Off |
| Type | Disconnector |
| Control Style | Switch |
| Maximum Amperage | 60 A |
| Current Rating | 51-60 A |
| Model | OS60GJ12 |
| MPN | OS60GJ12 |
This Listing is for ONEBRAND NEW, IN ORIGINAL PACKAGING (when applicable)ABB Fusible Disconnect Switch 60AMP 600V DIN Rail Mount Class J Fuse OS60GJ12DimensionsProduct Net Width:145 mmProduct Net Height:112 mmProduct Net Depth / Length:118 mmProduct Net Weight:1.37 kg3.02 lbTechnicalRated Operational Current AC-21A (Ie):(500 V) 60 A(690 V) 60 ARated Operational Current AC-22A (Ie):(500 V) 60 A(690 V) 60 ARated Operational Current AC-23A (Ie):(500 V) 60 A(690 V) 60 ARated Operational Power AC-23A (Pe):(220 ... 240 V) 18.5 kW(400 V) 30 kW(415 V) 30 kW(500 V) 37 kW(690 V) 55 kWConventional Free-air Thermal Current (Ith):Θ = 40 °C 63 AConventional Thermal Current (Ithe):Fully Enclosed 63 ARated Impulse Withstand Voltage (Uimp):12 kVRated Insulation Voltage (Ui):1000 VRated Operational Voltage:Main Circuit 690 V ACRated Short-time Withstand Current Low Voltage (Icw):for 1 s 2.5 kiloampere rmsRated Conditional Short-Circuit Current (Inc):(690 V) 80 kAPower Loss:at Rated Operating Conditions per Pole 4 WPollution Degree:3Handle Type:Handle and shaft not includedSwitches Operating Mechanism:12 (Between the Poles)Position of Line Terminals:Top In - Bottom Out, Bottom In - Top OutFuse Size:60 AFuse System:Class JOperating Mode:Front OperatedStandards:UL98IEC 60947-3Mounting Type:Base mountingNumber of Poles:3Cable Cross-Section:2.5 ... 25 mm²Terminal Type:Screw TerminalsTightening Torque:3 N·m4 N·mRated Current (In):Main Circuit 60 ATechnical UL/CSAAmpere Rating:60 AHorsepower Rating UL/CSA:(acc. to UL 240 V) 15 Hp(acc. to UL 480 V) 30 Hp(acc. to UL 600 V) 50 HpTightening Torque:3 N·m4 N·mTightening Torque UL/CSA:Wire-Clamp 30 in·lbWire-Clamp 35 in·lb This product ships FREE to the 48 UNITED STATES! Check my THOUSANDS of positive feedback. It's the cheapest here and you will get it the fastest from me!! Please DO NOT assume this item will come with anything that is not described nor shown in photos. Please look carefully at ALL photos before purchasing. We are more than happy to answer any and all questions you may have.
