A4988 Stepper Motor Driver Module for 3D Printer RepRap StepStick Arduino US
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Country/Region Of Manufacture | China |
| UPC | 732387203483 |
| Input Voltage | 8V to 35V |
| MPN | A4988 |
| Run Method | Bipolar |
| Brand | StepperOnline |
| Model | StepperOnline A4988 |

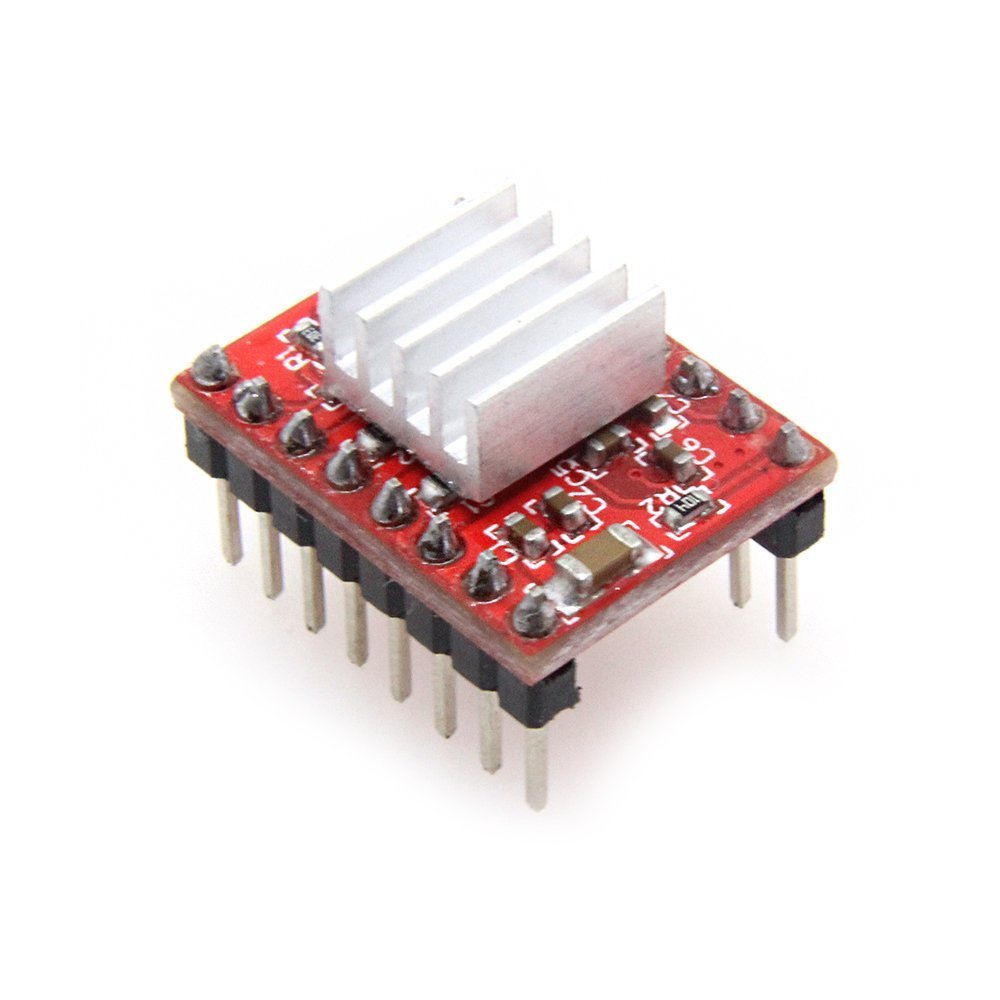

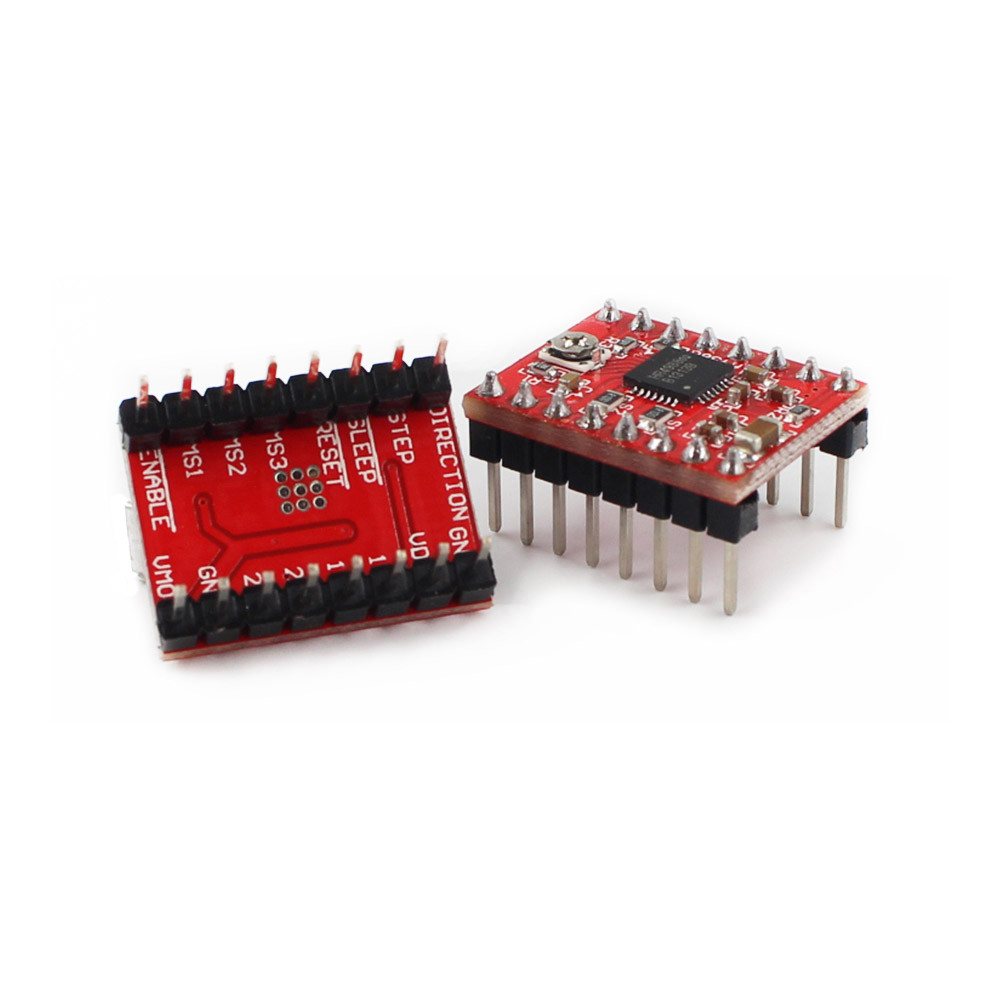

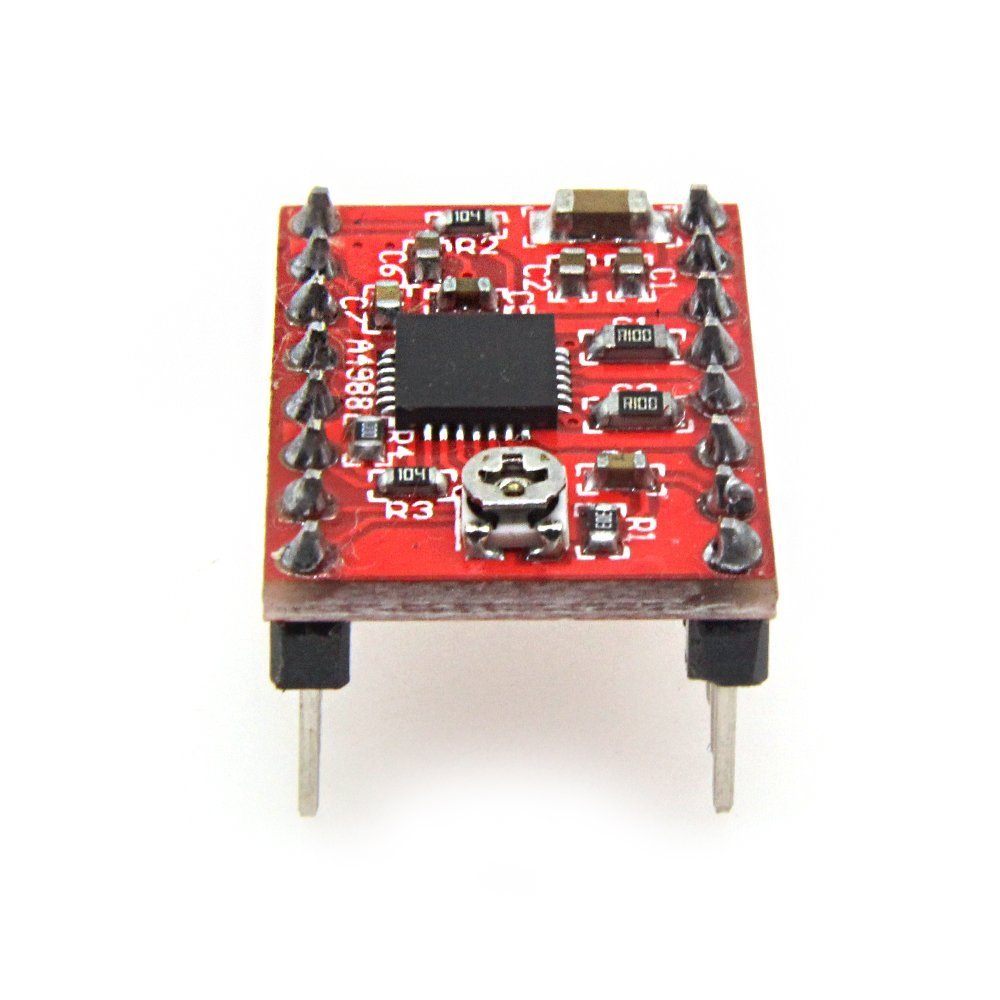

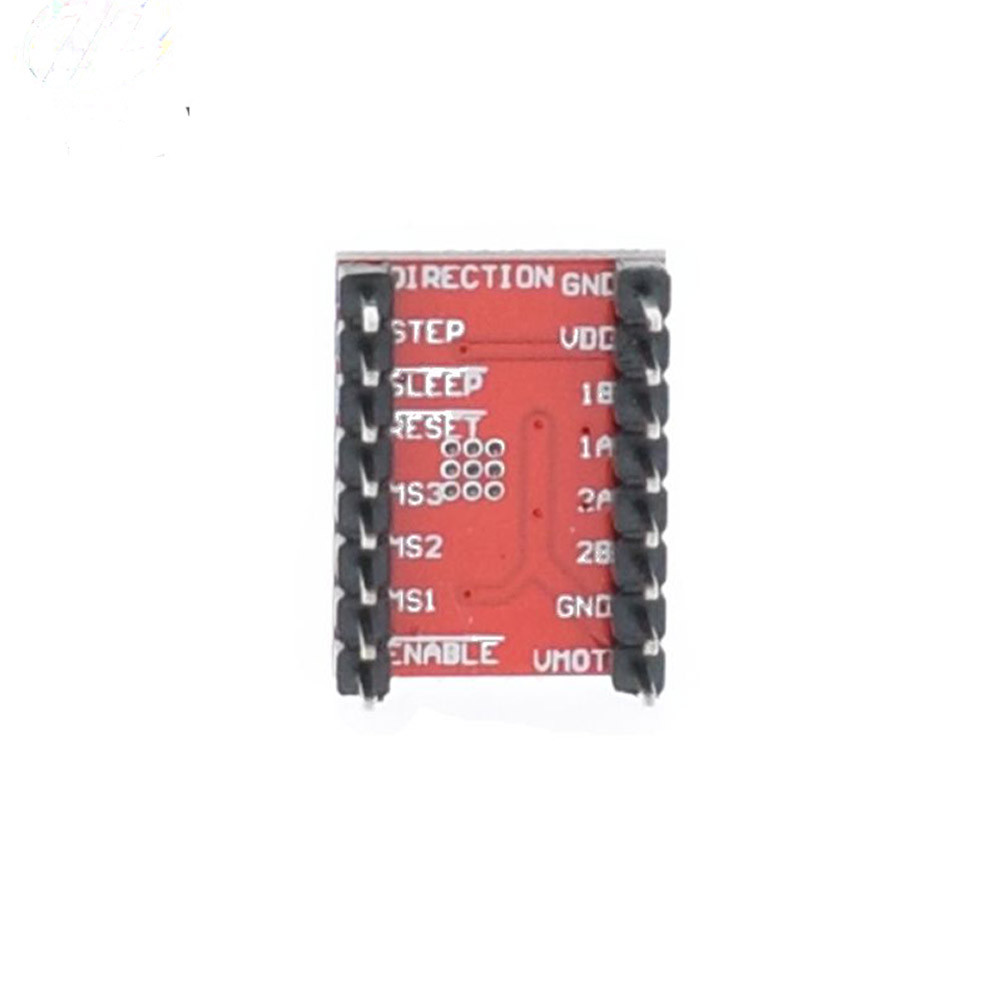

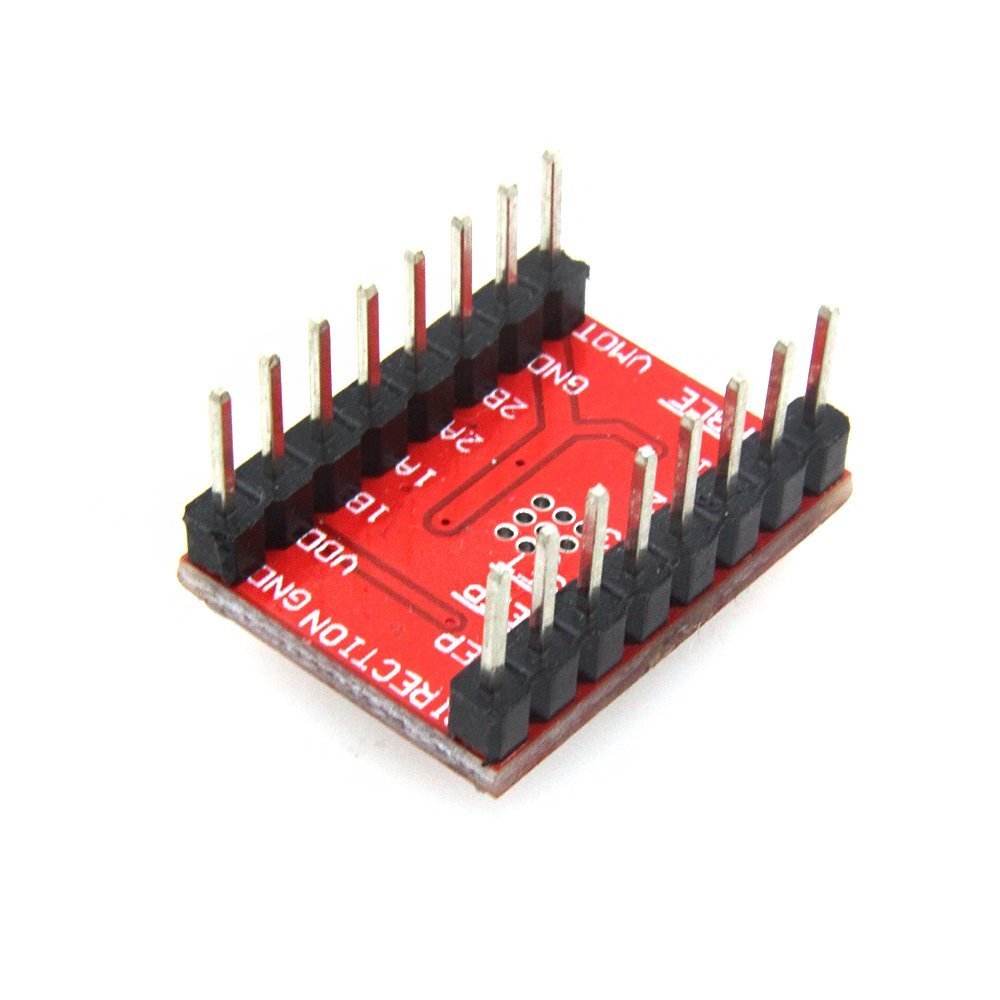

A4988 Stepper Motor Driver Module for RepRap 3D Printer StepStick and Arduino This stepper motor driver module is a breakout/carrier board for Allegro's A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection and is Pololu / StepStick compatible. This stepper motor driver lets you control a bipolar stepper motor at 1 A continuous current per phase without a heatsink or cooling, and at up to 2 A maximum output current per coil if additional cooling is provided. An onboard potentiometer is used to adjust the current output. This driver can control the stepper motor with just 2 pins from the controller, one for controlling the rotation direction and the other for controlling the steps. Stepper motors typically have a step size specification (e.g. 1.8° or 200 steps per revolution), which applies to full steps. This microstepping driver allows higher resolutions by providing intermediate step locations, which are achieved by energizing the coils with intermediate current levels. For instance, driving a motor in quarter-step mode will give the 200-step-per-revolution motor 800 microsteps per revolution by using four different current levels. This driver module provides five different step resolutions: Full-step, 1/2, 1/4, 1/8 and 1/16 step. The translator is the key to the easy implementation of the A4988. Simply inputting one pulse on the STEP input drives the motor one microstep, while the MS1 through MS3 input pins control the microstep resolution. There are no phase sequence tables, high frequency control lines, or complex interfaces to program. The A4988 interface is ideal for applications that do not have a complex microprocessor available, and pairs well with Arduino microcontrollers. A4988 Stepper Motor Driver Module Specifications:Minimum operating voltage: 8VMaximum operating voltage: 35VContinuous current per phase: 1AMaximum current per phase: 2A (with cooling)Minimum logic voltage: 3VMaximum logic voltage: 5.5VThermal shutdown circuitryGround fault protectionLoad short-circuit protectionMicrostep resolutions: Full, 1/2, 1/4, 1/8 and 1/16 Package contents:1 x A4988 Stepper motor driver module1 x HeatsinkLink to Online Operation and Programming Instructions Want more than one A4988 module? See our listing for 5 Pieces (5X) A4988 Stepper Motor Driver Module for 3D Printer RepRap StepStick Arduino. Get it faster! Stocks and ships from our US Colorado office for quick delivery. Please contact us for quantity/OEM pricing. We provide FREE USPS First Class Shipping with Tracking - Not Economy Shipping
