7.5 HP Single Phase Electric Compressor Motor 230V 3450RPM 184T Frame CW/CCW
USD 313.88 USD
Specifications
| Brand | OE QUALITY |
| Rated Load (HP) | 7 1/2 |
| AC Phase | Single Phase |
| Nominal Rated Input Voltage | 208 V-230 V |
| IEC Frame Size | 184T |
| Special Motor Construction | Explosion-Proof Motor |
| Shaft Diameter | 1-1/8 in |
| AC Motor Type | Induction/Asynchronous |
| AC Frequency Rating | 60 Hz |
| Enclosure Type | ODP (Open Drip-Proof) |
| Mounting Type | Base-Mounted |
| Reversible/Non-Reversible | Reversible |
| Shaft Type | Keyed |
| IP Rating | IP23 |
| Insulation Class | F (Max 311°F) |
| Model | General Electric Motor |
| Base RPM | 3450 RPM |
| Full Load Amps | 31.6Amp |
| Warranty | 2 Year |
| Fitment Type | Direct Replacement |
| Net Weight | 97.55 lb |
| Housing Material | Cast iron shell |
| Gross Weight | 107.48 lb |
| Ampere [A] | 33.4 A-29.6 A |
| Drive Shaft Length (IN) | 2-3/4 in |
Matching up the RPM is quite important. The RPM does not have to match exactly, but you do need to be the neighborhood. They are all fall under the umbrella of whats known as 3600RPM motors. Base RPM: 3450RPM.
Related Items
3-Types Fiber Optic Light Cable Connector Fit for Wolf/Storz Endoscope

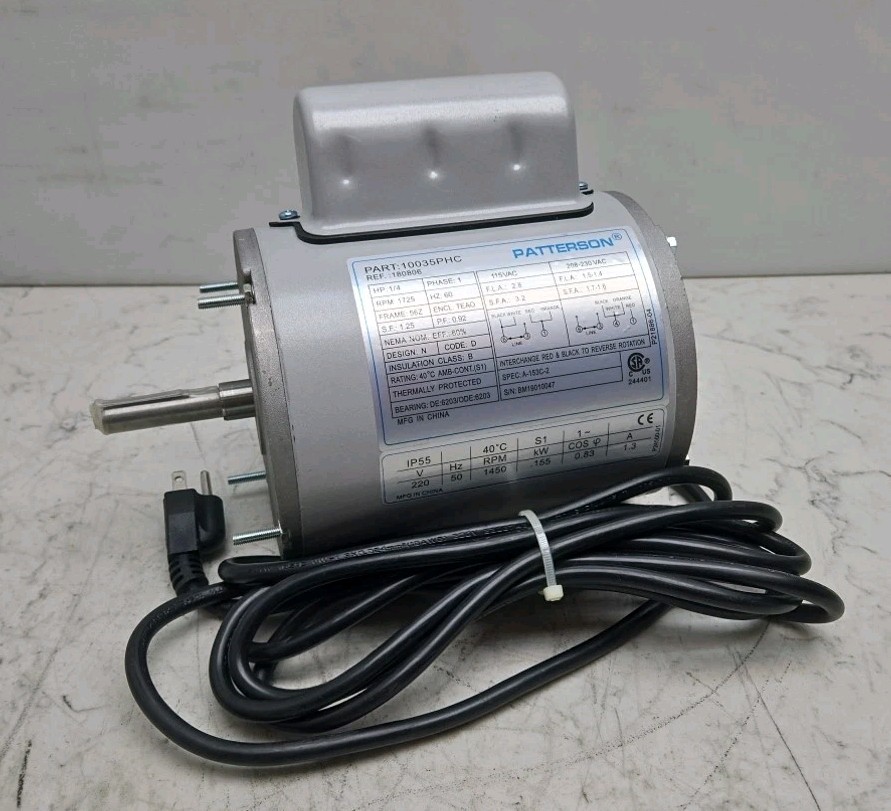

Patterson 10035PHC 1/4Hp Fan Motor 1Ph 1725Rpm 60Hz 56Z Frame 115Vac 208-230 New
TEMCo 30 uf/MFD 370 VAC volts Round Run Capacitor 50/60 Hz -Lot-2
Refurbished GE Motors Kinamatic 20 HP DC Motor – Model # 5CD183WA043B001
2XHydraulic Motor Black for Eaton Char-Lynn 2000 Series 104-1026-006 104-1026
New Factory Sealed Allen-Bradley PowerFlex 525 25B-D013N104 AC Drive

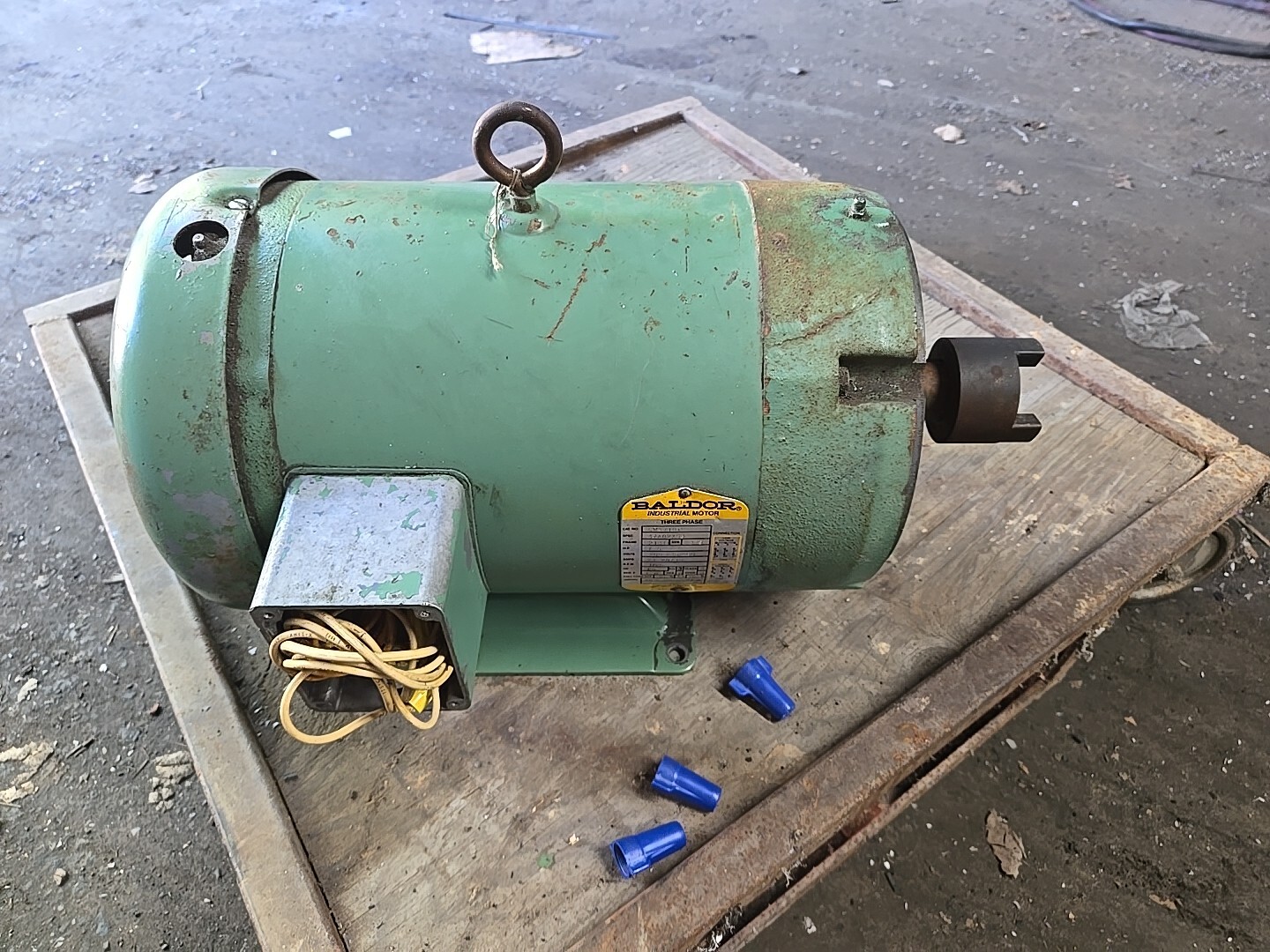

Used 7.5 hp 3 Phase Baldor 1725 rpm 208-230/460
