6080 US-Nidec 1-Phase 1/2 HP 115V 1725 RPM ODP 4-Poles General Purpose Motor
USD 230.60 USD
Specifications
| MPN | 6080 |
| Brand | US Motors/Nidec |
| Interchange Part Numbers | S055RSW8239012B |
| Compatible Equipment Make | US Motors, US Nidec |
| Type | Motor |
| Part Type | Motor |
| Warranty | 1 Year |
| Output HP | 1/2 HP ( 0.5 HP ) |
| Output KW | 0.4 KW |
| Speed | 1725 RPM |
| Electrical Type | Split Phase |
| Voltage | 115V |
| Frequency | 60 Hz |
| Power Phase | Single Phase ( 1 ) |
| Frame | 48YZ |
| Motor Diameter | 5.6 in ( 142.24 mm ) |
| Full Load Amps | 8.4 A |
| Locked Rotor Amps | 48.16 A |
| Enclosure | ODP (Open Drip-Proof) |
| Ambient Temperature | 40 °C ( 104 °F ) |
| Efficiency | 61.7% |
| Service Factor | 1.00 |
| Bearings | Ball |
| Material | Rolled Steel |
| Rotation | REV |
| Weight | 16.36 lbs ( 7.42 Kg ) |
| Country Of Origin | Mexico |
Designed with a unique extended hub and short slotted shaft, this split-phase motor provides the precision and reliability required for beverage carbonation and water booster applications. Built by Nidec Motor Corporation, it features a durable rolled steel construction, an open drip-proof (ODP) enclosure, and an automatic reset thermal protector to ensure continuous, safe operation under demanding conditions.
Related Items
25Pcs Oscillating Tool Multi Tool Bi-metal Saw Blades Fit For Wood with Nails
Vertiv Liebert PFH027A-PLN Outdoor Condensing Unit R-407C 208/230V 1Ph
Bryant 7465N Midget Locking Plug, Ml1-15P, 15 A, 125V Ac, Single Phase, 2 Pole,
refrigeration condenser cooling fan with fan blade(9.75”) motor 115V 9 Watts
For #T312628 John Deere Skid Steer & Track Loader 323D 323E 333D 333E Door Glass

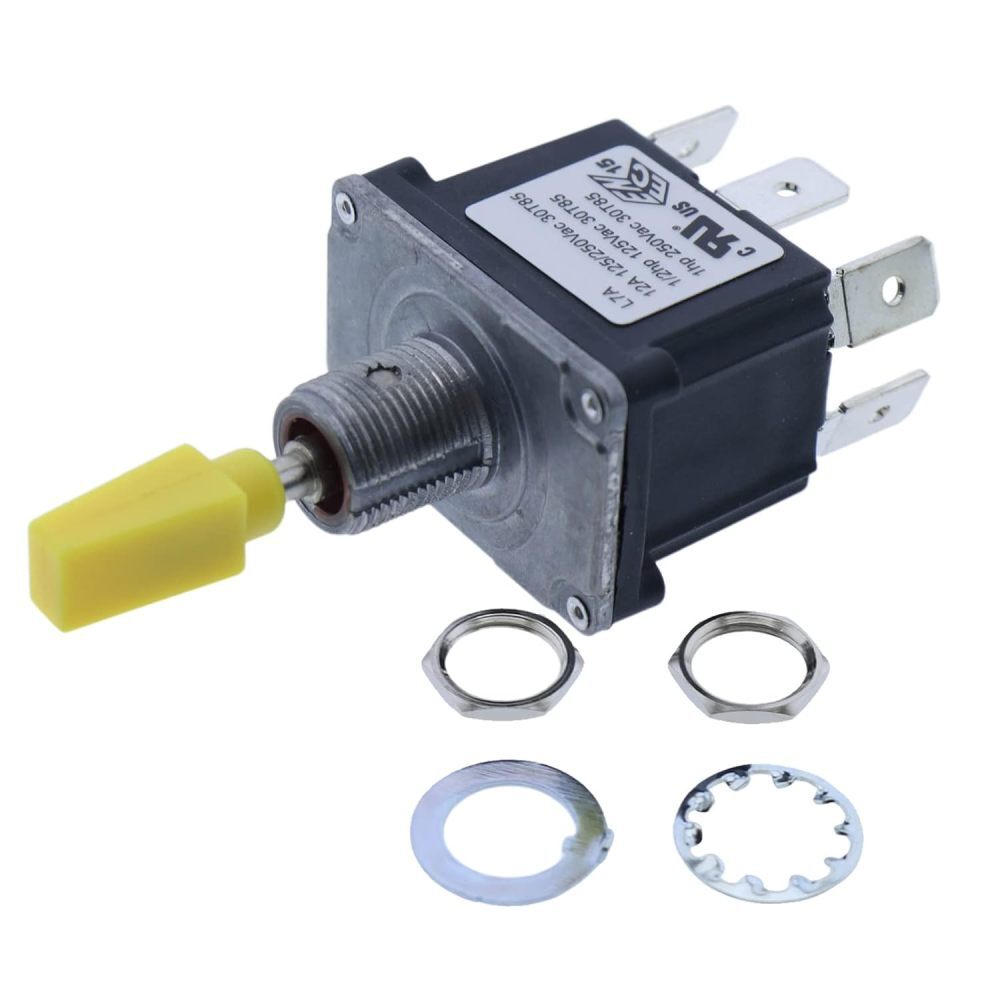

4360314 Toggle Switch for JLG Lift (On)-Off-(On) Waterproof (Momentary) EC042
