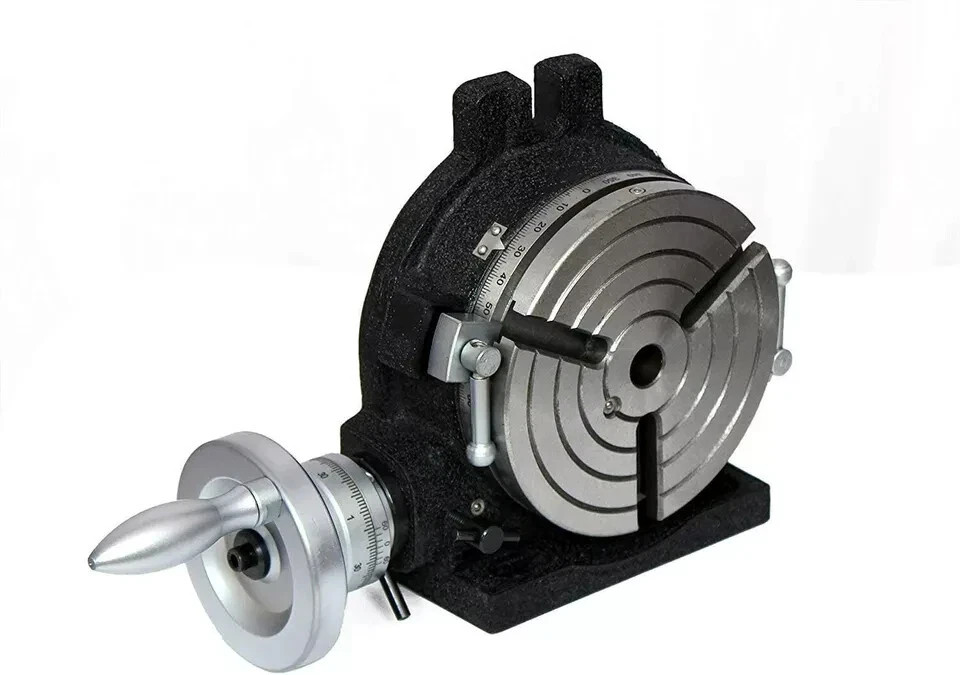

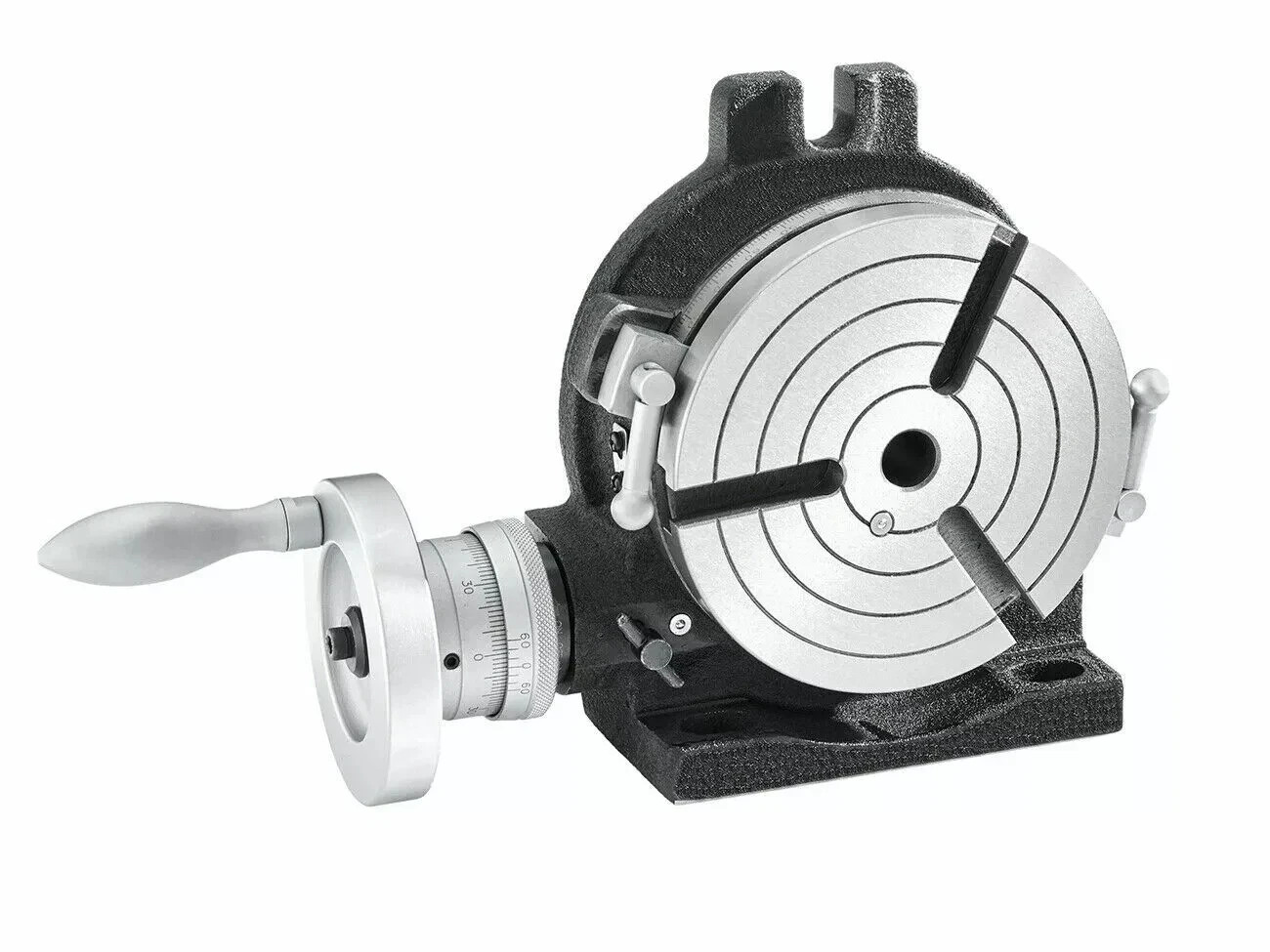

6″ Precision Horizontal & Vertical 3 slot Rotary Table USA Quality 6 INCH TSL 16
USD 501.00 USD
Specifications
| Vernier Scale Reading: | 10 seconds |
| Indexing Accuracy: | 80" |
| Max Loading Capacity (V): | 110 lbs |
| Operation | Manual |
| Center Hole | MT2 (Morse taper 2) |
| Height Of Center For Vert. Mounting: | 4.921". |
| California Prop 65 Warning | FOR INDUSTRIAL USE ONLY |
| Brand | JTS |
| One Turn Of The Handle Moves The Table By | 4 degree |
| Unit Type | Unit |
| Table Dia. : | 6" (160mm) |
| Max Loading Capacity (H): | 220 lbs |
| Mounting: | 4.921" |
| Of Center Hole: | 0.9843" x 0.2362" |
| Setting Position | Horizontal/Vertical |
| Shipping Weight: | 33 lbs |
| Dia. Of Center Hole: | 0.9843" x 0.2362". |
| Country Of Origin | India |
W.T: 28 LBS This 6" horizontal and vertical rotary table by JTS is a precision tool designed for industrial use. The table has a maximum loading capacity of 110 lbs in the vertical direction and 220 lbs in the horizontal direction, with an indexing accuracy of 80 degrees.
