5S 60A 18.5v 21V Li-ion LiPo Lithium BMS Battery Balance 3.7v
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Nominal Voltage Rating (DC) | 21 V |
| Maximum Continuous Output Current | 100 A |
| Nominal Voltage Rating (AC) | 21 V |
| Nominal Current Rating | 100 A |
| Current Conversion | DC to DC |
| Size | 6cm x 4.2cm |
| Color | White |
| Nominal Power Rating | 1200W |
| MPN | Does Not Apply |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Brand | APEX |
| Type | BMS |
| Output Voltage Rating (AC) | 21 V |
| Output Voltage Rating (DC) | 21 V |
| Inrush Current Rating | 60 A |
| Maximum Operating Temperature | 85 °C (185 °F) |
| Country/Region Of Manufacture | United States |
| Output Voltage Range | 18.5V - 21V |
| Maximum Peak Output Current | 100 A |

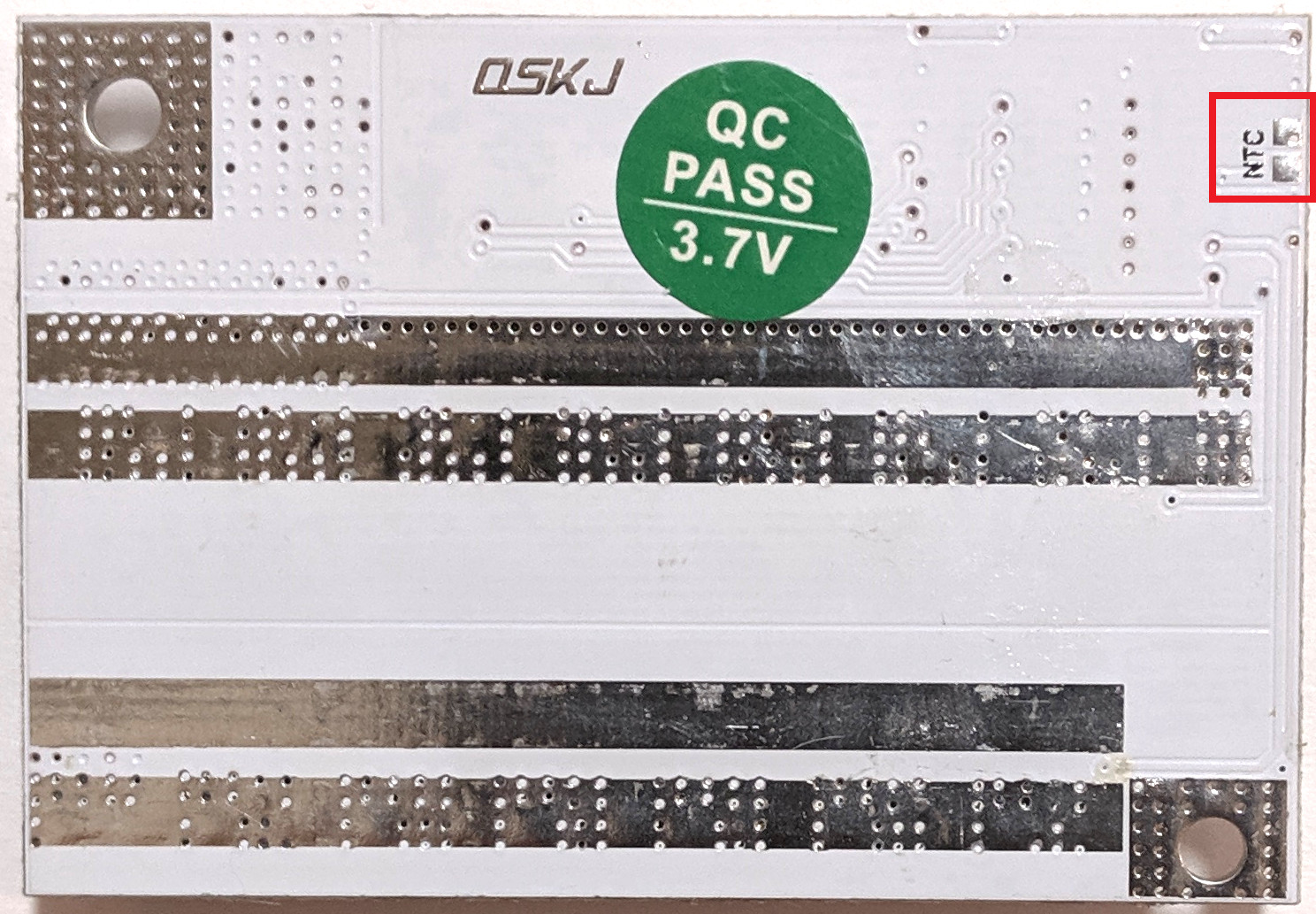

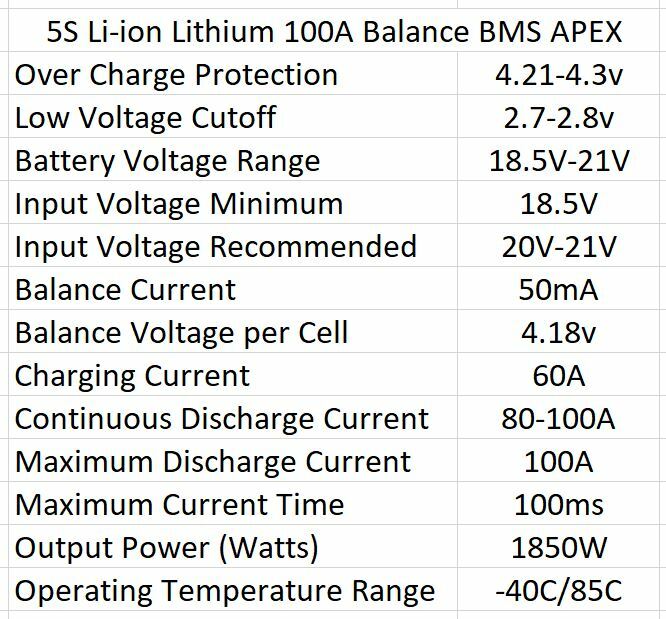

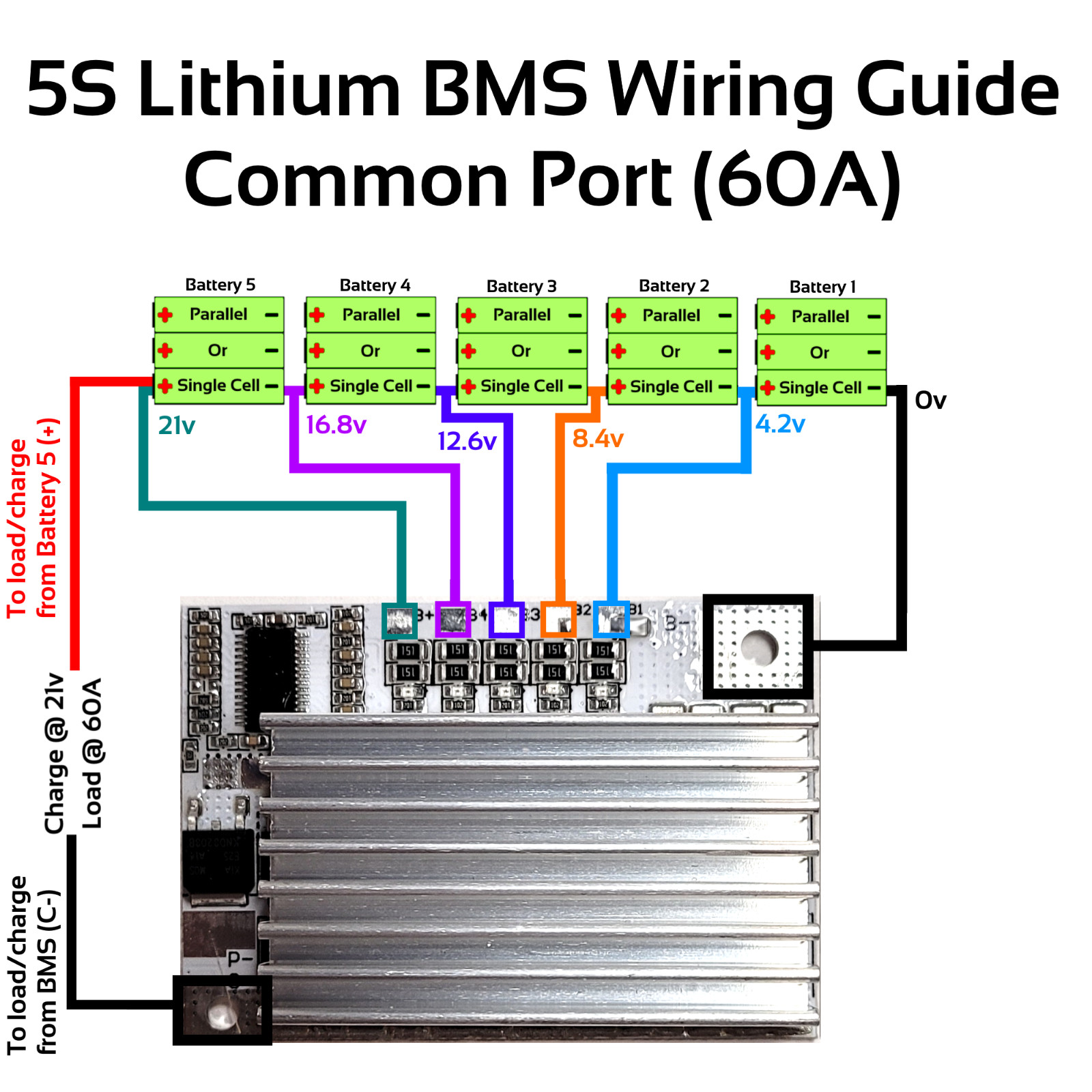

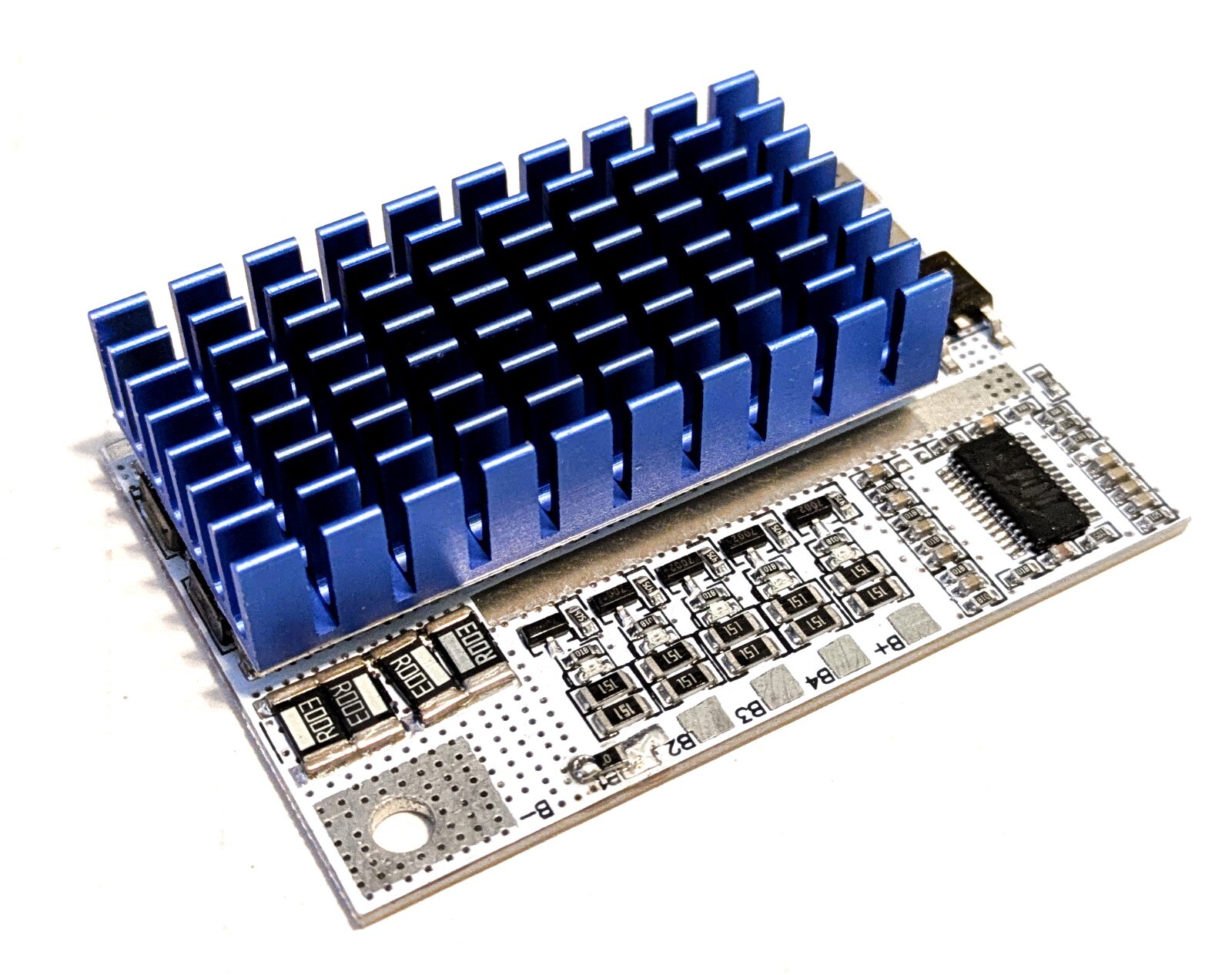

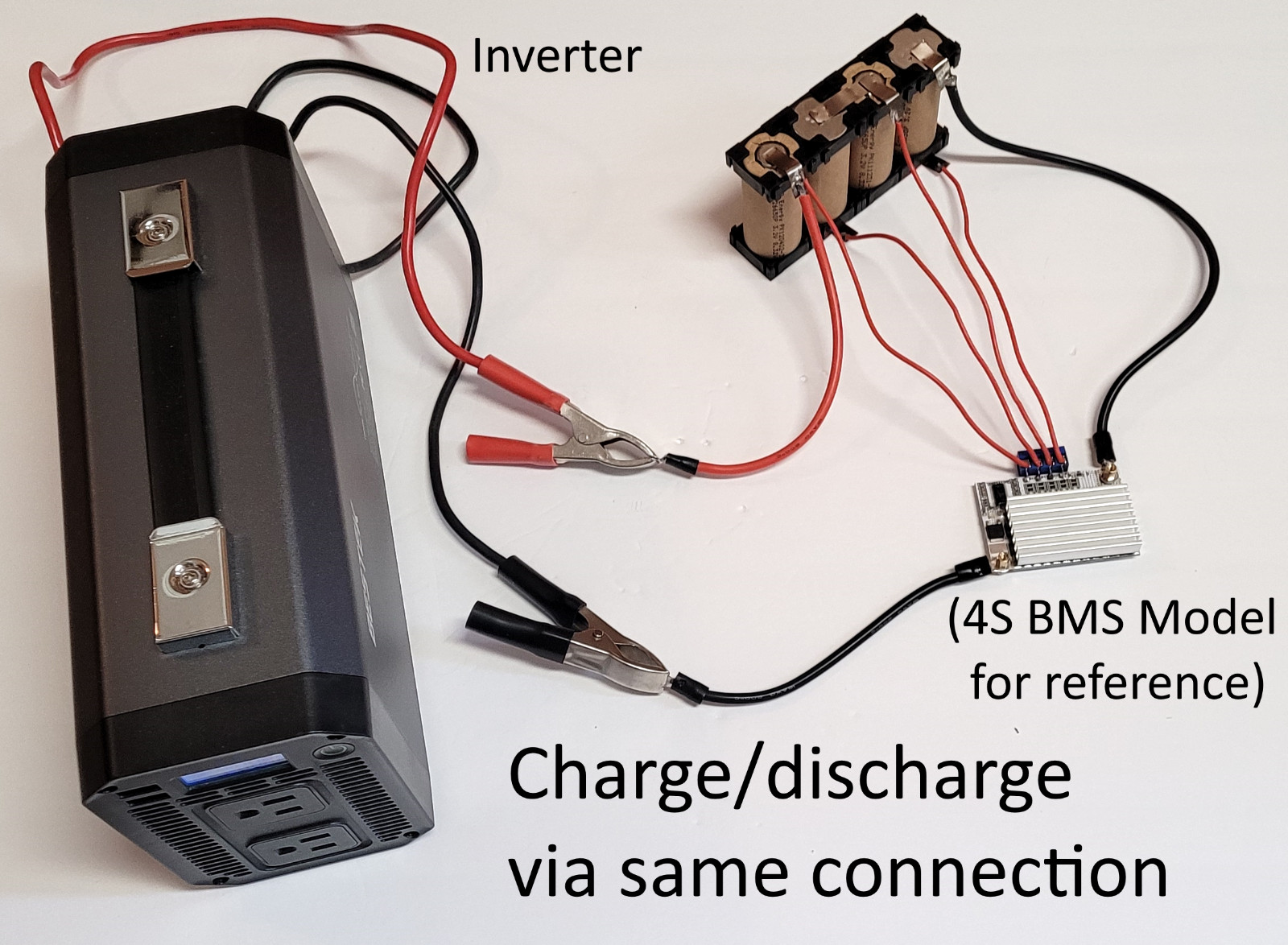

We offer professional design consultation and services. Please let us know about your project! Purchase price of item will be credited a full 100% towards consultation information and services. Billed @$65 per hour, in 15min increments. Description:This BMS balance board is used for a lithium battery pack to equalize voltage and protect the cells. This module charges, discharges, balances, and acts as a low voltage/over charge cutoff. Wires are not included. We recommend 16-12ga wire for the load bearing lines, and 22-18ga wire for the balance leads. Soldering is required. There are 2 options to wire the BMS. The first option uses the COMMON Port for both charge and discharge at 60A. The second option, uses a SEPARATE Port for charging (60A) and discharging (100A). Battery compatibility: Voltage of 2.5V - 4.2V lithium battery (18650, 26650, LiPo, Li-ion)Charging input voltage: 21VMaximum starting current: 100ADischarge current: 60A-100ACharge current: 60ABoard Size: approx. 42*60*7.4mmPackage includes: 1 x Li-ion Battery Protection Board Condition is New. Shipped with USPS First Class.
