551lbs Heavy Duty Linear Slide Table w/Bellows Cover,Dust Proof CNC Linear Stage
551lbs Heavy Duty Linear Slide Table w/Bellows Cover,Dust Proof CNC Linear Stage 551lbs Heavy Duty Linear Slide Table w/Bellows Cover,Dust Proof CNC Linear Stage 551lbs Heavy Duty Linear Slide Table w/Bellows Cover,Dust Proof CNC Linear Stage 551lbs Heavy Duty Linear Slide Table w/Bellows Cover,Dust Proof CNC Linear Stage 551lbs Heavy Duty Linear Slide Table w/Bellows Cover,Dust Proof CNC Linear Stage 551lbs Heavy Duty Linear Slide Table w/Bellows Cover,Dust Proof CNC Linear Stage 551lbs Heavy Duty Linear Slide Table w/Bellows Cover,Dust Proof CNC Linear Stage 551lbs Heavy Duty Linear Slide Table w/Bellows Cover,Dust Proof CNC Linear Stage 551lbs Heavy Duty Linear Slide Table w/Bellows Cover,Dust Proof CNC Linear Stage 551lbs Heavy Duty Linear Slide Table w/Bellows Cover,Dust Proof CNC Linear Stage 551lbs Heavy Duty Linear Slide Table w/Bellows Cover,Dust Proof CNC Linear Stage 551lbs Heavy Duty Linear Slide Table w/Bellows Cover,Dust Proof CNC Linear Stage 551lbs Heavy Duty Linear Slide Table w/Bellows Cover,Dust Proof CNC Linear Stage

551lbs Heavy Duty Linear Slide Table w/Bellows Cover,Dust Proof CNC Linear Stage

USD 340.34 USD
SKU: IKgcFZIx
Brand: TOSEASTARS
GTIN: Does not apply
Condition: New
Tags: +0.02mm 100KG(Max) 100mm (4 in) 100mm/s 150mm*170mm 20mm 24V 250KG (Max) 2pcs*HGR20 4pcs*HGH20 500 lb Aluminum alloy CNC machining centers TOSEASTARS
Categories: Envelopes & Mailers

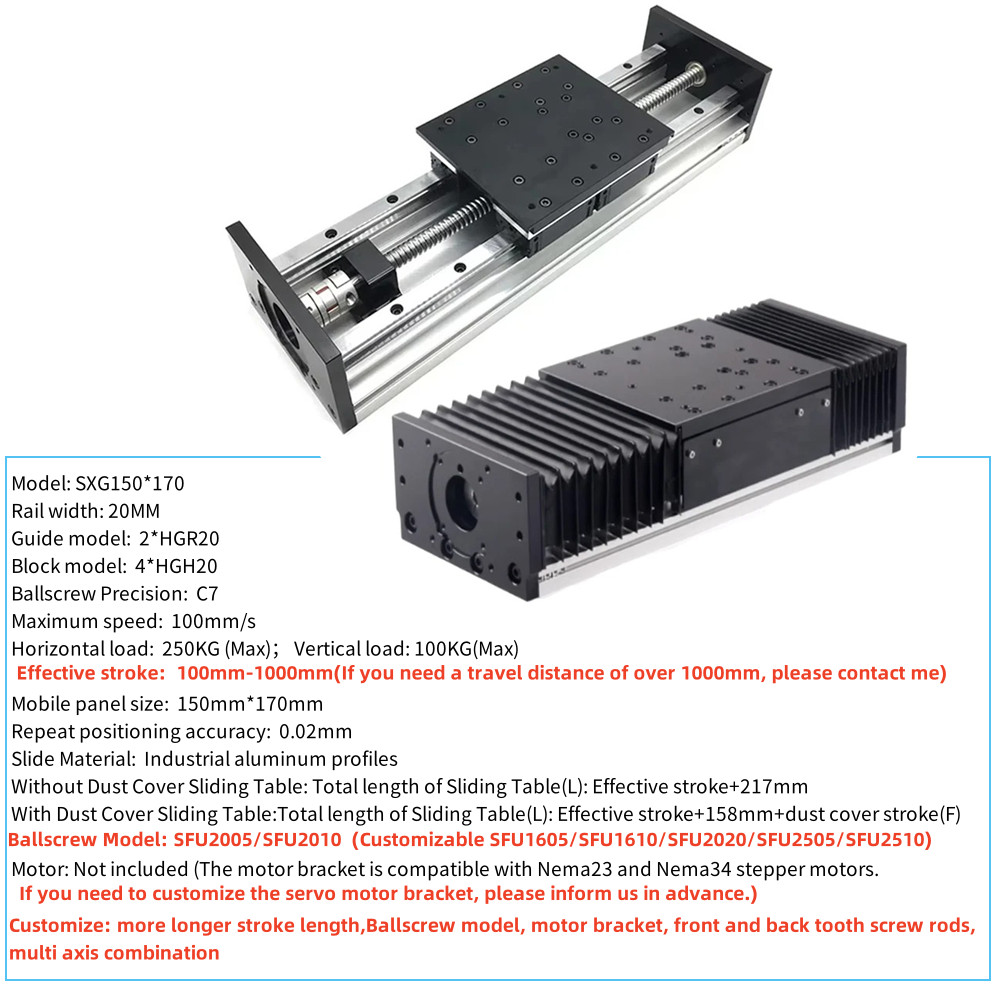

Specifications

Stroke Length100mm (4 in)
BrandTOSEASTARS
Accuracy0.02mm
Materialsaluminum alloy
Voltage24V
Rated Load500 lb
Horizontal Load250KG (Max)
Vertical Load100KG(Max)
Rail Width20mm
Guide Model2pcs*HGR20
Block Model4pcs*HGH20
Maximum Speed100mm/s

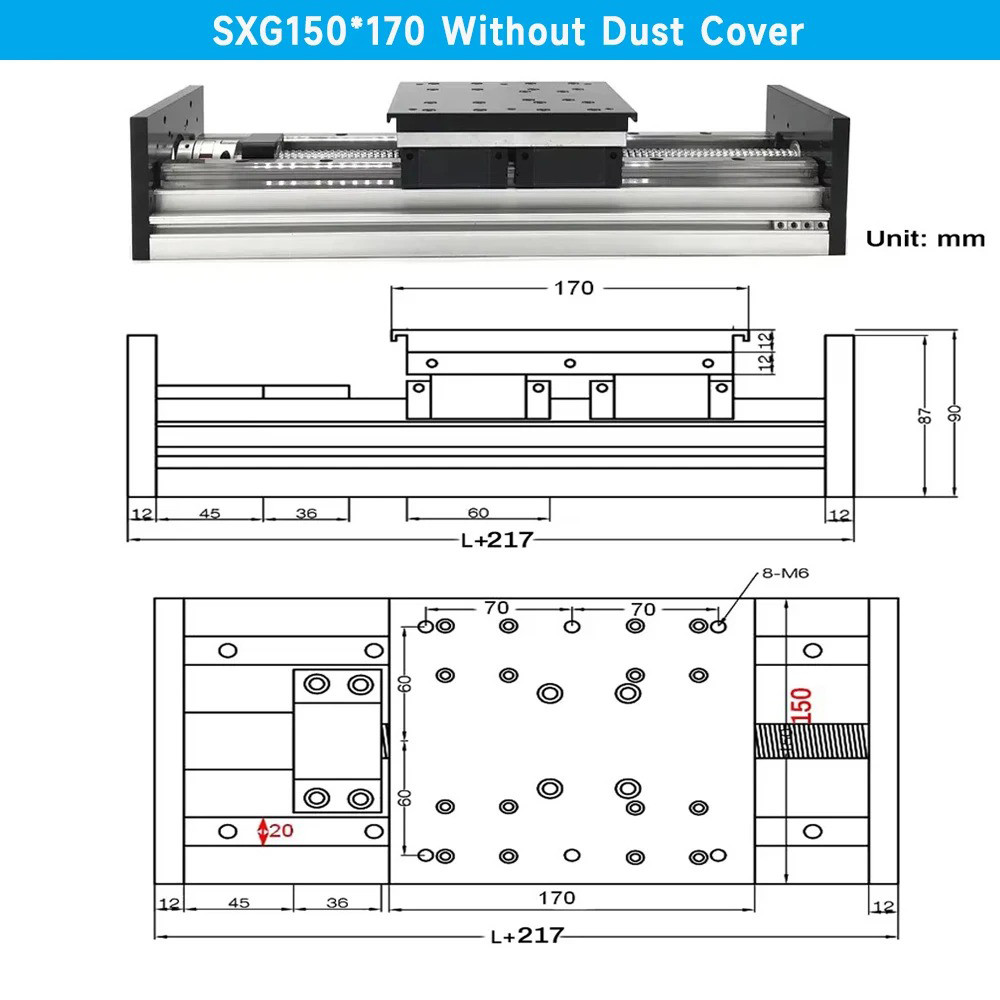

Mobile Panel Size150mm*170mm
Applications 1CNC machining centers

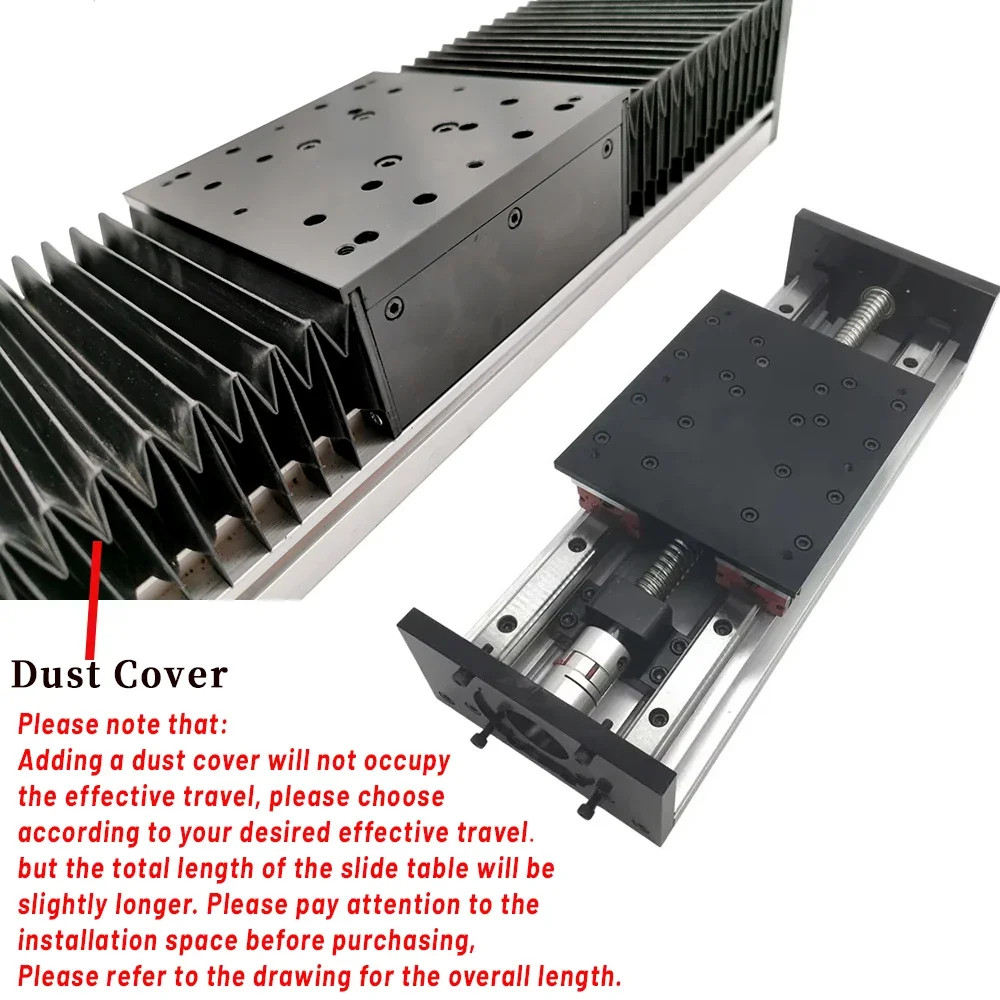

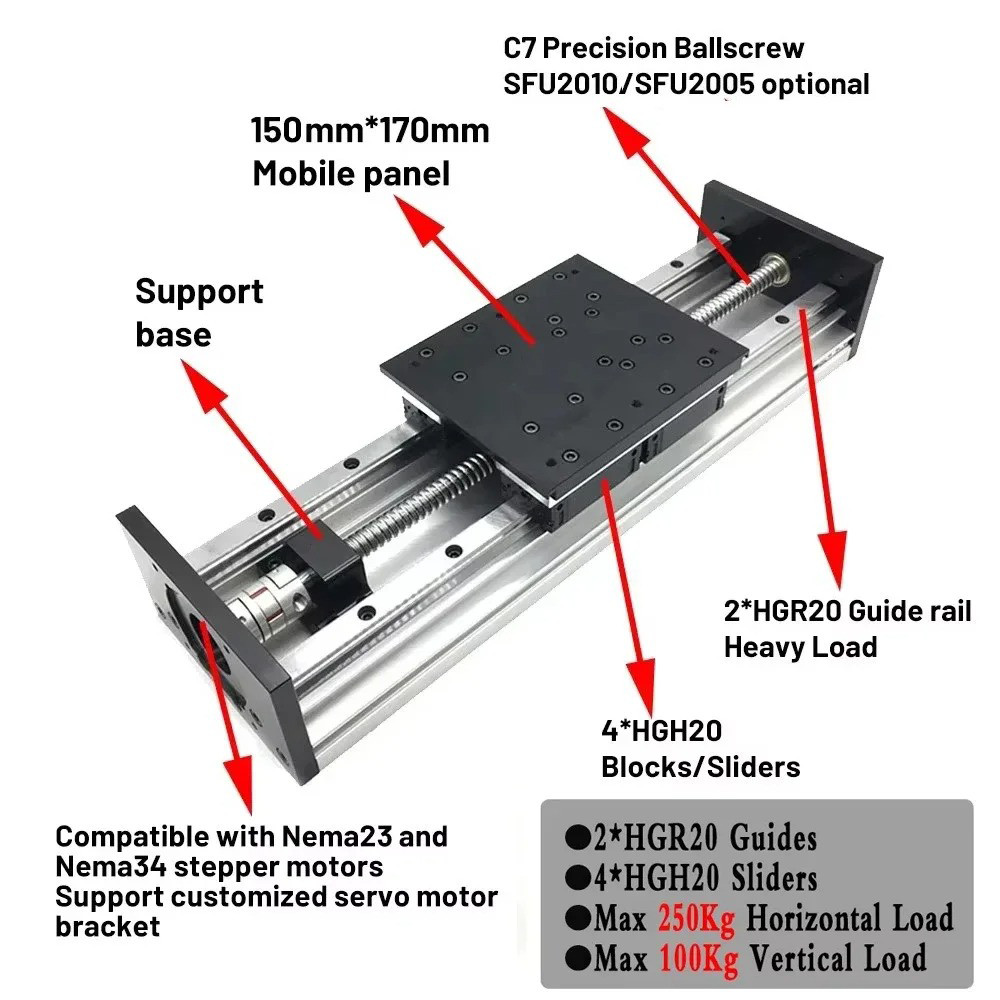

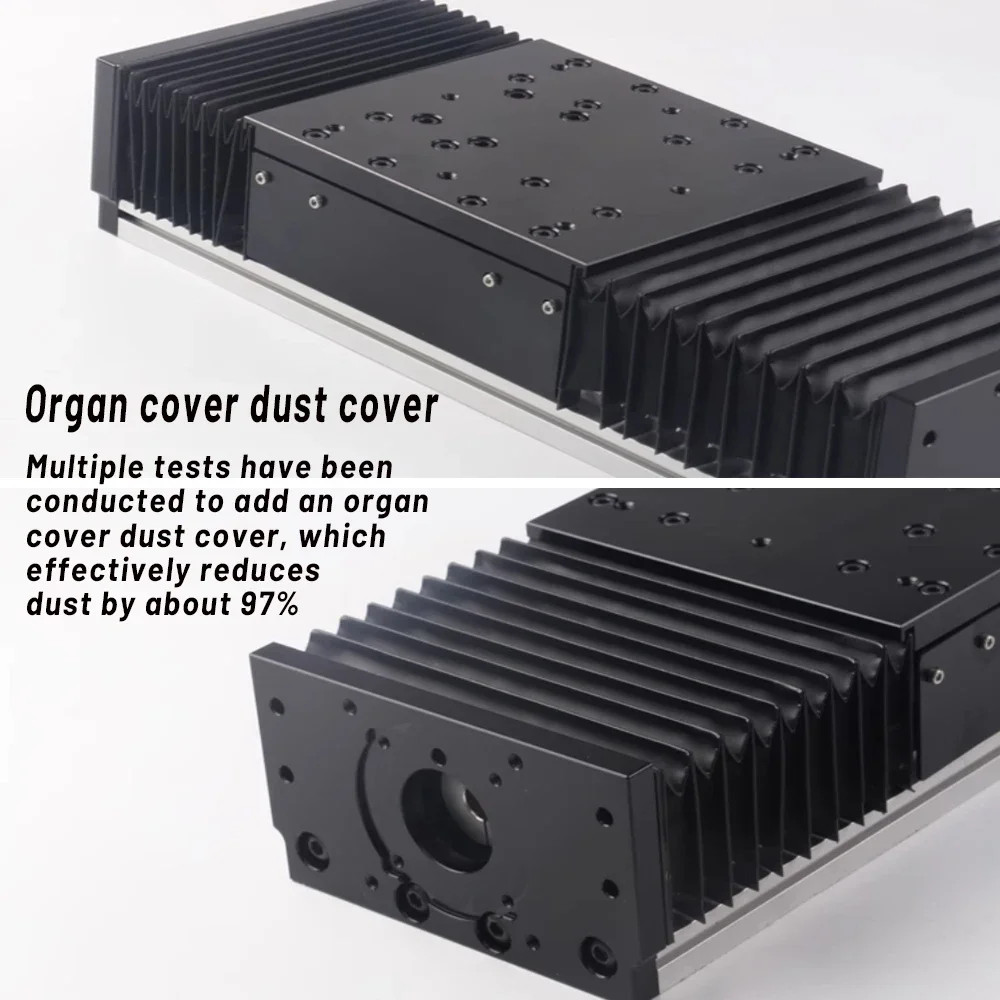

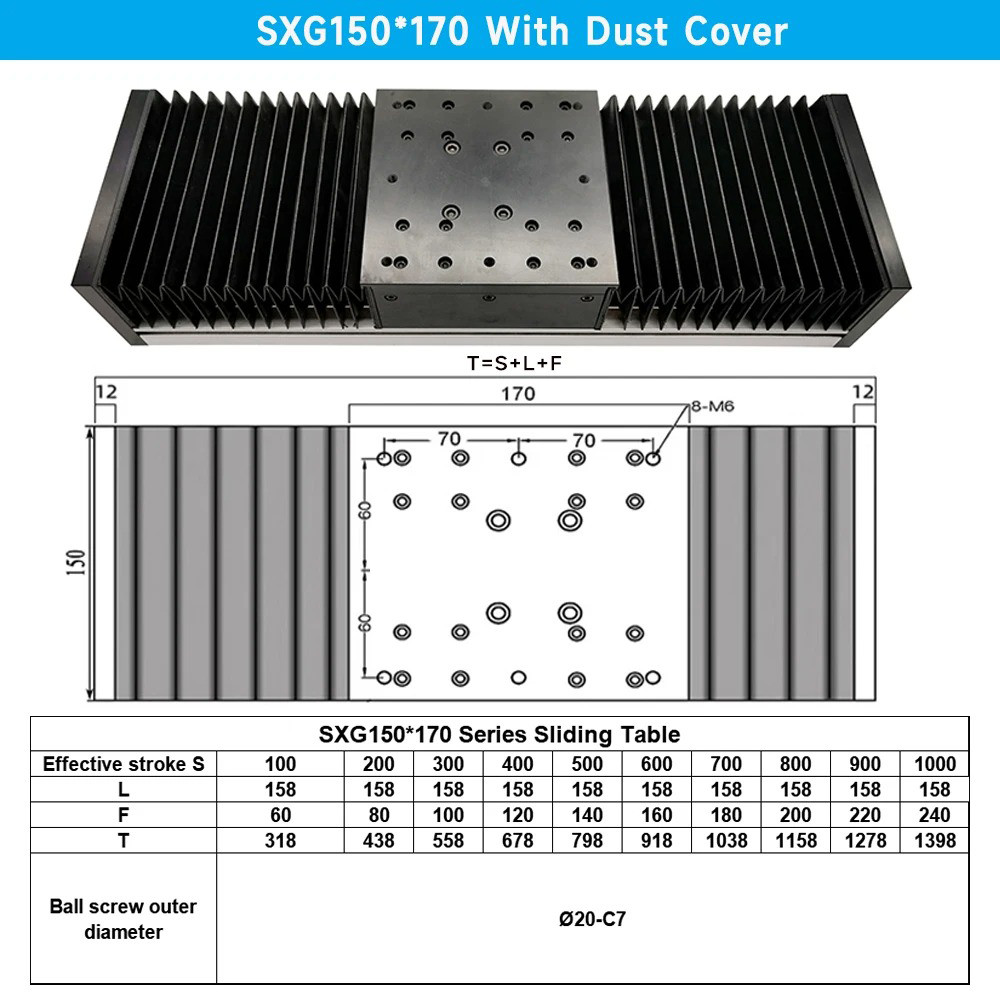

Package list 1* 150mm Width Sliding Table 1* Coupling(8mm/14mm)--for Nema 23 or Nema 34 1* Dust Cover(please choose if you need Dust Cover) Product Overview Industrial-grade linear motion system with integrated bellows dust cover handles extreme 250kg loads(551.16lbs). Features dual HGR20 guide rails, 4x HGH20 blocks, and customizable SFU-series ball screws (C7 precision). 150mm width hardened aluminum profile with 100-1000mm stroke(2''-40'') for demanding automation environments.
