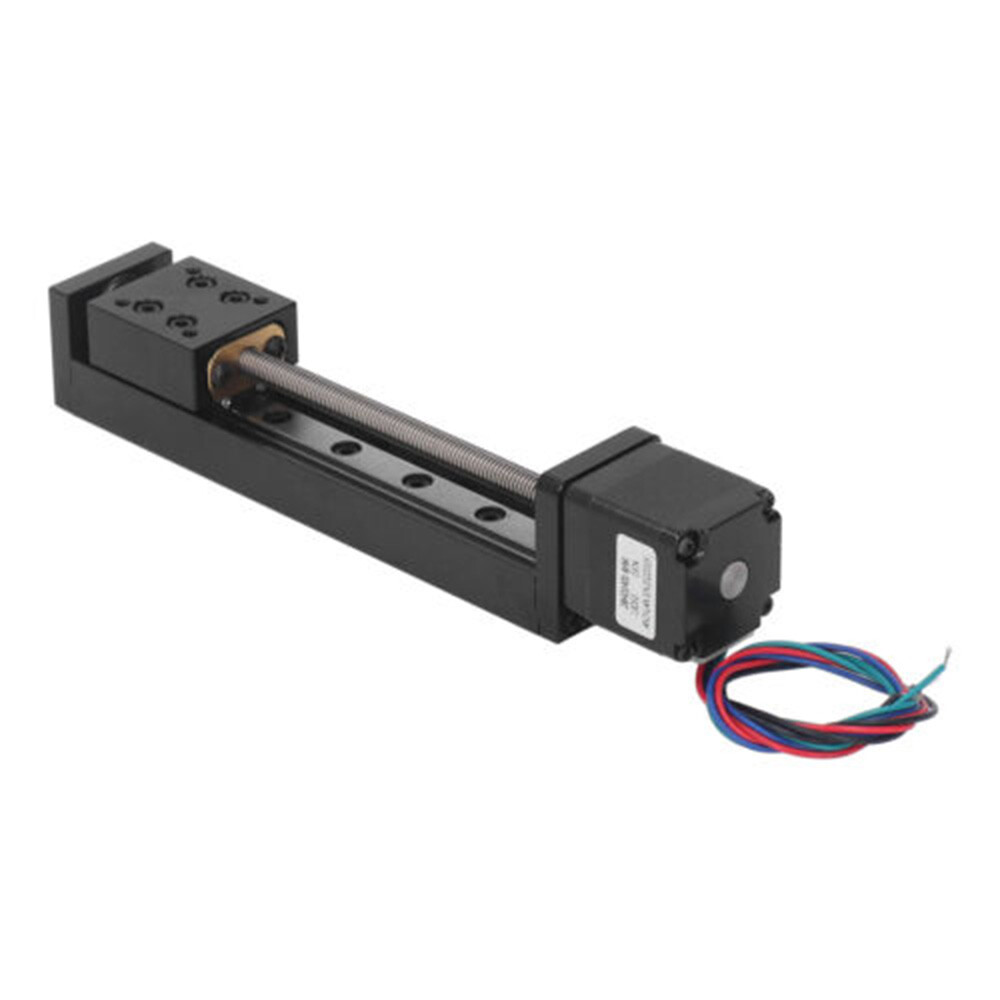

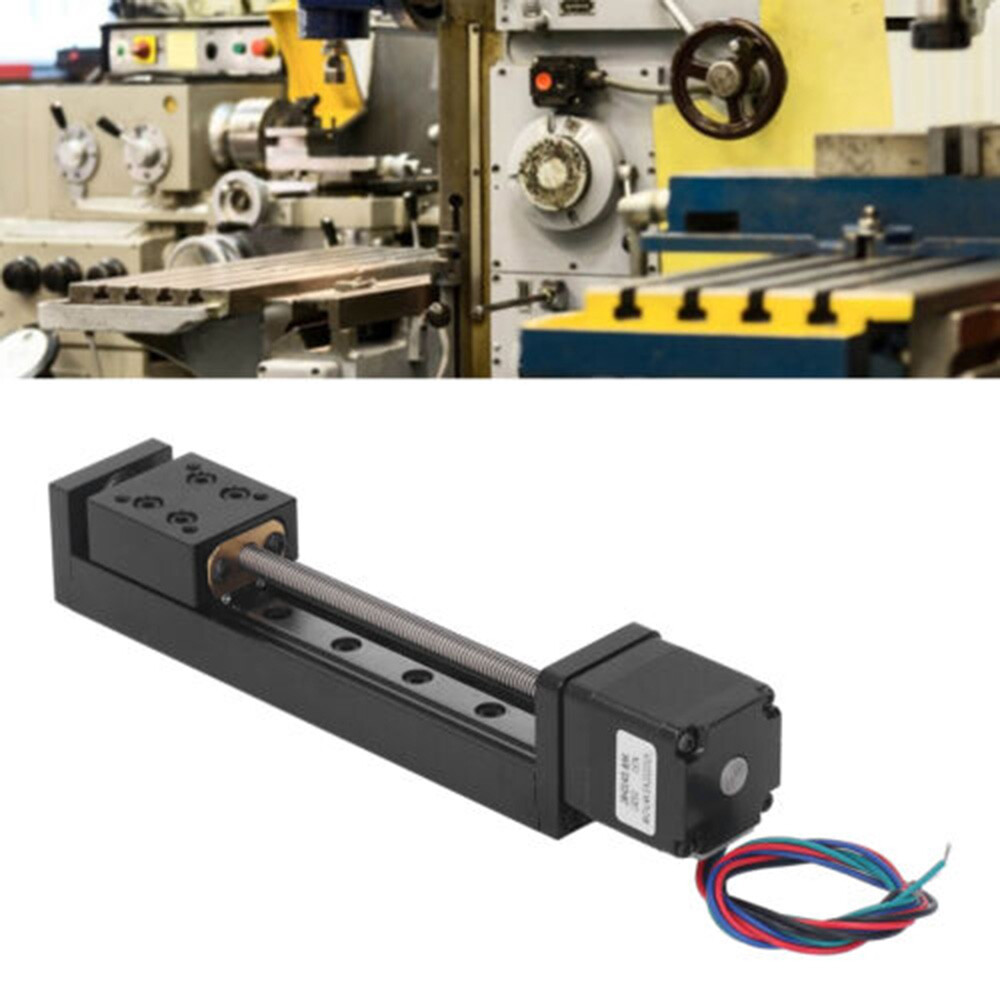

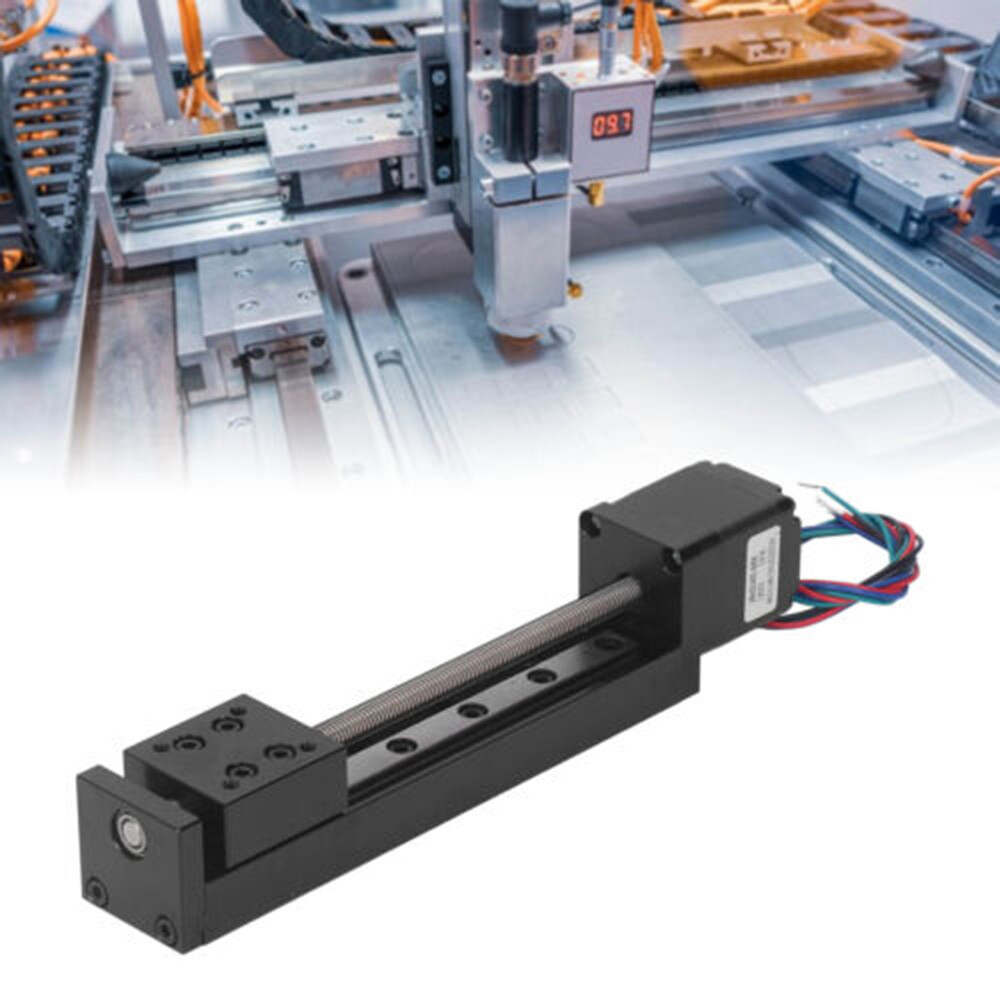

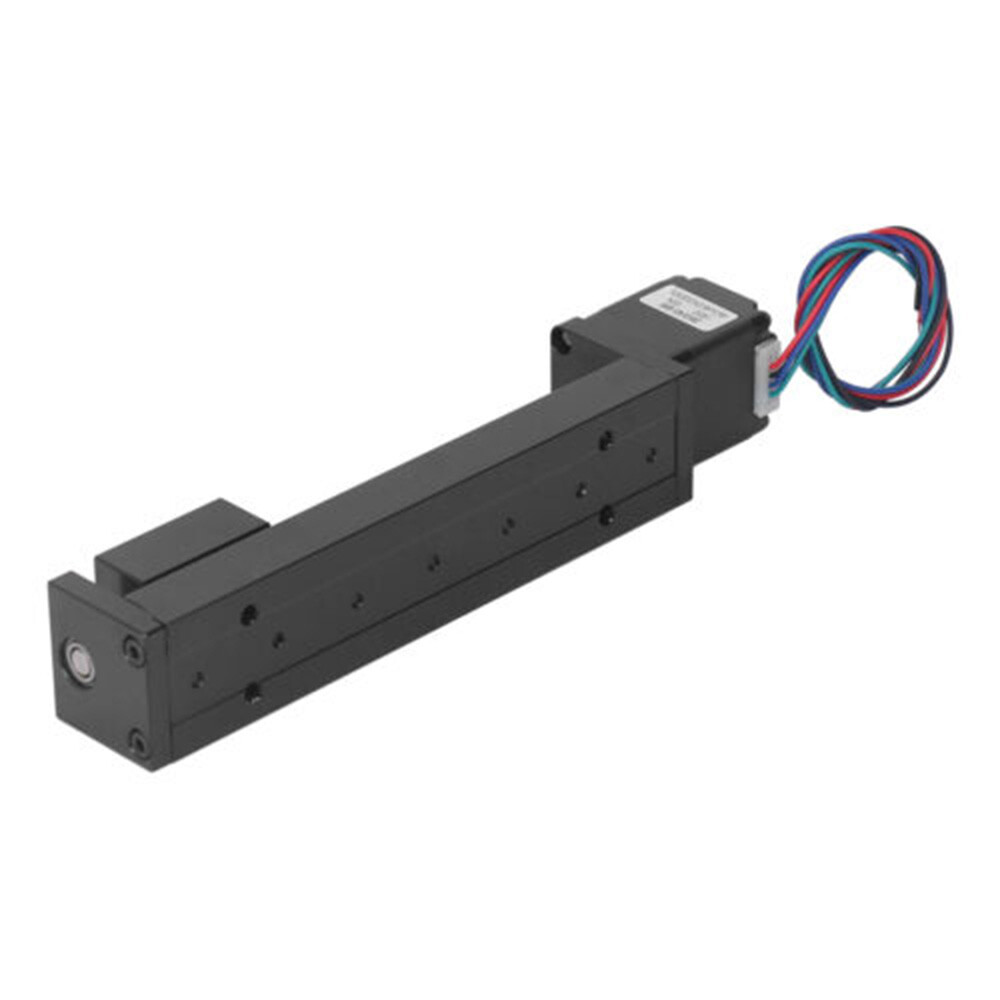

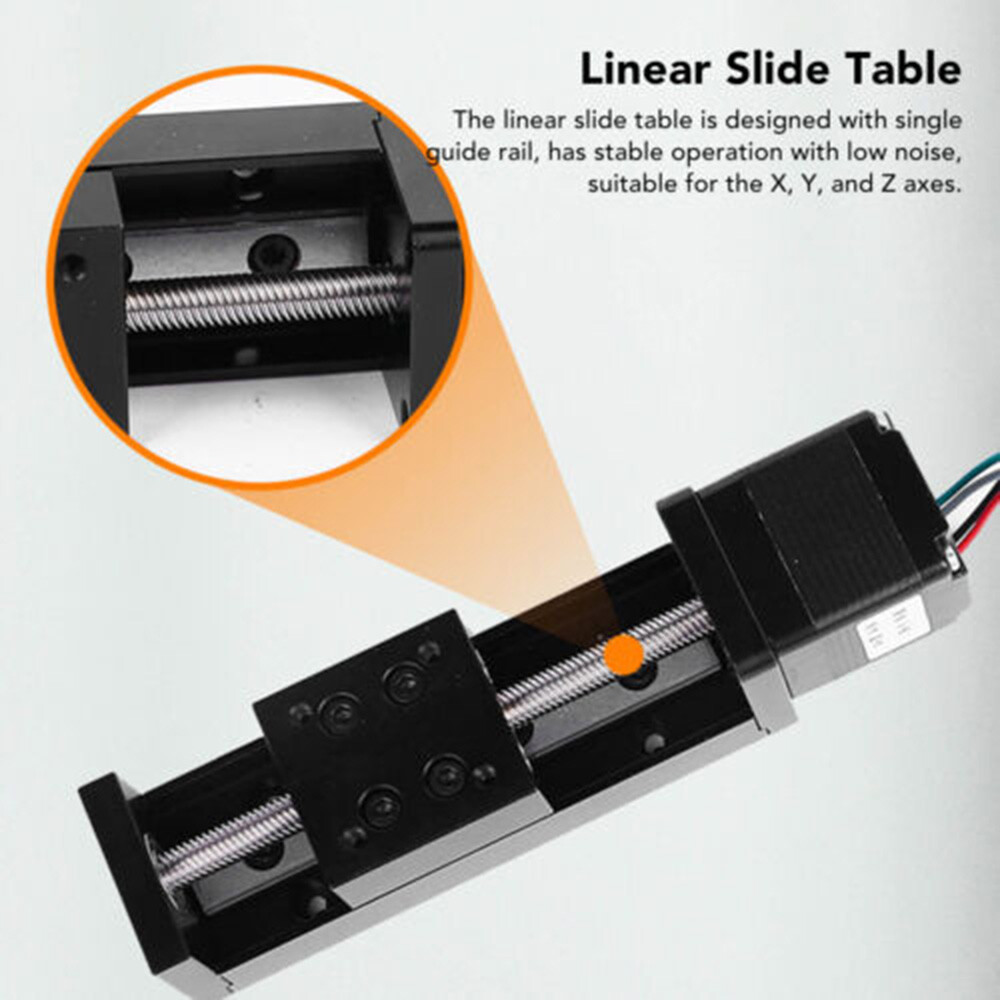

50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit
50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit 50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit 50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit 50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit 50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit 50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit 50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit 50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit 50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit 50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit 50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit 50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit 50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit 50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit

50mm Mini CNC Slide Table Linear stage 1mm Pitch 0.07Nm NEMA11 stepper motor Kit

USD 38.63 USD
SKU: nklS6ZIu
Brand: TEHIGHAUTO
GTIN: Does not apply
Condition: New
Tags: 0.07N.m 11lb 12V 50mm (2 in) China CNC TEHIGHAUTO Trapezoidal lead screw
Categories: Envelopes & Mailers

Specifications

BrandTEHIGHAUTO
Voltage12V
Rated Load11lb
ModelTrapezoidal lead screw
Country/Region Of ManufactureChina

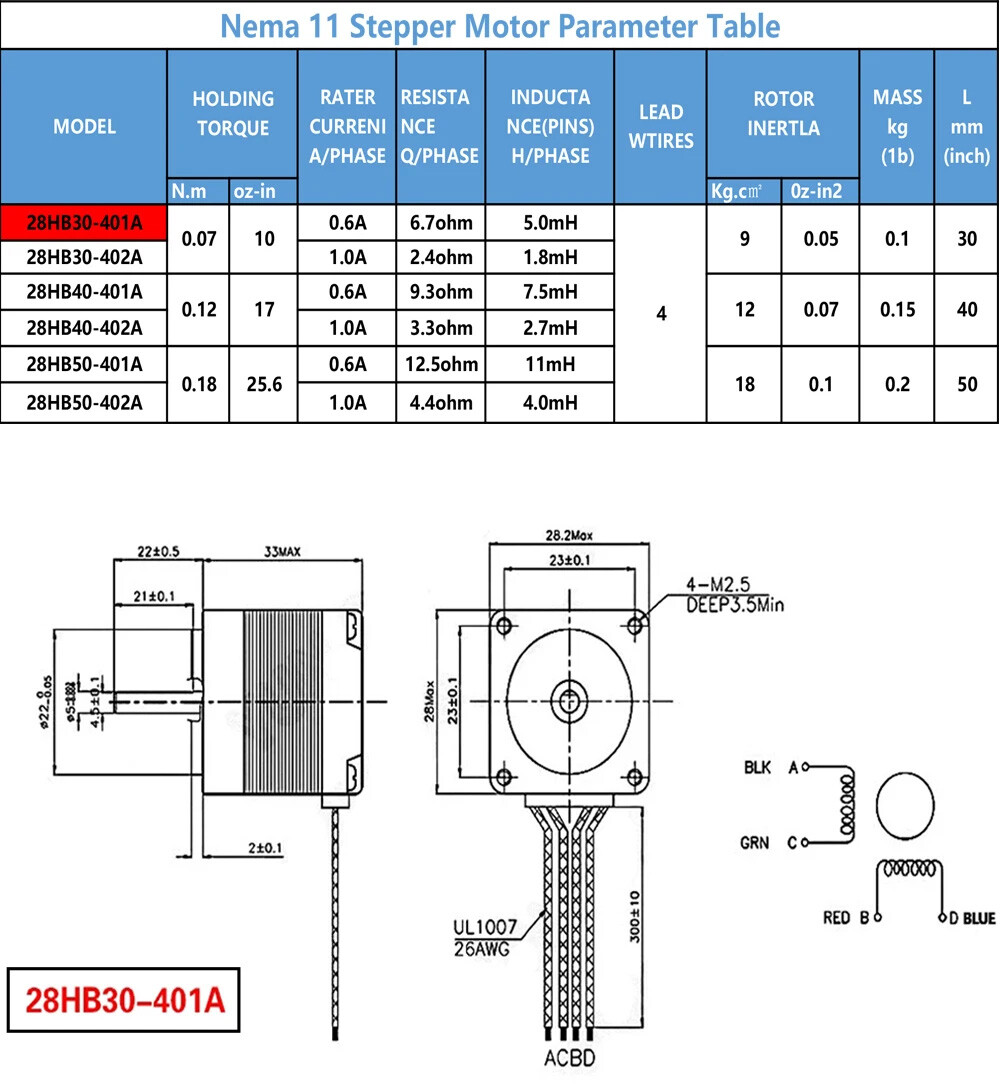

Actuation Force0.07N.m
Stroke Length50mm (2 in)

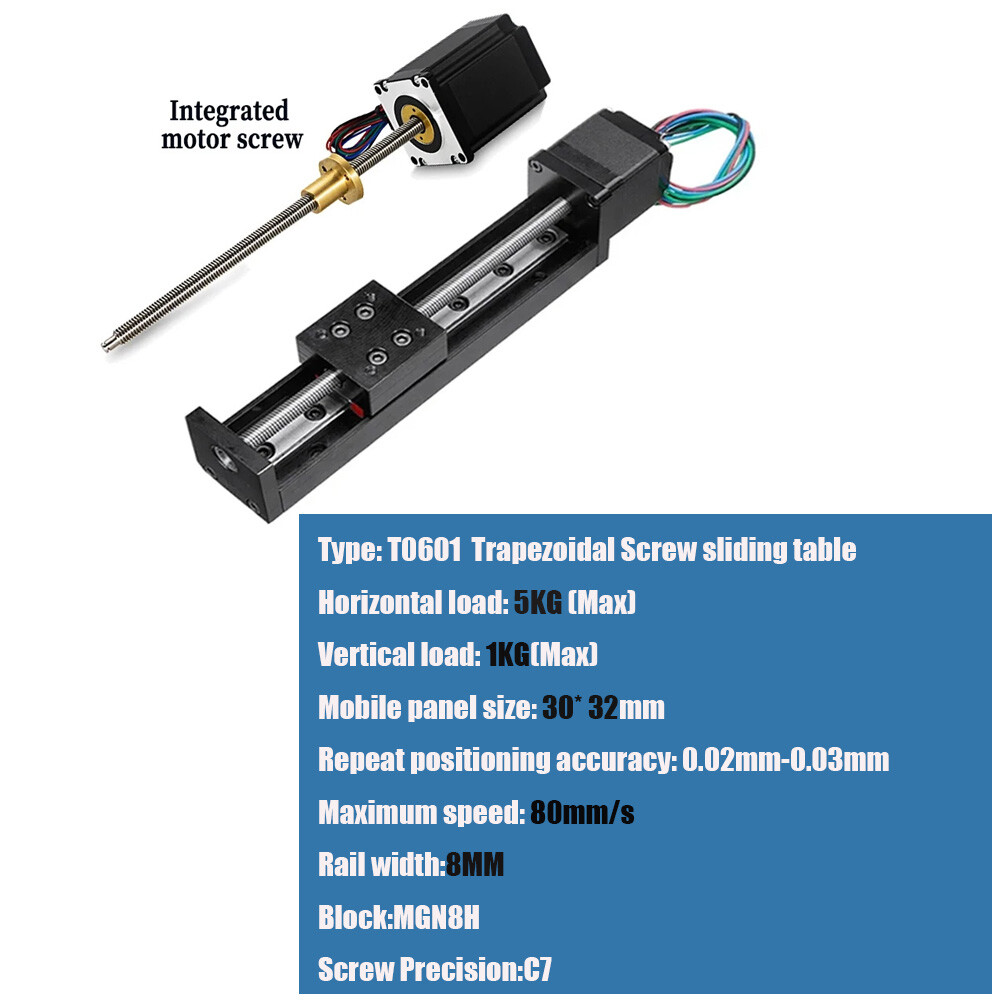

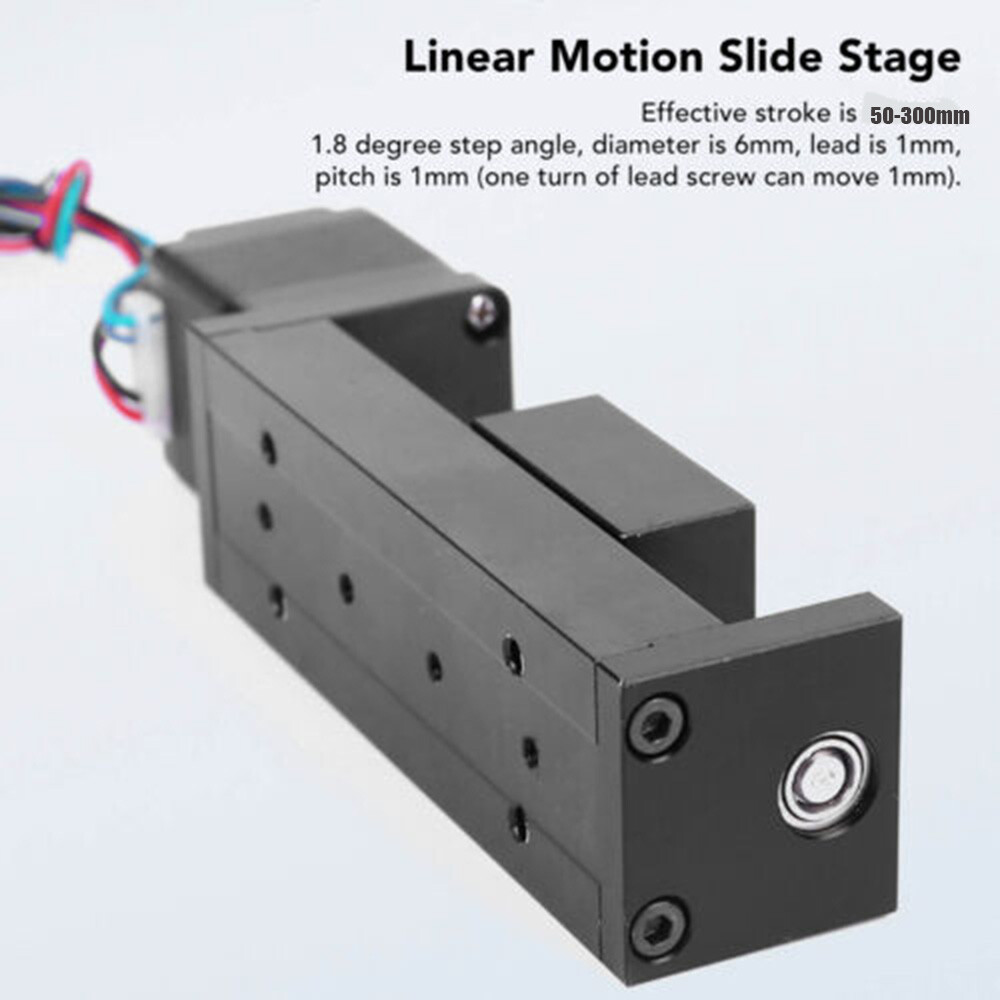

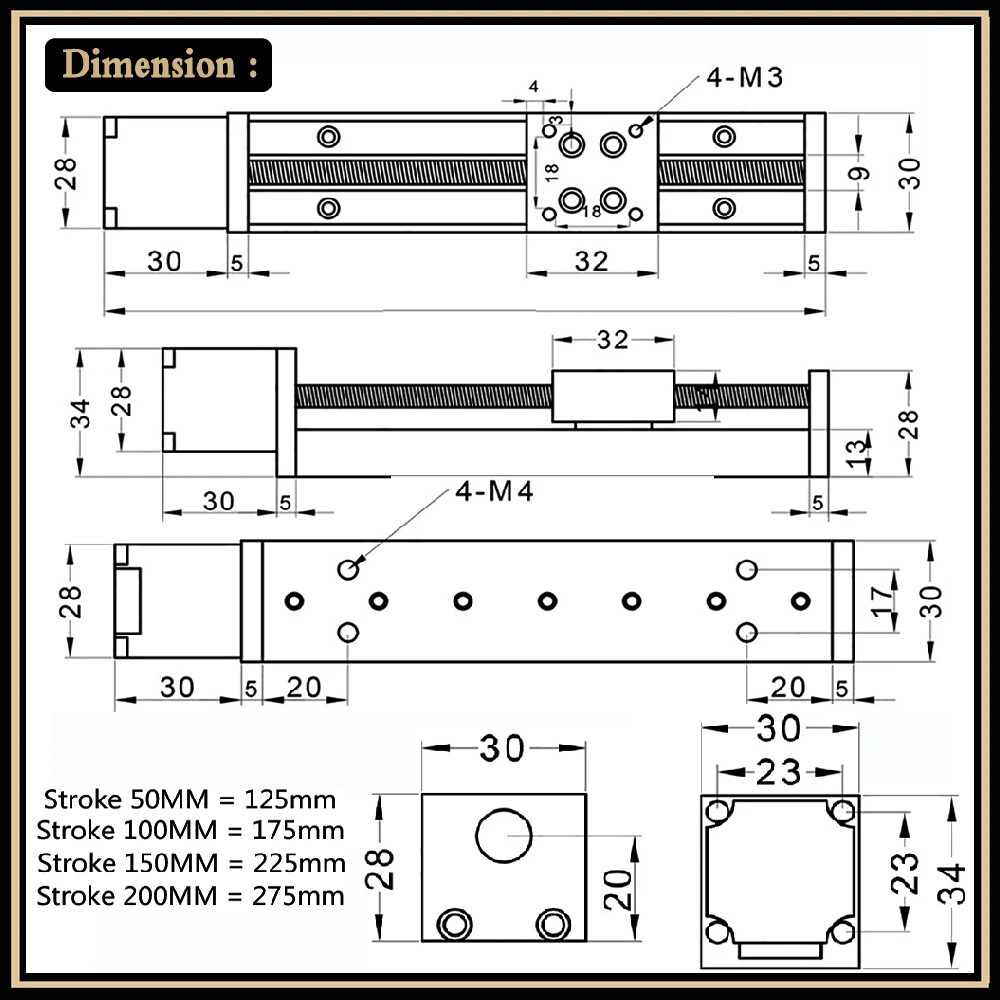

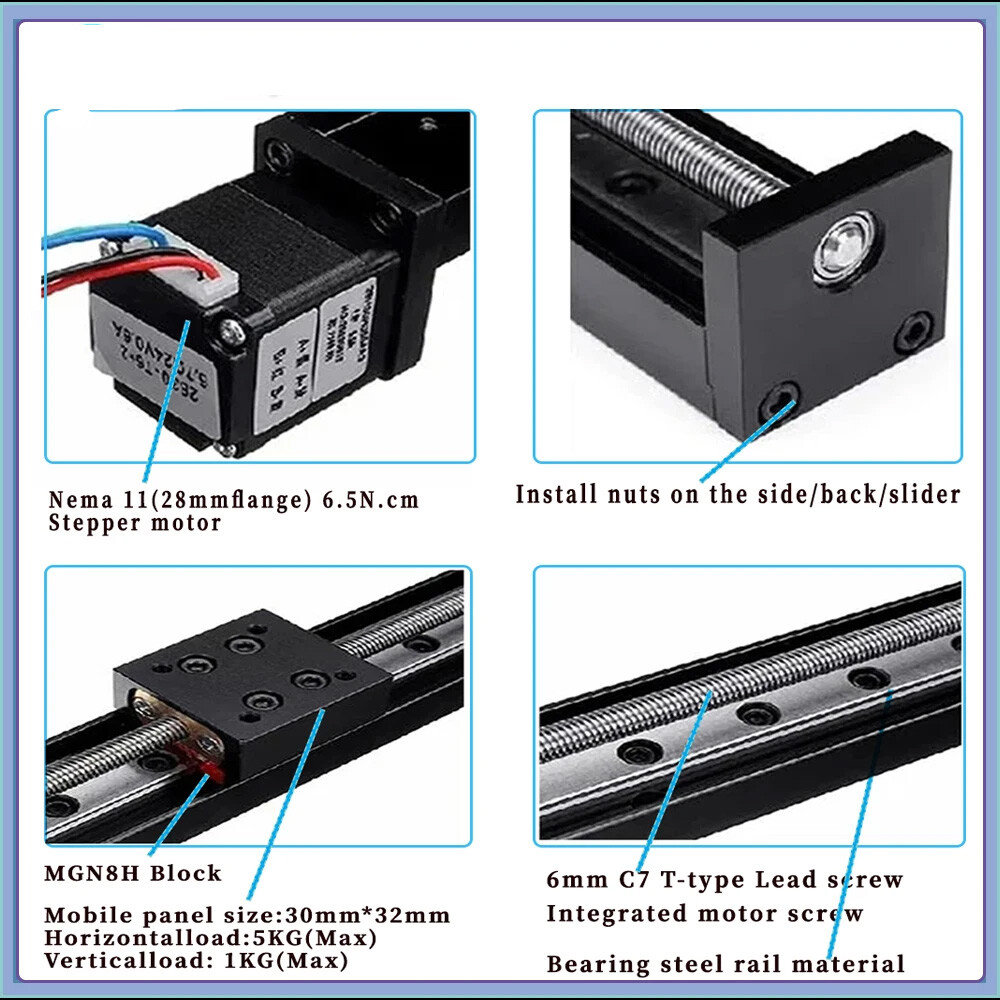

About this item Model: T06 Slide type: Trapezoidal screw slide table Horizontal load: 5KG (Max) Vertical load: 1KG (Max) Effective stroke: 50mm Total Length: Effective Stroke+75mm Mobile panel size:30mm*32mm Repeat positioning accuracy: 0.02mm-0.03mm Maximum speed: 80mm/s Rail width: 6MM Block: MGN8H Screw Precision:C7 Pitch: 1mm(it means that the motor rotates once and the moving panel moves 1mm.).

Related Items

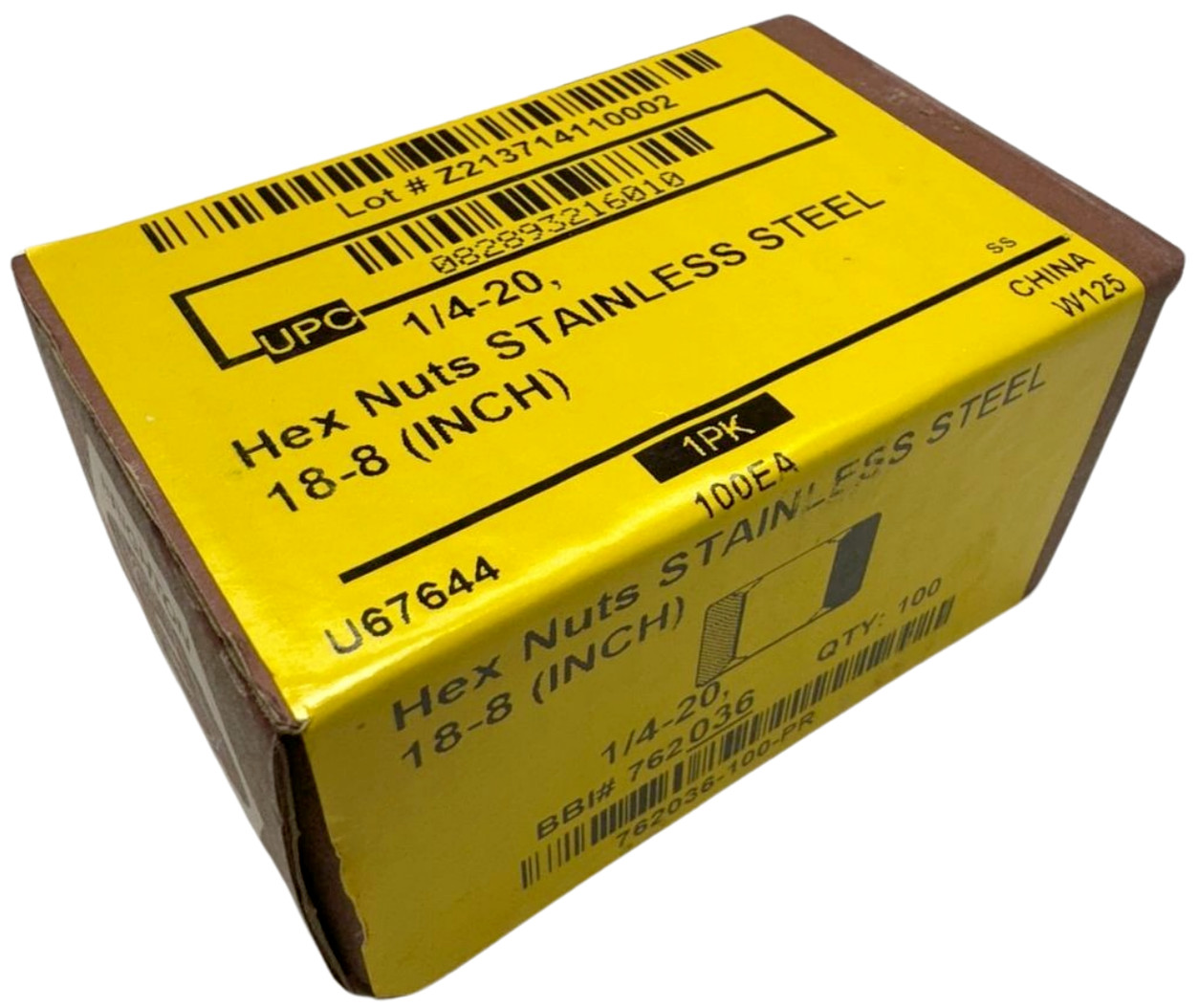

(Box of 100) Brighton 762036-100-PR Hex Nuts 1/4-20 Stainless Steel 18-8
(Box of 100) Brighton 762036-100-PR Hex Nuts 1/4-20 Stainless Steel 18-8

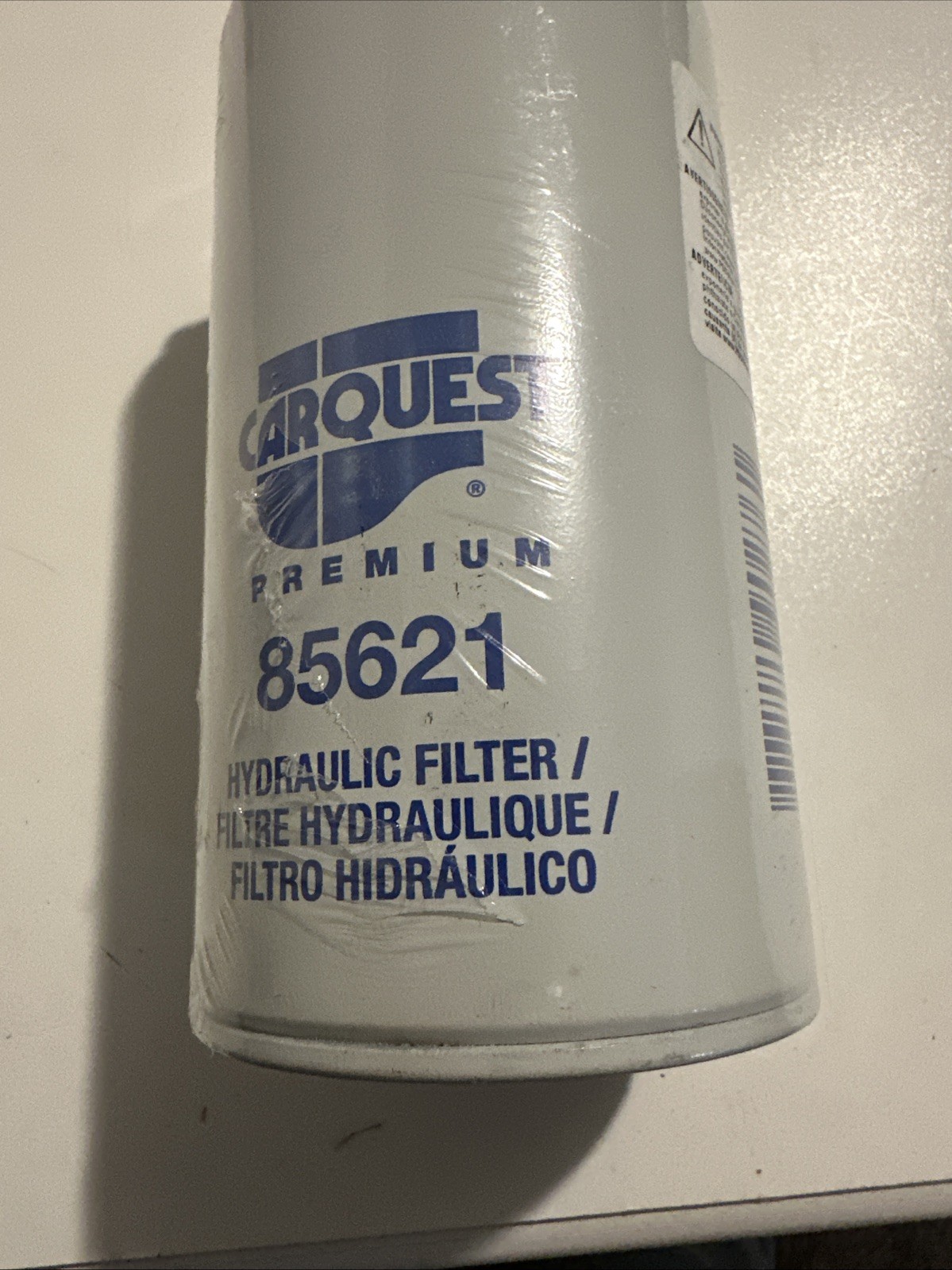

 Carquest Premium HD Hydraulic Filter 85621
