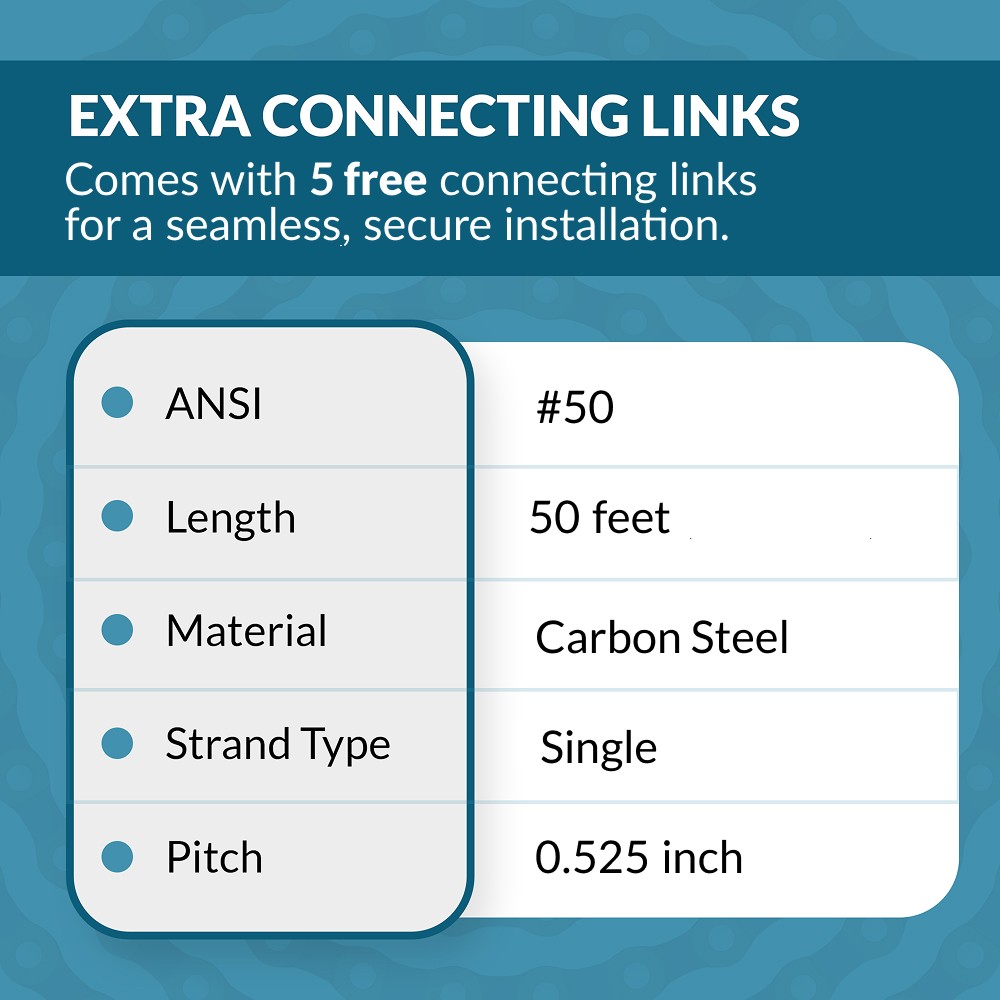

#50 Roller Chain x 50 feet + 5 Connecting Links + Same Day Expedited Shipping
USD 145.90 USD
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| MPN | RC-#50/50FT |
| Brand | PGN Bearings |
| UPC | 810104524421 |
| Model | #50 |
| Chain Size | #50 |
| Chain Pitch | 5/8 in |
| Chain Length | 50 ft |

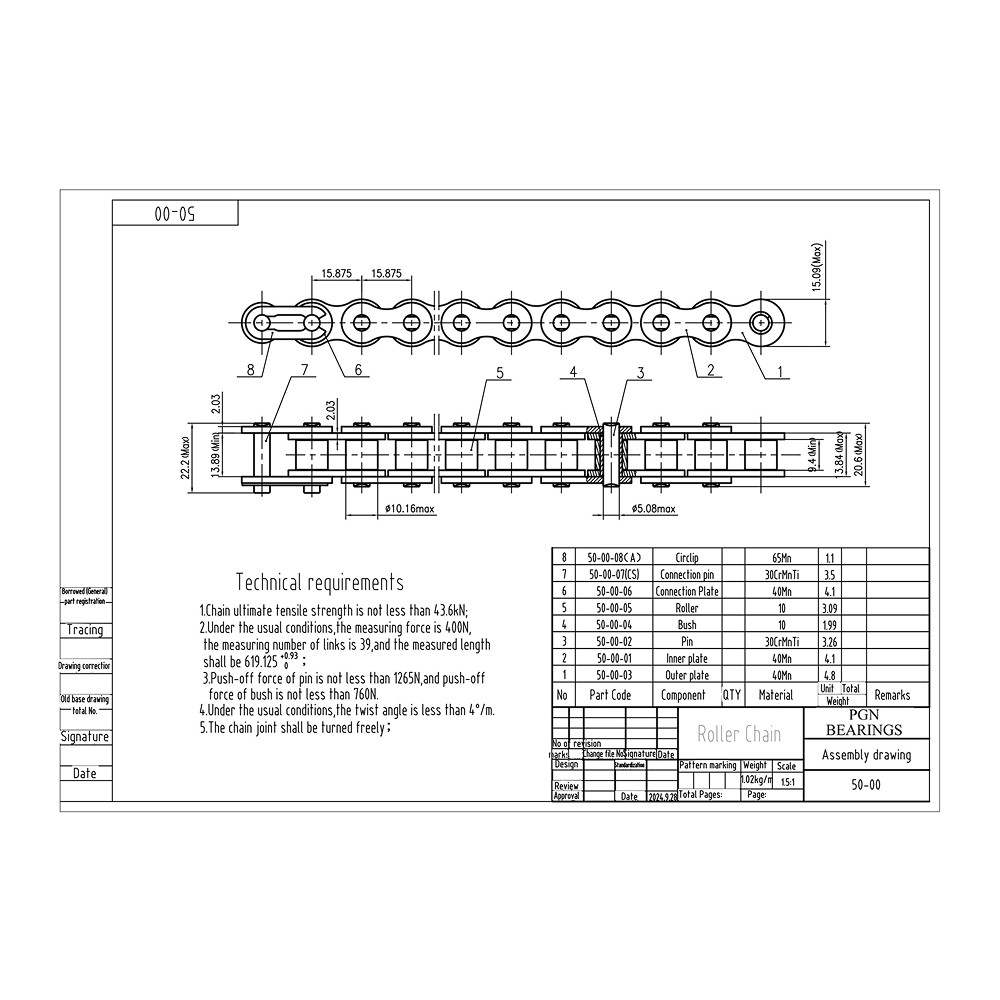

#50 Roller Chain x 50 feet ANSI Chain No.: #50 Lenght: 50 feet Pitch (P): 0.625 inch (15.875 mm) Roller Diameter (d1 max): 0.4 inch (10.16 mm) Width Between Inner Plates (b1 min): 0.370 inch (9.4 mm) Pin Diameter (d2 max): 0.2 inch (5.08 mm) Pin Lenght (L max): 0.815 inch (20.70 mm) Pin Lenght (Lc max): 0.874 inch (22.20 mm) Inner Plate Depth (h2 max): 0.594 inch (15.09 mm) Plate Thickness (T max): 0.080 inch (2.03 mm) Ultimate Tensile Strenght (Q min): 22.20/5045 kN/LB Average Tensile Strenght (Qo): 29.4 kN Weight (q): 0.685 lb/ft (1.02 kg/m)
