(5 Pack) PGN #40 Roller Chain Offset Links – 1/2″ Pitch – Half Link
USD 6.95 USD
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| MPN | RC-#40-OL/5 |
| Brand | PGN Bearings |
| UPC | 810135403573 |
| Manufacturer Part Number | RC-#40-OL/5 |

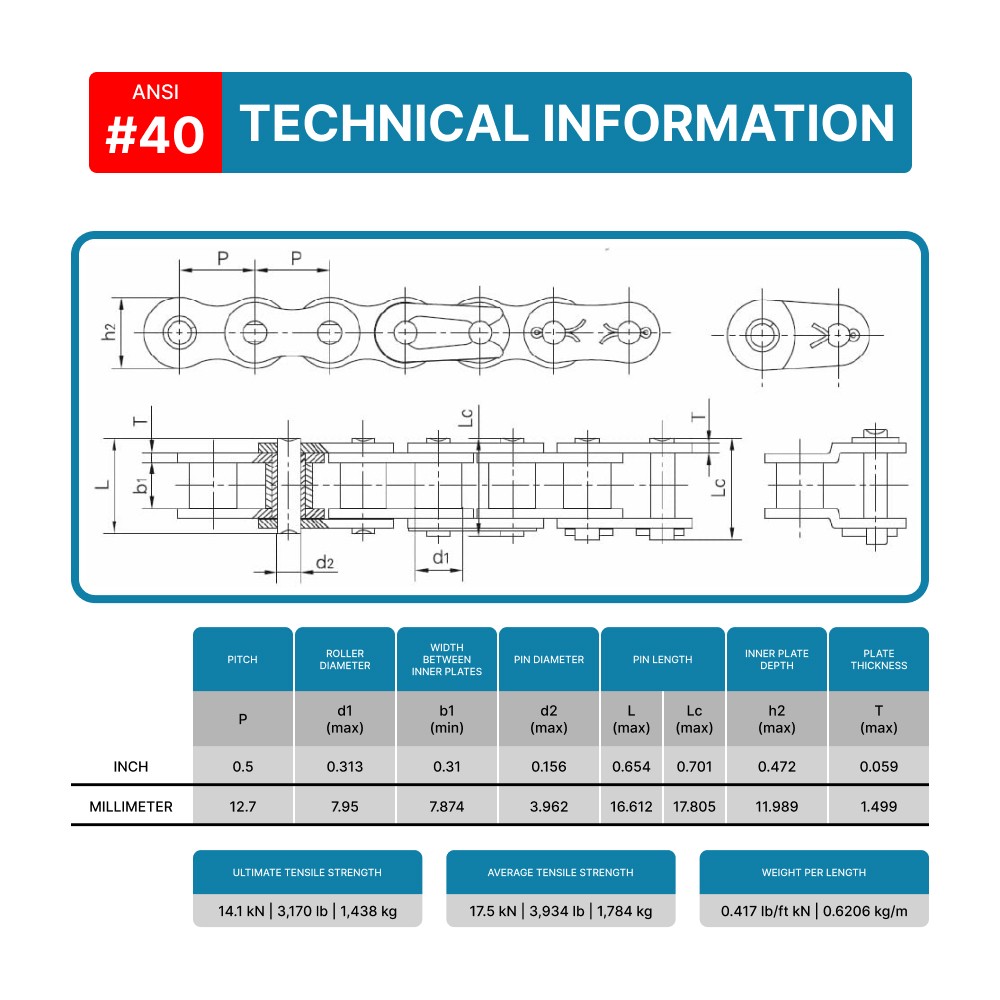

Units per package: 5 Below are the specifications for the chain that uses this half link: ANSI Chain No.: #40 Pitch (P): 0.5 inch (12.7 mm) Roller Diameter (d1 max): 0.313 inch (7.95 mm) Width Between Inner Plates (b1 min): 0.310 inch (7.85 mm) Pin Diameter (d2 max): 0.156 inch (3.96 mm) Pin Lenght (L max): 0.654 inch (16.60 mm) Pin Lenght (Lc max): 0.701 inch (17.80 mm) Inner Plate Depth (h2 max): 0.472 inch (12.0 mm) Plate Thickness (T max): 0.059 inch (1.50 mm) Breaking Load: 9.6 kN (2182 lbs) Weight: 0.417 lb/ft (0.62 kg/m)
