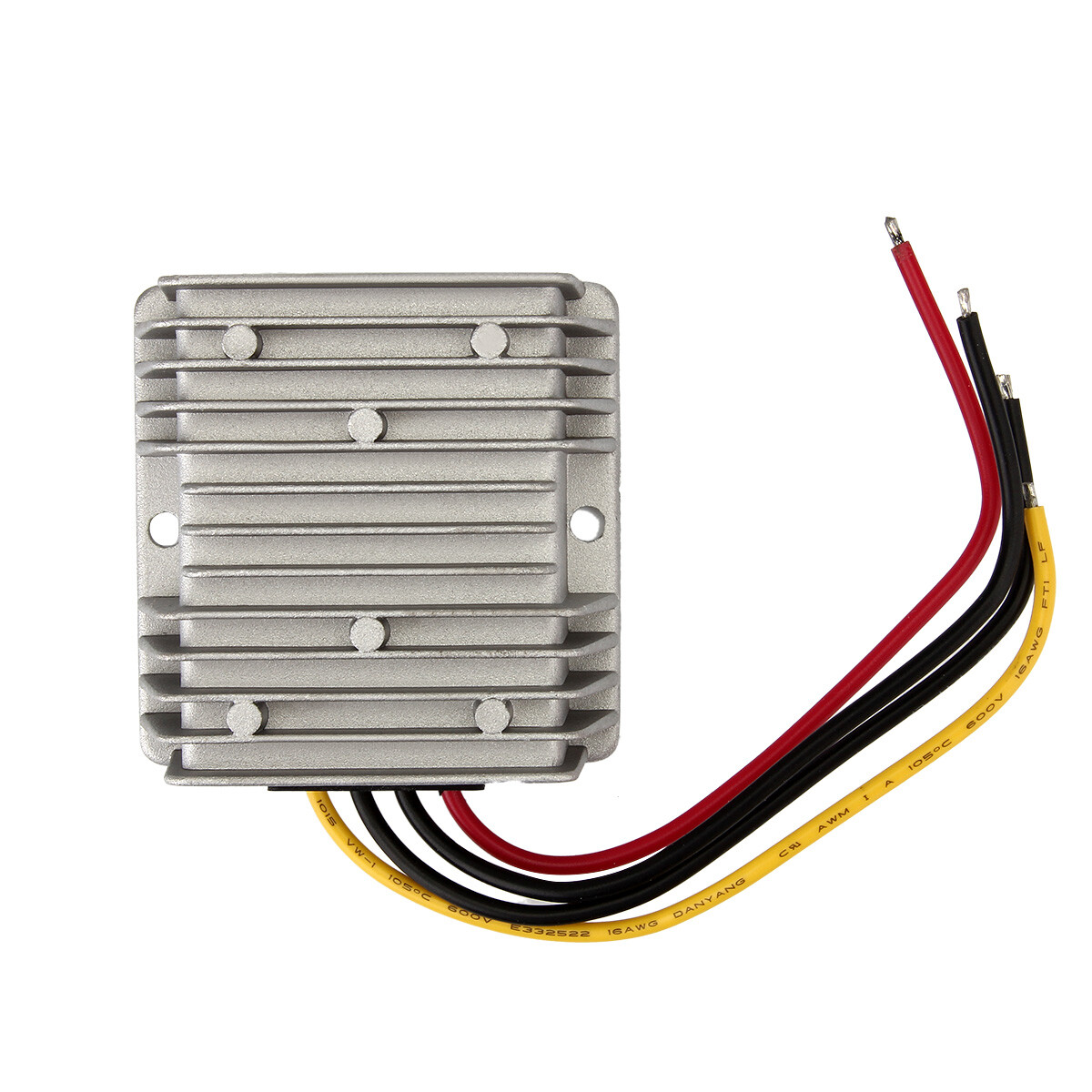

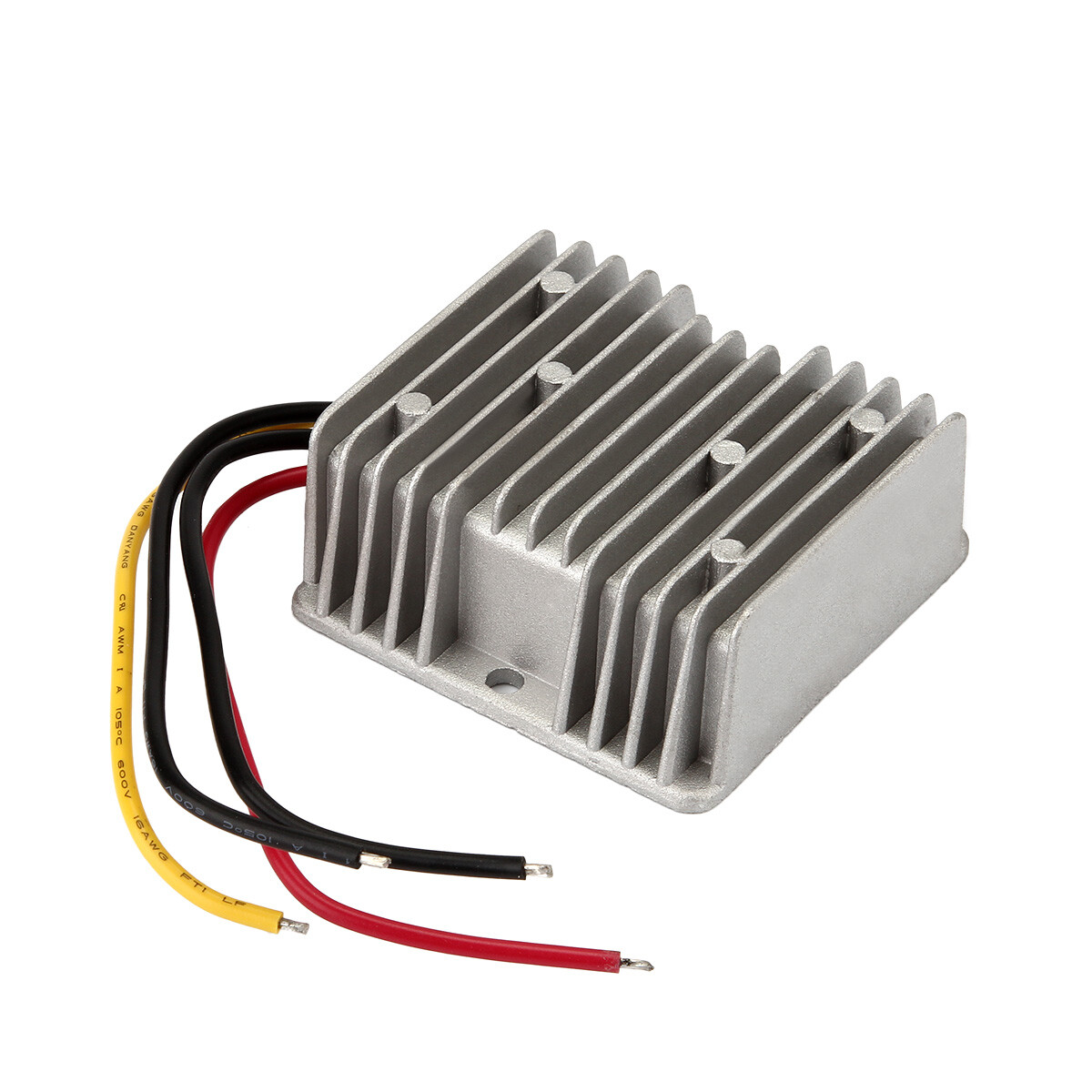

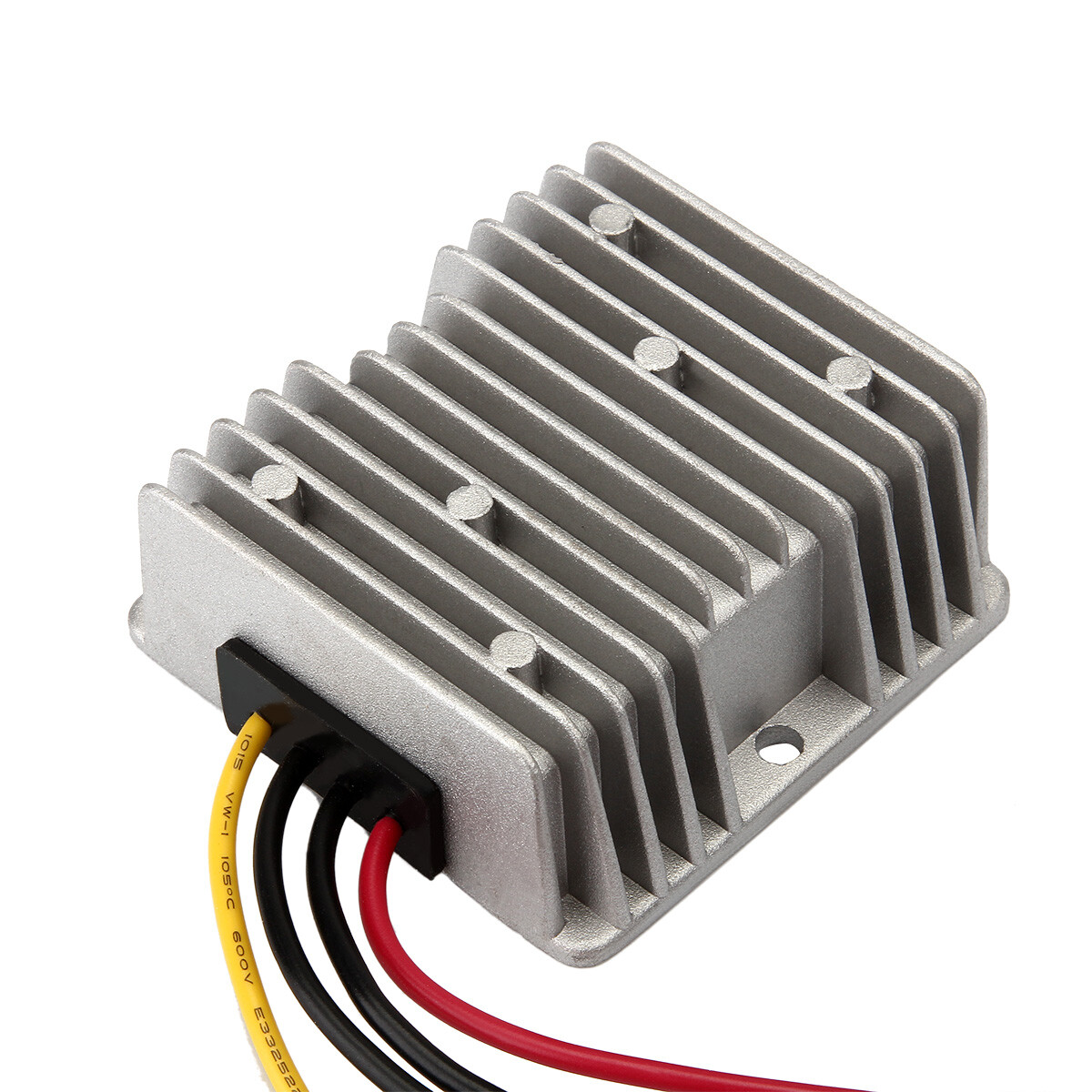

48V to 12V Voltage Reducer DC to DC 10A 120W Converter Regulator Waterproof
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | Does not apply |

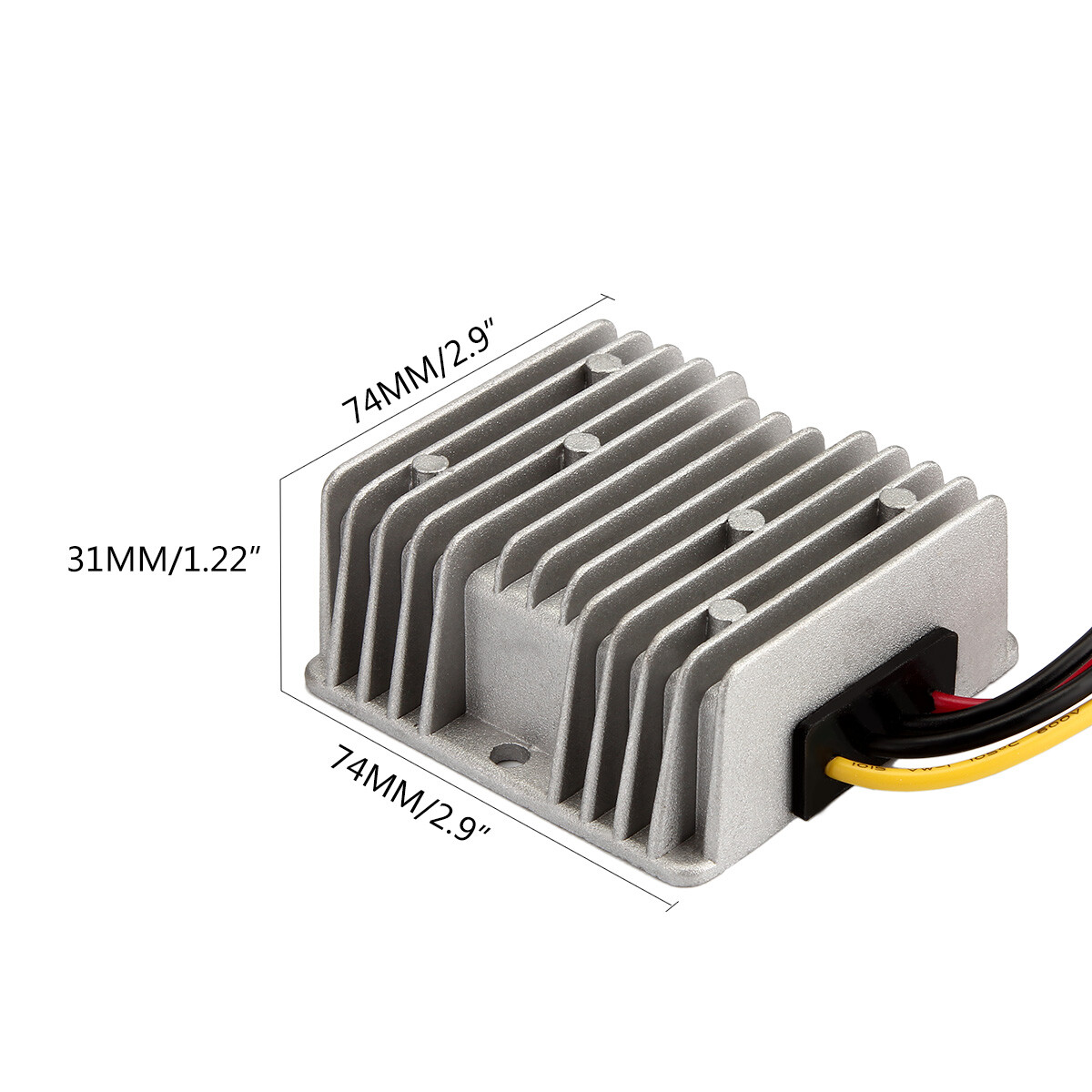

| Item Width | 2.9'' |
| Protection Properties | Low Voltage Protection |
| Series | Step Down Converter |
| Item Height | 1.22'' |
| Current Conversion | DC to DC |
| Nominal Voltage Rating (DC) | 48 V |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Country/Region Of Manufacture | China |
| Ripple & Noise | 50 mV |
| Plug Type | Step Down Converter |
| Maximum Operating Temperature | 80 °C (176 °F) |
| Output Power | 120W |
| Input Range | 30V to 60V(36V/48V) |
| Conversion Direction | Step-Down |
| Input Voltage | 48V nominal |
| Nominal Power Rating | 120 W |
| Nominal Current Rating | 10 A |
| Output Voltage Rating (DC) | 12 V |
| Brand | SUPERNIGHT |
| Inrush Current Rating | 10 A |
| Color | Silver |
| Mounting Style | Stand Alone |
| Item Depth | 2.9'' |
| Installation Area | Indoor/Outdoor |

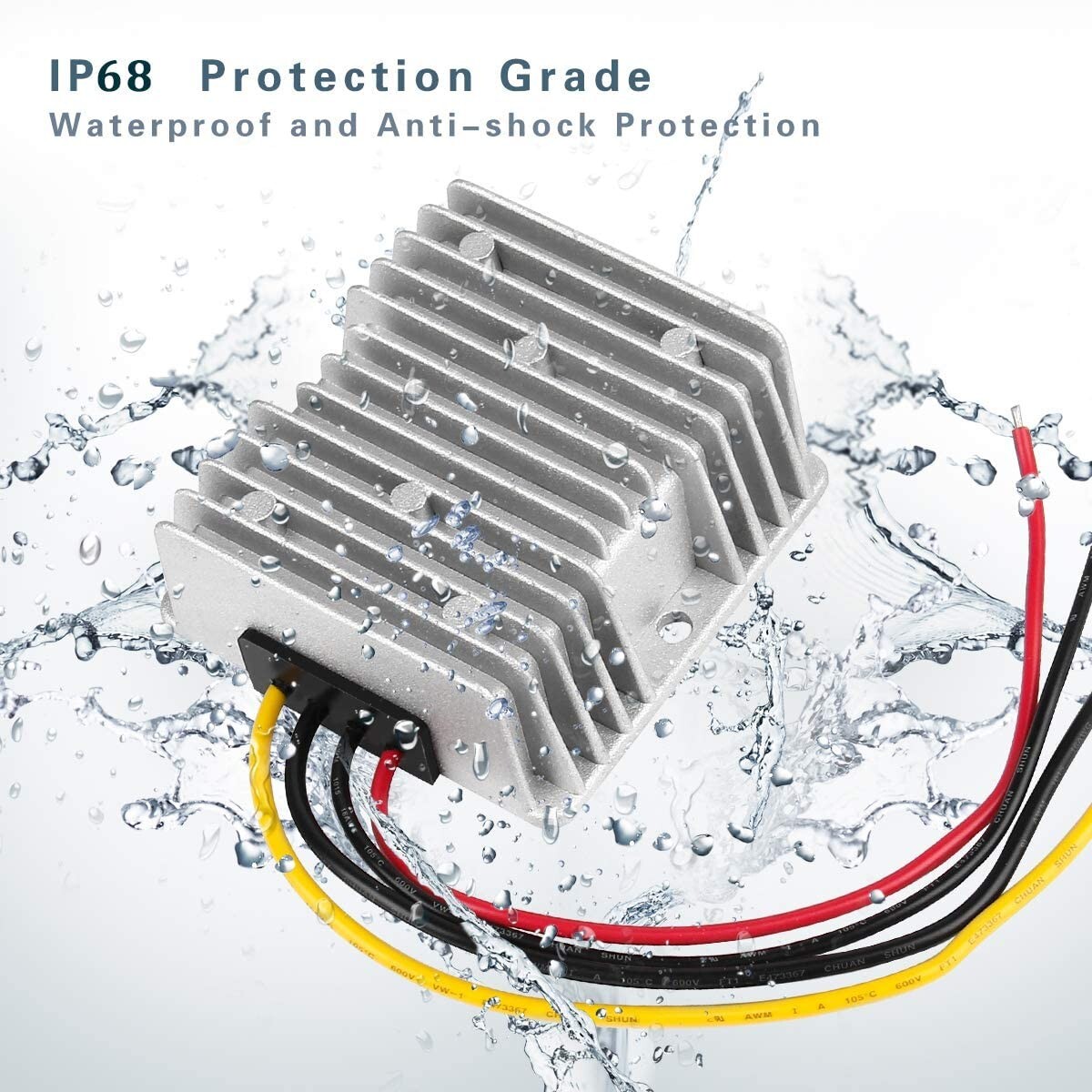

Product Description These dc voltage reducer converters are high reliability power transformers. They feature wide input voltage, low power consumption, high efficiency, high reliability. We provide different power voltage converters for all kinds of application devices. Compact Size Compact aluminium shell with epoxy potting is anti-shock, damp-proof ,anti-dust protections and better heat dissipation Intelligent Protection Assembled with smart chip--has features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection Synchronous Rectification Technology The synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiency IP68 Waterproof Module Better Heat Dissipation Strict glue pouring process is waterproof, moisture-proof, seismic and adapt to a variety of harsh environment. SMT Process FR-4 multilayer lines, resistors, capacitors and switch MOS tube are SMD components with high integration, high reliability, high stability. Notes: It's normal that the case is hot when converter inside temp is over 113℉, converter will protect itself when inside temp is over 185℉. Wide Applications These compact size dc voltage reducer converters are high reliability power transformers. They can work safely and reliability within temperature range -40°C~80°C. Widely used to golf cart, motor, speaker, GPS, LED car display screen, air-conditioner, electric fan, solar energy, photo-voltaic power, DVD, industrial equipment ect. Features Non-Isolated Module Input Voltage: 48V nominal; Input range: 40V to 60V Input Current: 10A (max) ; No-load input current: ≤10mA Output Voltage: DC 12V ±2% ; Output Current: 10A Ripple Wave: 50Mv Starting Delay time: ≤ 2S Efficiency: ≥95% Operating Temperature:-40 ~ 80℃ Weight: 248g / 8.75oz Package Include 1x Voltage Reducer 48V to 12V 10A 120W
